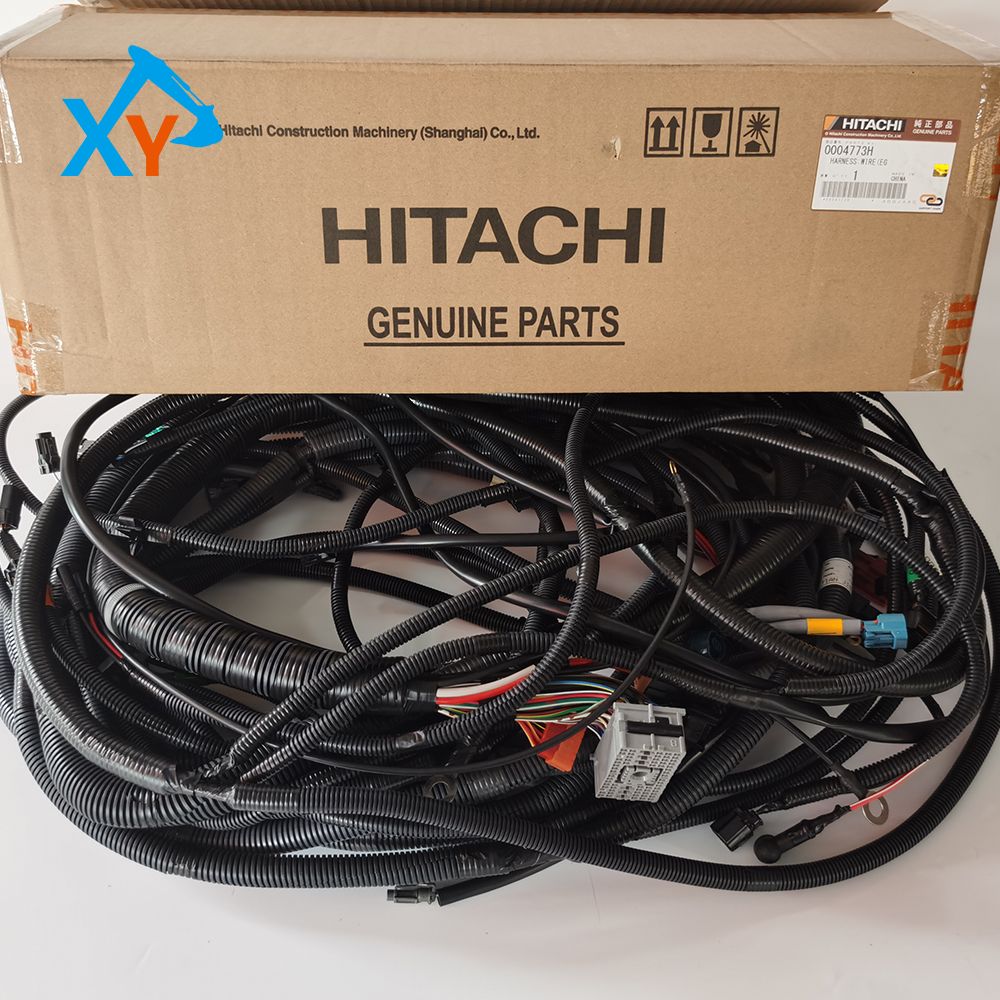

0004773 Genuine Hitachi external wiring harness for Hitachi ZX210 excavator.

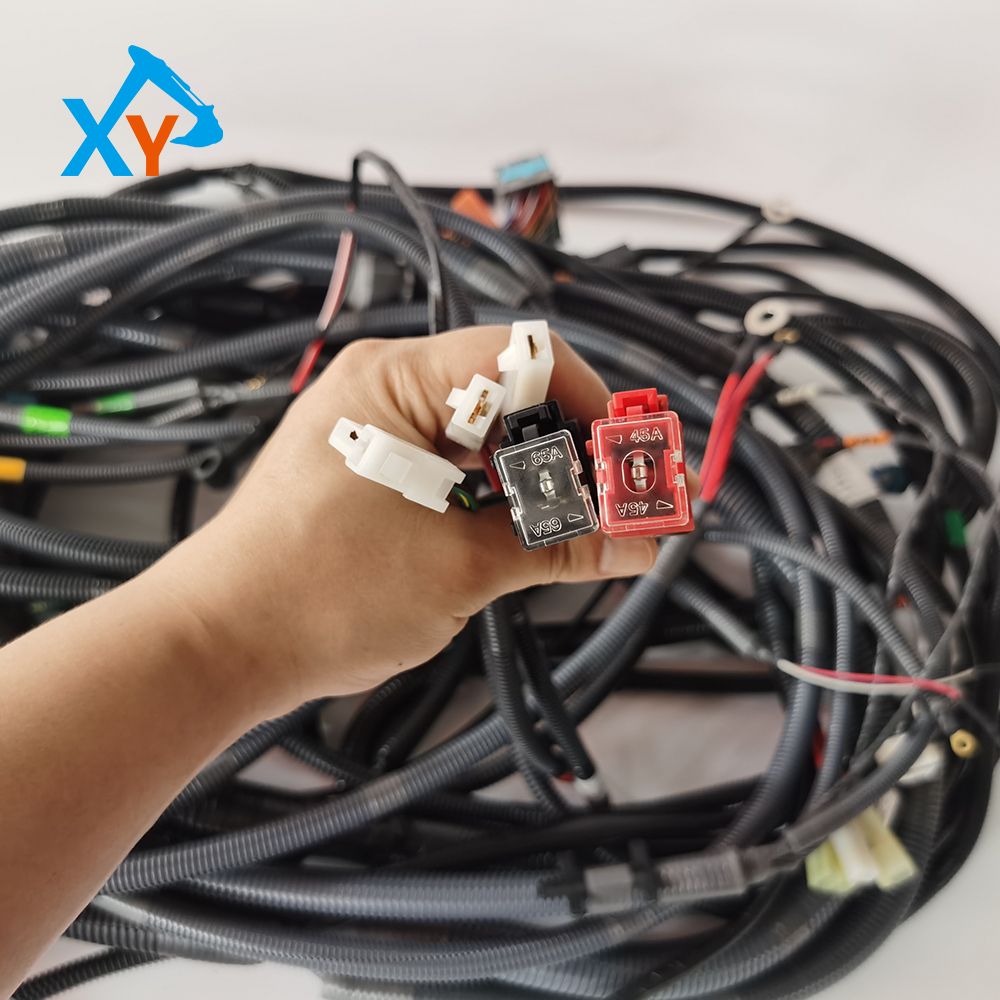

Part number 0004773 is a dedicated external wiring harness assembly for Hitachi ZX200/ZX210 excavators (including early models such as ZX200-1/ZX210-1), compatible with ZX200/ZX210 and models on the same platform like ZX240/ZX250/ZX270. It is suitable for the electronic control system of Isuzu 4HK1/6HK1 engines, with a rated voltage of DC 24V, a total harness length of about 8.5m, and wire diameter specifications of 0.5-6.0mm² (classified by signal/power/ground). It adopts a flame - retardant PVC sheath (oil - resistant, wear - resistant and weather - resistant), and the terminals are gold - plated crimp - type (contact resistance < 5mΩ), with a protection class of IP67. It integrates external electrical nodes such as engine sensors, solenoid valves, instrument panels and lights, and is compatible with Hitachi original ECM (Engine Control Module), with a signal transmission delay of ≤10ms, ensuring stable power supply and accurate signal transmission of the whole machine's electrical system.

Part number 0004773 is a dedicated external wiring harness assembly for Hitachi ZX200/ZX210 excavators (including early models such as ZX200-1/ZX210-1), compatible with ZX200/ZX210 and models on the same platform like ZX240/ZX250/ZX270. It is suitable for the electronic control system of Isuzu 4HK1/6HK1 engines, with a rated voltage of DC 24V, a total harness length of about 8.5m, and wire diameter specifications of 0.5-6.0mm² (classified by signal/power/ground). It adopts a flame - retardant PVC sheath (oil - resistant, wear - resistant and weather - resistant), and the terminals are gold - plated crimp - type (contact resistance < 5mΩ), with a protection class of IP67. It integrates external electrical nodes such as engine sensors, solenoid valves, instrument panels and lights, and is compatible with Hitachi original ECM (Engine Control Module), with a signal transmission delay of ≤10ms, ensuring stable power supply and accurate signal transmission of the whole machine's electrical system.

Before replacement, disconnect the negative pole of the battery and release the residual power of the system. When disassembling, mark each plug terminal (to avoid wrong connection), remove the wiring harness fixing buckles in accordance with specifications (torque 3-5N·m), and clean the installation path (free of burrs and oil stains). When installing, connect the plugs according to the numbers, fix the wiring harness with cable ties (interval 200-300mm). After connecting the battery, conduct a power - on test (normal sensor signals and smooth actuator actions), and detect the wiring harness insulation resistance (≥10MΩ). This wiring harness can reduce the electrical failure shutdown rate by 60%, reduce the false alarm rate caused by signal interference by 80%, extend the service life of electronic control system components, and improve the operational reliability and maintenance efficiency of the whole machine.
