0004776 Excavator Wire Harness for ZX230

ZX230 excavator wiring harness, part number 0004776. This component is an original wiring harness assembly designed specifically for the Hitachi ZX230 medium-sized hydraulic excavator. It is the main trunk harness or highly integrated cab/engine compartment harness assembly of the entire machine. As the original "nervous system", the pin definitions, wire diameter colors of each connector are precisely matched with all electronic control units (ECU, sensors, actuators) of the equipment

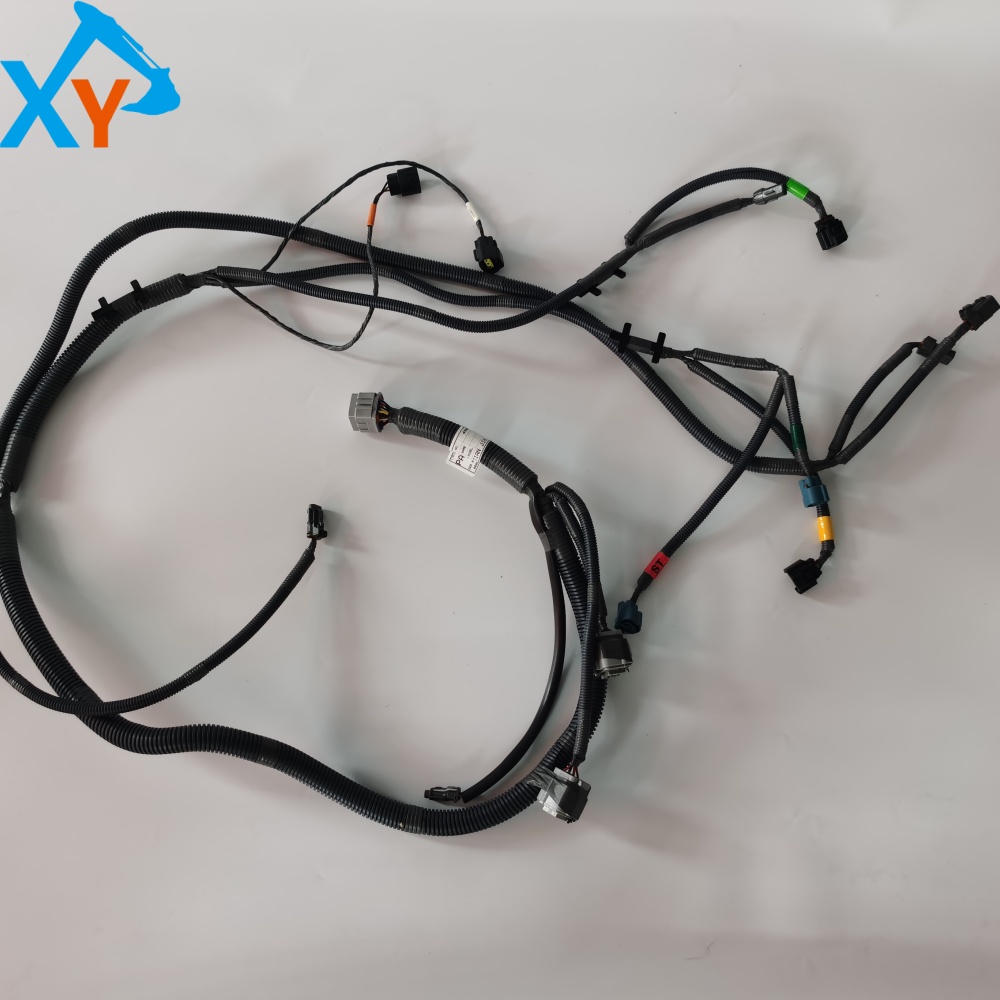

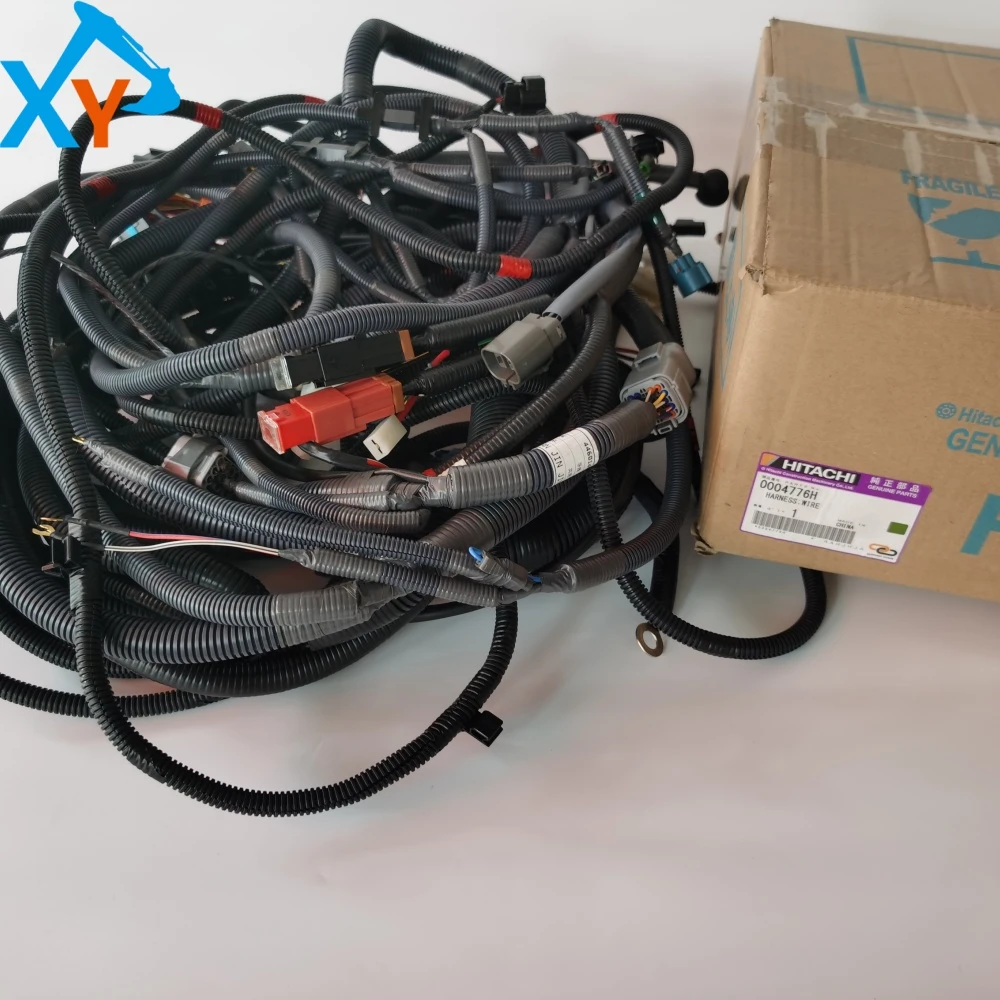

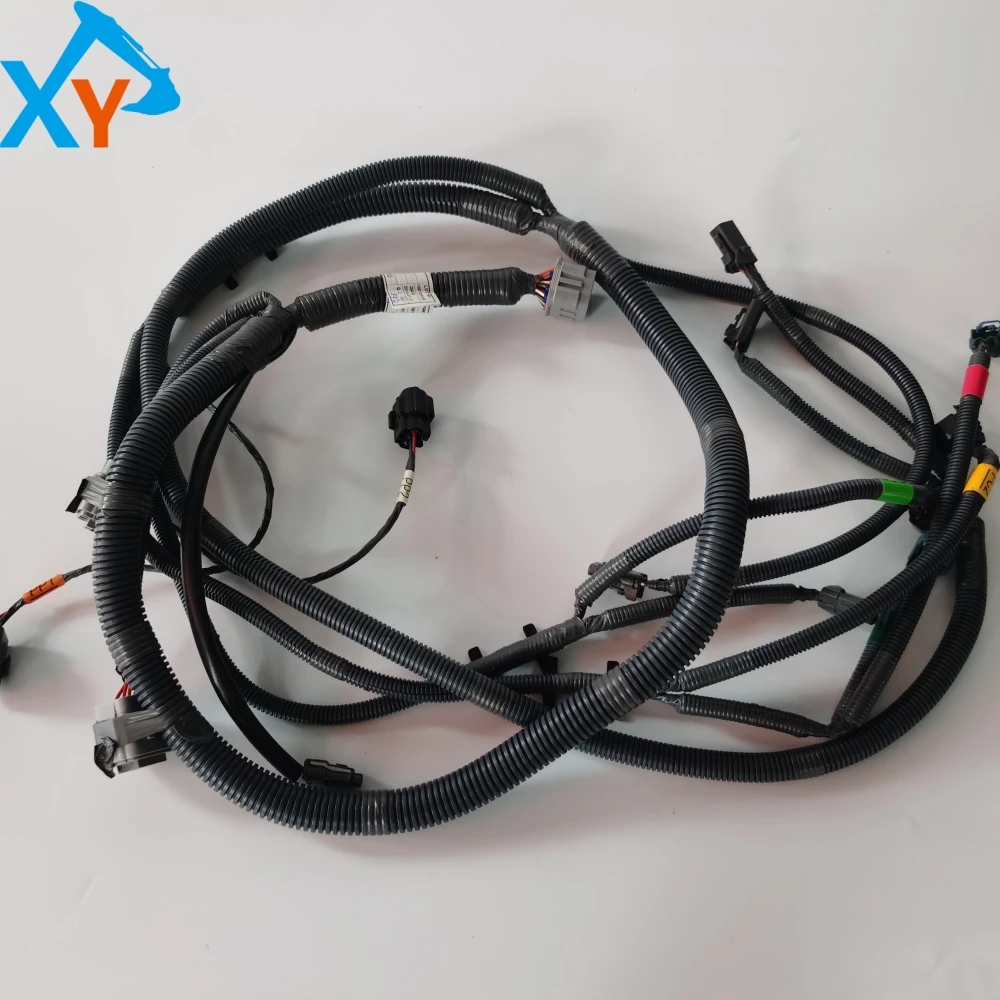

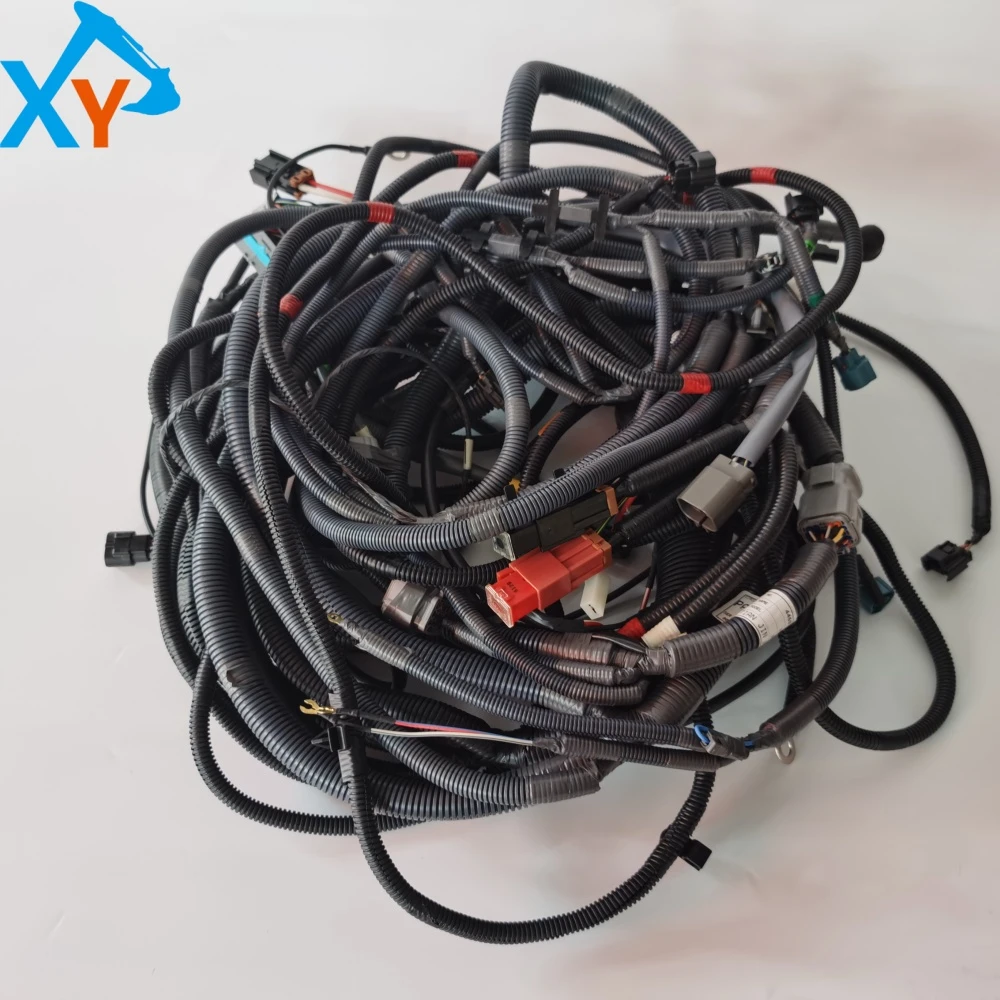

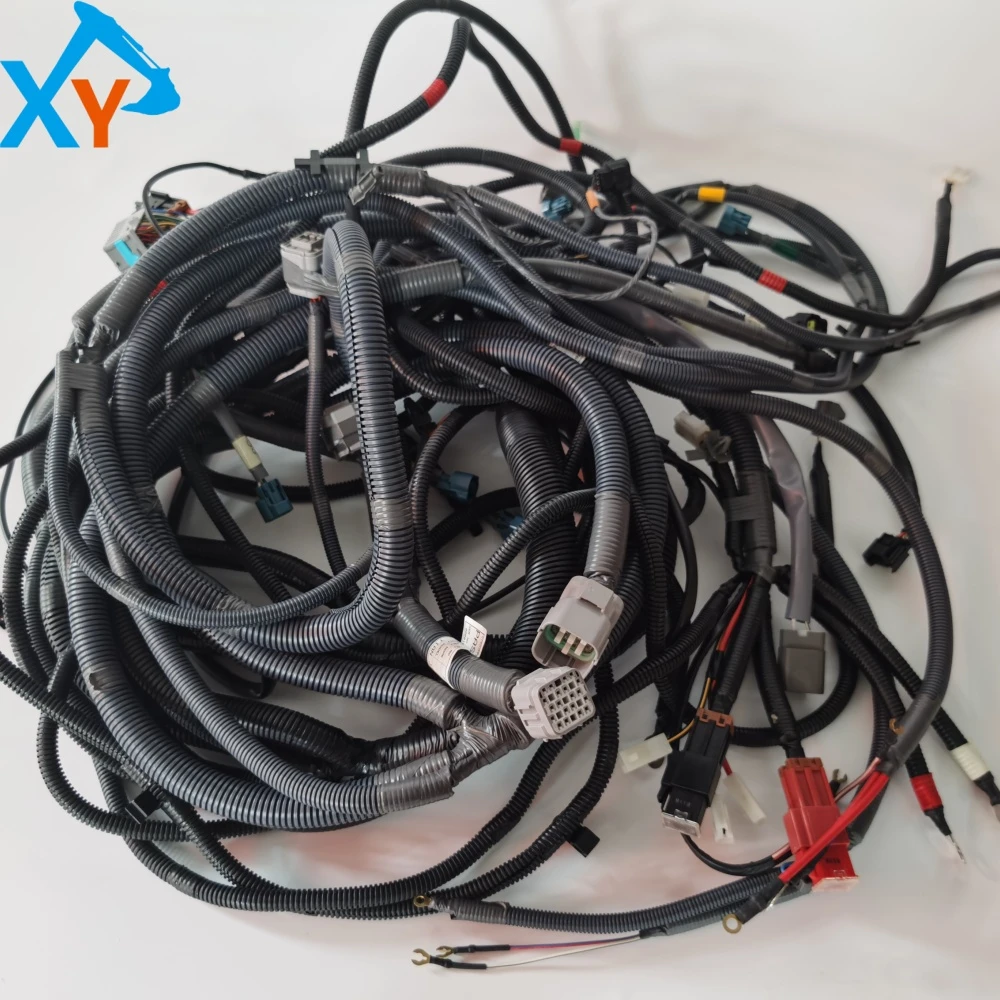

This product is a fully covered, multi branch integrated wiring harness assembly for the entire vehicle. The main body is composed of a large number of black oil resistant and high-temperature resistant wires integrated, and the outer part is wrapped with high-strength black spiral corrugated pipes, providing top-level wear resistance, compression resistance, waterproof, dustproof, and anti vibration capabilities. It is designed specifically for harsh working conditions of excavators. A large number of plastic waterproof connectors of different colors and specifications (such as red, blue, white, and gray in the picture) are separated at the end of the wire harness, and this differentiated design is the core feature of the original factory's anti misconnection.

Inspection and replacement: When multiple unrelated electrical faults occur in the equipment, there are burn marks on the wiring harness, the corrugated tube is broken, or the joint is corroded extensively due to water/oil ingress, this main wiring harness problem should be suspected. Replacement timing: Once the internal damage of the wiring harness is confirmed, it needs to be replaced as a whole. Caution: It is strictly prohibited to operate without power off; Moisture and pressure resistance are required during storage to protect the joints.
