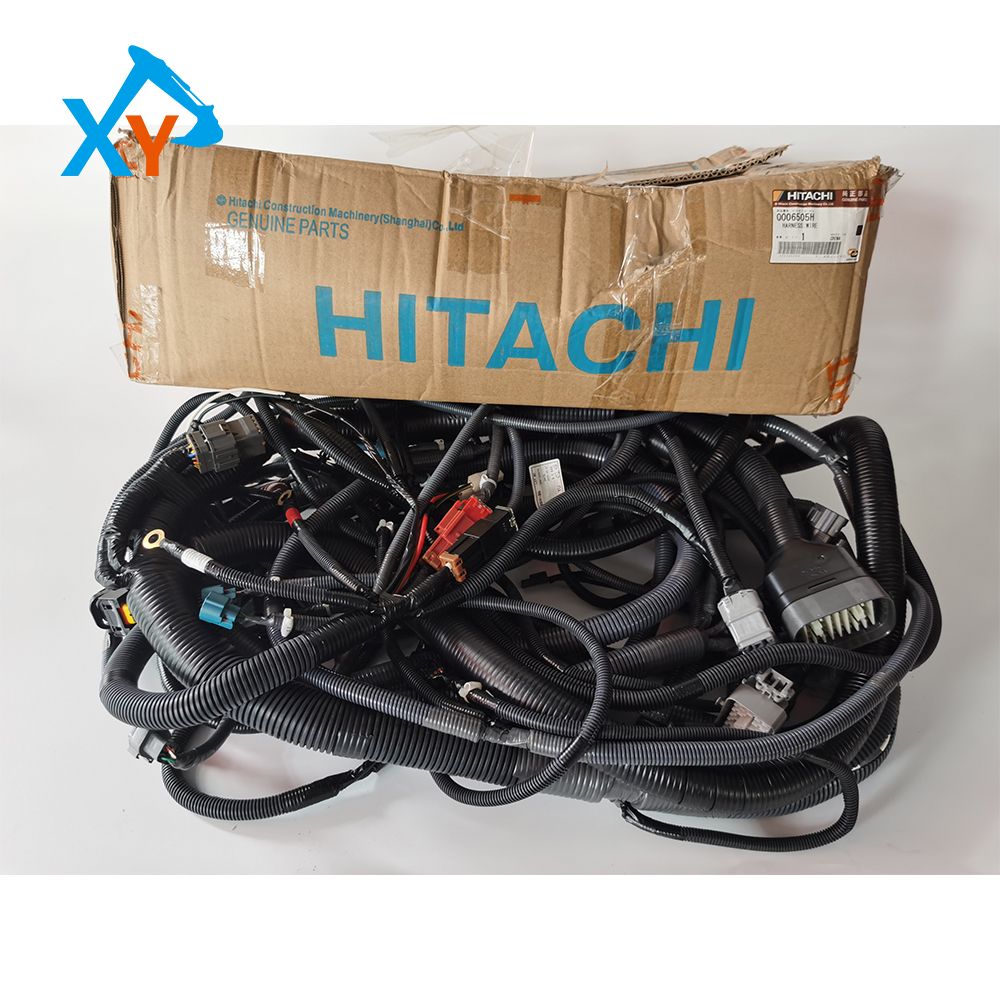

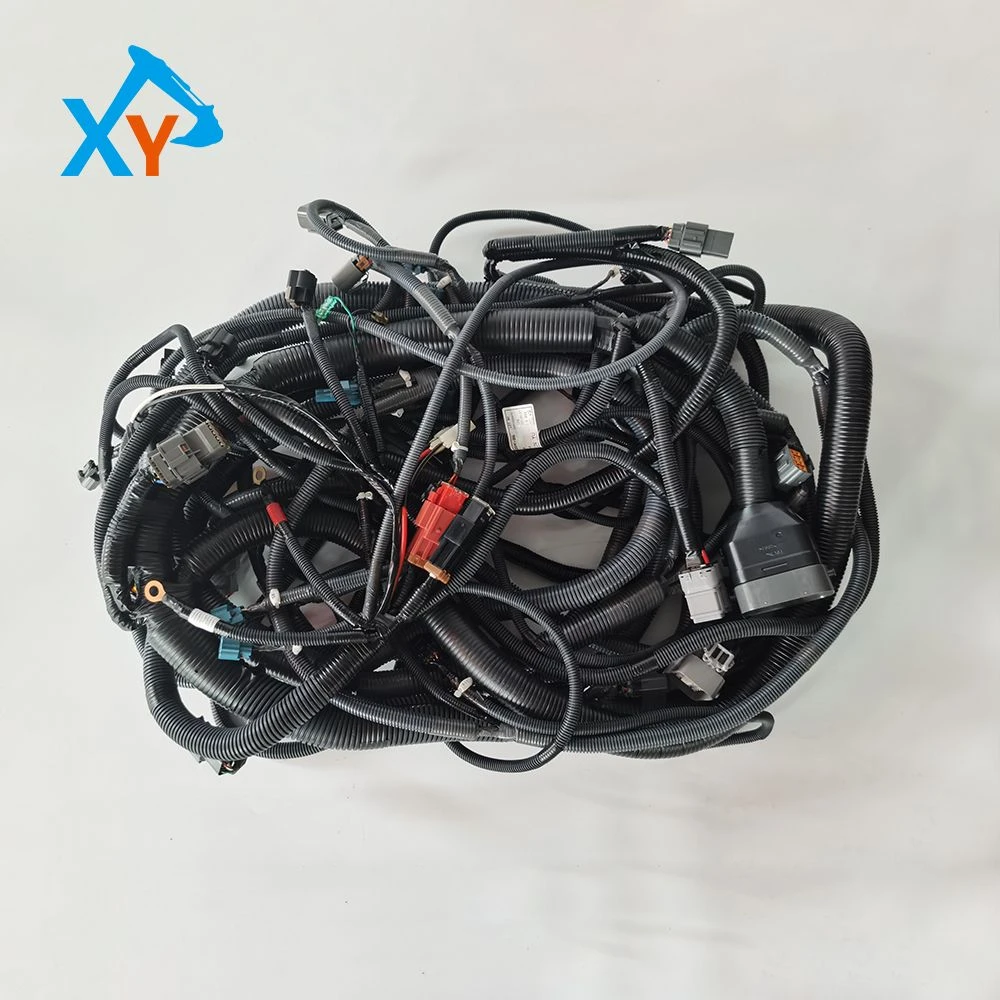

0006505 Genuine Hitachi external wiring harness for Hitachi ZX330-3 excavator.

Part number 0006505 is a dedicated cab wiring harness (including hydraulic pump control branch) for Hitachi ZX330-3 excavators, compatible with ZX330-3/ZX330-3F/ZX330-3-HCMC and models on the same platform such as ZX350-3/ZX360-3/ZX400LCH-3. It is suitable for Isuzu 6HK1 engines and original hydraulic pump electronic control systems. The total length of the wiring harness is about 8.2m, with wire diameters ranging from 0.5mm² to 2.5mm² (classified into signal/power/ground). It adopts copper core conductors (conductivity ≥98%) and PVC insulation layers (oil - resistant, wear - resistant, temperature - resistant from - 40℃ to 105℃). The terminals are tinned copper alloy (plug - in life ≥500 times), and the plug has an IP67 protection rating. It integrates 32 - channel signal paths such as instrument panel, seat, air conditioner, wiper and pilot valve, with a rated working voltage of DC24V and an insulation resistance of ≥100MΩ, ensuring stable communication and power supply of the cab electrical system.

Its core function is to integrate the signal and power supply links between all electrical components (instrument panel, switches, sensors, actuators) in the cab with the vehicle body ECU and hydraulic pump controller. It includes a hydraulic pump proportional valve control branch (outputting 0.8-3.5MPa pilot pressure signals), supporting functions such as engine speed adjustment, working mode switching and fault diagnosis. The wiring harness adopts a segmented shielding design (anti - electromagnetic interference, signal - to - noise ratio ≥80dB), corrugated pipe protection (anti - vibration and wear), and key nodes are sealed with heat - shrinkable tubes. It is suitable for working conditions with heavy dust, vibration and large temperature differences (operating temperature - 40℃ to 105℃), with an average service life of ≥10000 hours. It is equipped with short - circuit/overload protection (fusing current 5-30A graded) to prevent electrical components from burning.

Before replacement, disconnect the negative pole of the battery and release the pressure of the hydraulic system. When disassembling, mark the plugs according to the serial numbers (to avoid wrong connection), remove the wiring harness fixing buckles/bolts with a torque of 5-8N·m, and clean the installation path (free of oil stains and sharp burrs). When installing, route the wires according to the original factory route, with the spacing between fixing buckles ≤300mm. Apply conductive paste to the plugs (to reduce contact resistance), and tighten the bolts with symmetrical force (5-8N·m). After installation, perform a continuity test (no short - circuit/open circuit), insulation test (≥100MΩ) and function test (normal operation of the instrument panel, lights and pilot valve). This wiring harness can reduce the electrical failure shutdown rate by 80%, reduce abnormal actions caused by signal interference, improve the reliability of the cab electrical system, extend the service life of the hydraulic pump and electronic control components, and reduce maintenance costs.
