2052445 Original Excavator Harness Wire for ZX450-3

Part number 2052445, this is the original main harness or critical subsystem harness specially designed by Hitachi for the ZX450-3 large hydraulic excavator. Its universal model is usually the part number itself, specifically designed for the ZX450-3 model. The complex structure judgment of coiled state, multiple types of connectors (brown, black), and colored wires makes this harness the core backbone harness or integrated control harness that connects the main controller (MC), engine ECU, various sensors, and pilot control unit of the entire machine. As the original "neural network hub", the pin definition, wire color sequence, and length of each connector are precisely designed

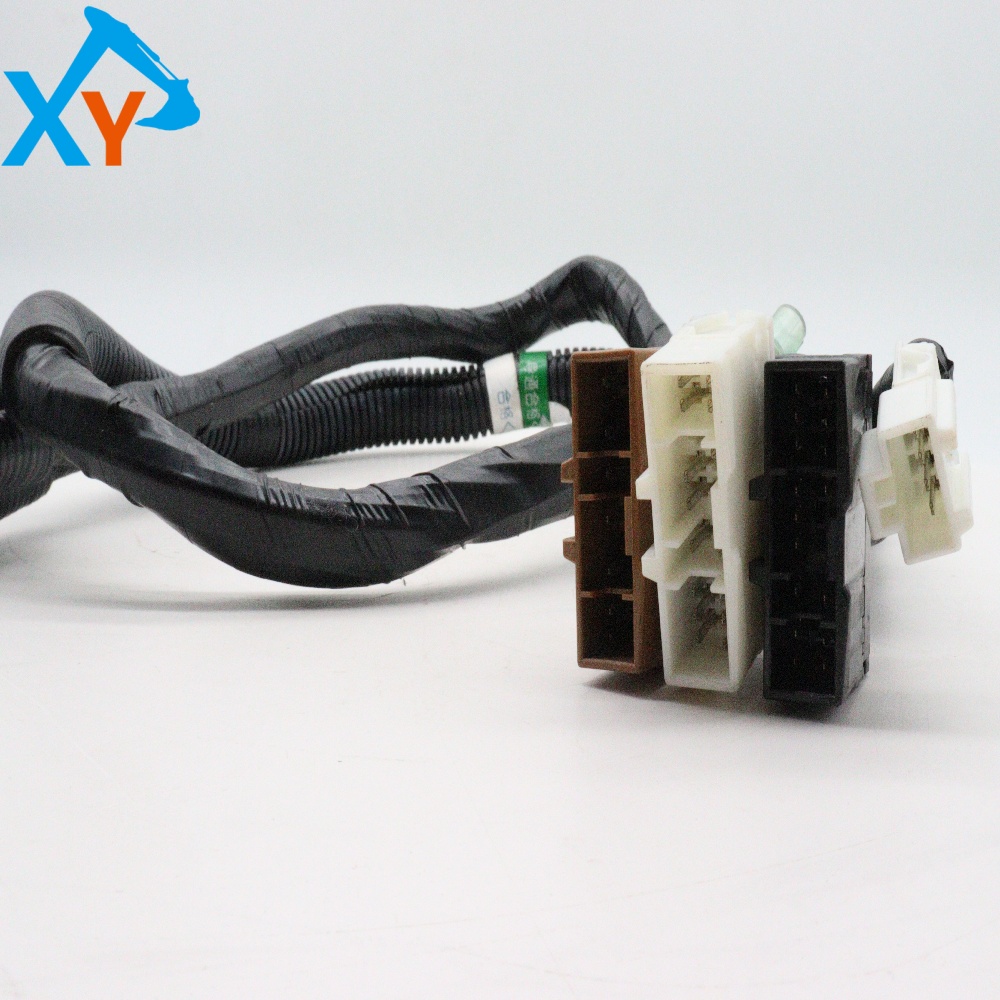

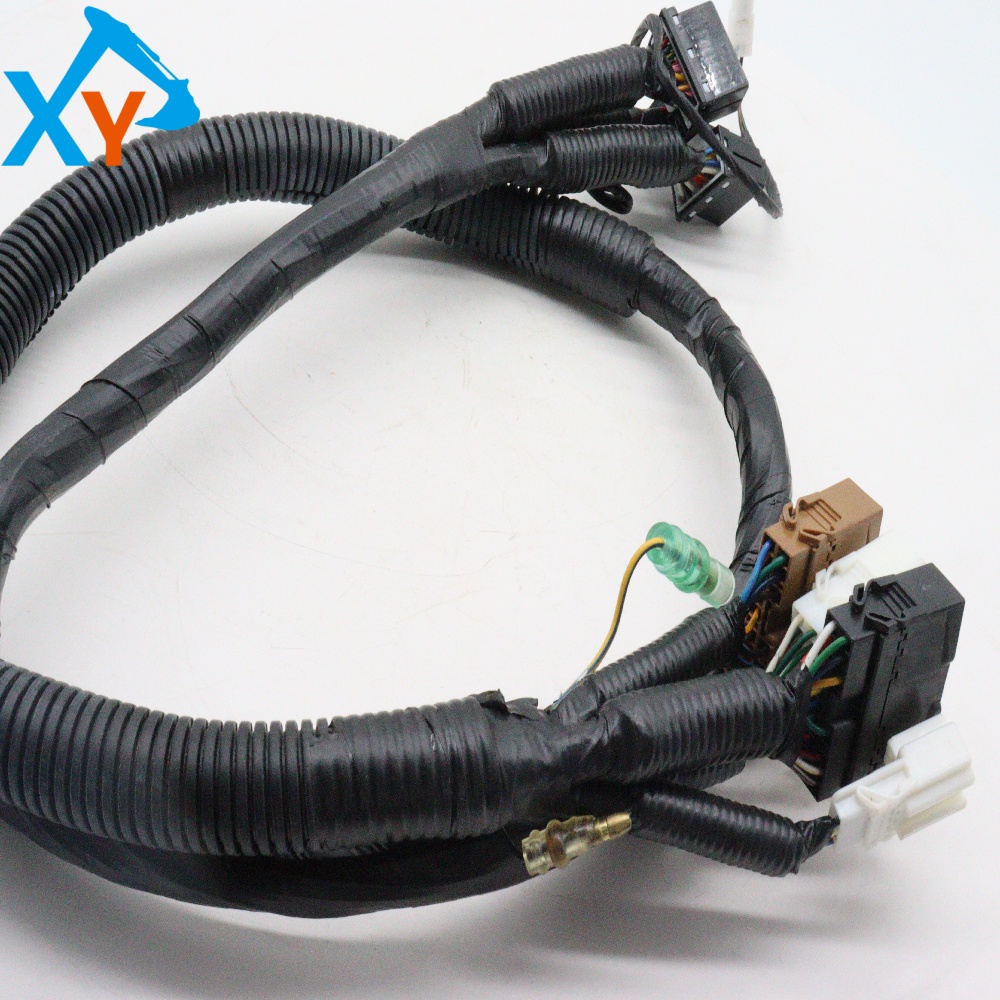

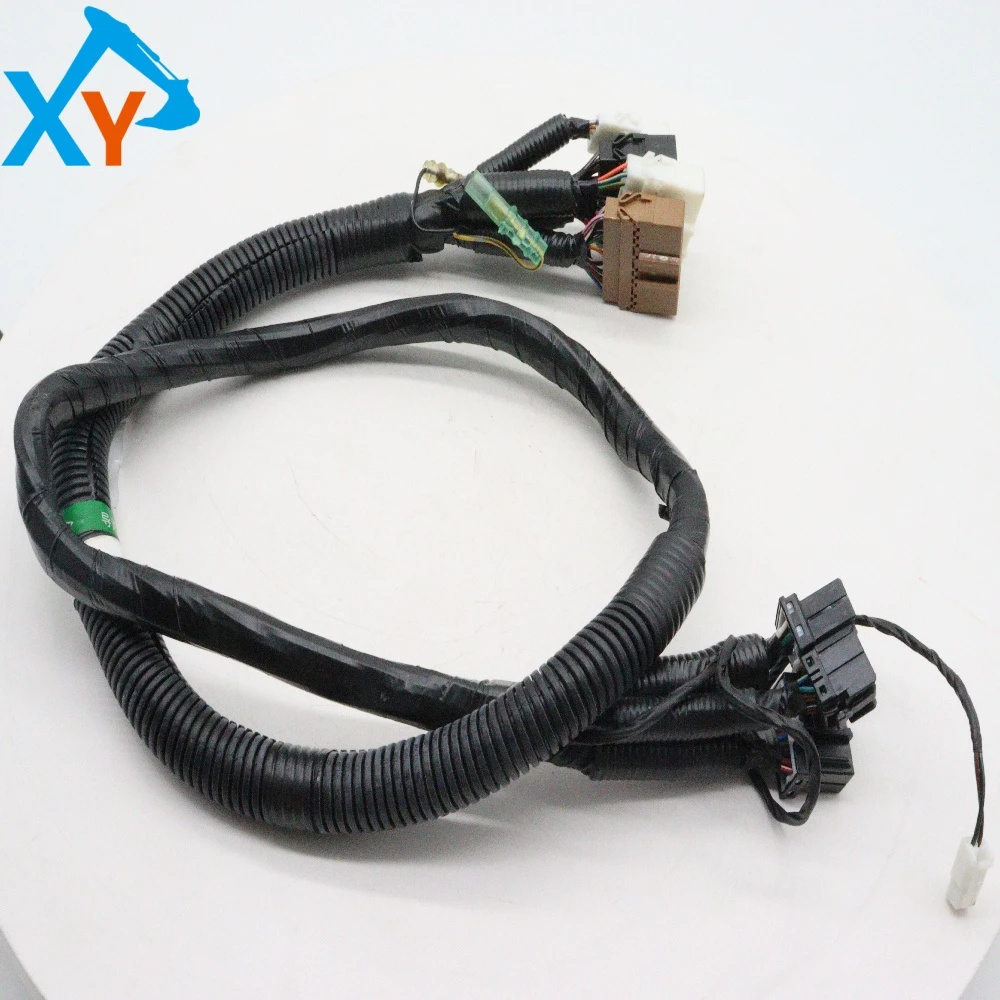

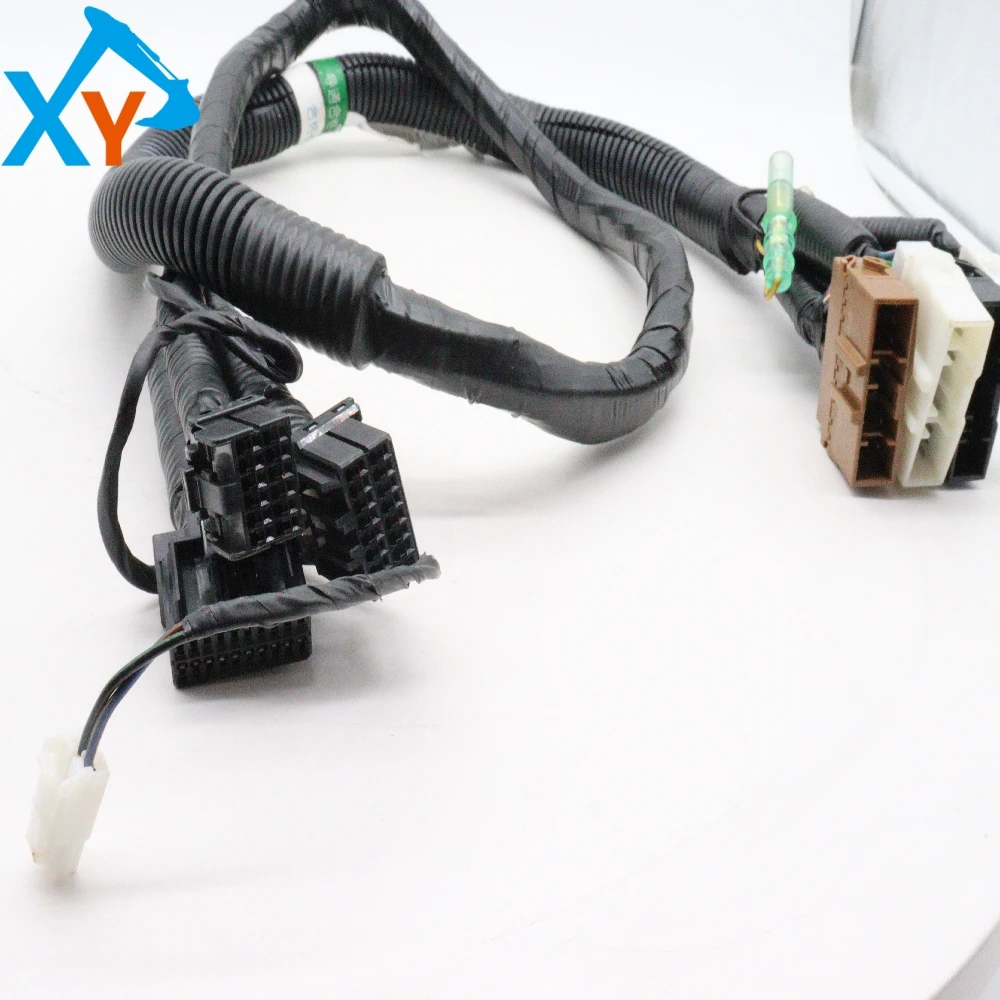

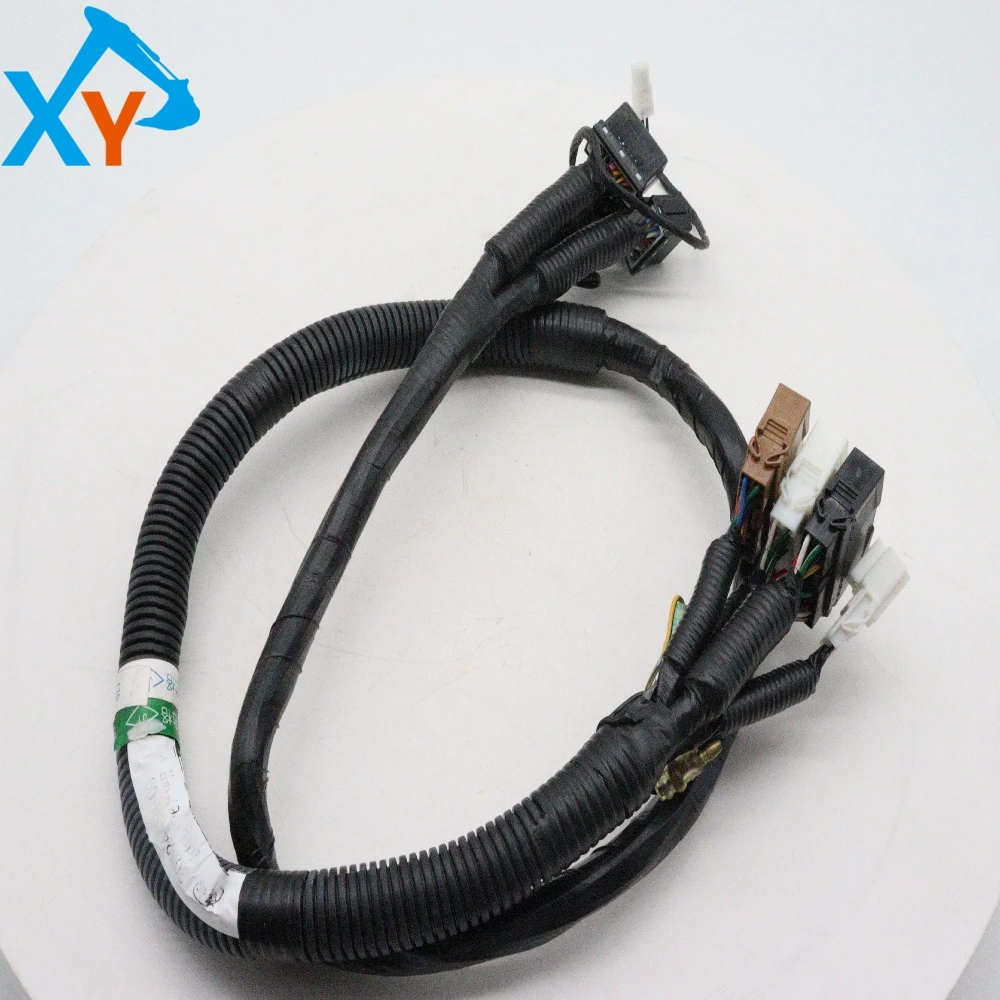

This product is a multi branch integrated main wire harness assembly. The main body of the harness is a coiled black oil and high temperature resistant wire harness, and key parts may be covered with wear-resistant corrugated tubes or woven mesh. One end of the wiring harness integrates multiple plastic connectors of different colors and specifications (such as brown and black in the picture), which are designed to prevent accidental insertion and correspond to different functional control modules. The exposed colored wires follow the original factory standard color code for easy circuit identification and maintenance. Its core function is to build a stable and reliable signal transmission and power supply channel between all core electronic control units in the complex electronic control system of ZX450-3, which is the physical basis for achieving intelligent control, fault diagnosis, and efficient operation of the whole machine.

Installation and wiring (safety and precision are key): 1 Absolute power outage: Before operation, be sure to disconnect the negative terminal of the battery and wait for more than 10 minutes. 2. Alignment installation: When dismantling the old wiring harness, be sure to take photos or draw diagrams of the connection positions of each joint. When installing the new wiring harness (2052445), strictly follow the original vehicle path and records, accurately plug each uniquely colored and shaped connector into the corresponding control module interface, and ensure that the lock is in place. 3. Standardized fixing: Use the original vehicle cable clip and bracket to lay and firmly fix the wire harness smoothly and without tension, ensuring a safe distance from any moving parts, high-temperature surfaces, or sharp edges to prevent wear and tear.
