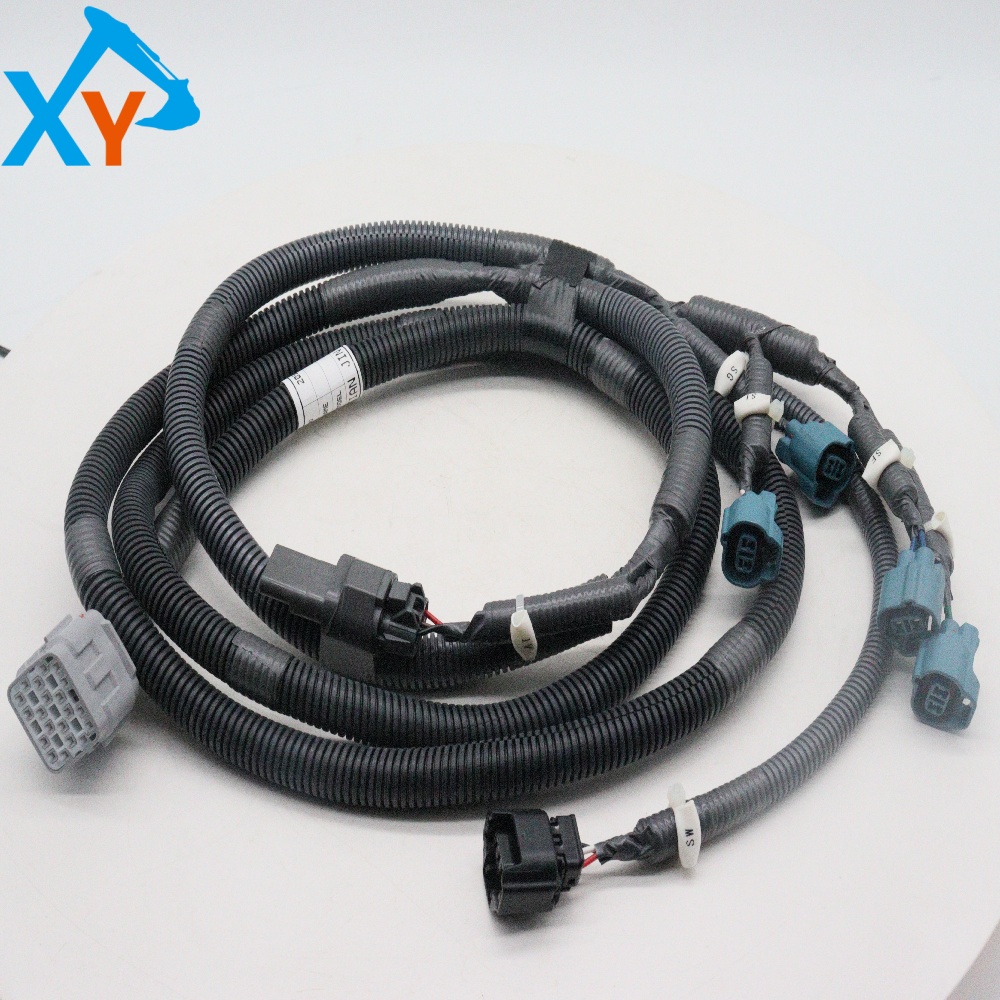

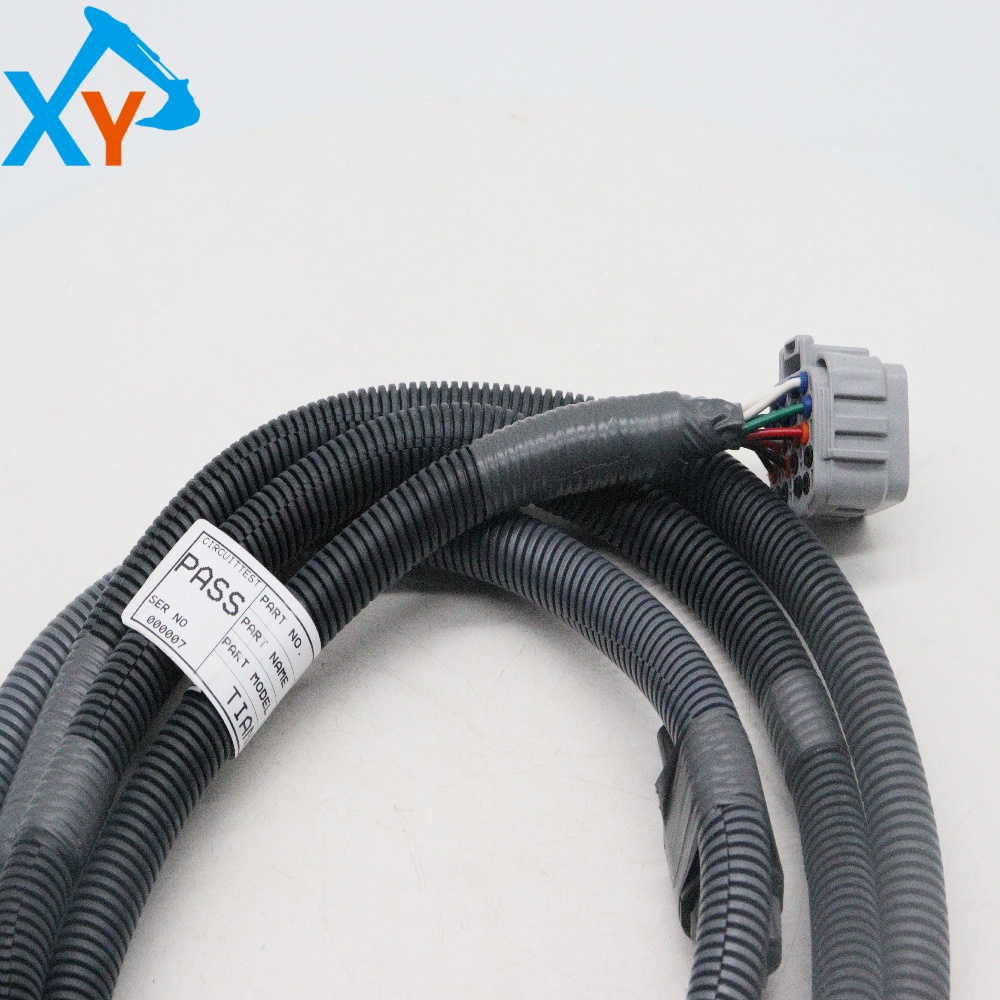

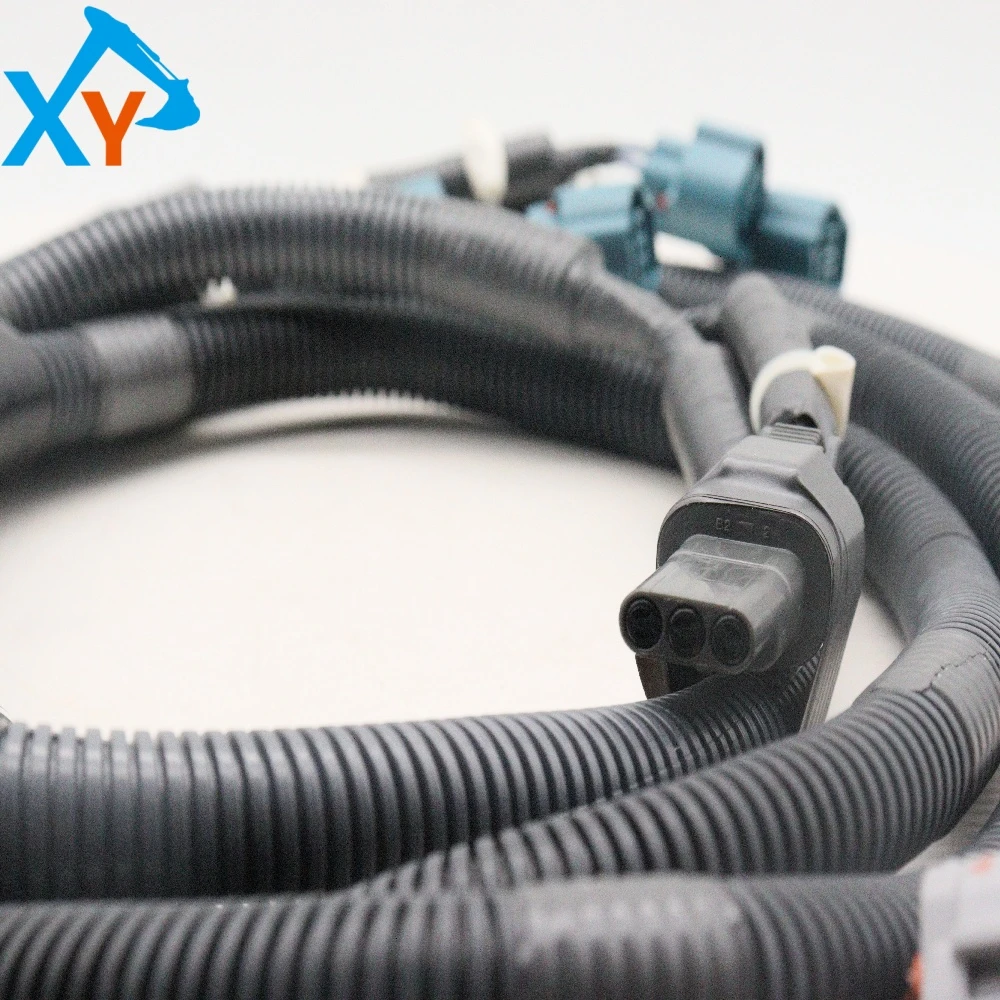

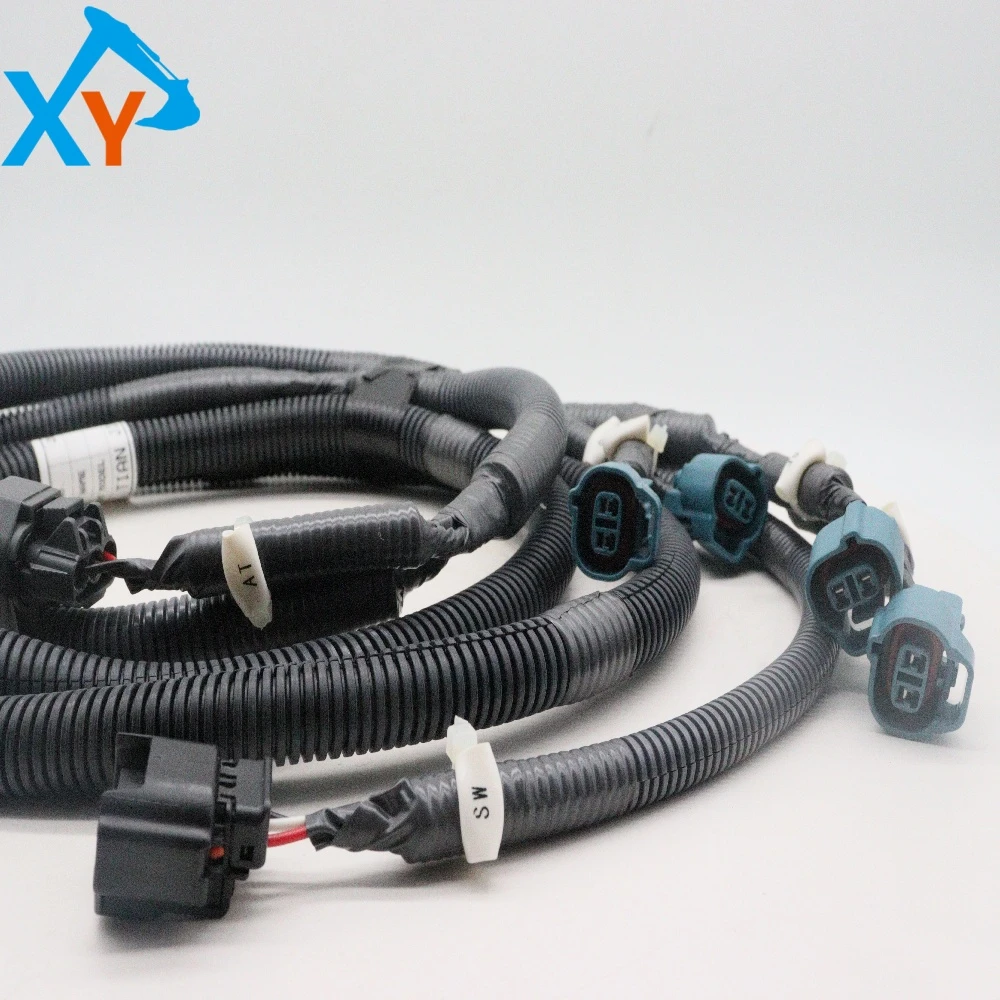

2052446 Original Excavator Wire Harness for ZX450-3

Part number 2052446 is the original wiring harness assembly provided by Hitachi for excavators such as ZX450-3. This component is the "neural network" of the entire electrical system, responsible for connecting the engine ECU, hydraulic pump controller, various sensors, actuators, and cab operating units to ensure reliable transmission of electronic control signals and power supply. As a large model of the ZAXIS-3 series, the ZX450-3 has a complex and specialized wiring harness system. As an original precision component, its wire cross-sectional area, insulation level, connector terminal material, and waterproof level are strictly matched with the electrical load and working environment of the entire machine

This product is a multi branch, fully covered wiring harness assembly, wrapped in insulation material that is resistant to high temperature, oil, and wear. Key parts are protected by corrugated pipes or woven mesh. Its core function is to provide stable power and grounding for the entire vehicle's electronic control unit, and transmit various analog/digital control signals (such as throttle signals, pressure sensor signals, solenoid valve drive signals, etc.). As an original component, its wire diameter, color coding, connector locking structure, and shielding treatment all comply with Hitachi's strict electrical specifications, ensuring long-term reliable operation under harsh working conditions such as excavator vibration, humidity, and oil pollution.

Inspection and replacement: When multiple unrelated electrical faults occur (such as abnormal sensor signals, solenoid valve failure, instrument display garbled characters), the wiring harness has a burning smell, is damaged, or the connector is corroded by water, it should be suspected that the wiring harness is aging or damaged. Simple inspection method: visually inspect the outer skin of the wiring harness for cracks and wear; Shake the wiring harness and observe whether the fault occurs intermittently; Measure the conductivity and short circuit to ground/power of critical circuits with a multimeter. Attention: It is strictly prohibited to plug or unplug any electronic control unit connector without power off; Moisture and pressure resistance are required during storage; When replacing the wiring harness, it is recommended to check or clean all relevant sensor and actuator interfaces simultaneously.
