2053073 Original Excavator Wire Harness for ZX200-5G

Part number 2053073 is the original wiring harness assembly specially designed by Hitachi for the ZX200-5G hydraulic excavator. This wiring harness is a specialized power and signal harness for the driver's cabin ceiling lights, work lights, or external lighting systems of the entire machine. Its universal model usually covers models on the same platform as ZX200-5G, and may also be applicable to 5G series devices such as ZX200-5A and ZX210-5G with the same electrical layout. As the original "nervous system", the pin definition, wire diameter color, and length of each connector are perfectly matched with the corresponding lighting fixtures and body control module (BCM)

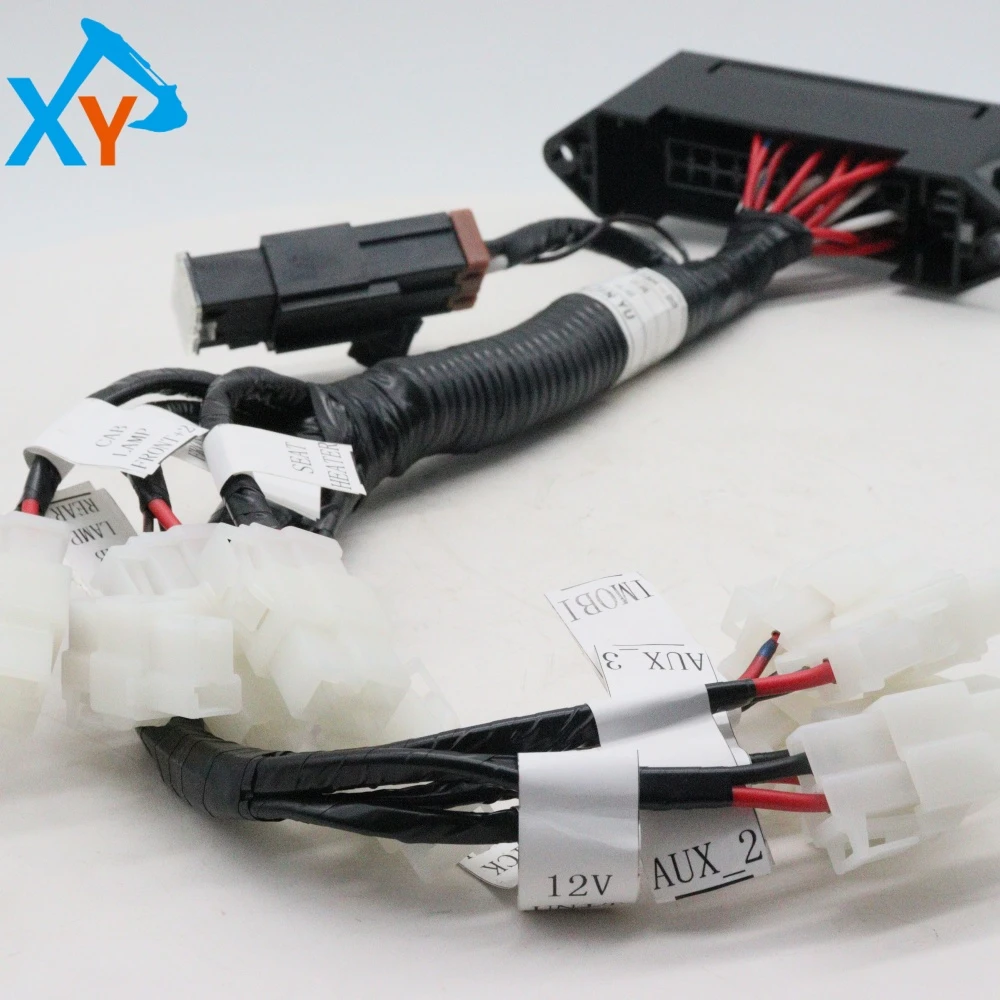

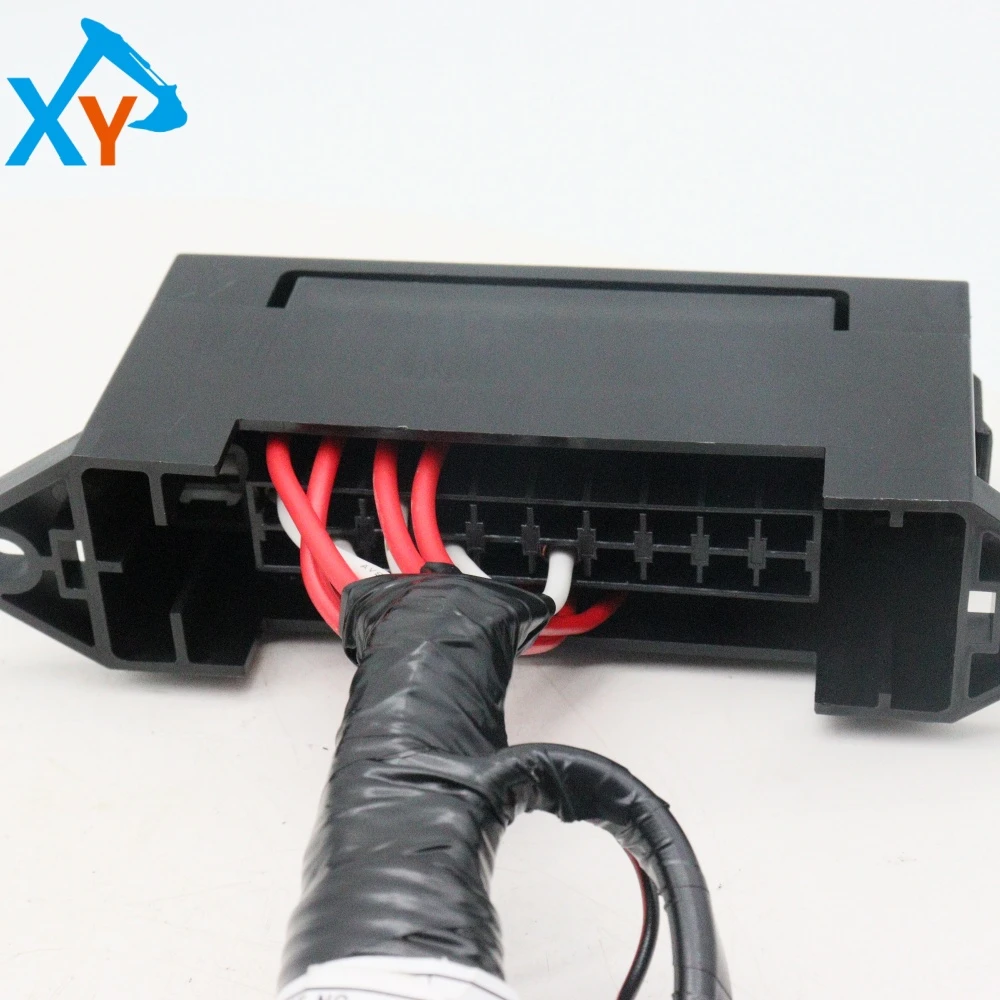

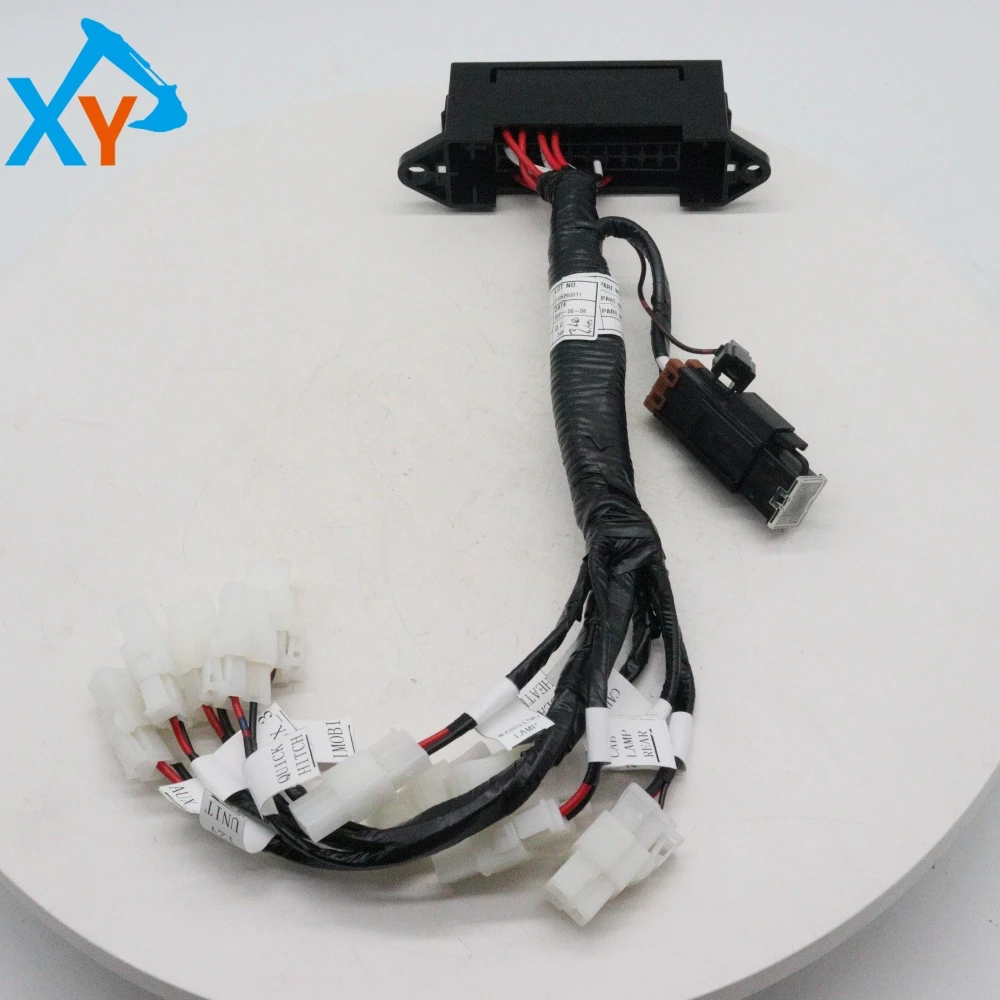

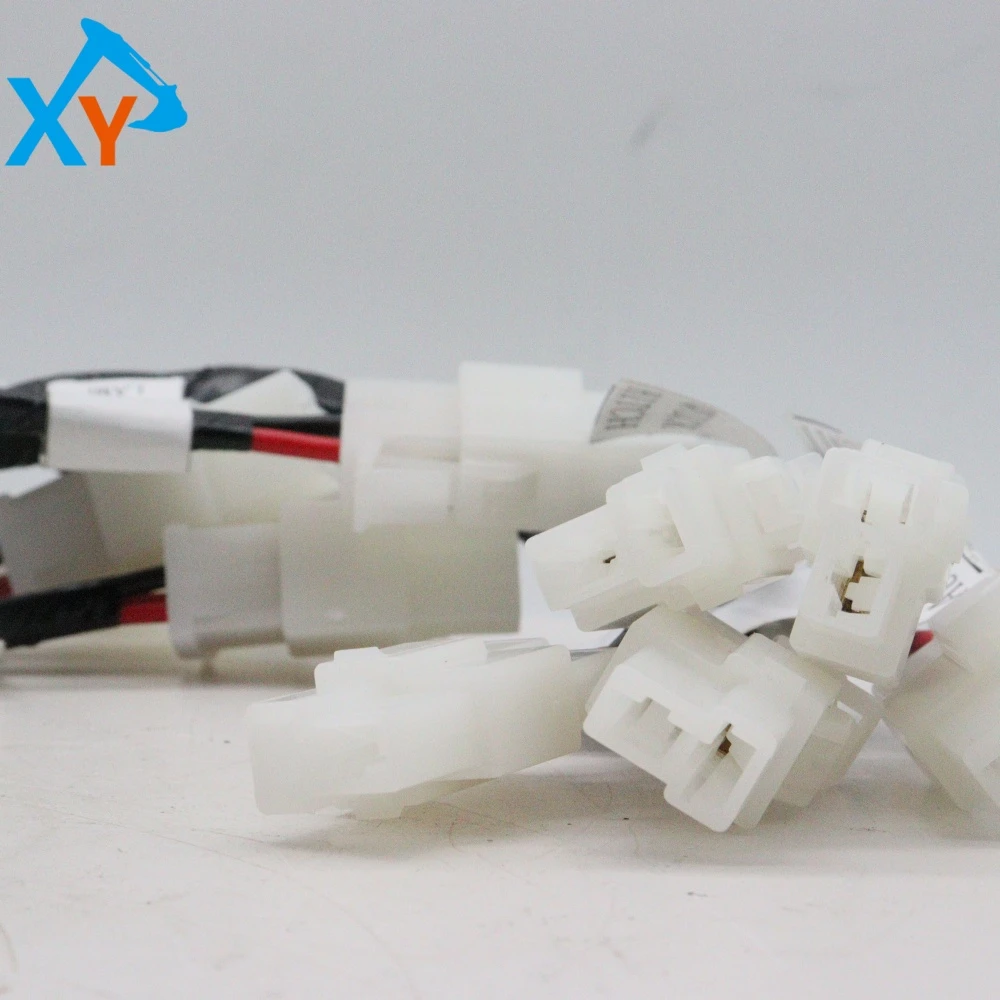

This product is a wiring harness for the entire vehicle area with prefabricated connectors. The main body of the harness is a black oil and high temperature resistant wire, and key parts are covered with black corrugated tubes to provide excellent wear and bending protection. One end is an integrated black large multi pin waterproof plug (visible in the picture), used for centralized connection with the main controller or power supply; On the other end, multiple wires with independent white connectors are branched out, and each connector is labeled with a clear identification tag, which is the core feature of original parts for easy installation and maintenance. The "HITACHI" trademark and "IP65" protection level on the plug and label directly prove its pure identity and ability to work reliably in dusty and splashing environments of excavators.

Installation and connection: 1 Power off operation: Before installation, be sure to disconnect the negative terminal of the battery. 2. Alignment installation: When disassembling the old wiring harness, pay attention to the position of each connector label. When installing the new wiring harness (2053073), strictly follow the label instructions and plug each white connector into the corresponding light fixture interface, ensuring that it is plugged in properly and hearing a "click" sound from the lock buckle. Then firmly connect the main black plug to the corresponding interface of the vehicle body. 3. Standardized wiring: Lay along the original vehicle path, use existing buckles to fix, and ensure that the wire harness, especially the corrugated pipe part, does not interfere or rub with any moving parts or high-temperature parts.
