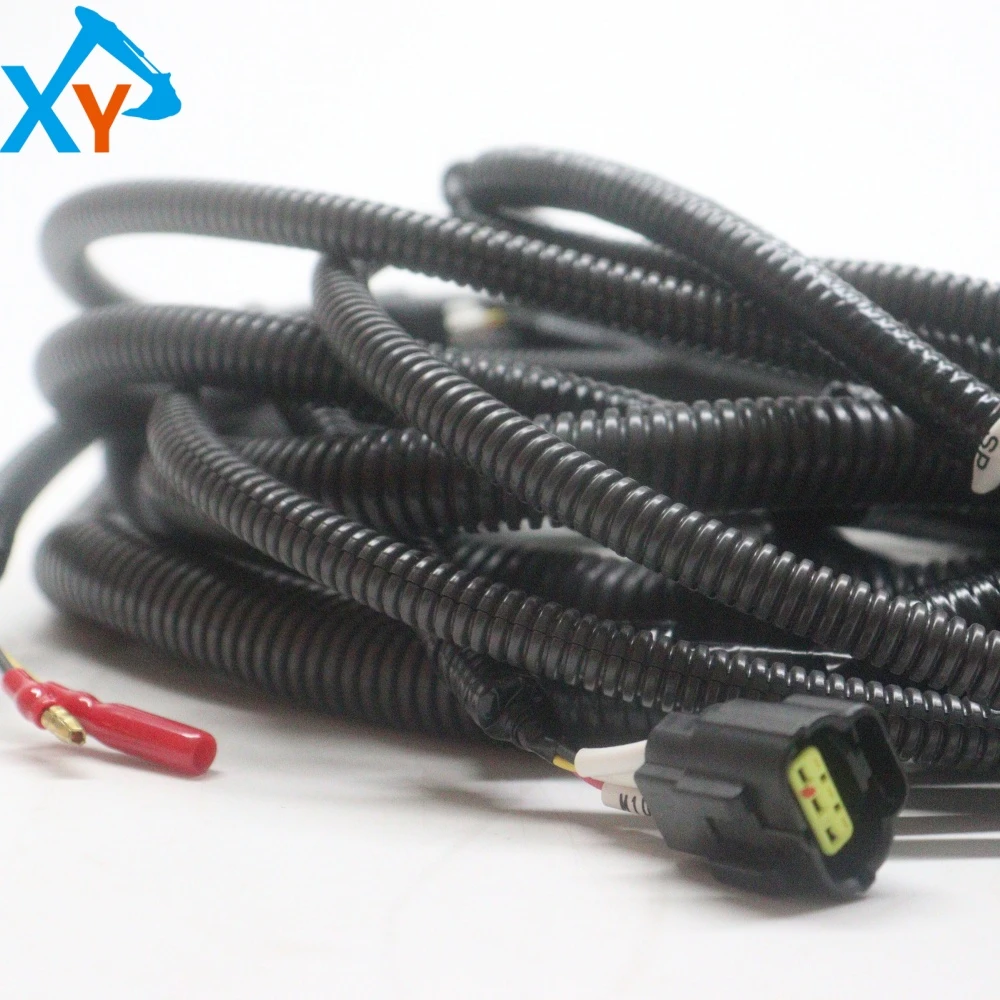

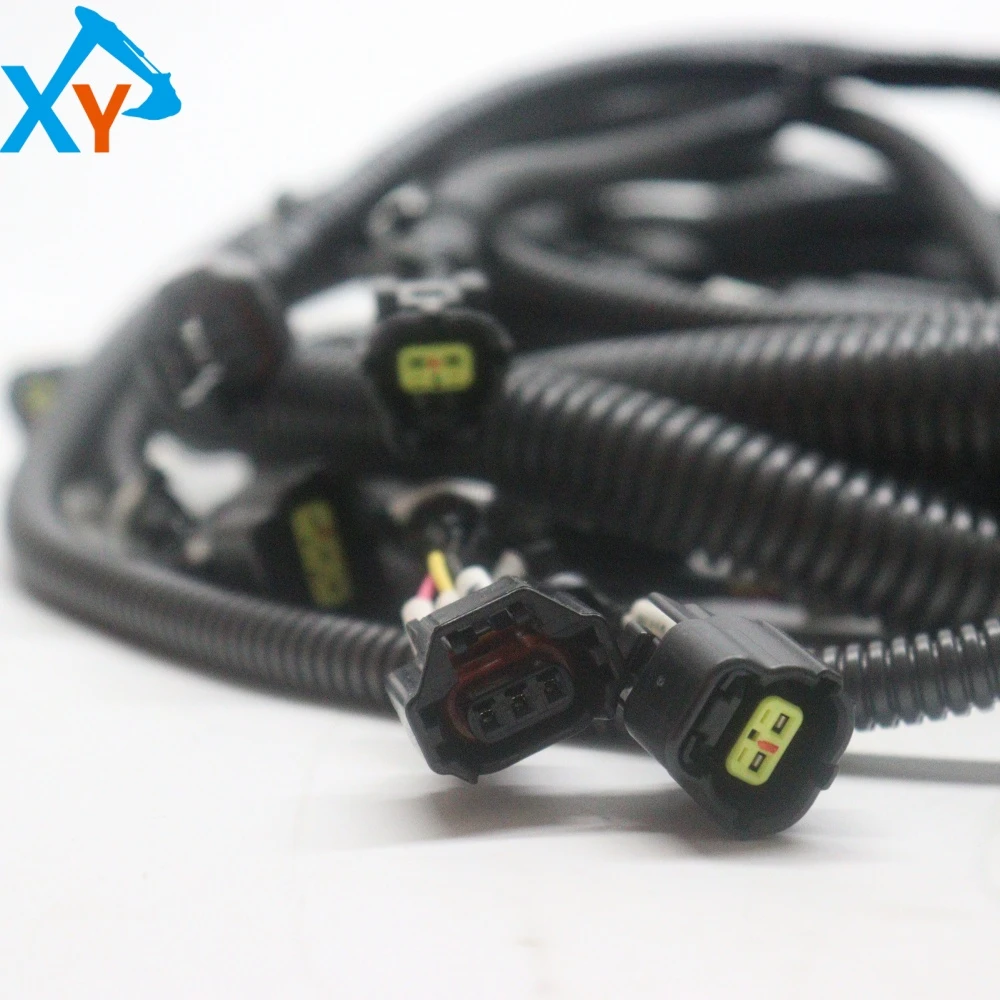

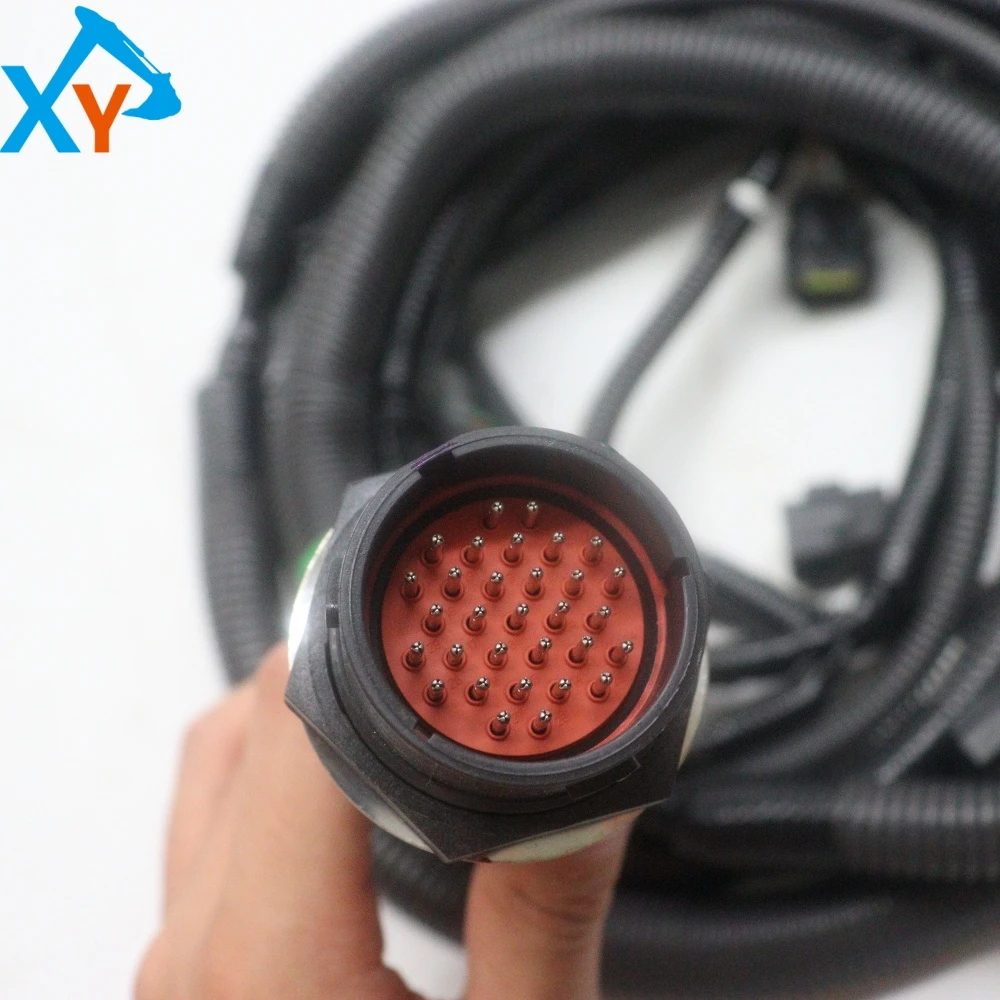

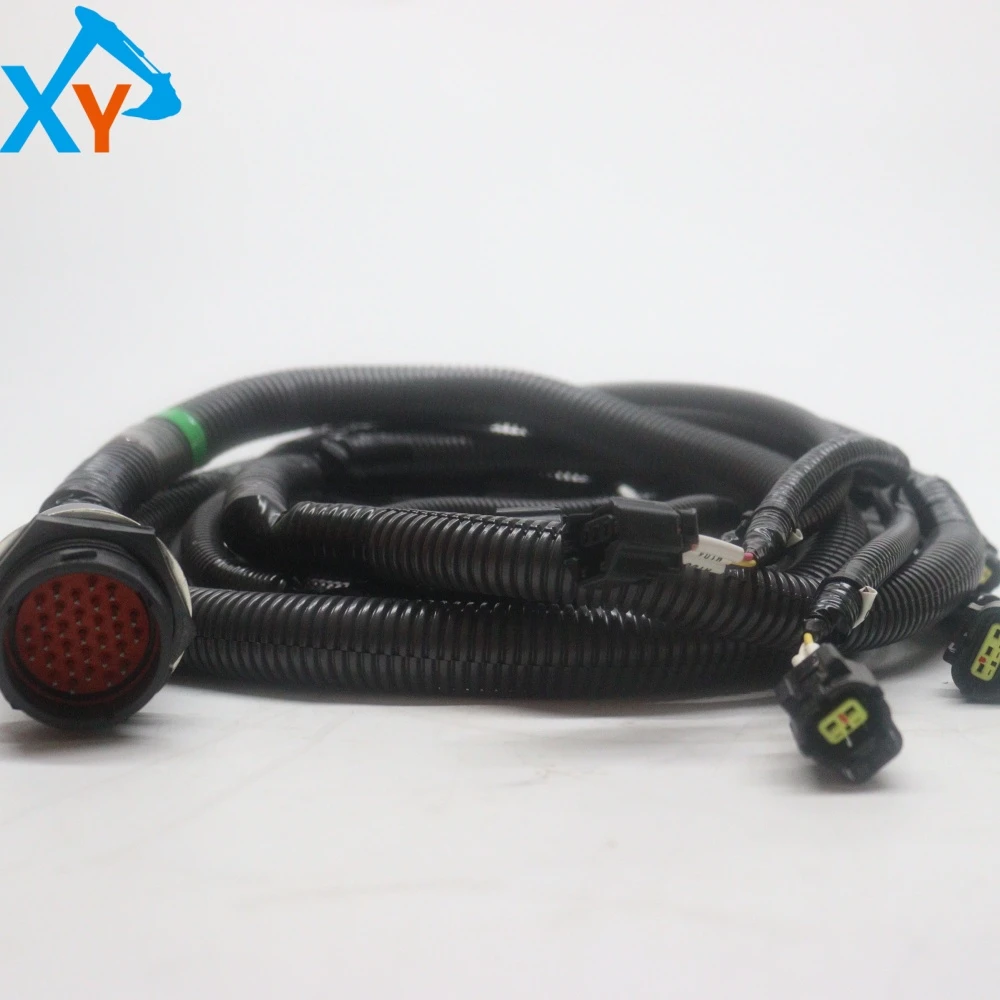

2056121 Hitachi Excavator Wire Harness for EX1200-6

The Hitachi Excavator Wire Harness 2056121 is designed specifically for Hitachi's large mining excavators and is mainly compatible with super large hydraulic excavator models such as ZX1200-6 and EX1200-7. For large equipment such as ZX1200-6 and EX1200-7, the wiring harness is usually divided into multiple subsystems such as engine wiring harness, cab wiring harness, chassis wiring harness, etc. 2056121 may correspond to one of the key subsystem assemblies.


The 2056121 wire harness, as an original quality component, is manufactured using insulated wires specifically designed for engineering machinery that are resistant to high temperatures, oil, and ultraviolet radiation. The wiring harness integrates multiple specifications of power lines, signal lines, and CAN bus to meet the power and communication needs of numerous sensors, controllers, and actuators in large excavators. Key connectors commonly use waterproof connectors from internationally renowned brands such as TE and Molex, with a protection level typically reaching IP67 or higher, ensuring reliable connections in dusty and humid environments in mines.


Due to its compatibility with large mining equipment, the maintenance of the 2056121 wiring harness requires extra caution. Regular inspections should focus on whether the insulation protection of the wiring harness in high-temperature areas (such as near the engine exhaust pipe) is intact, and whether the wear-resistant sleeve passing through metal holes such as the frame and rotating platform is damaged. When cleaning equipment, absolutely avoid direct spraying of electrical connectors with high-pressure water guns. During each major overhaul or maintenance, specialized diagnostic tools should be used to check the continuity and insulation resistance of each circuit, and all grounding bolts should be tightened.
