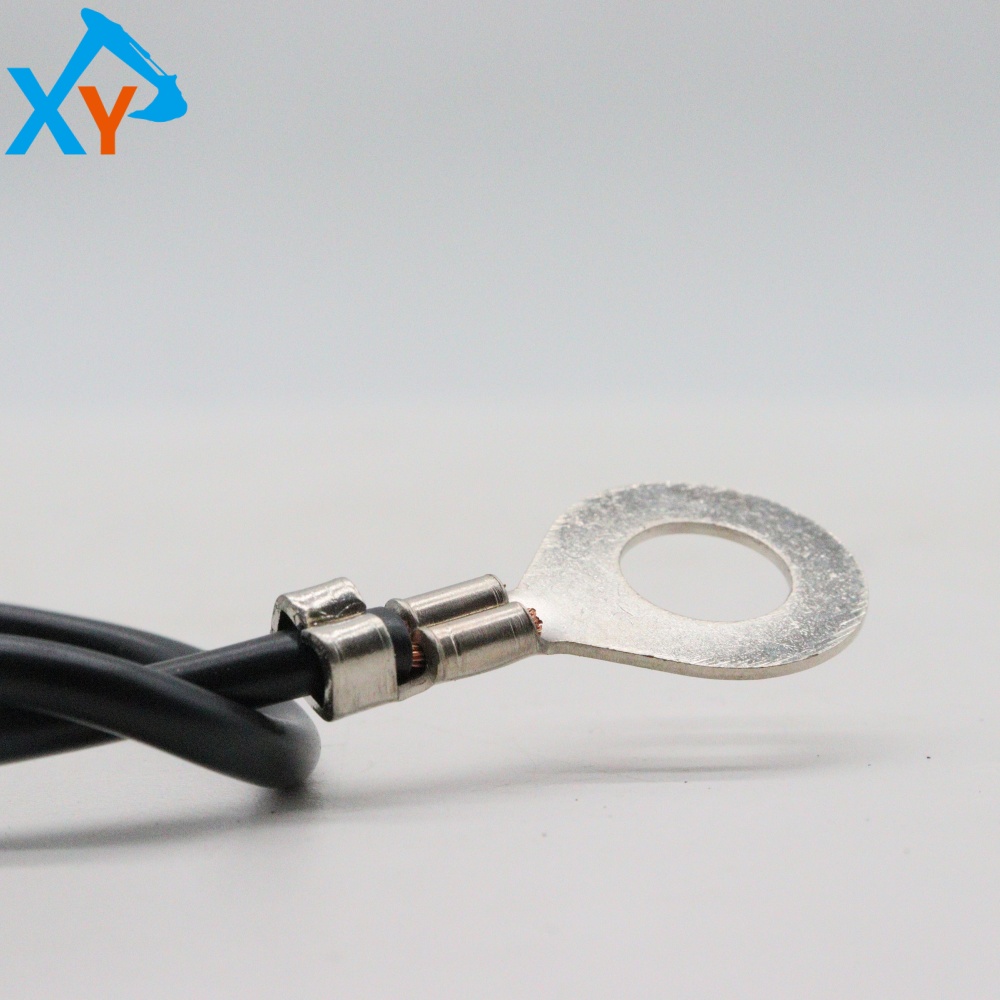

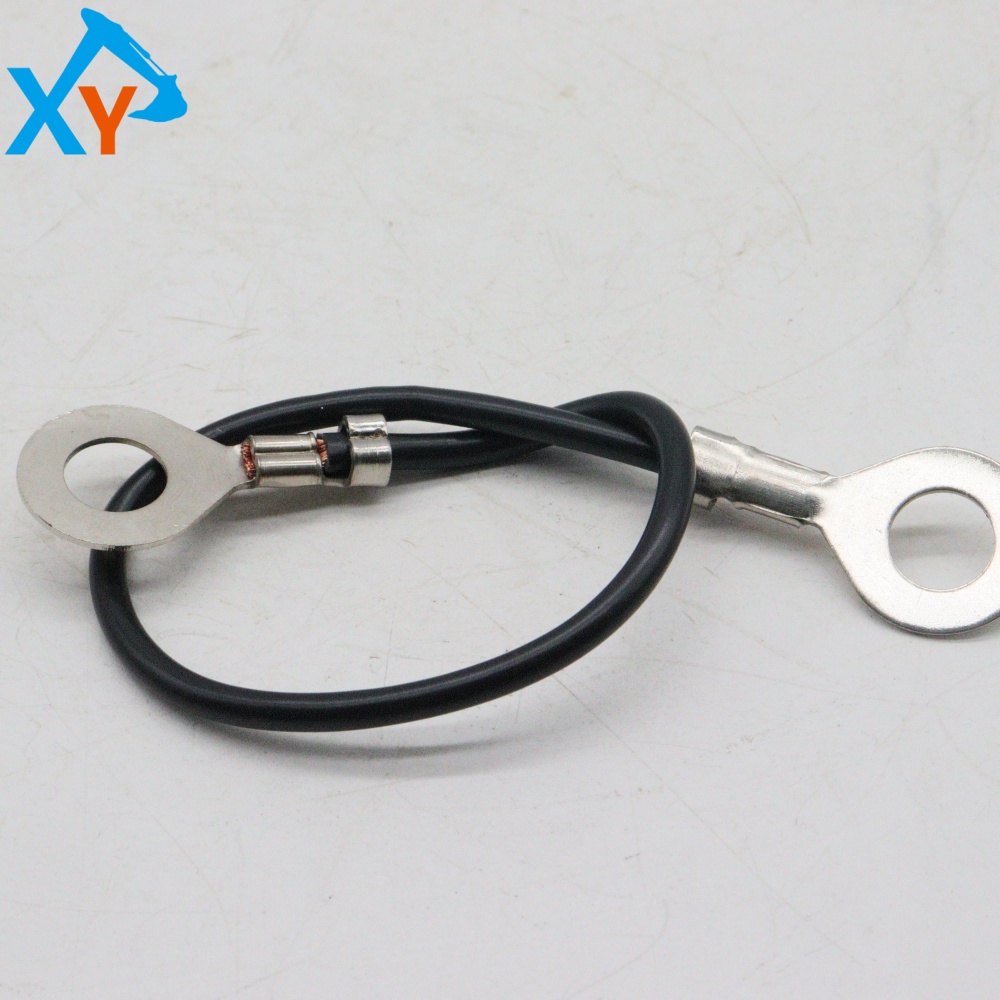

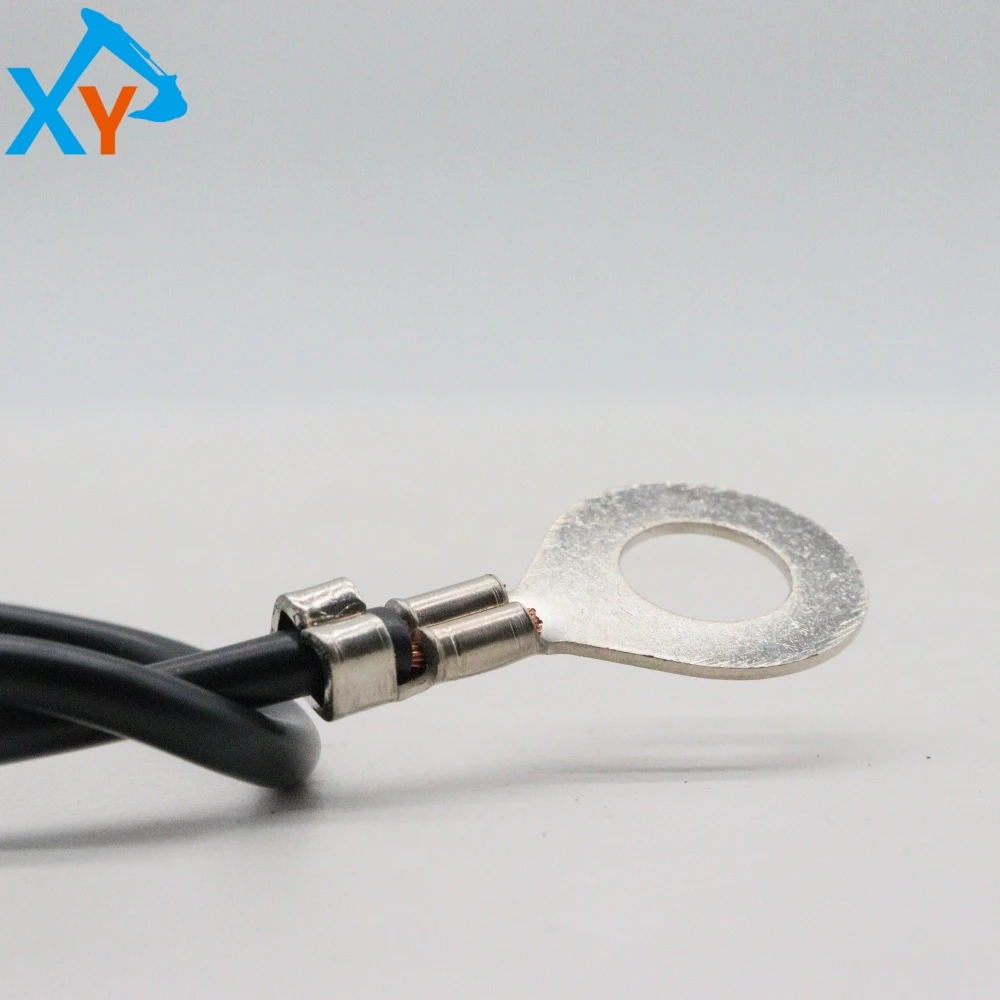

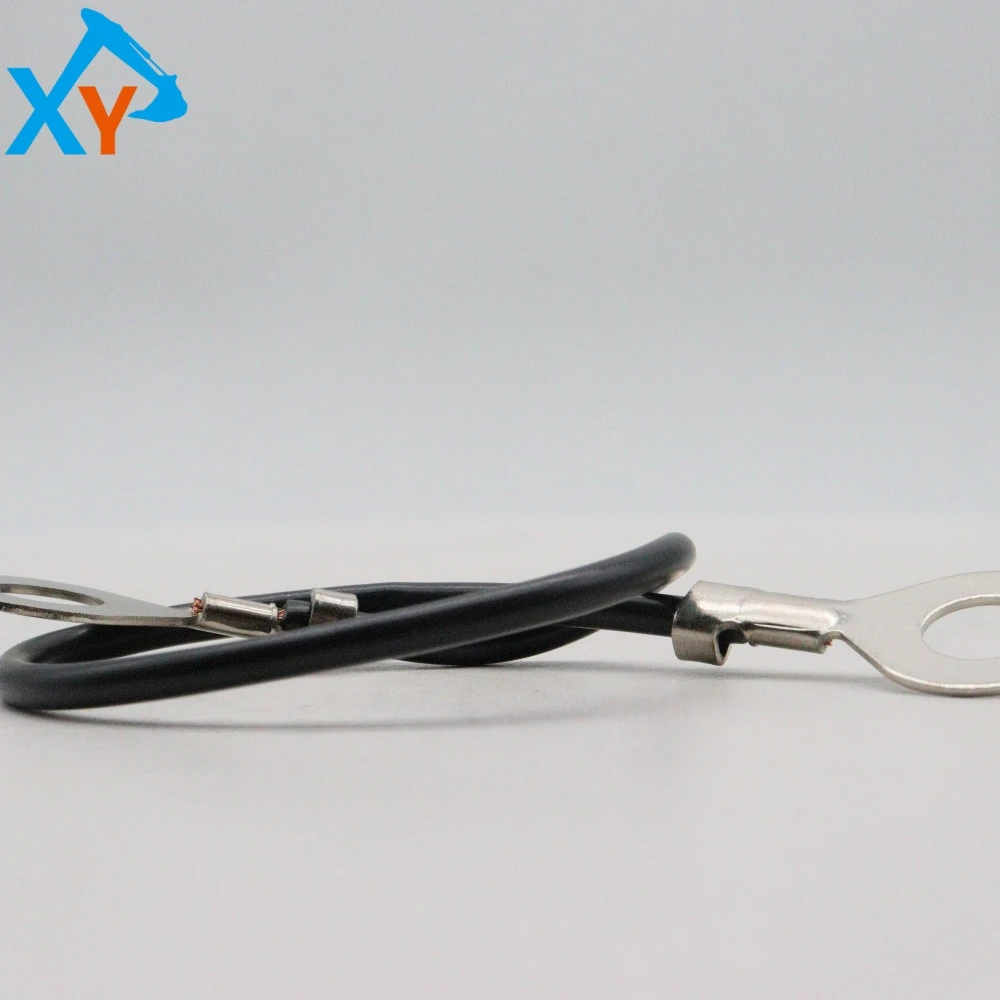

4281293 Original Excavator Wire Harness for Hitachi ZX200

The original Hitachi excavator wiring harness (universal part number: 4281293) is a pure electrical connection assembly provided by Hitachi Construction Machinery. This wiring harness is designed specifically for Hitachi brand excavators to ensure perfect compatibility with the original vehicle electrical system. It is widely compatible with mainstream models of Hitachi's ZX and EX series, such as ZX200-3/5/6、ZX210-3/5、ZX240-3/5、ZX250-3/5、ZX300-3/5/6、ZX330-3/5、ZX350-5、ZX360-5/6、ZX450-5、ZX470-5 Waiting for ZX series, as well as EX series excavators such as EX200-2/3/5, EX210-5, EX300-2/3/5, EX400-5, EX1200-5/6.


The wiring harness 4281293 is the "neural network" of the excavator's entire vehicle circuit, responsible for connecting and transmitting power and signals between the engine ECU, hydraulic main control valve, pilot control system, monitoring instruments, various sensors (pressure, temperature, speed), as well as all electrical components such as lights and horns. As an original component, it uses high-quality oil resistant, high temperature resistant and anti-aging insulating materials to wrap the wires. The key connectors have excellent waterproof and dust-proof performance (usually up to IP67), and are equipped with anti misplug and locking structures. The layout, length, branching, and fixing points of the wiring harness are strictly in accordance with the original vehicle design, ensuring that stable and reliable electrical connections can still be provided even under harsh working conditions such as severe vibration, temperature differences, humidity, and dusty oil stains that the excavator faces for a long time, effectively avoiding faults caused by wiring problems.


To ensure the long-term stable operation of the original wiring harness, it is necessary to follow standardized maintenance procedures. Regularly (recommended every 500 working hours or in conjunction with regular maintenance) conduct visual inspections, focusing on checking for wear, indentation, breakage, or aging cracks on the outer skin of the wiring harness, especially in areas near metal holes, movable hinge points, and high-temperature components. Check if all connectors are properly plugged in, if the locks are intact, and keep the pins/sockets clean to prevent oxidation and oil accumulation. When cleaning equipment, avoid direct spraying of wiring harnesses and connectors with high-pressure water guns.
