4426048 Excavator Controller for ZX200

Part number 4426048 is the original fully automatic air conditioning controller provided by Hitachi for the ZX200 series hydraulic excavators (such as ZX200-3, ZX200-5G, etc.). This component is the integrated control panel of the cab air conditioning system, which is used to centrally adjust the temperature, air volume, mode and switch. Its universal models usually cover models on the same platform as ZX200, and may also be compatible with devices with similar cab layouts such as ZX210 and ZX240. As the original human-machine interaction interface, its wiring harness interface, communication protocol, and air conditioning ECU (computer board) and sensors are deeply integrated. The use of non-standard spare parts is strictly prohibited to avoid control failure, functional disorder, or system malfunction.

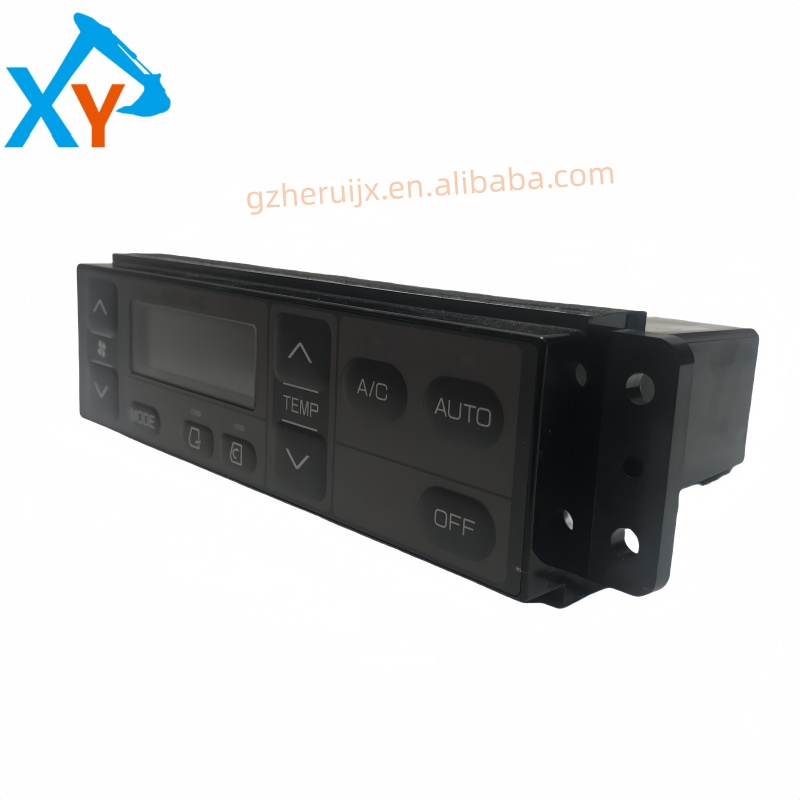

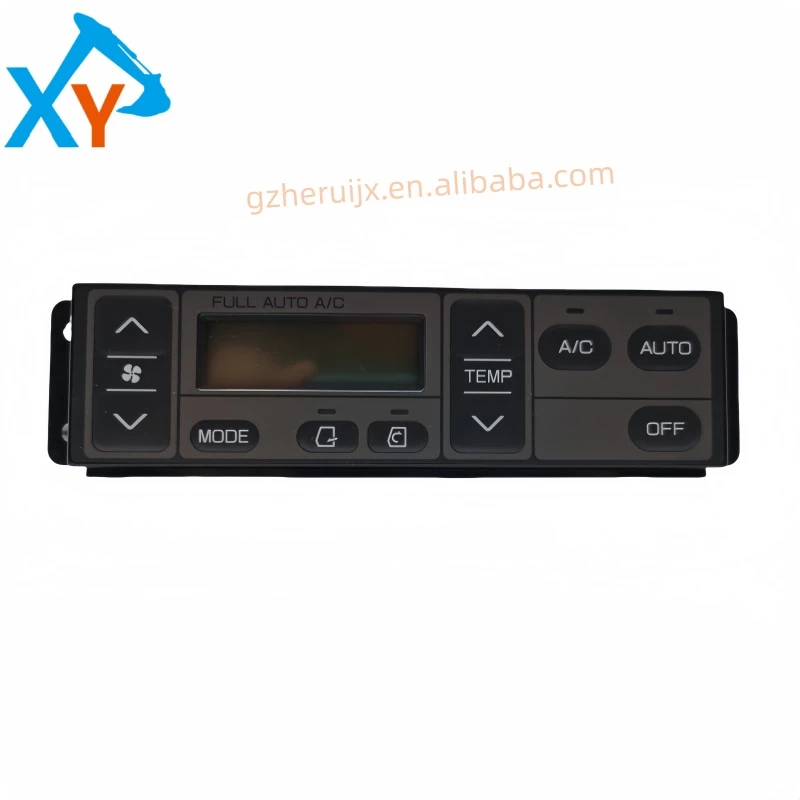

This product is an embedded fully automatic air conditioning control panel, with a dark gray high-strength engineering plastic shell and a surface printed with the "FULL AUTO A/C" logo, indicating its core function of automatic temperature control. The panel adopts a combination of physical buttons and LCD display screen: the left side is the wind direction adjustment button, the middle is the "MODE" mode button and defogging/cycling icon button, and the right side is the "TEMP" temperature adjustment, "A/C" compressor switch, "AUTO" automatic mode and "OFF" shutdown button. The central small LCD screen is used to display information such as set temperature, operating mode, and fault codes. Its working voltage is DC 12-24V. It receives indoor/outdoor temperature sensor signals through analog signals or CAN bus, and outputs commands to control actuators such as compressor electromagnetic clutch, air door motor, blower speed control module, etc., achieving one key automatic temperature control and improving driving comfort.

Installation and connection: When replacing, turn off the power, unplug the wiring harness plug, remove the decorative frame fixing clip, and take out the old panel. When installing a new panel, ensure that the wiring harness is securely plugged in and the locking mechanism is in place. Basic operation: Press the "AUTO" button, and the system will automatically control the air volume, mode, and compressor based on the set temperature; Adjust the temperature in increments of 0.5 ℃ or 1 ℃ using the "TEMP" key (usually ranging from 18-32 ℃); The "MODE" button is used to manually switch between facial, foot, defrost, and other ventilation modes. Fault diagnosis: If the screen does not light up, the buttons fail, or the air conditioner does not cool/heat up, the fuse (usually 5A/10A), power supply, and grounding wire should be checked first; If the automatic mode fails, it may be a malfunction of the indoor/outdoor temperature sensor.
