4631128 Excavator Switch Box for ZX200-3

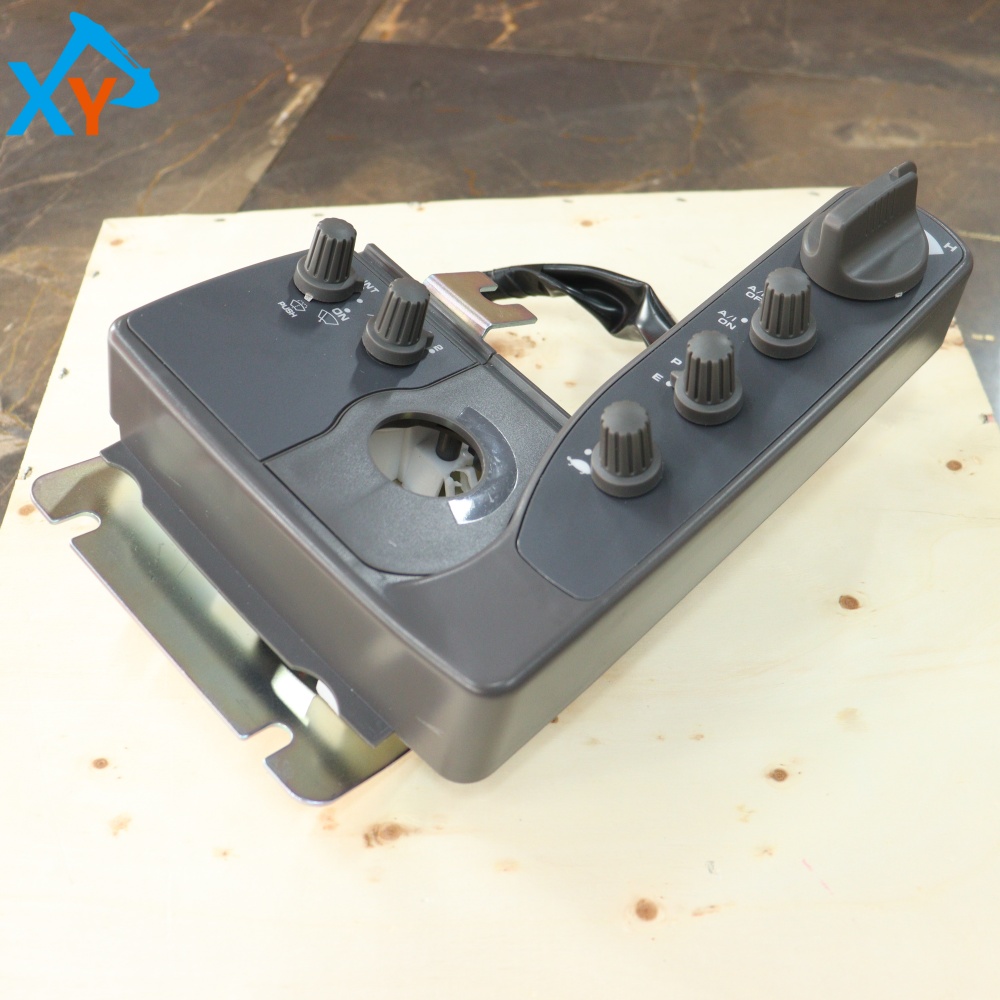

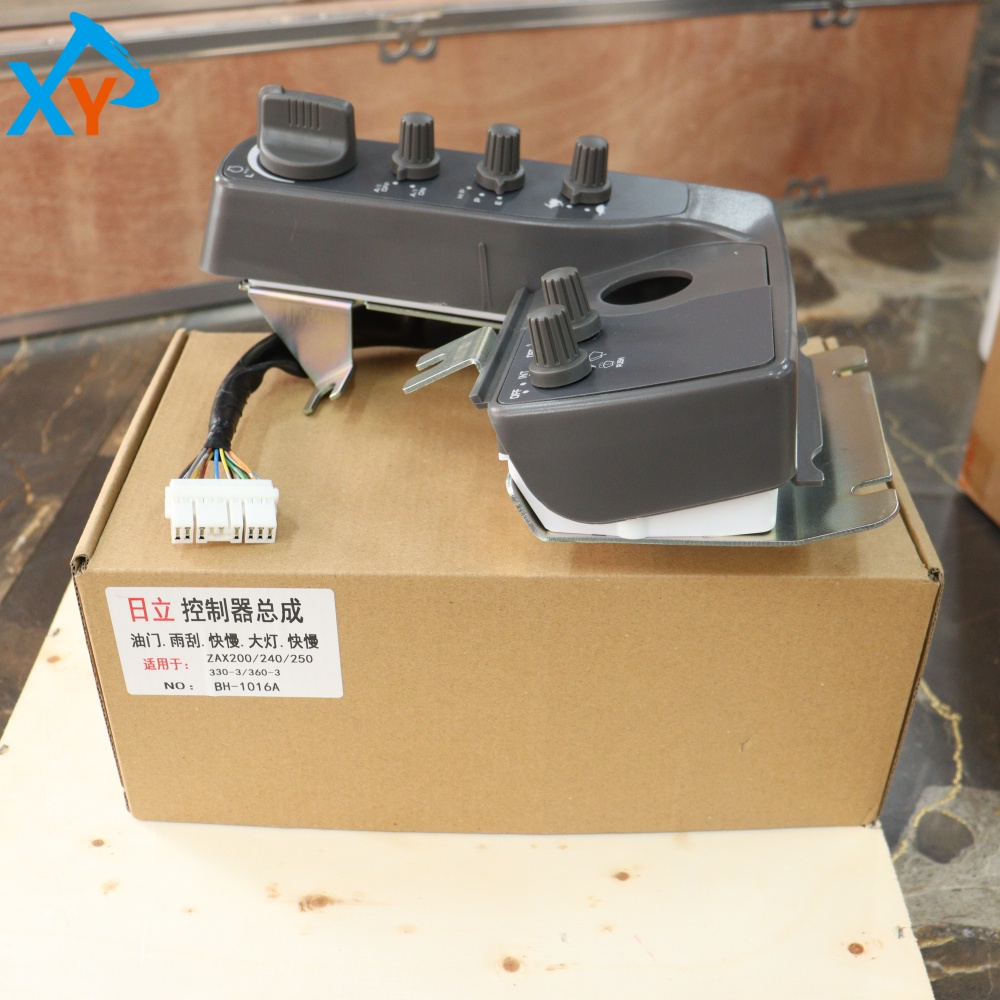

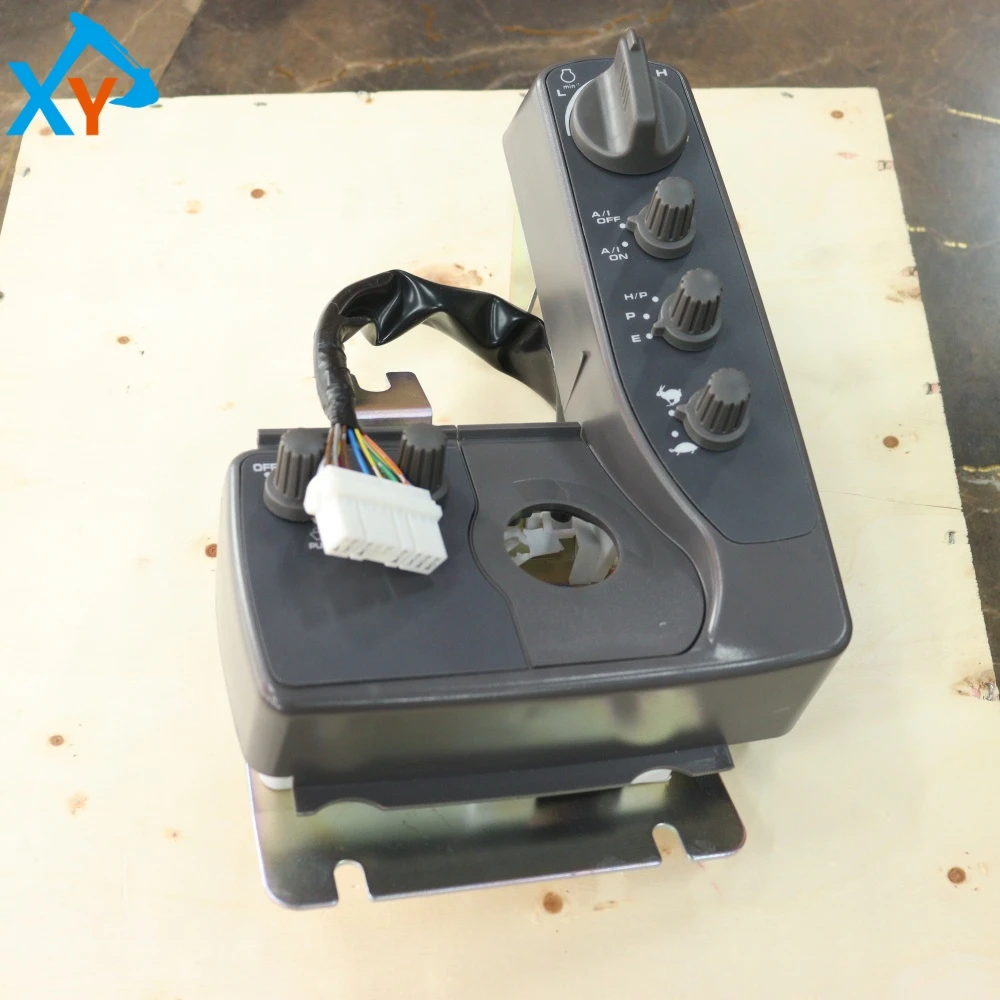

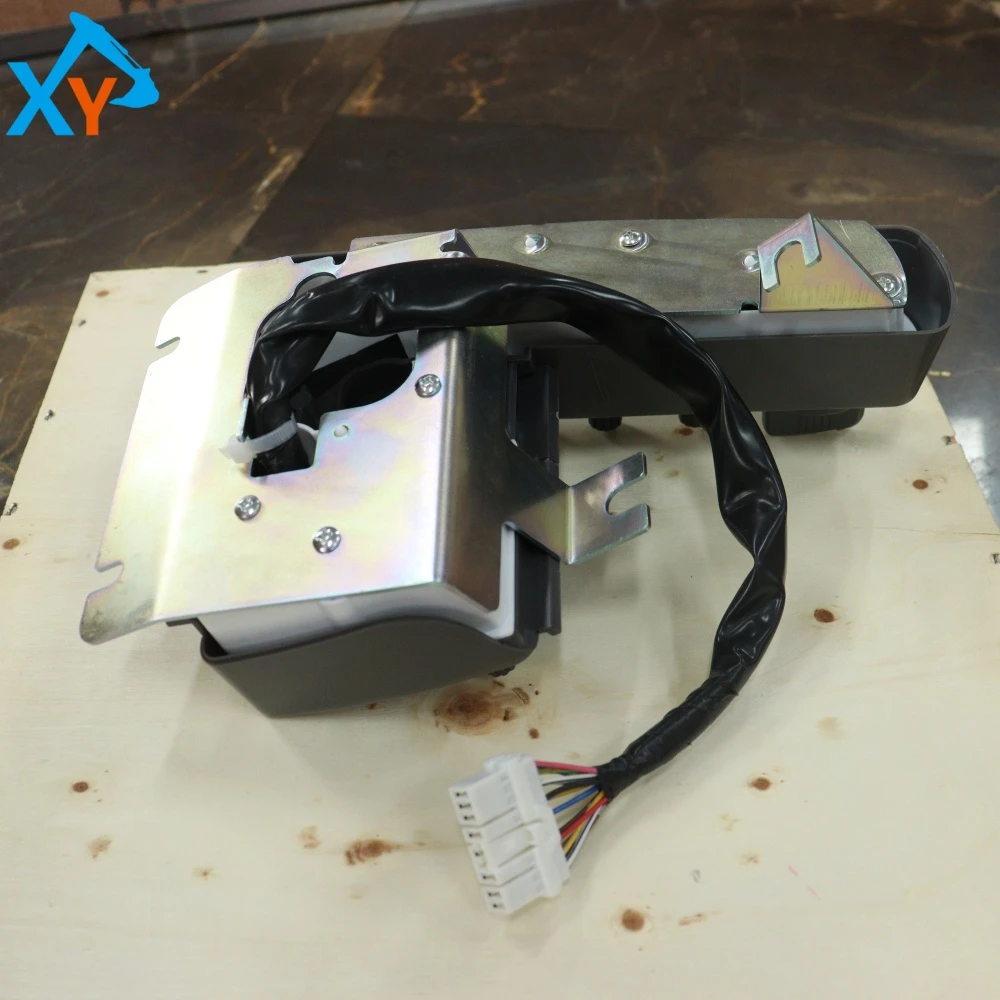

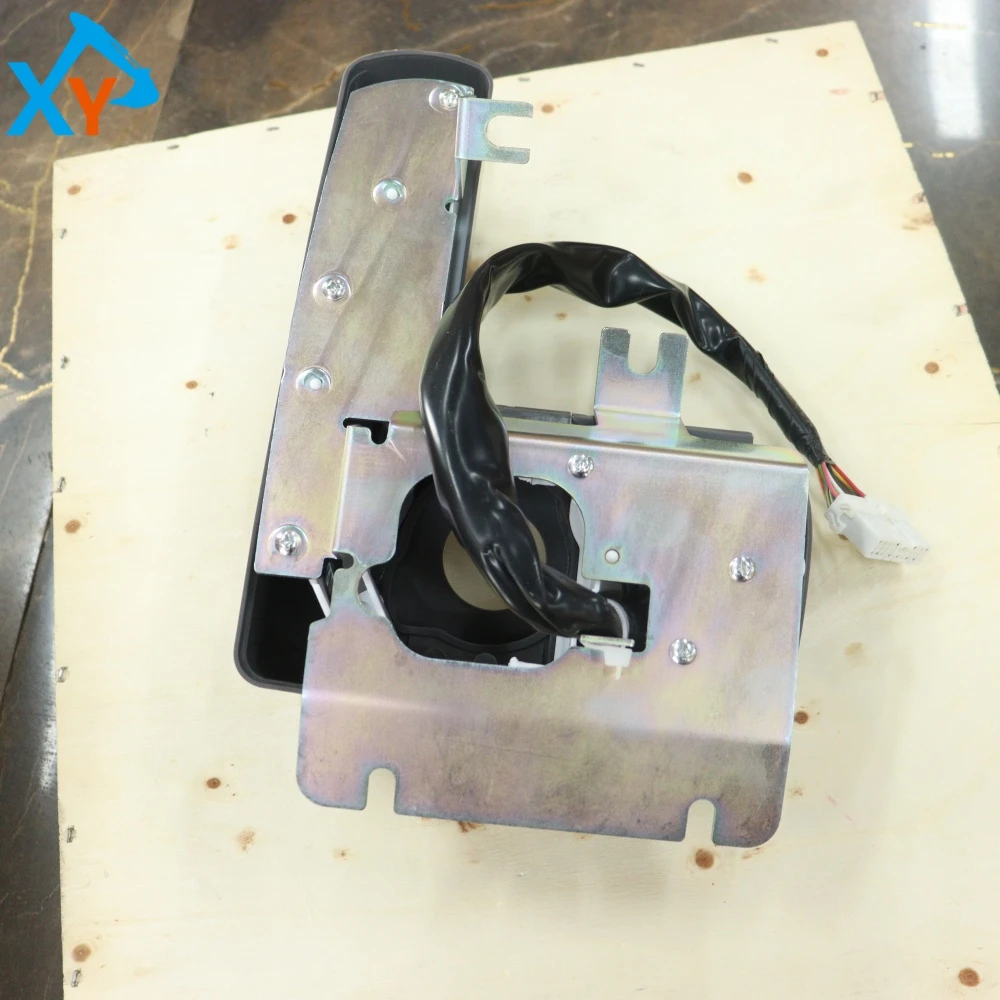

The switch box assembly part number 4631128 is an integrated control module on medium-sized excavators such as Hitachi ZX200-3. It is mainly compatible with ZX200-3, ZX240-3, ZX110-3, ZX120-3 and other ZX-3 series models, as well as ZAX series models such as ZAX200, ZAX240, ZAX250, ZAX330, ZAX360-3. This component is usually installed as a throttle knob control assembly or wiper headlight throttle switch assembly in the cab operation panel area, integrating multiple functions such as engine throttle control, wiper switch, headlight switch, etc. When placing an order, the complete model and serial number of the equipment must be provided to ensure that the interface matches the wiring harness perfectly.

This product belongs to an integrated electronic control switch box, with a shell made of engineering plastic or metal material, and an integrated throttle control knob (potentiometer), wiper switch, headlight switch, and possible other auxiliary function buttons inside. Its circuit board usually has dust-proof, shockproof, and waterproof (IP level) design to adapt to the vibration, dust, and temperature and humidity changes in the excavator cab environment. As an original component, its electrical interface, signal output, and overall control system (such as computer board) are fully compatible, ensuring accurate throttle control signals and reliable switch response, avoiding faults such as throttle failure and light failure caused by matching issues with secondary components.

It is recommended to check the appearance of the switch box for cracks and signs of water ingress every 250 working hours, and clean the surface of oil stains and dust; Check whether the operation of each button and knob is smooth and whether there is any jamming; Check if the harness connectors are secure, loose, or corroded. Troubleshooting: If the throttle is not controlled, the wipers or headlights do not work, the relevant fuses and relays should be checked first, and then the output signal of the switch box should be measured; Be sure to disconnect the negative terminal of the battery during disassembly to prevent short circuit damage to the computer board. Replacement suggestion: Non original parts may have issues such as signal drift and poor durability. It is recommended to use original parts to ensure system stability.
