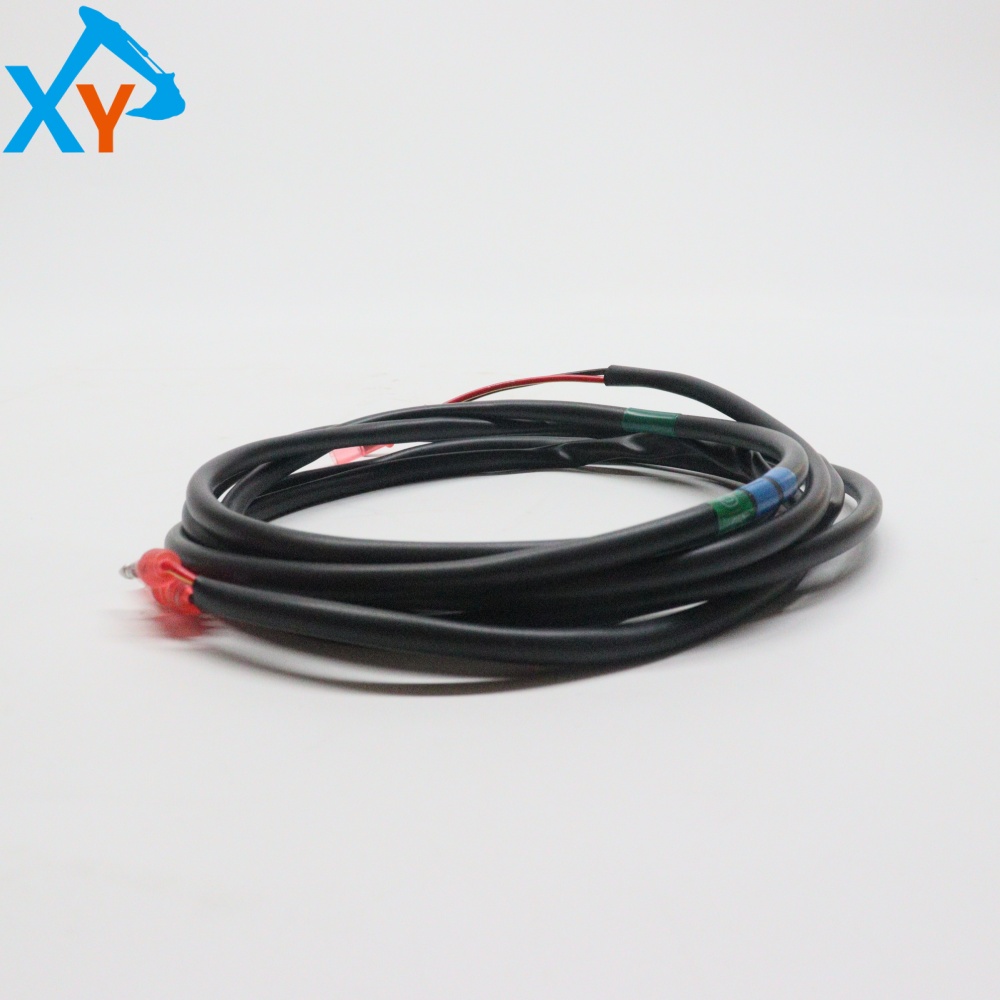

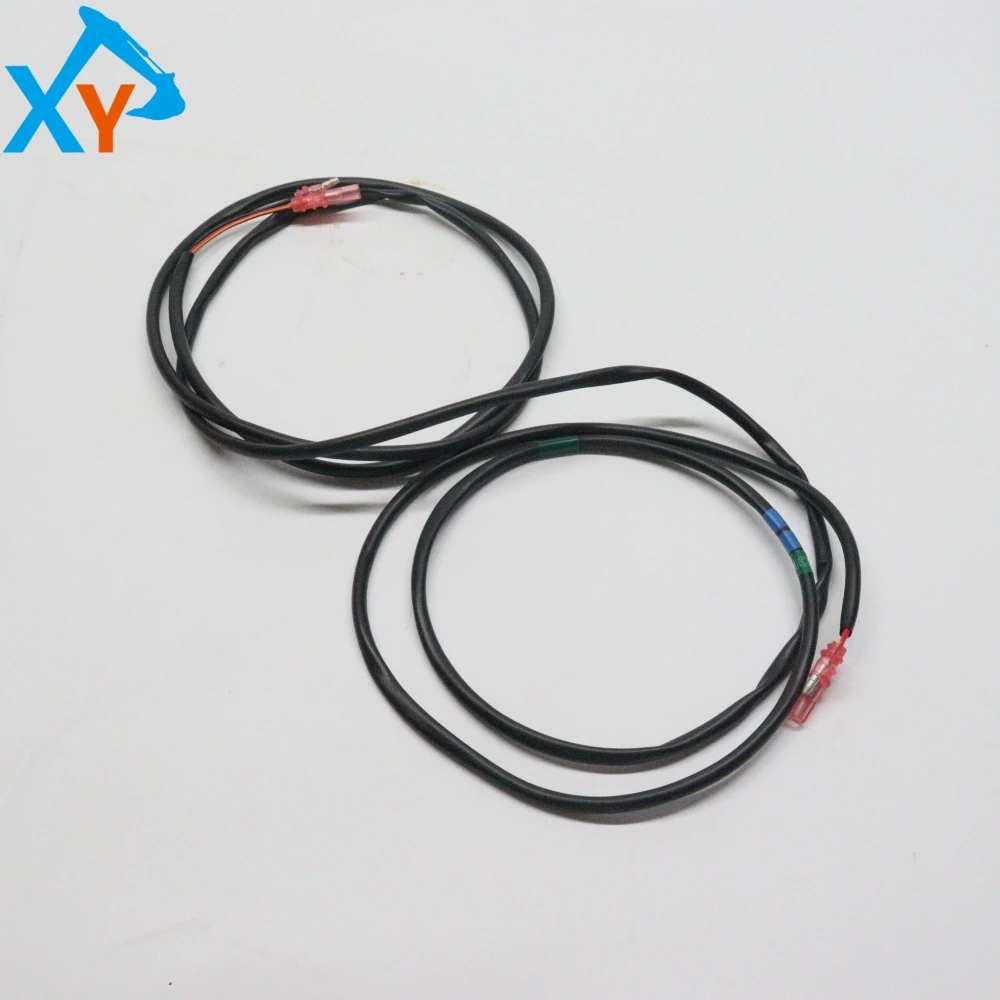

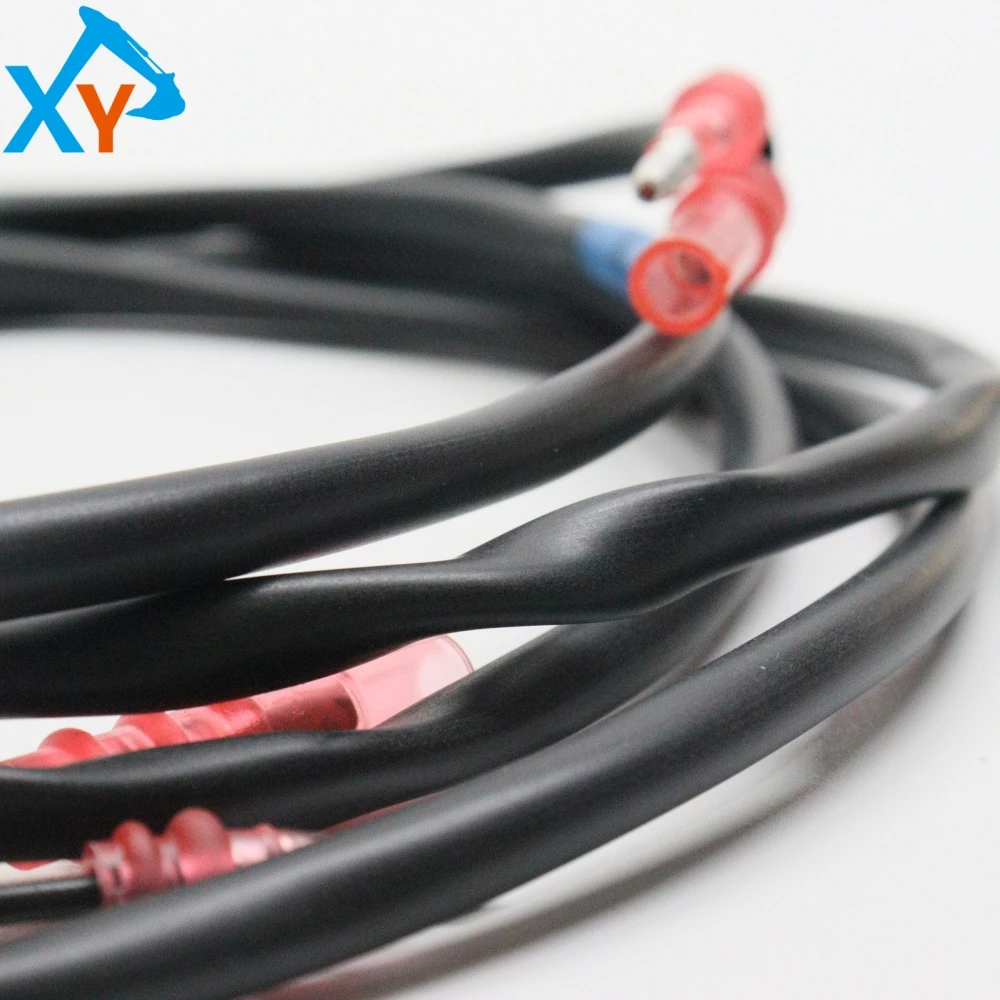

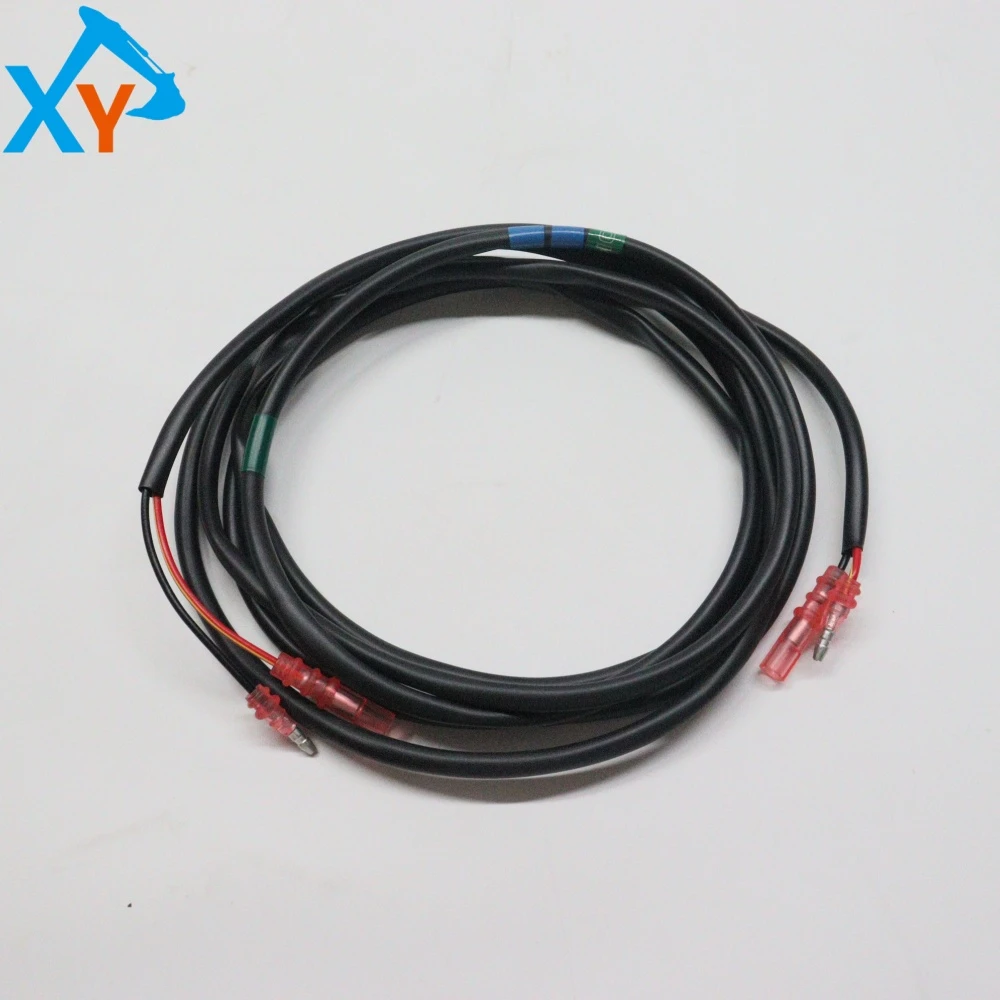

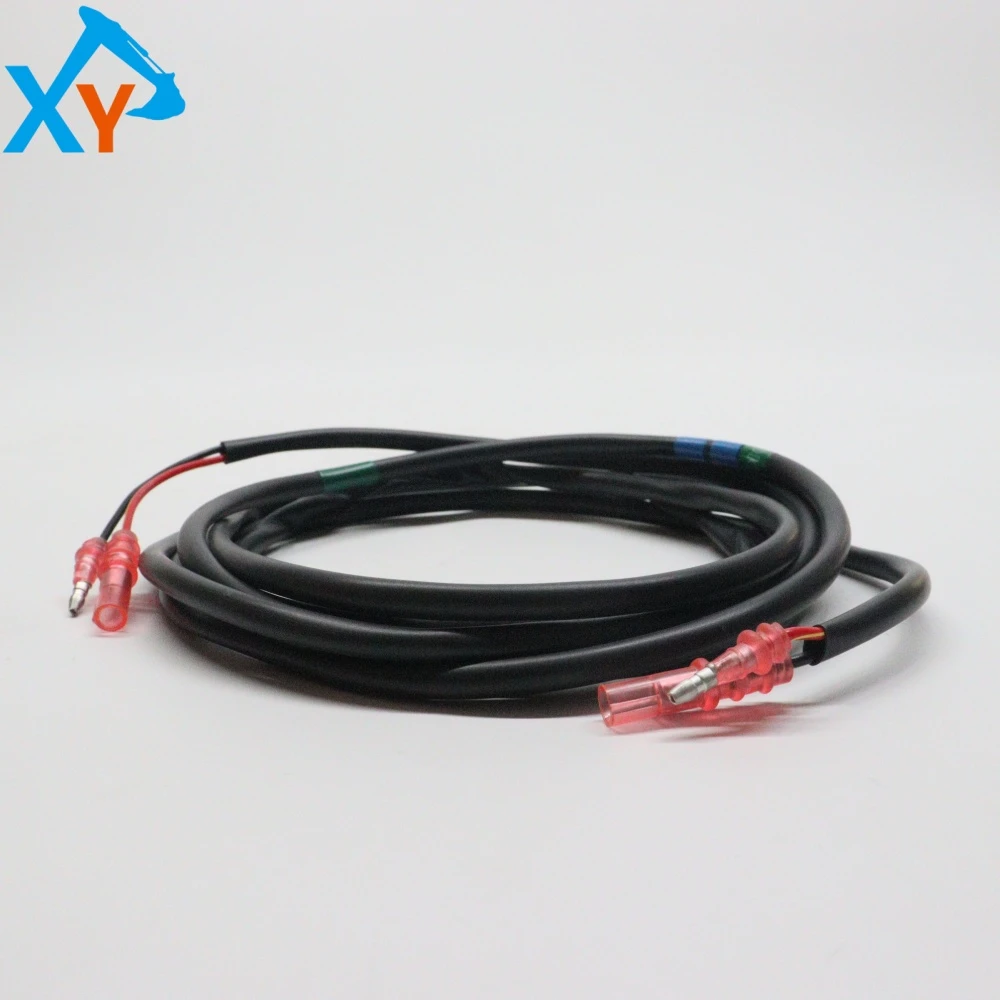

4632350 Original Excavator Electrical Parts Wire Harness for Hitachi ZX40U-3

The Hitachi original excavator harness (part number: 4632350) is the core connecting component of the Hitachi excavator electrical system, responsible for integrating and protecting the cables between various sensors, actuators, controllers, and power supplies distributed throughout the vehicle. According to the general rules of Hitachi excavator parts system, this part number may correspond to a specific model of excavator's entire vehicle harness assembly or a dedicated harness for a major subsystem (such as engine harness, cab harness). It is widely compatible with multiple medium to large excavators of Hitachi ZX and EX series, which may include common models such as ZX200, ZX210, ZX240, ZX250, ZX300, ZX330, EX200, EX300, etc.


This wiring harness is the "neural network" of the excavator's electrical system, whose core function is to provide stable power supply and reliable data signal transmission channels for all electronic control units (ECUs), sensors (such as water temperature, oil pressure, speed sensors), actuators (such as solenoid valves, lights, motors), and instrument panels in the entire vehicle. As an original factory component, it uses high-purity copper core wires that meet automotive grade standards. The outer layer is wrapped with insulation materials that are resistant to oil, high temperature (-40 ℃~125 ℃), UV aging, and wear (such as cross-linked polyethylene), and integrated with multiple layers of protection, such as corrugated pipes, woven network pipes, and waterproof tape wrapping, to resist severe vibrations, friction, oil stains, mud erosion, and extreme temperatures during field operations.

The maintenance core of this wiring harness lies in regular visual inspections, prevention of damage, and maintaining reliable connections. Daily inspection: It is recommended to visually inspect the outer skin of the wiring harness every 250 working hours for any damage, cracking, immersion in oil, or deformation caused by compression. Check all fixing buckles for looseness or detachment, and inspect the joints for oxidation, looseness, or water ingress marks. Avoid using high-pressure water guns or highly corrosive solvents to directly rinse the wiring harness connectors during cleaning. Before disassembling any electrical connectors, be sure to disconnect the negative terminal of the battery. If local damage is found, specialized waterproof tape or heat shrink tubing should be used for repair, and in severe cases, the entire wire harness should be replaced.
