4680516 Original Excavator Wire Harness for ZX200-5A

The Hitachi original wiring harness corresponding to part number 4680516. The label "FRONT" indicates its installation direction, and the blue background "151" and green background Japanese "Jiegu" labels are both internal process identification of the original factory. This wiring harness is specifically designed for the control panel or dashboard of the ZX200-5A excavator, used to connect various switches, instruments, and body control module (BCM) inside the cab. Its universal model usually covers the ZX200-5A model, and may also be applicable to 5A/5G series and platform models such as ZX200-5G and ZX210-5A with the same electrical layout in the cab. As the original "nervous system" of the factory, the pin definition, wire sequence, and length of each connector are precisely matched

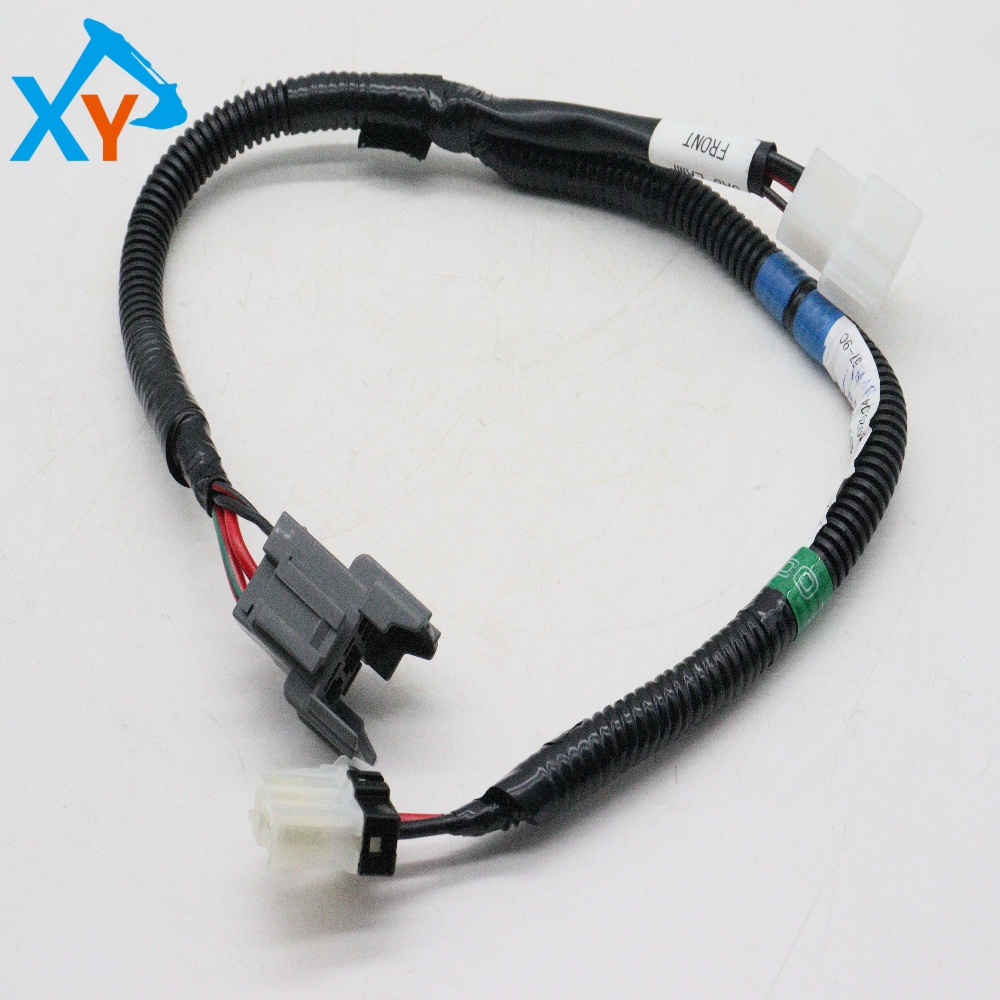

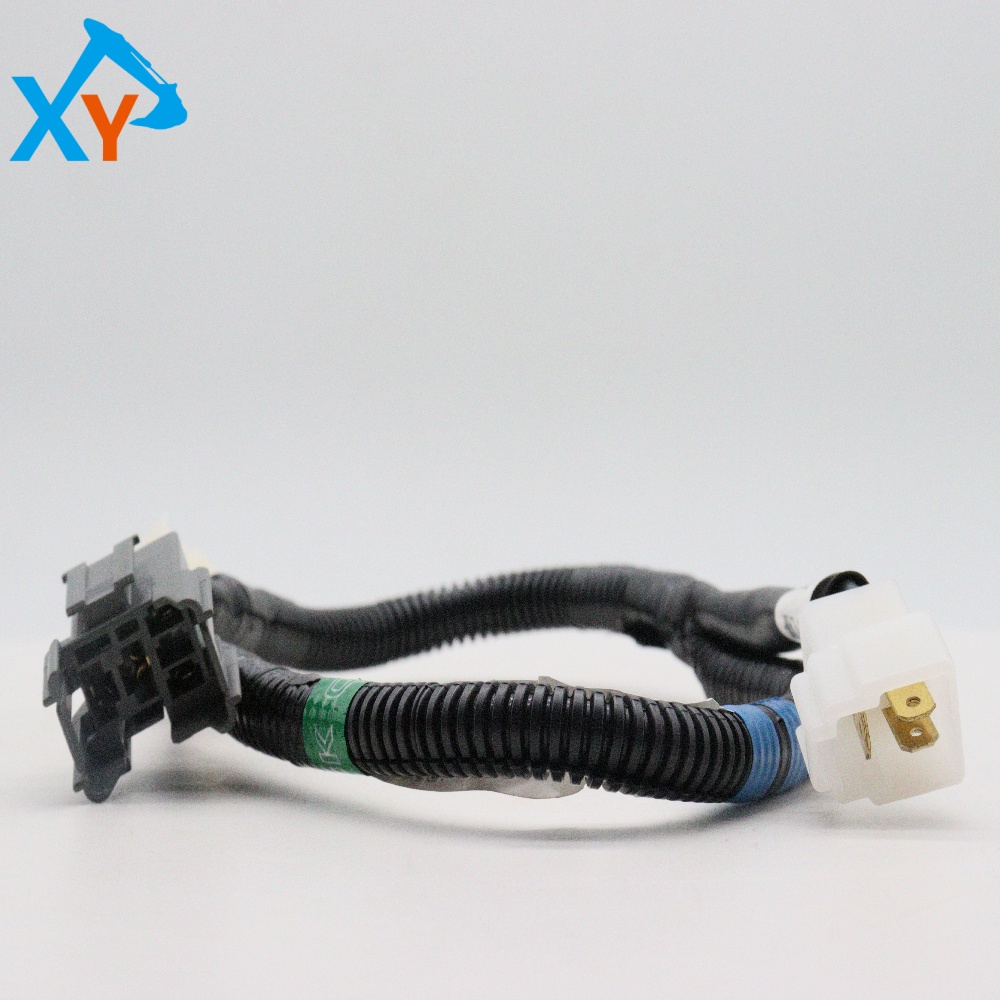

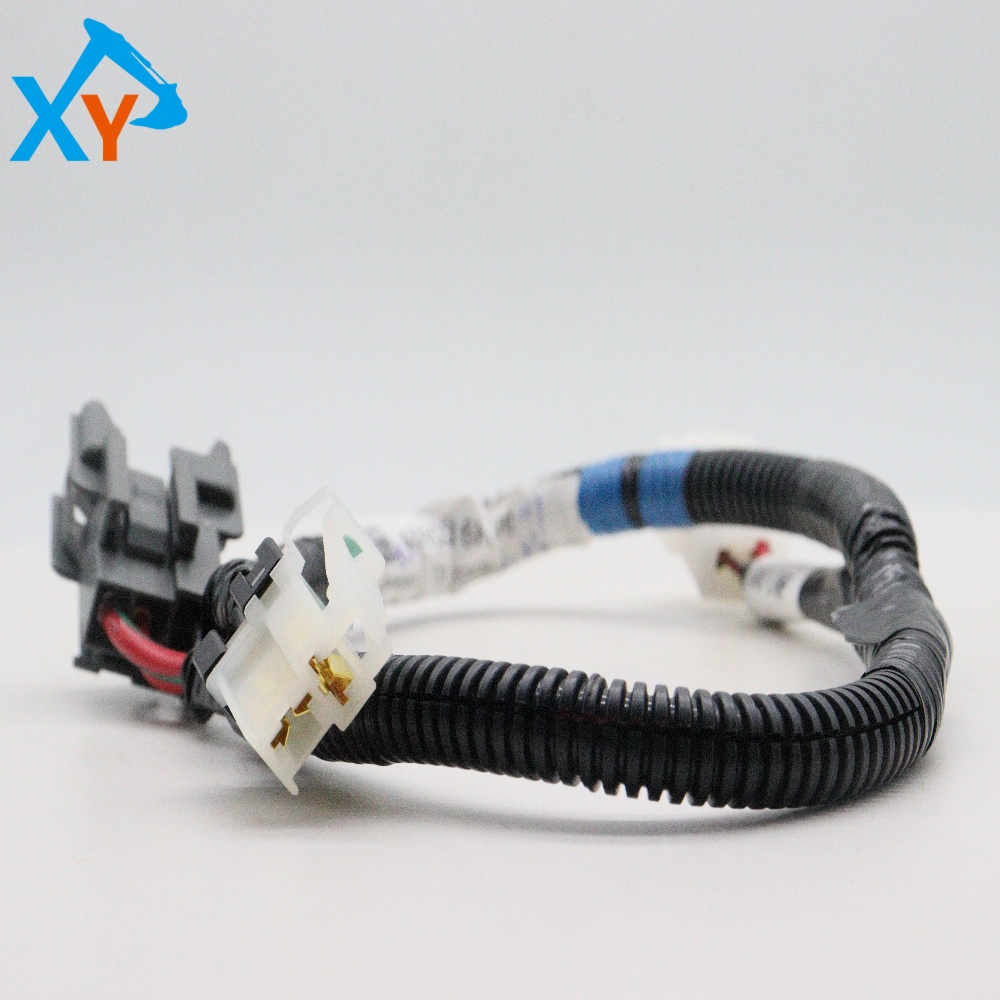

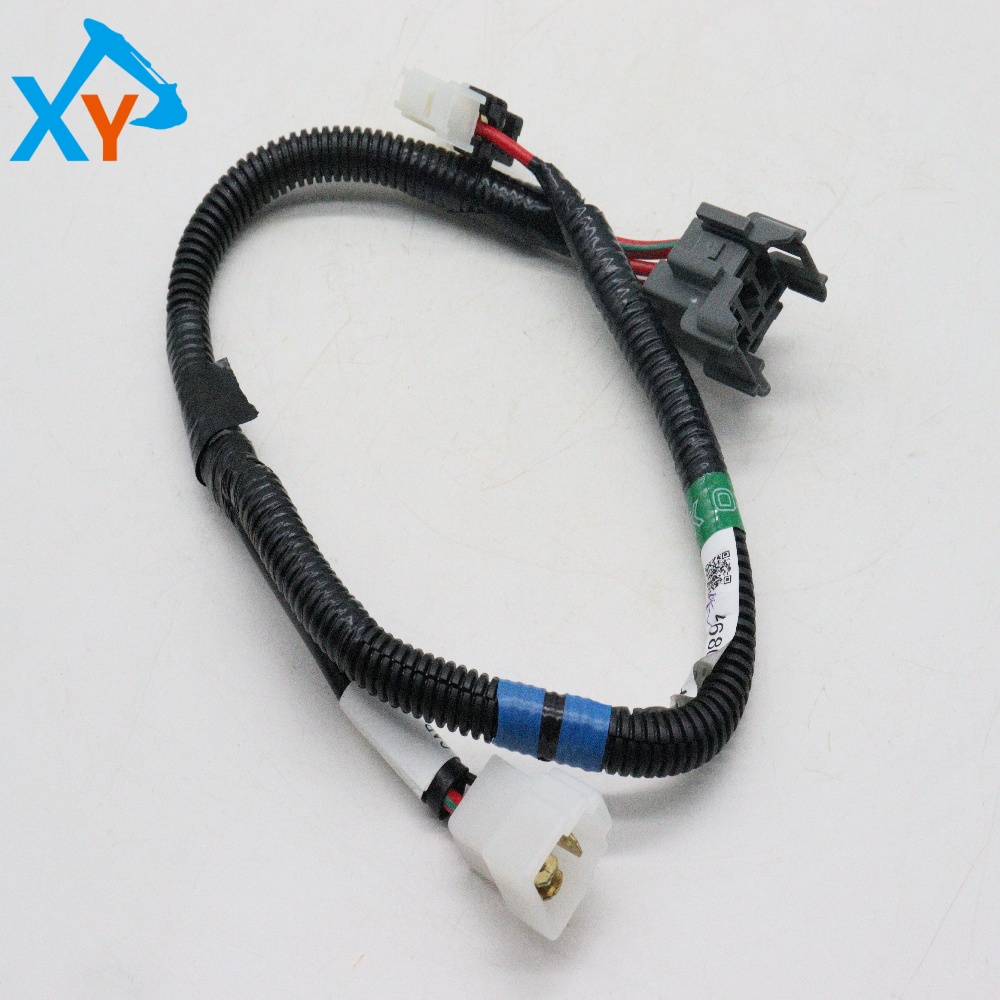

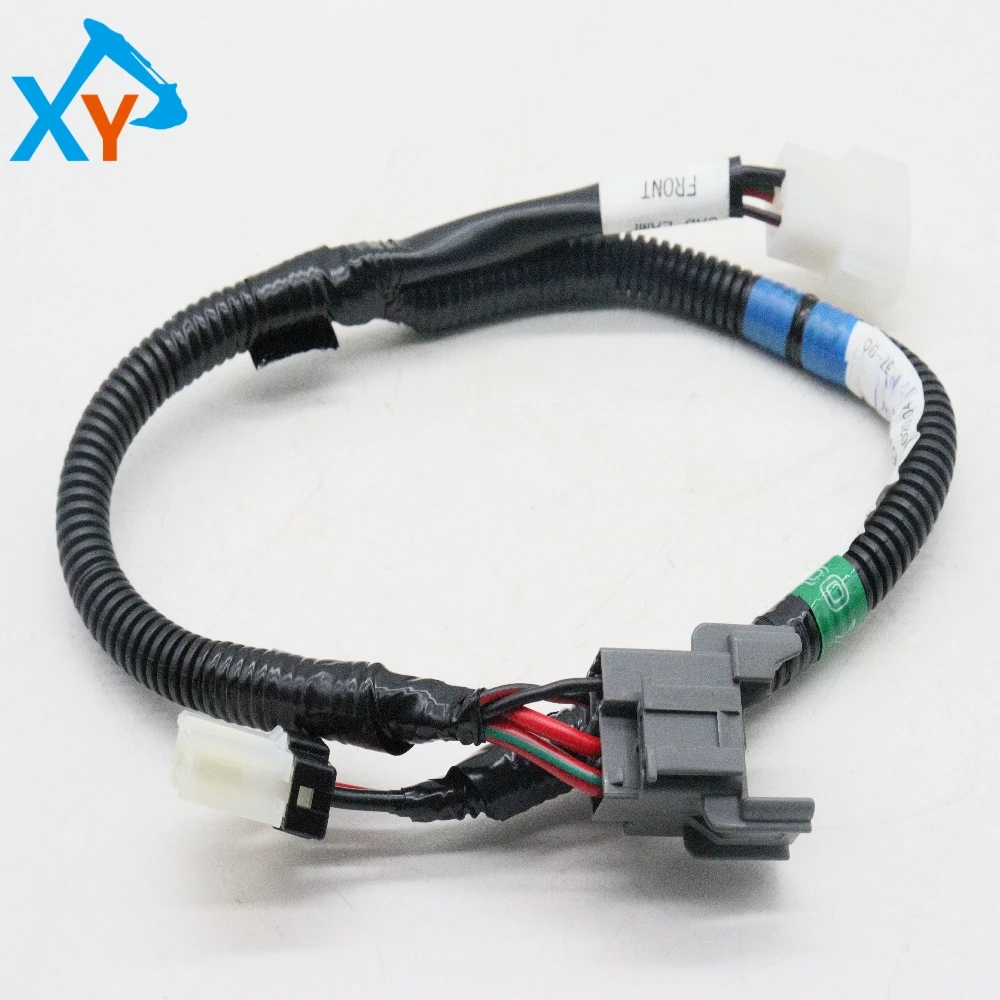

This product is an area wiring harness assembly with prefabricated joints. The main body is a black high flexibility oil resistant corrugated pipe, providing excellent wear resistance, bending resistance, dust and waterproof protection. One end of the wiring harness is a gray multi pin plastic connector, with exposed red, green, and black wires, and fixed with black tape with handwritten markings. This is a mark for factory assembly or inspection. The other end is a white plastic connector, with two different colors and specifications of connectors used to prevent accidental insertion. The white label firmly attached to the corrugated tube is printed with the core information "FRONT" (front/front) and part number "4680516", which is the key to guiding installation direction and identity recognition. Its core function is to achieve reliable and orderly transmission of all front-end control signals and power sources within the limited space of the cab.

Installation and wiring (key in direction and connectors): 1 Safe power-off: Before operation, be sure to disconnect the negative terminal of the battery. 2. Direction recognition: During installation, it is necessary to ensure that the "FRONT" label is facing towards the front of the vehicle or in the specified direction. 3. Plug in connection: When disassembling the old wiring harness, record the positions of each connector. When installing the new wiring harness (4680516), align the gray and white connectors with the corresponding instrument and switch interfaces and insert them until you hear a "click" sound from the lock buckle. 4. Standardized fixation: Lay along the original vehicle path, use the original buckle to properly fix the corrugated pipe, and avoid friction with sharp metal edges or interference with moving parts.
