4681624 Original Excavator Controller for ZX190W-3

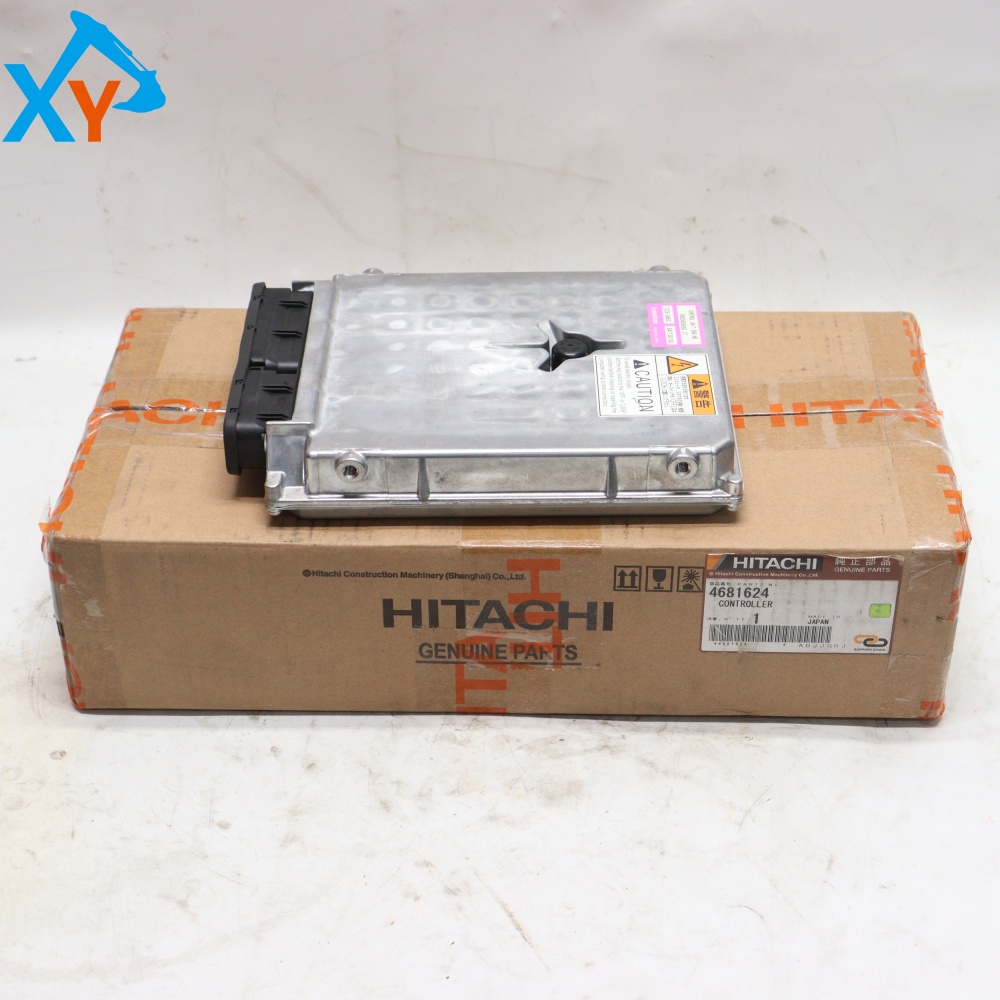

Part number 4681624 is the original controller provided by Hitachi for the ZX190W-3 wheel excavator. The silver gray metal casing and warning labels conform to the original industrial design of the factory. This component is the core processing unit of the entire electronic control system. Its universal model usually covers models on the same platform as ZX190W-3, and is also applicable to models such as ZX190W-5 and ZX210W-3 with similar tonnage and electronic control system design. As an original "brain" level component, its hardware and software protocols are deeply bound to the vehicle network

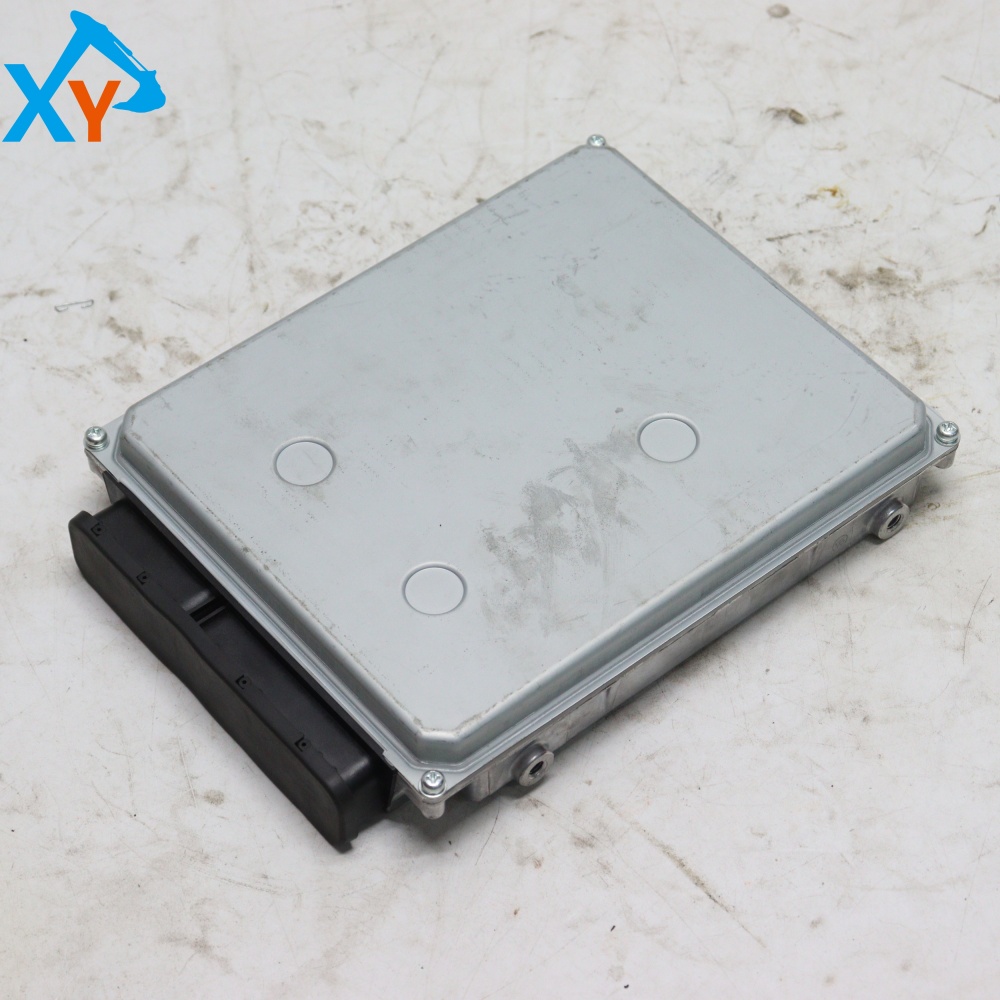

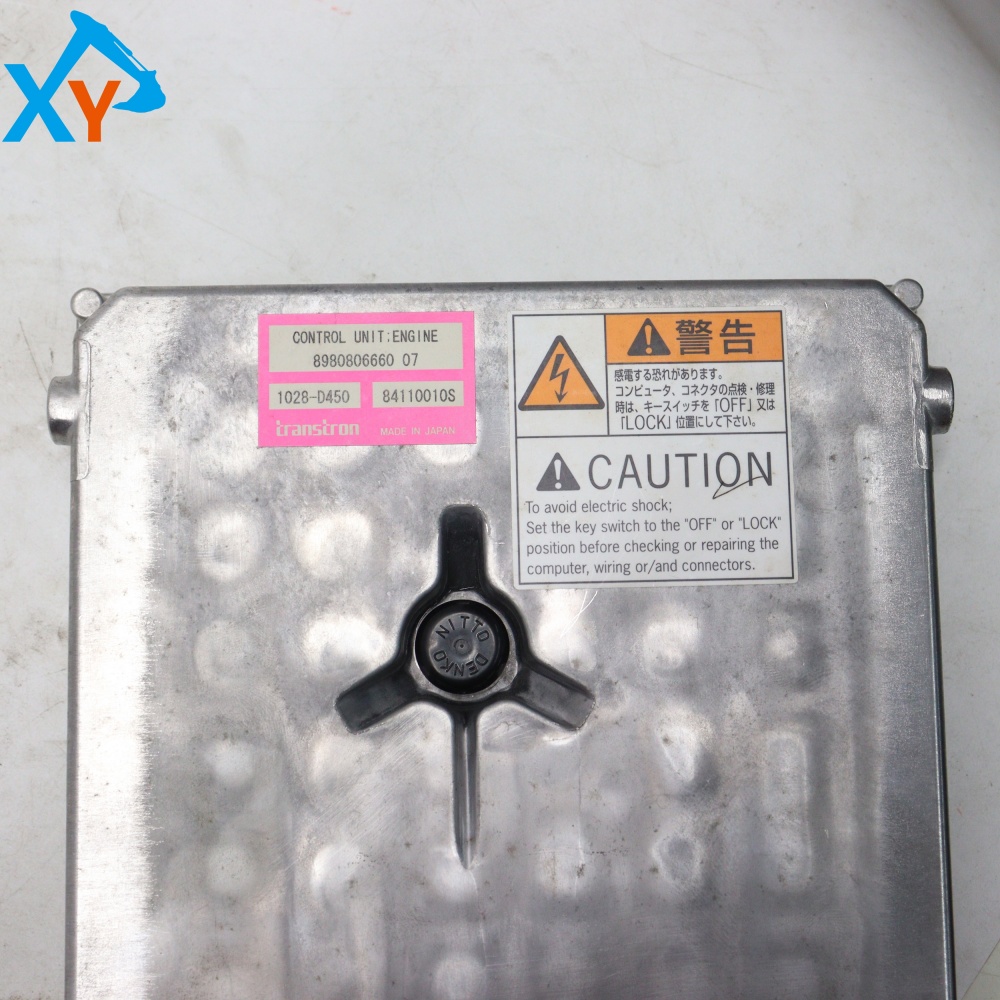

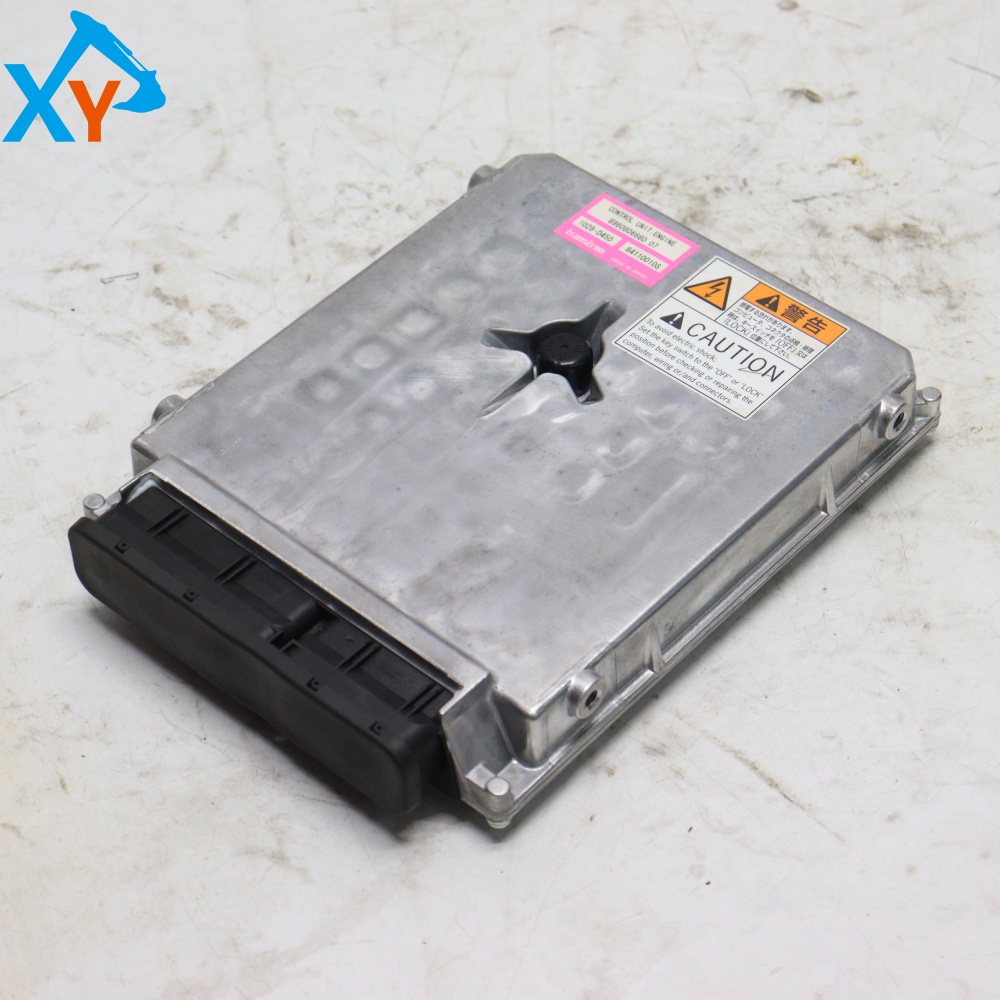

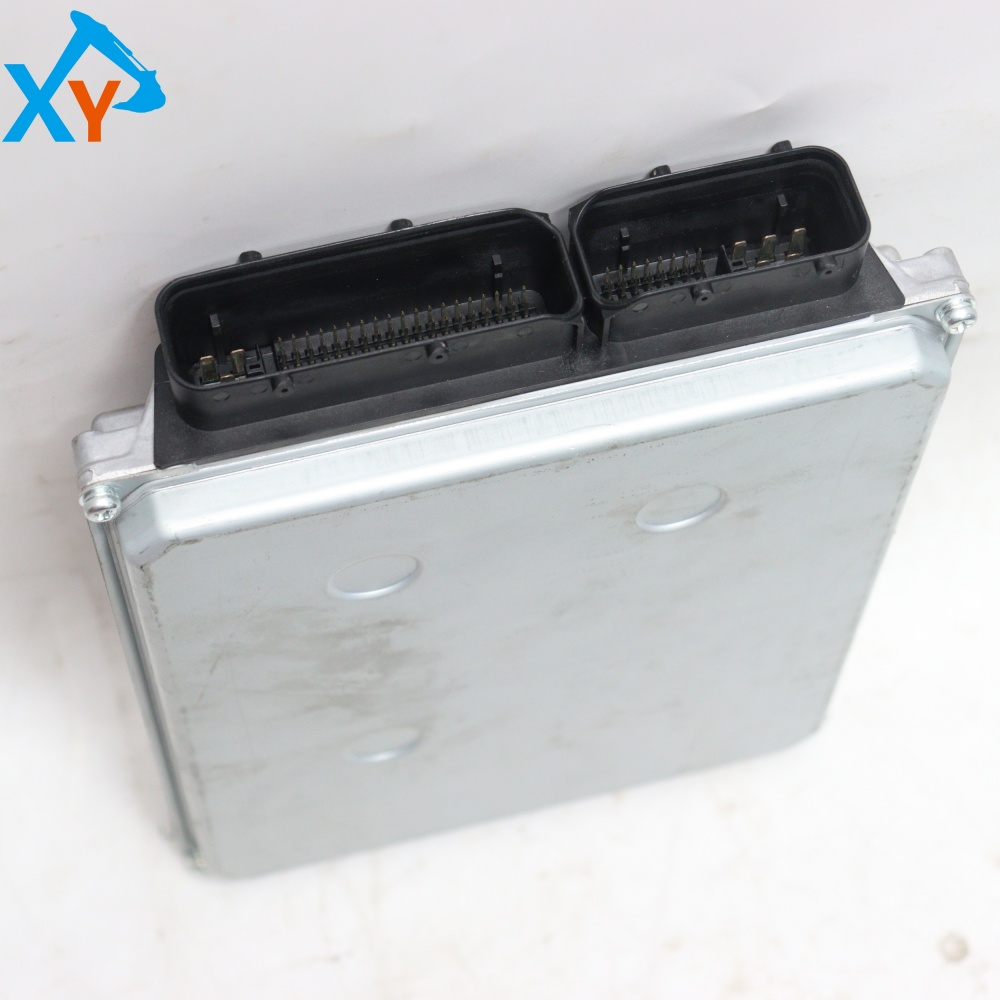

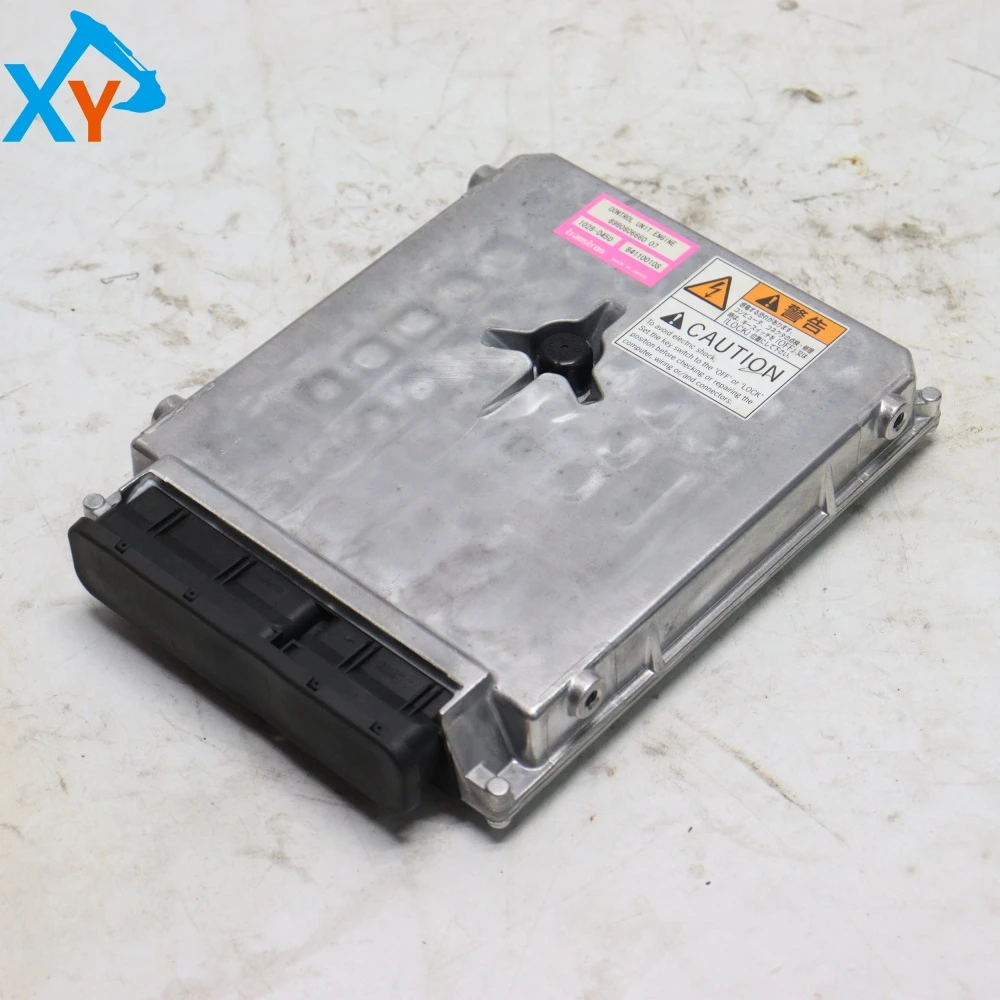

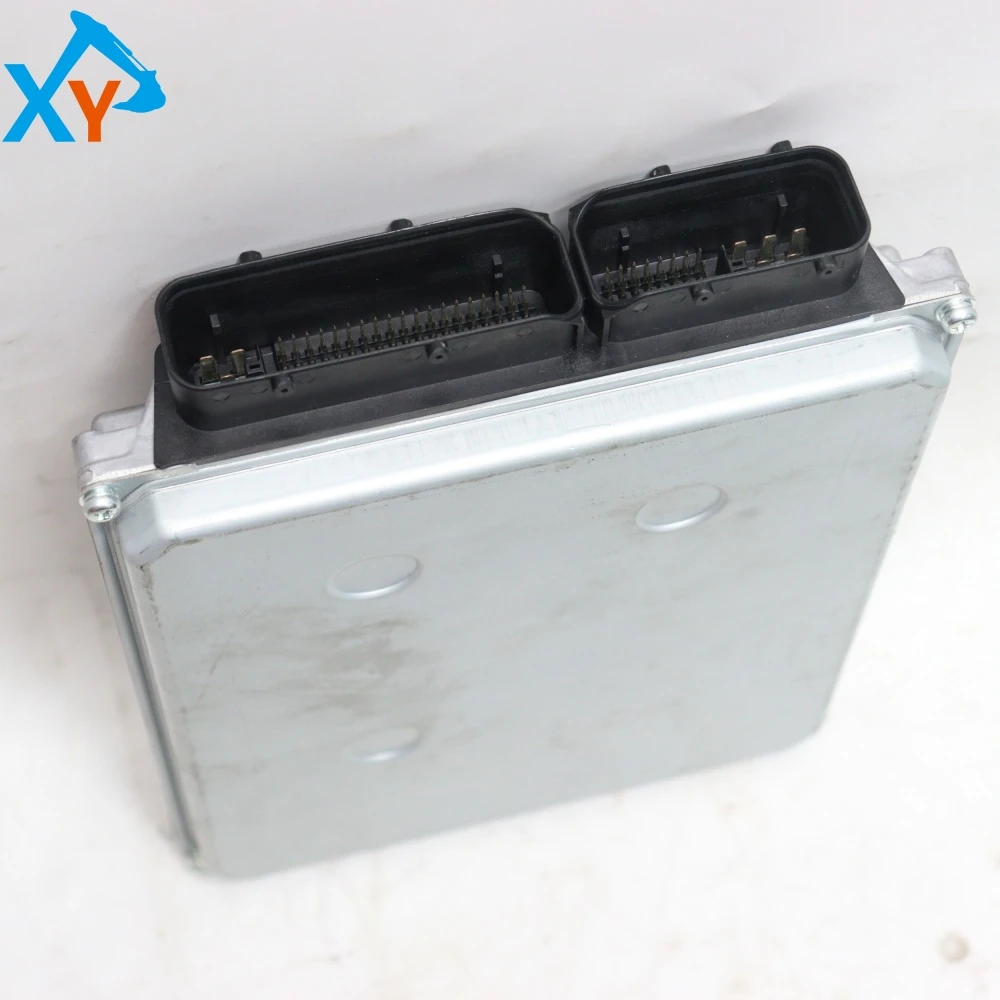

This product is an embedded car control unit with a silver gray die cast aluminum alloy shell with heat dissipation fins, providing excellent electromagnetic shielding, heat dissipation, and vibration resistance performance. The prominent black star logo on the shell is a characteristic of its series. The black component connected at the bottom is its integrated communication interface. Its core function is to process all sensor signals, coordinate the engine, hydraulic pump, and working devices, and achieve intelligent power matching and whole vehicle fault diagnosis.

Replacement and programming (safety first): 1 Safe operation: Before operation, be sure to disconnect the negative terminal of the battery and wait for more than 10 minutes. You must wear an anti-static wristband and strictly follow the high voltage warning on the picture label. 2. Disassembly and assembly: After recording the wiring sequence of the old controller, disassemble it. When installing the new controller (4681624), ensure that the interface is aligned and securely plugged in. 3. Mandatory programming: It is strictly prohibited to directly power on after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write the identity information and calibration parameters of the original equipment into the new controller, and this "online matching" is essential.
