4694906 Original Hitachi Excavator Filter Element for ZX70-5G

Part number 4694906 is the original diesel filter (fuel element) provided by Hitachi for small hydraulic excavators such as ZX70-5G. This component is the core filtering unit of the fuel system, used to protect the high-pressure fuel pump and injectors of the engine. Its universal models cover 7-ton small models on the same platform such as ZX70-5G and ZX70-5A, especially suitable for equipment equipped with Isuzu engines. The word "BYD" on the top cover of the filter element is the logo of the ISUZU (Isuzu) pure diesel filter, and the central black hole is the exhaust/detection interface. It is strictly prohibited to use non original fuel filters to avoid fuel system blockage, engine power reduction, or wear of precision components.

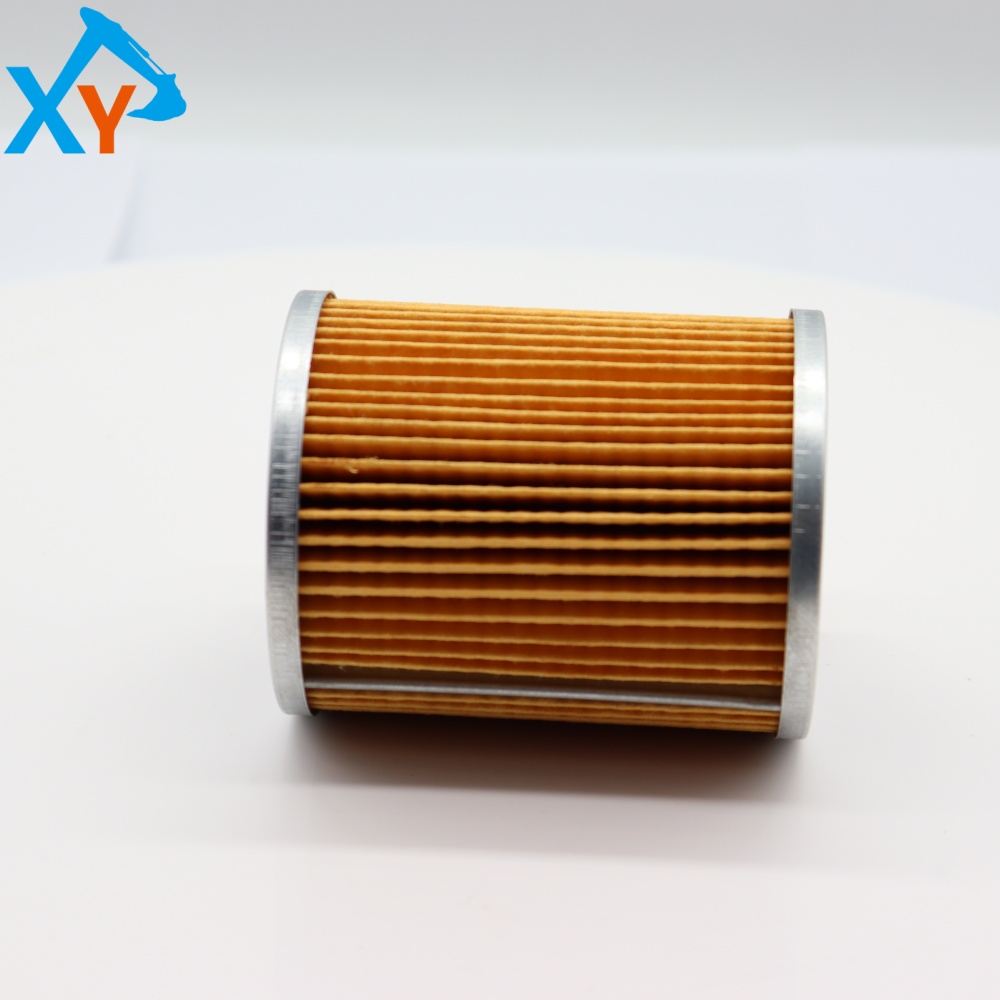

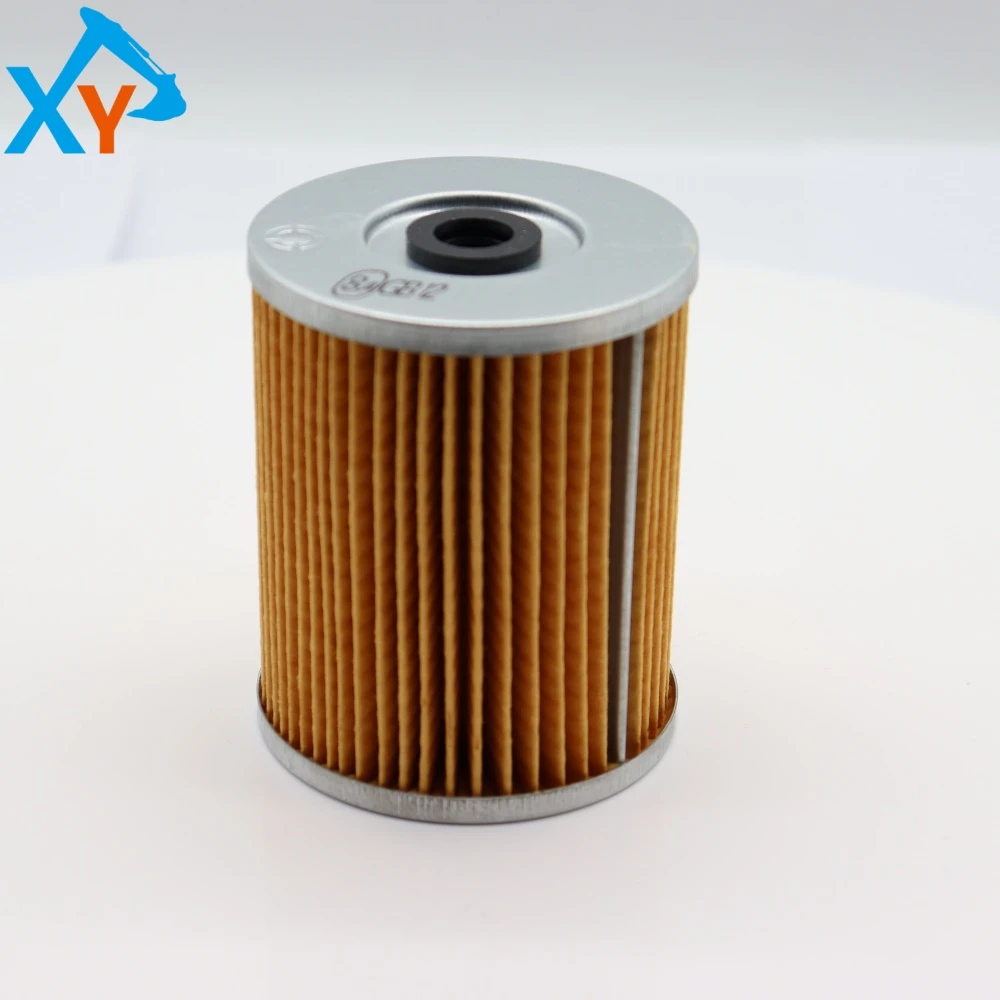

This product is a rotary disposable diesel filter with a silver gray metal end cap stamped on top. The clear "6949 12" and "90E" on it represent the production batch and specification code, and are the identification of the original factory parts. The main body is high-quality brown yellow filter paper, which adopts a tight pleated (star shaped) design to achieve maximum filtration area and pollutant capacity in a limited space. The bottom is a metal structure ring to ensure overall strength. Its filtration accuracy can usually reach 5-10 microns, which can efficiently separate water, gum, and solid particles in diesel. Internally integrated with a check valve (to prevent fuel backflow after shutdown) and a sealing rubber ring, ensuring 100% sealing after installation. The working pressure range is generally 0.1-0.5 MPa, and the temperature resistance range is -30 ℃ to+100 ℃.

Replacement cycle: Strictly follow the maintenance standard of replacing every 500 working hours or every 6 months, and shorten the cycle when the oil is poor or the environment is dusty. Replacement steps: 1 Release pressure: Turn off the engine and manually press the bleed valve on the fuel pre filter pump to release system pressure. 2. Disassemble old parts: Place an oil pan under the filter and use a special belt wrench to unscrew the old filter element counterclockwise. 3. Cleaning and Installation: Clean the installation surface of the filter base with a clean cloth, apply a small amount of clean diesel on the sealing ring at the top of the new filter element, then screw it into the base by hand until the sealing ring contacts the base, and finally tighten it by 3/4 turn (about 20-25 N · m) with a wrench.
