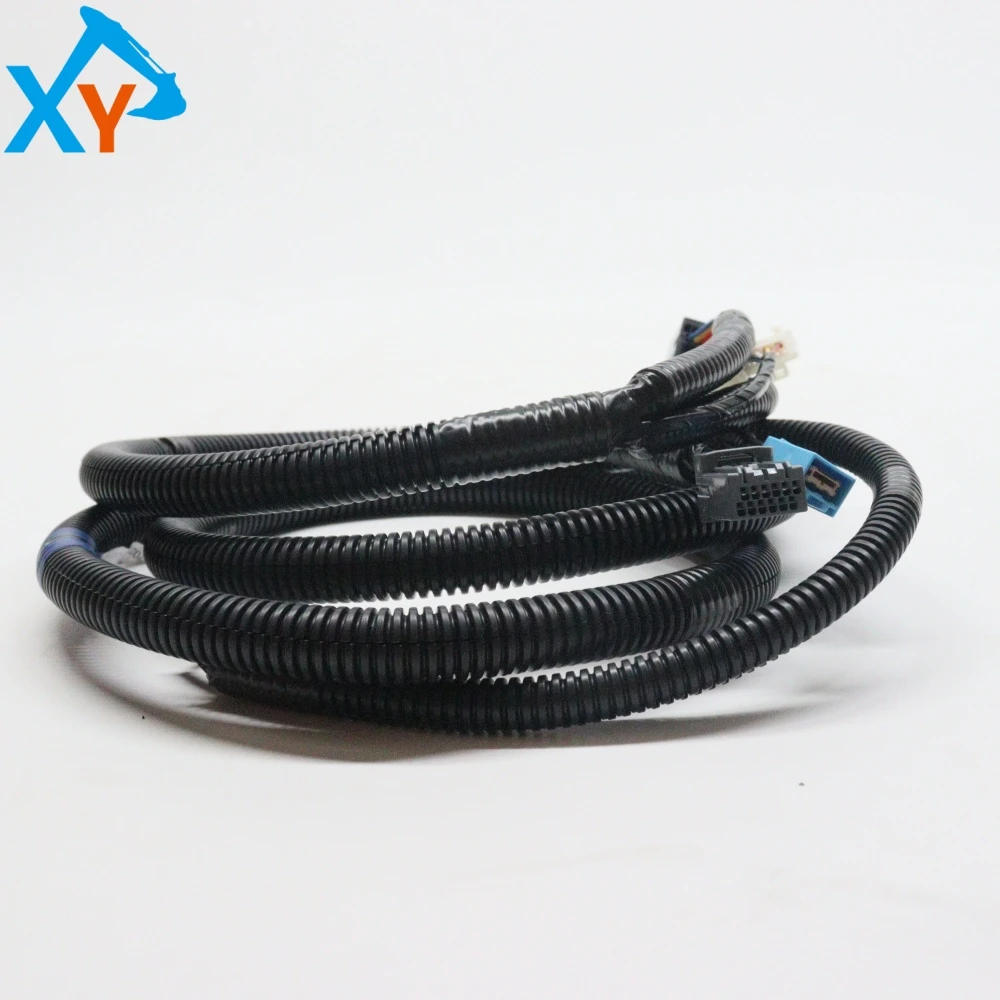

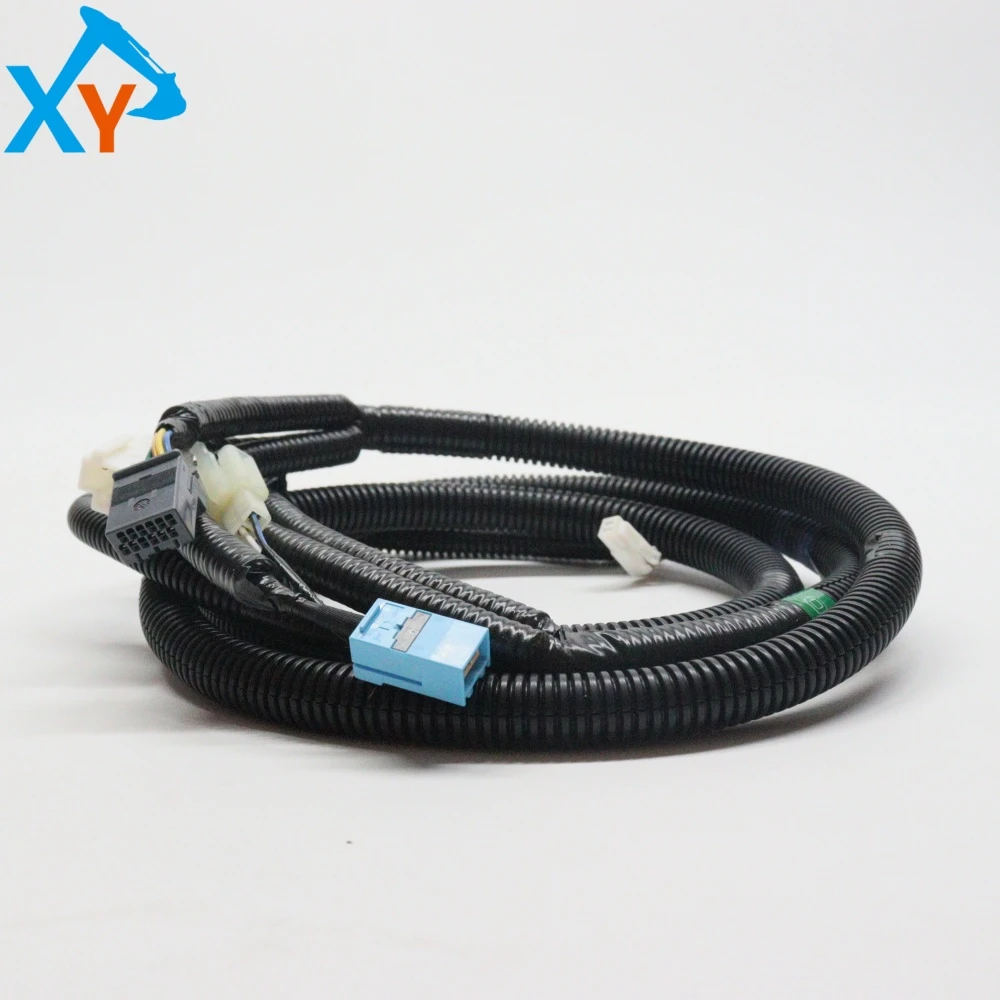

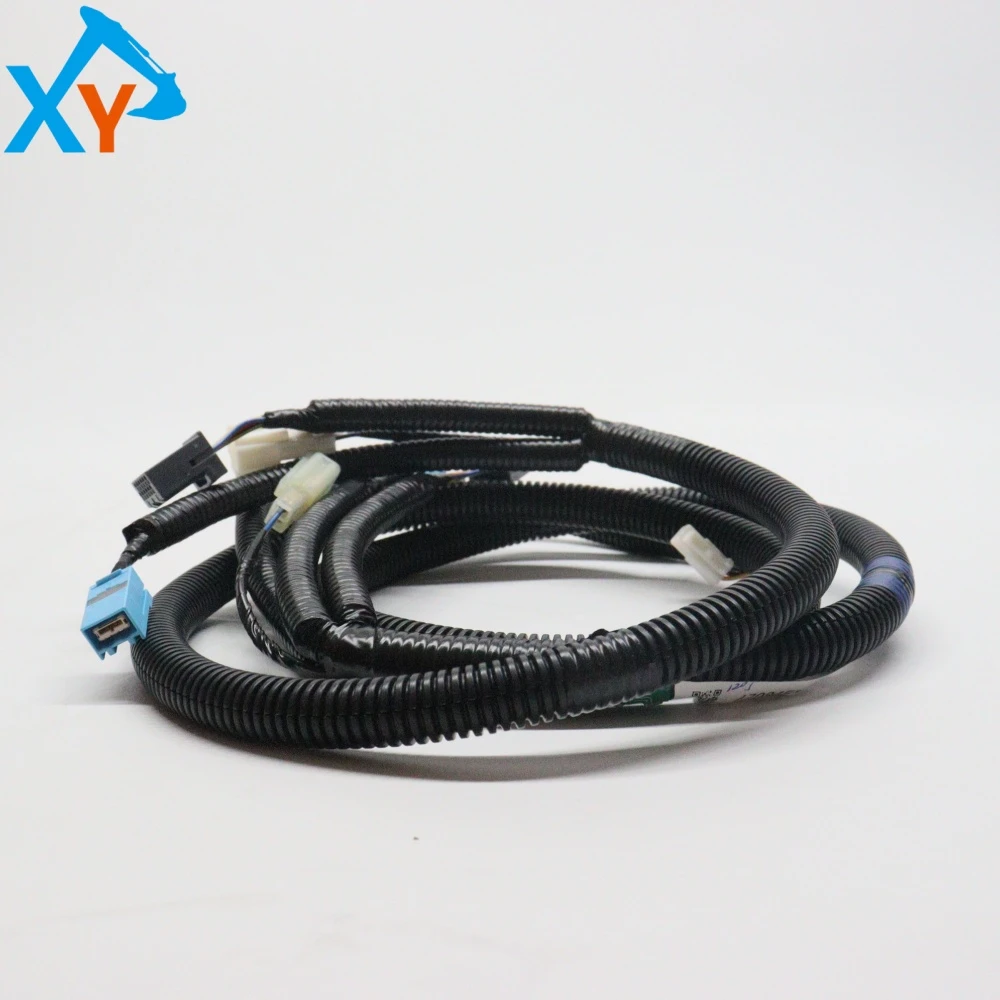

4708451 Original Excavator Wire Harness for Hitachi ZX200 ZX330-5G ZX870-5G

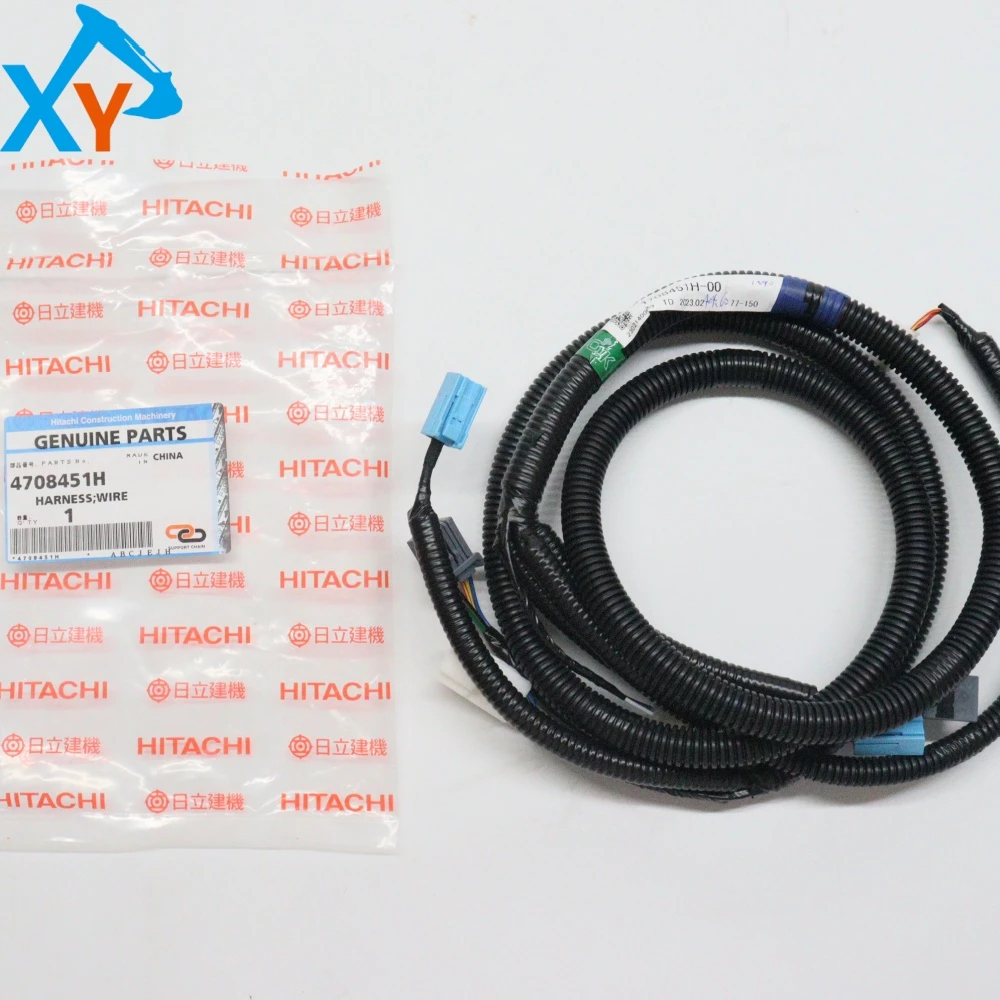

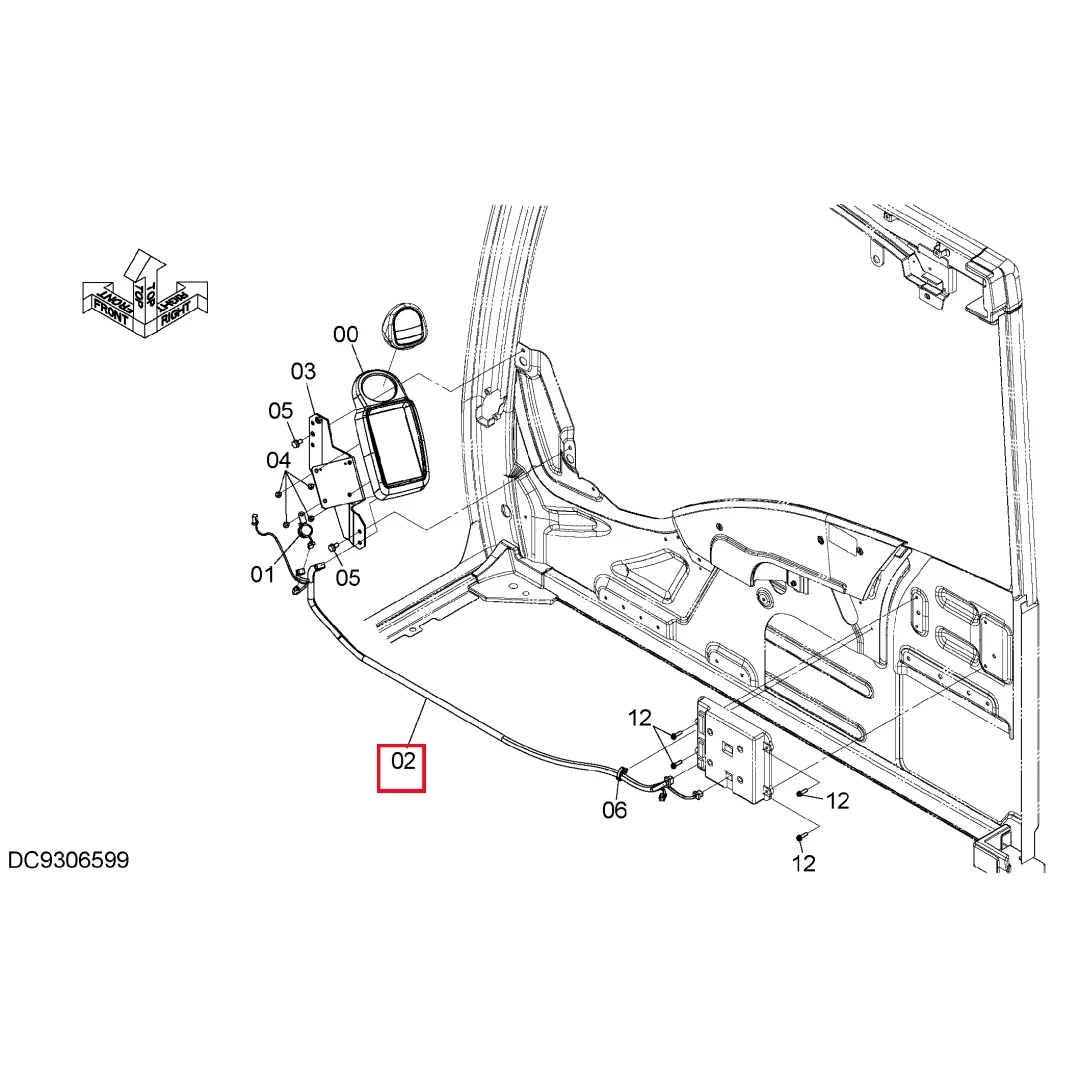

Part number 4708451 is the original Hitachi monitoring system harness, labeled as "Wire (Monitoring)" in the official parts catalog. It is mainly suitable for large hydraulic excavators such as Hitachi ZAXIS 490LCH-5A, and is used to connect monitors, displays, various alarm indicators, and related control units in the cab. The original part number is 4708451, which should be used as the reference for procurement. Due to differences in the layout and interface definitions of monitoring systems for different models of excavators, there is usually no universal replacement part number for this wiring harness

This wiring harness is the "information highway" of the excavator electronic monitoring system, specifically responsible for stable transmission of data signals and power between the monitors, display screens, alarm units in the cab and sensors and controllers throughout the vehicle body. Its core function is to ensure that the machine's operating status (such as engine speed, water temperature, hydraulic pressure, fault codes, etc.) can be displayed in real time and accurately to the operator. As an original factory component, it uses high-temperature resistant and flame-retardant special PVC or rubber insulation materials, and the internal wires are multi stranded tinned copper cores with good conductivity and fatigue resistance. The joint part adopts waterproof and dustproof gold-plated terminals, and has a locking structure to prevent accidental insertion, which can effectively resist the vibration, moisture, and oil stains of excavators under harsh working conditions.

The maintenance core of this wiring harness is to ensure reliable connection, prevent physical damage, and conduct regular functional testing. Connection inspection: Regularly (recommended every 250 working hours) check the connections of all monitoring system connectors for firmness, looseness, oxidation, or signs of water ingress, especially in areas that are susceptible to vibration such as the bottom of the cab and behind the dashboard. Appearance protection: During each maintenance, carefully check whether there is a risk of cracking, wear, or being cut by metal edges and corners on the outer skin of the wire harness, ensure that its fixing buckle is intact, and avoid the wire harness hanging or rubbing against moving parts.
