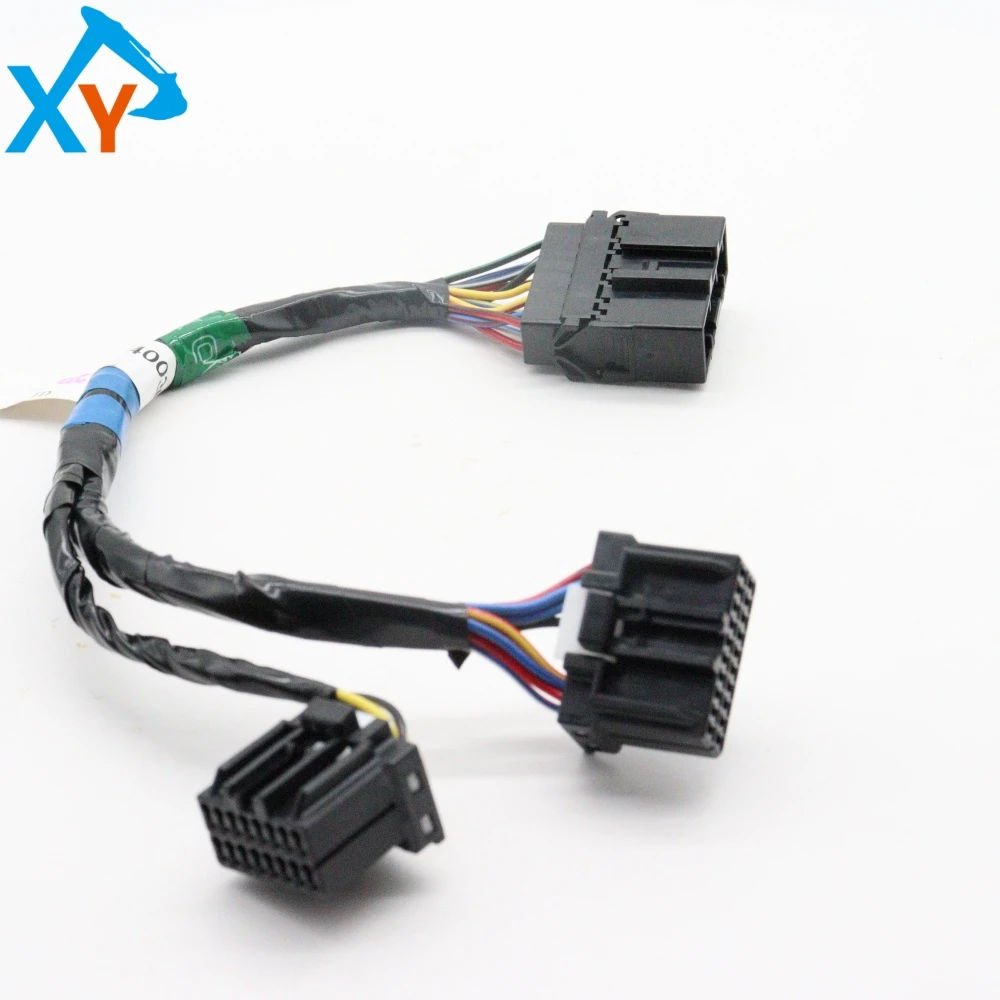

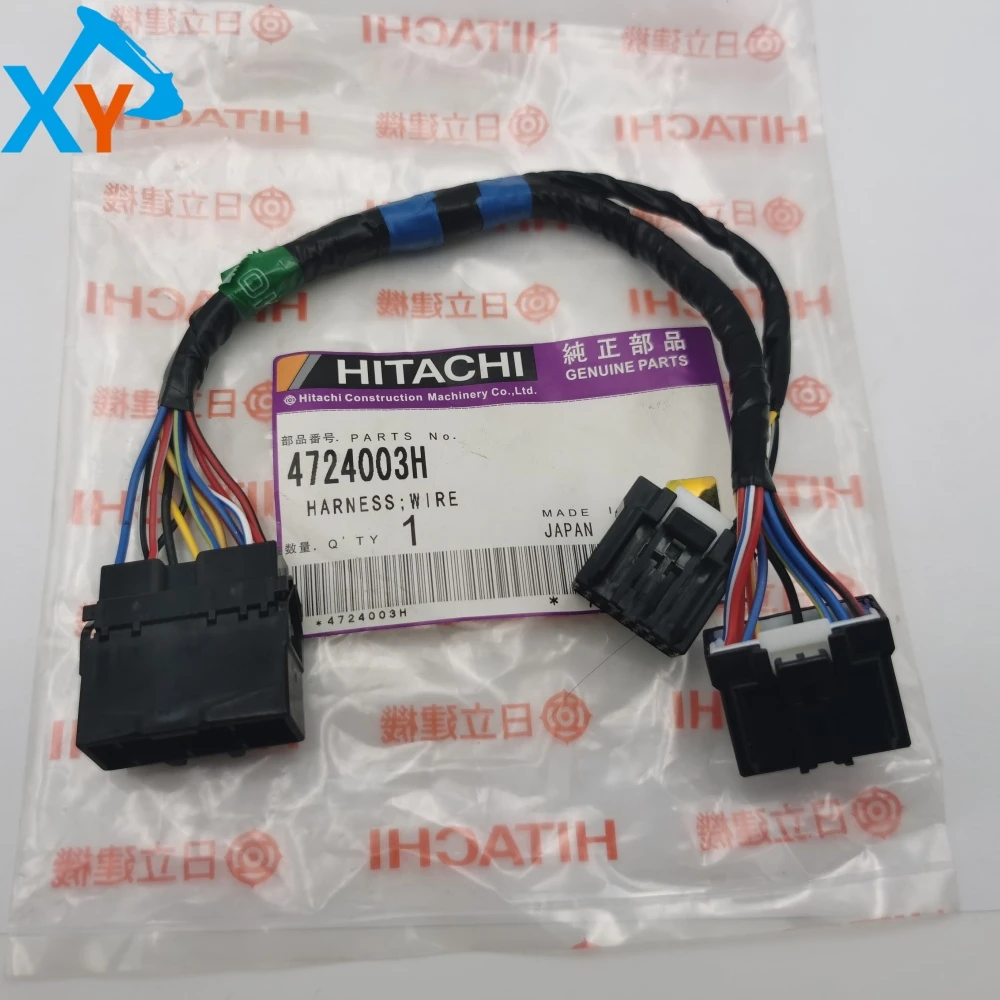

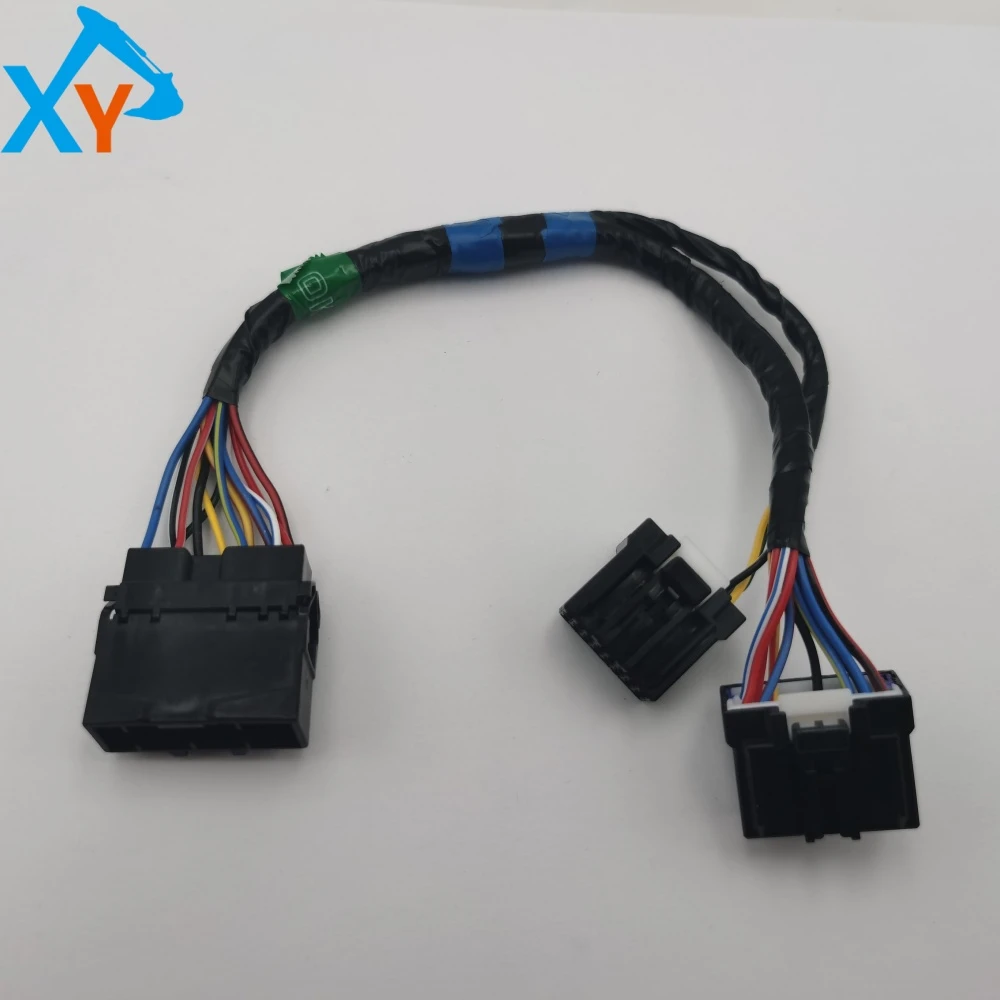

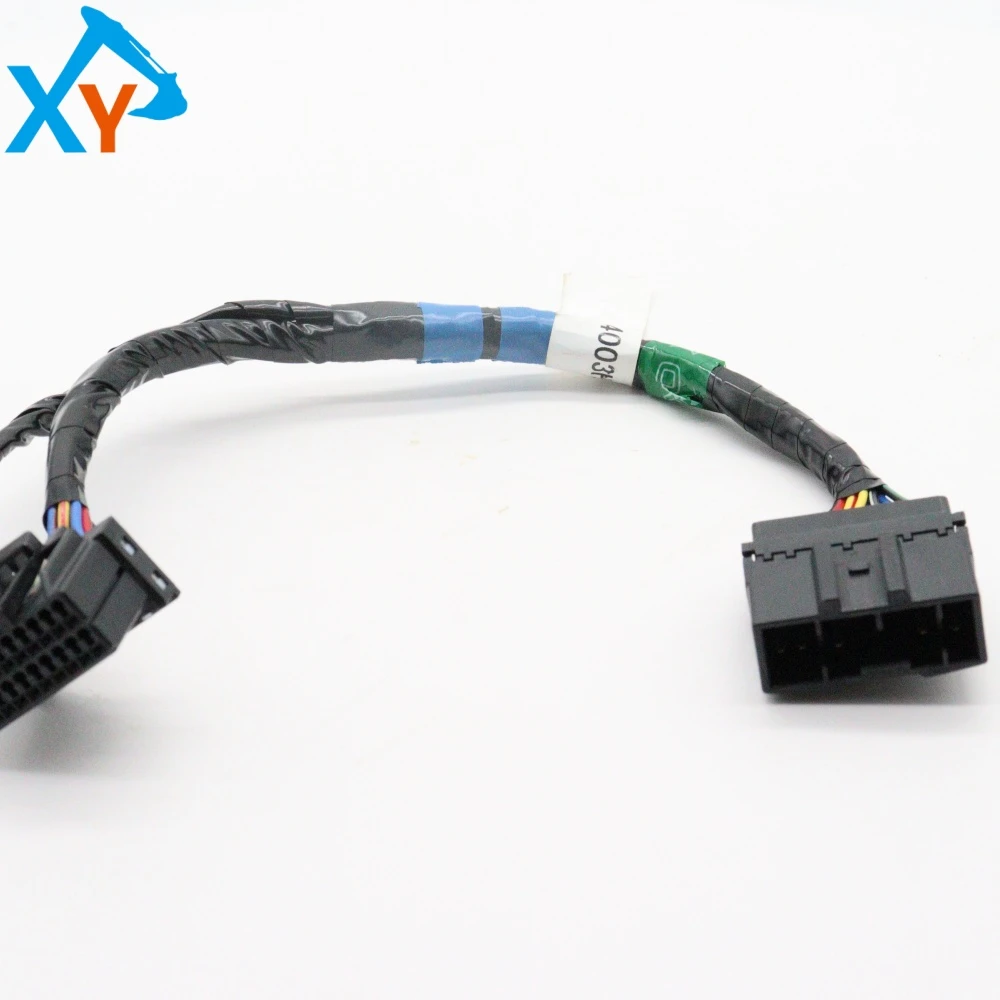

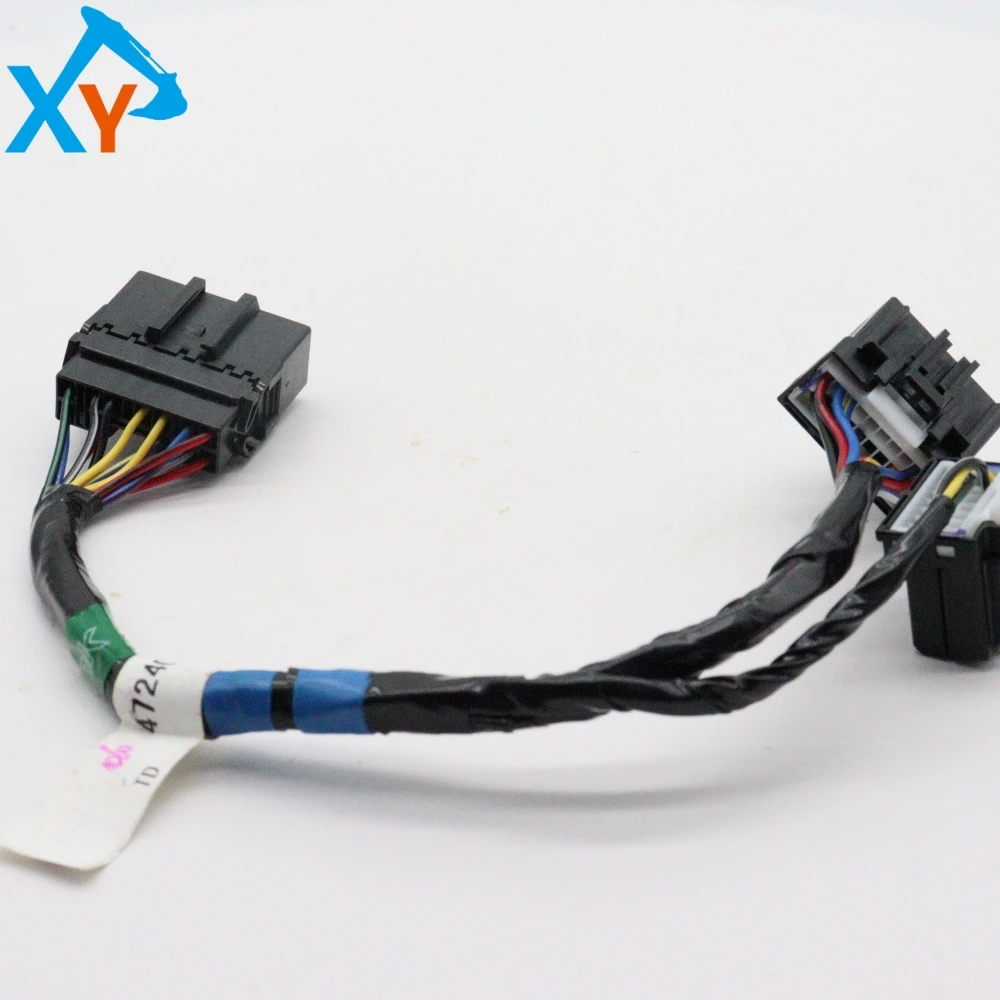

4724003 Original Excavator Electrical Parts Wire Harness for ZX200-3

The Hitachi original excavator electrical harness (universal part number: 4724003) is an engine control system harness designed specifically for certain models. According to the accessory information, the wiring harness specifically corresponds to the Hitachi ZAX270 excavator model and is compatible with models equipped with the Isuzu 6BG1 engine. As an original spare part, it is mainly used to connect the engine control unit (ECU), various sensors (such as speed, temperature, pressure sensors), and actuators (such as fuel injectors, EGR valves, etc.), and is the key to ensuring the normal operation of the engine electronic control system (which may involve GSM related functions). Although Hitachi excavator wiring harnesses are generally suitable for ZX55、ZX60、ZX70、ZX200/EX200、ZX210/EX210、ZX240/EX240、ZX250H/EX250、EX260、ZX270、ZX300/EX300、ZX330、ZX350、ZX370、ZX450/EX450、ZX470/EX470、EX870、EX1200 Widely available models

This wiring harness is the "neural network" of the excavator engine electronic control system, responsible for transmitting precise power and control signals. As an original component, it is made of high-quality materials that meet strict engineering machinery standards: the wire uses multiple strands of tinned copper core, which has excellent conductivity and corrosion resistance; The outer insulation shall be made of special PVC or cross-linked polyethylene materials resistant to high and low temperature, oil, abrasion and aging; The entire cable bundle is systematically tied and protected by professional corrugated pipes, woven mesh or flame-retardant tape, which can effectively resist the high temperature, continuous vibration, oil pollution, water vapor and chemical substances in the engine compartment.

The maintenance core of this wiring harness lies in preventive inspection, prevention of physical damage, and corrosion from harsh environments. Firstly, a systematic visual inspection of the wiring harness inside the engine compartment should be carried out regularly (recommended every 500 working hours or in conjunction with regular maintenance), with a focus on whether the outer skin has aged and become brittle due to high-temperature baking, been cut by metal edges or corners, or been damaged by friction with adjacent components due to vibration. Secondly, it is necessary to carefully check whether all connectors connected to the ECU, sensors, and actuators are properly plugged in, whether the locks are intact, and observe whether the pins are loose, oxidized, or corroded by water.
