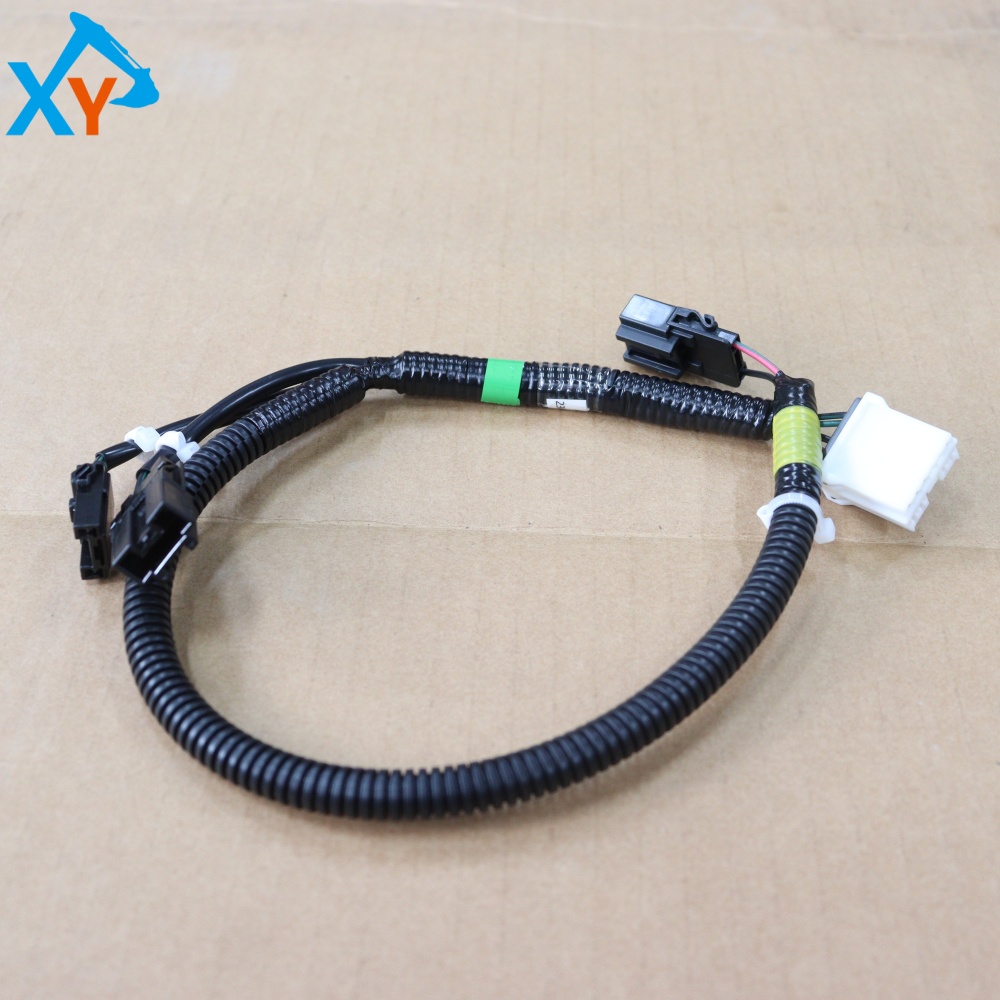

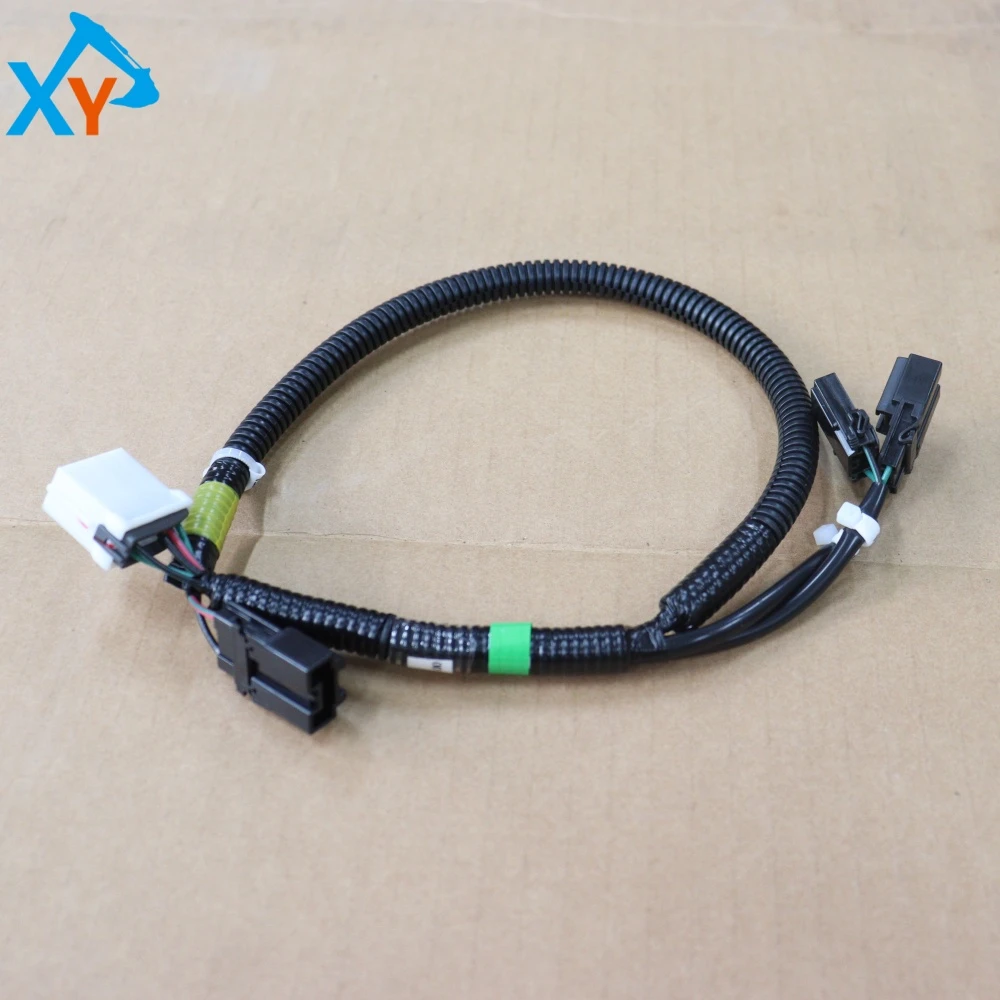

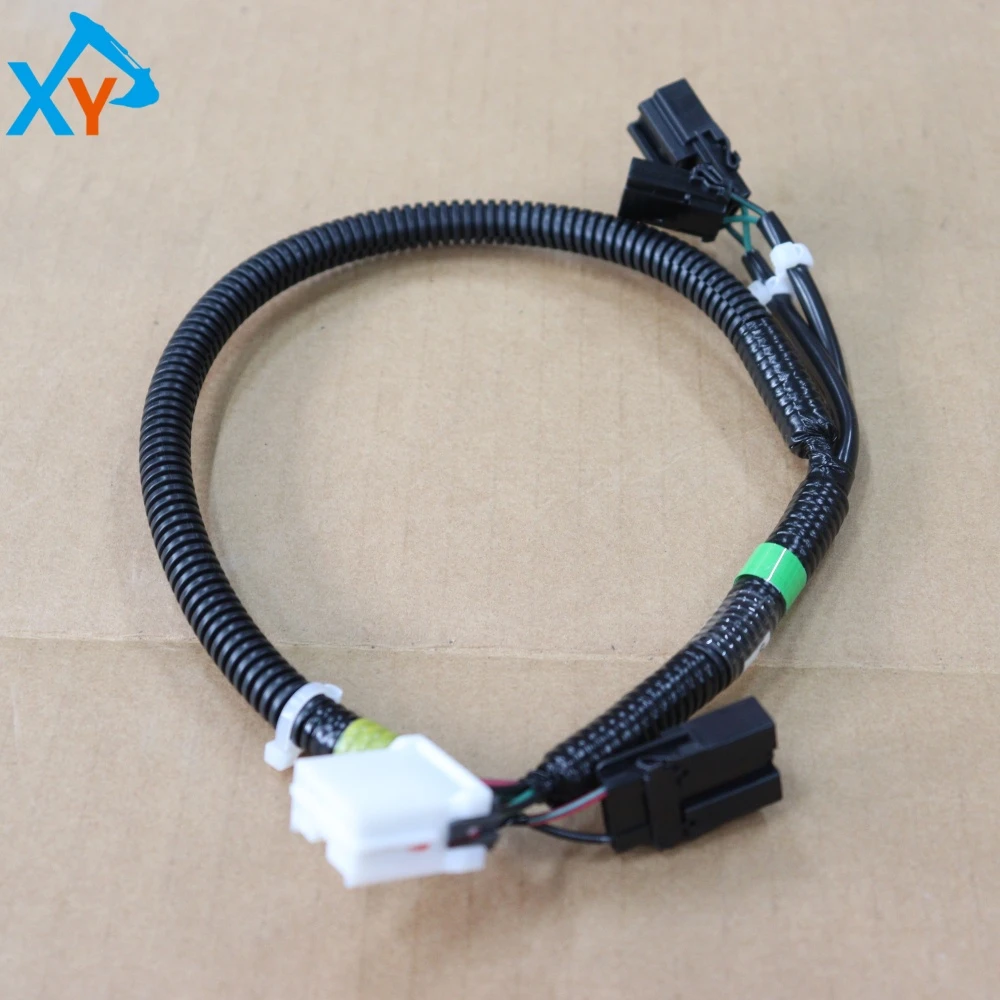

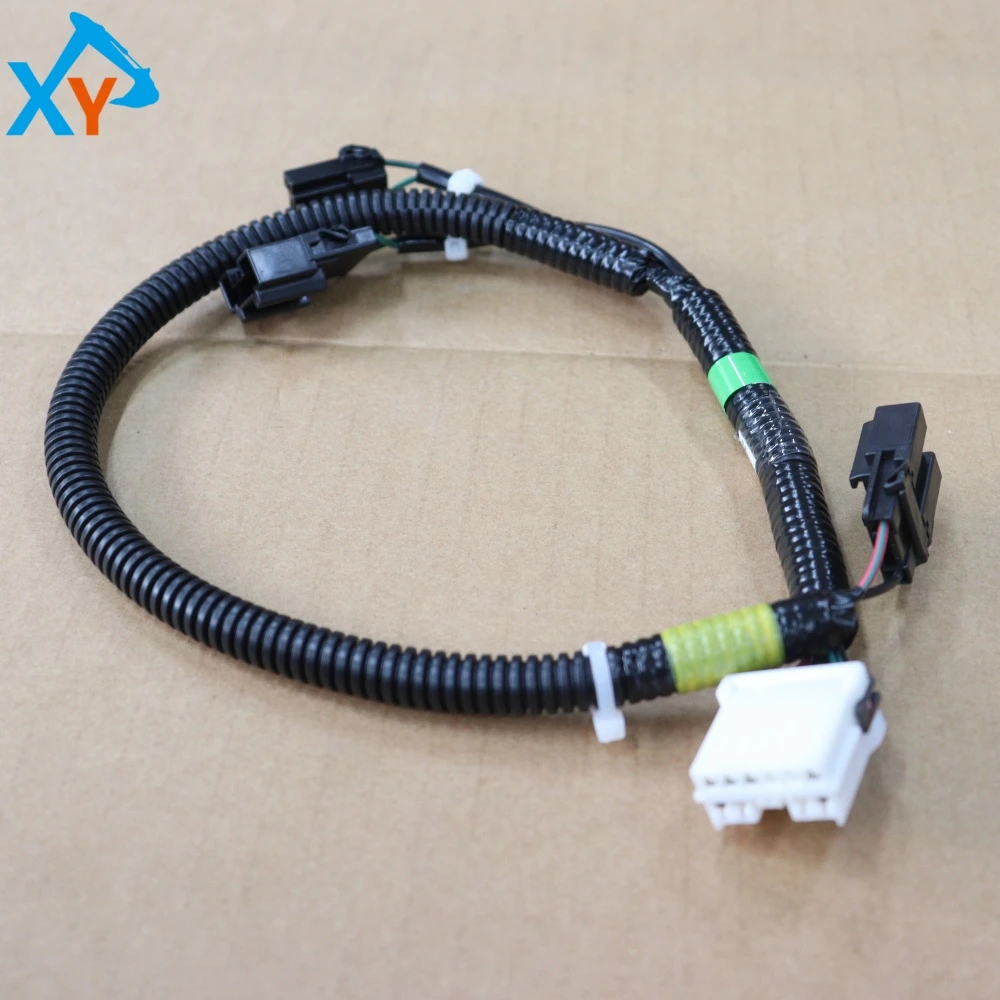

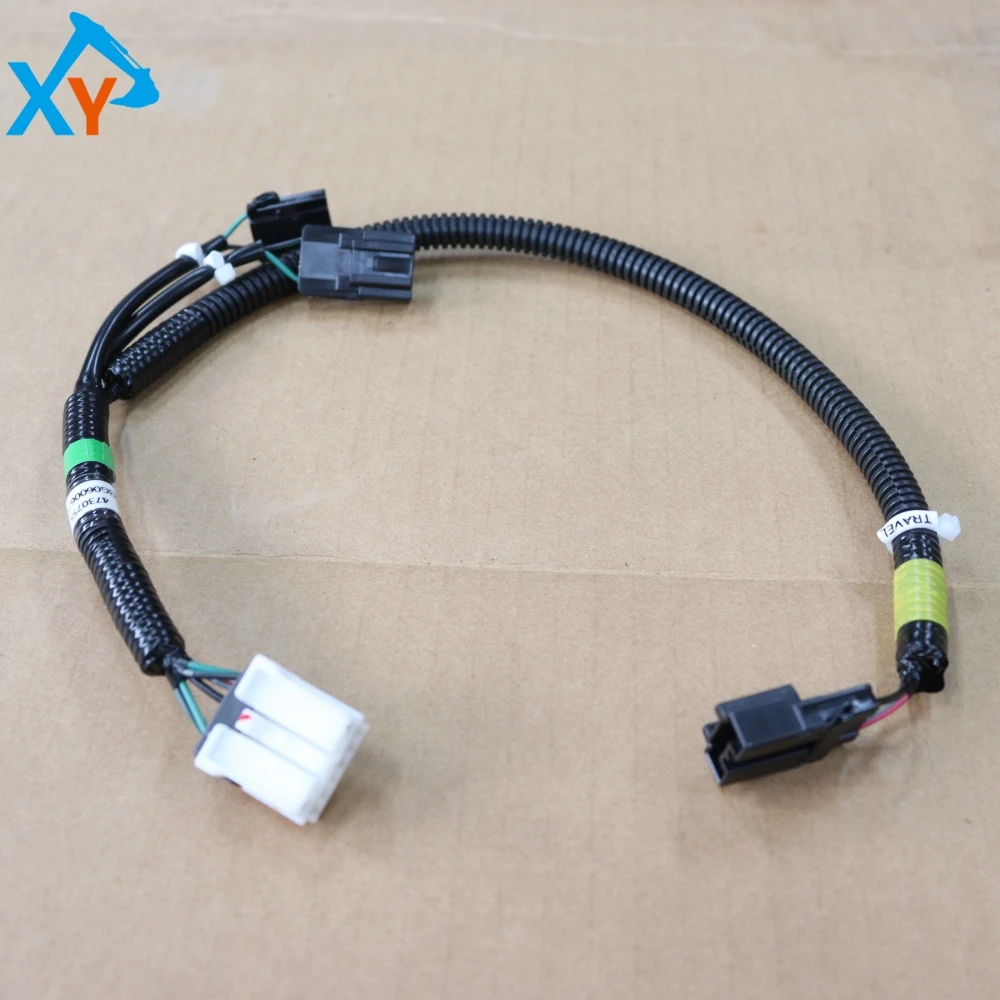

4730755 Excavator Wire Harness for ZX470-5G

Part number 4730755 is the original wiring harness assembly provided by Hitachi for the ZX470-5G series excavator. This component is the core network of the overall electrical control system, responsible for connecting the engine ECU, hydraulic pump controller, various sensors, actuators, and all operation and display units in the cab, ensuring reliable transmission of electronic control signals and power supply. According to the search results, ZX470-5G, as a medium to large-sized model of ZAXIS-5G series, has a complex and specialized wiring harness system.

This product is a multi branch, fully covered wiring harness assembly, wrapped in insulation material that is resistant to high temperature, oil, and wear. Key parts are protected by corrugated pipes or woven mesh. Its core function is to provide stable power and grounding for the entire vehicle's electronic control unit, and to transmit various key control signals at high speed and reliably (such as engine operating conditions, pump displacement commands, pilot pressure, various temperature/pressure sensor signals, etc.). As an original component, its wire diameter specifications, color coding system, waterproof rating of connectors (such as IP67), and shielding grounding treatment all comply with Hitachi's strict electrical specifications, ensuring long-term reliable operation in mining or earthwork environments with severe vibration, large temperature differences, and high dust.

Simple inspection method: visually inspect the outer skin of the wiring harness for cracks and wear; Monitor for any discharge noise near the wiring harness during idle and operation of the equipment; Use a multimeter to measure the conductivity and short circuit to ground/power of critical circuits. Caution: It is strictly prohibited to plug in or unplug any electronic control unit connector without completely cutting off the power; During storage, it is necessary to prevent moisture, pressure, and rodent bites; When replacing the wiring harness, it is recommended to check or clean all relevant sensor and actuator interfaces simultaneously.
