9142842 Original Excavator Control Unit for Hitachi EX200-3

Part number 9142842 is the original control unit provided by Hitachi for the EX200-3 series hydraulic excavator (with a total working weight of approximately 20 tons). This component is the core of the electronic control system of the whole machine, usually used as the main controller or pump controller, responsible for coordinating the work of the engine, hydraulic pump, and multi way valve. Its universal models usually cover EX200-3 and its closely related EX200-2, EX200-5 equivalent platform models. As the core electronic control brain of the original factory, its hardware interfaces, internal programs, and vehicle sensors, actuators, and CAN bus network are deeply integrated

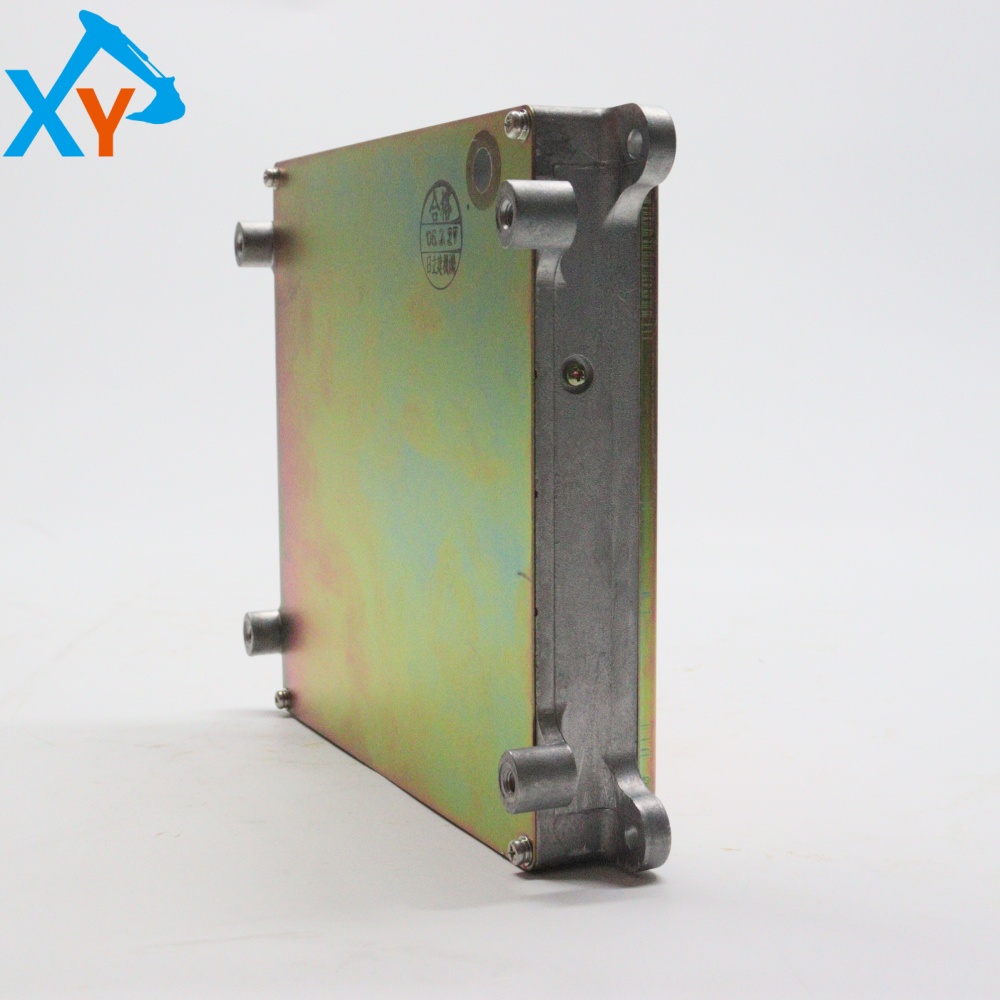

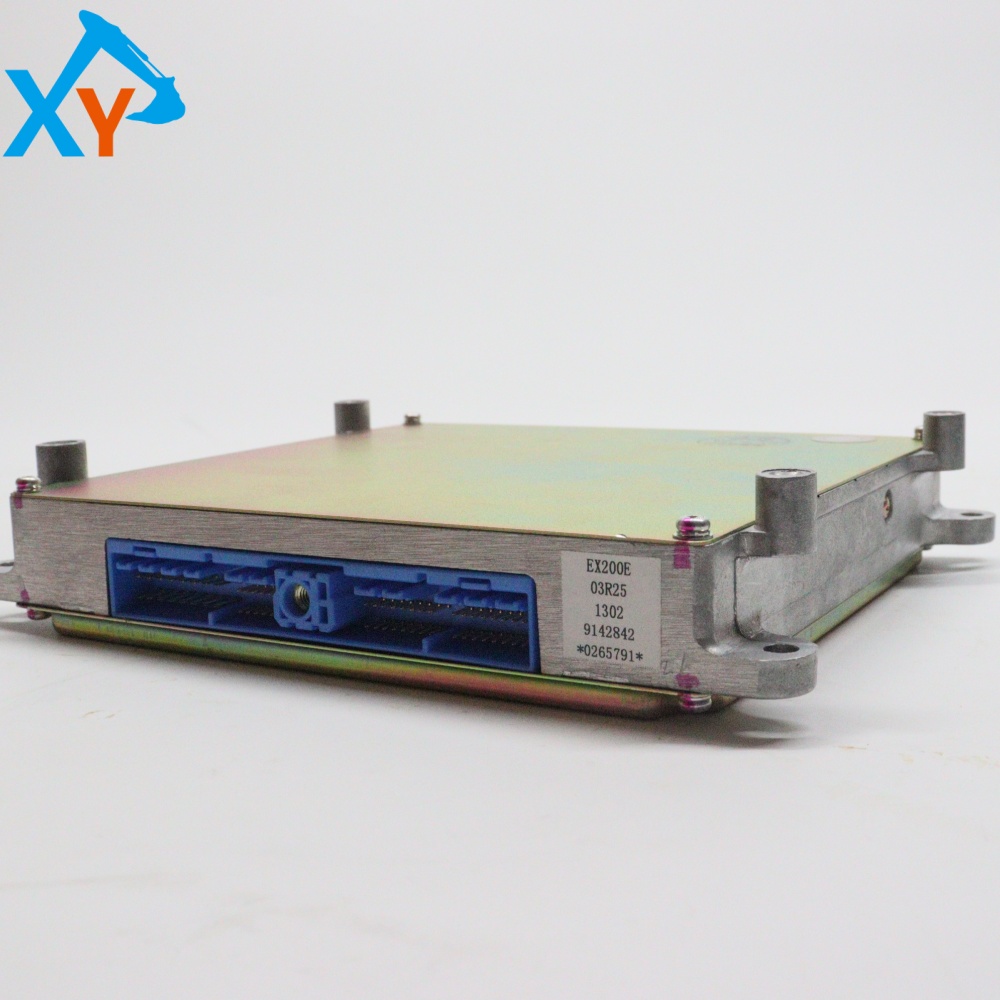

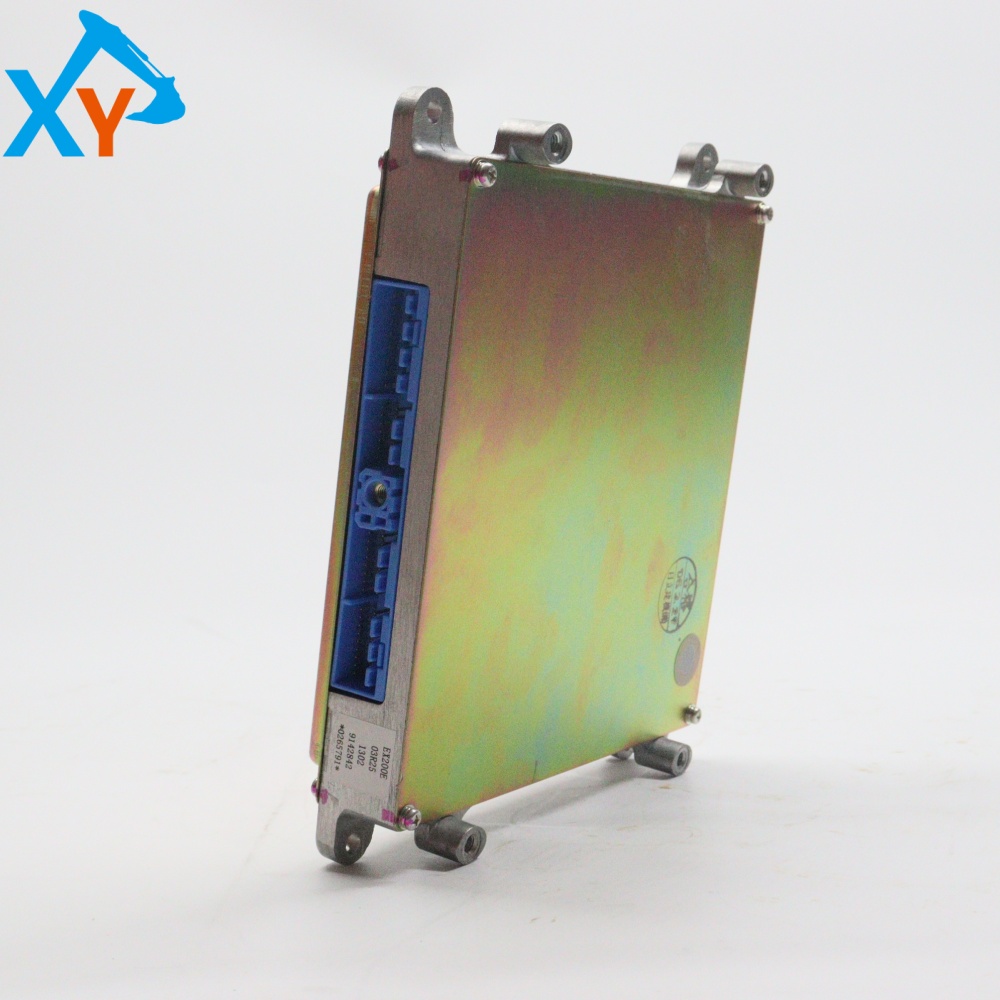

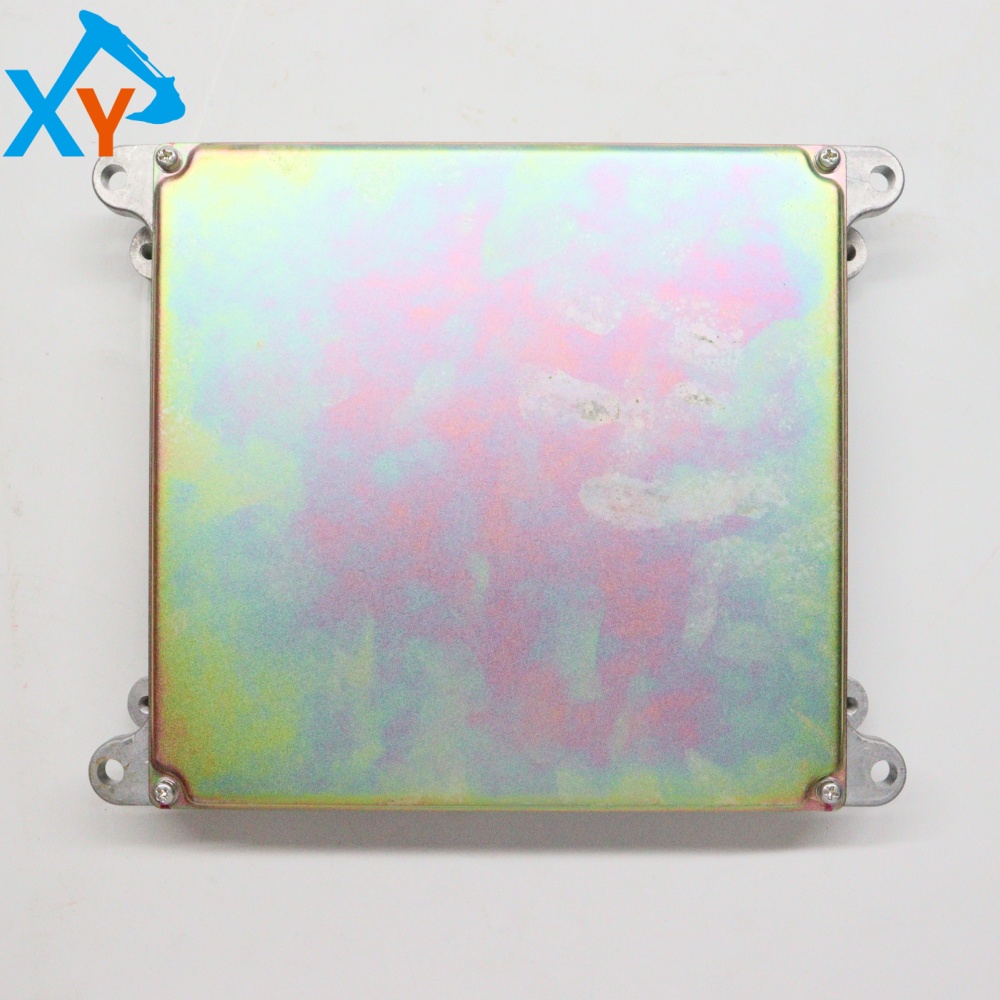

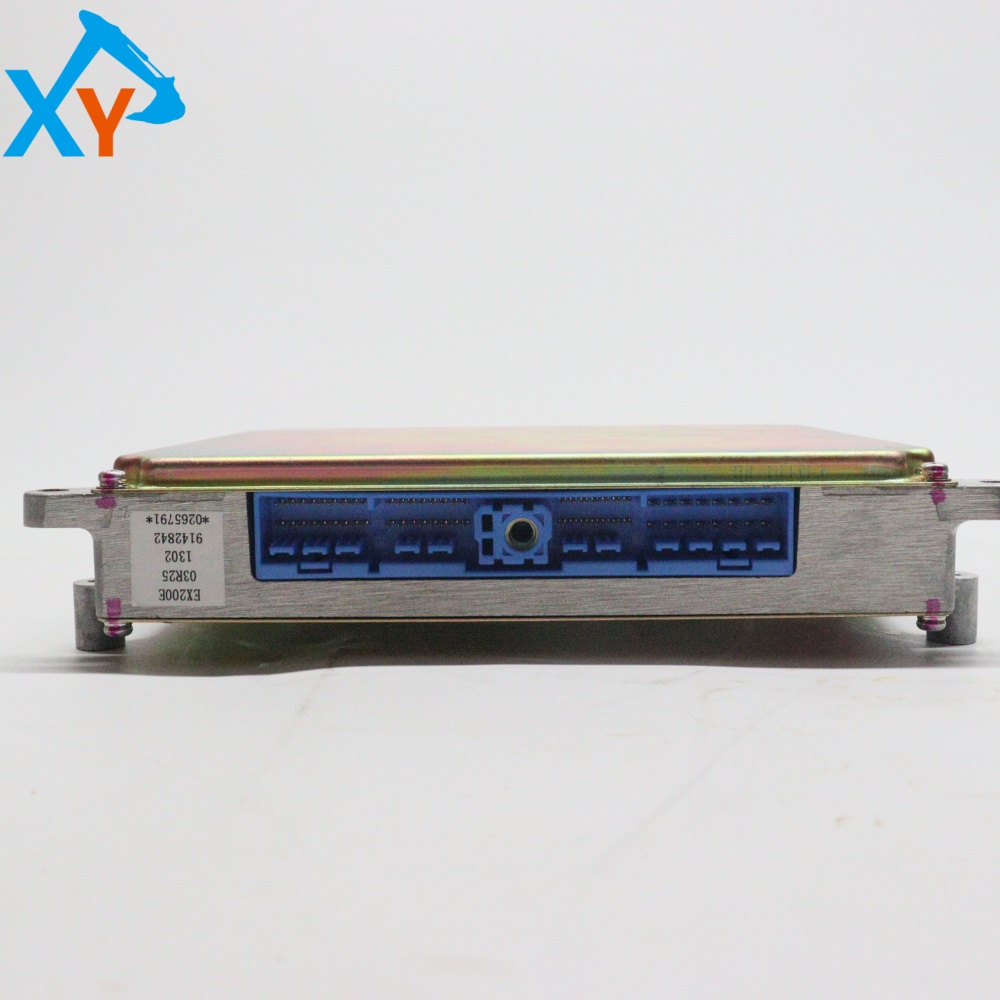

This product is an embedded industrial control unit with a shell made of die cast aluminum alloy. The surface presents an oxidized color due to special coating treatment, and has excellent electromagnetic shielding, heat dissipation, and shock resistance performance. The blue multi pin plastic connector integrated on one side is the key interface for communication with the vehicle harness. The working voltage is DC 24V, and the protection level can reach IP67, suitable for high temperature, dusty, and high vibration environments in excavator cab or electrical cabinet. Its core is a high-performance microprocessor, built-in CAN bus controller, and supports communication protocols such as J1939 for engineering machinery. The module receives various sensor signals, performs internal calculations, and outputs precise commands to control engine speed, pump displacement, and valve core opening, achieving intelligent power matching and efficient operation.

Installation and replacement: 1 Safe operation: Before operation, be sure to disconnect the negative terminal of the battery and wait for more than 5 minutes to discharge the system capacitor. 2. Plug in installation: Ensure that the blue connector is properly inserted and locked during installation, and tighten the installation bolts according to the torque requirements. 3. Programming is required: After replacing the new control unit (9142842), it is strictly prohibited to start it directly. It is necessary to use Hitachi's dedicated diagnostic tool to write specific calibration parameters of the equipment into the new controller, which is called "ECU matching" or "programming", otherwise the equipment will not work properly.
