9226754 Original Excavator Control for ZX270

Part number 9226754 is the original controller provided by Hitachi Construction Machinery for the ZX270 series hydraulic excavator (with a total working weight of approximately 27 tons). The universal model of this controller usually covers models on the same platform as ZX270, and may also be applicable to Hitachi excavators with similar tonnage and electronic control system design such as ZX250 and ZX300. As the core of the original electronic control system, its hardware interface and internal software are precisely matched with the CAN bus network of the whole machine. It is strictly prohibited to use non original or refurbished parts to avoid system communication interruption, abnormal action or performance imbalance.

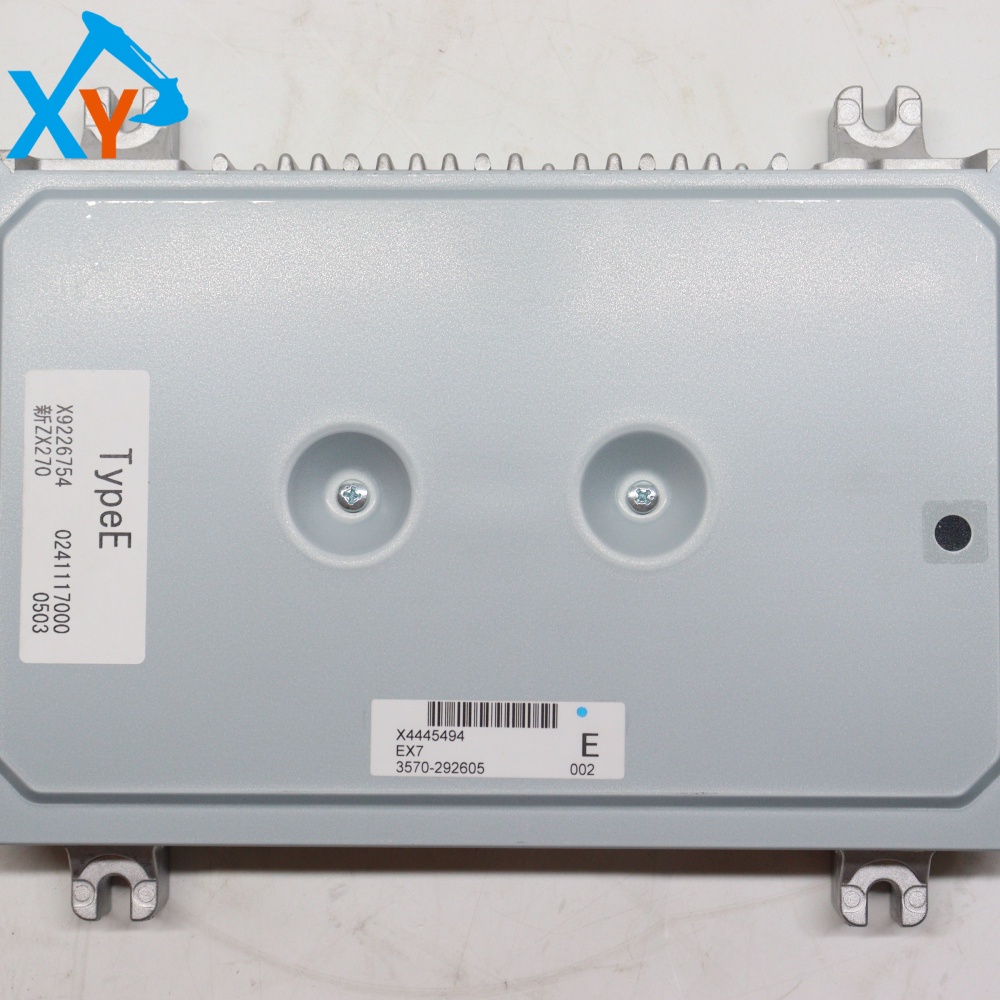

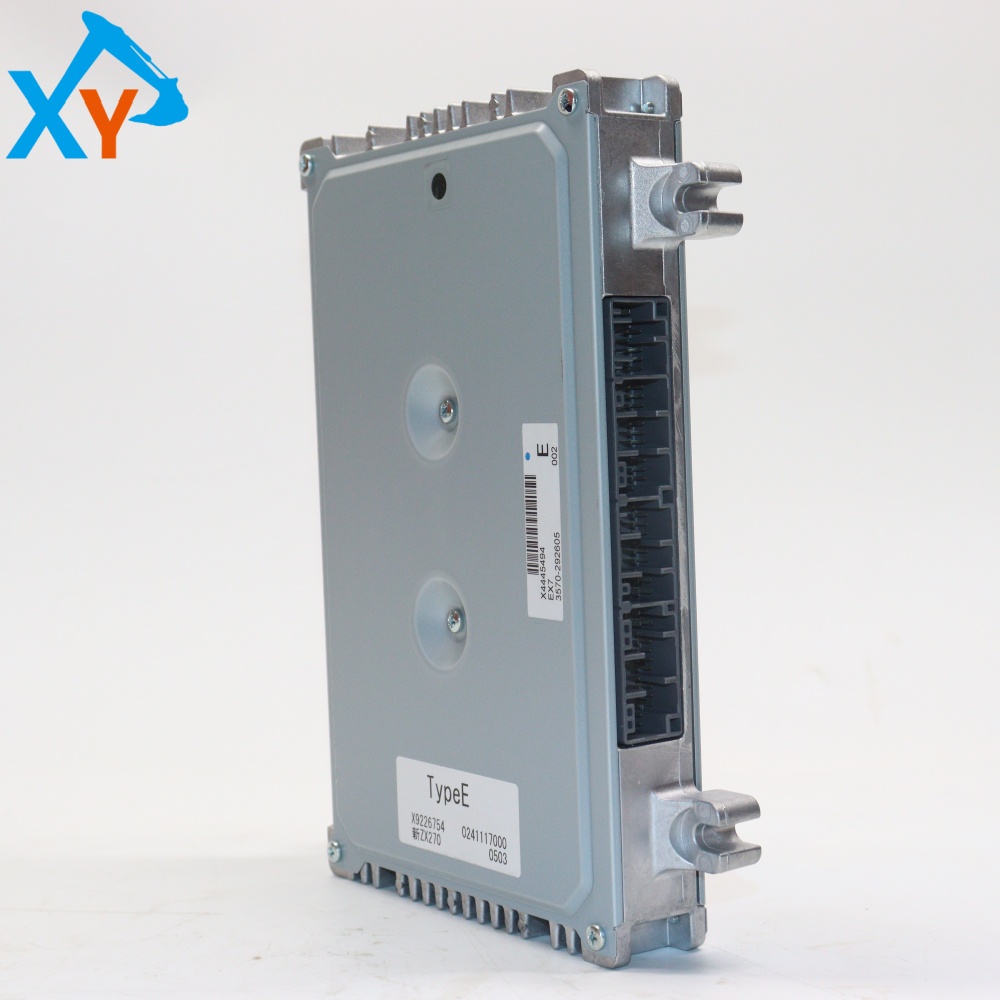

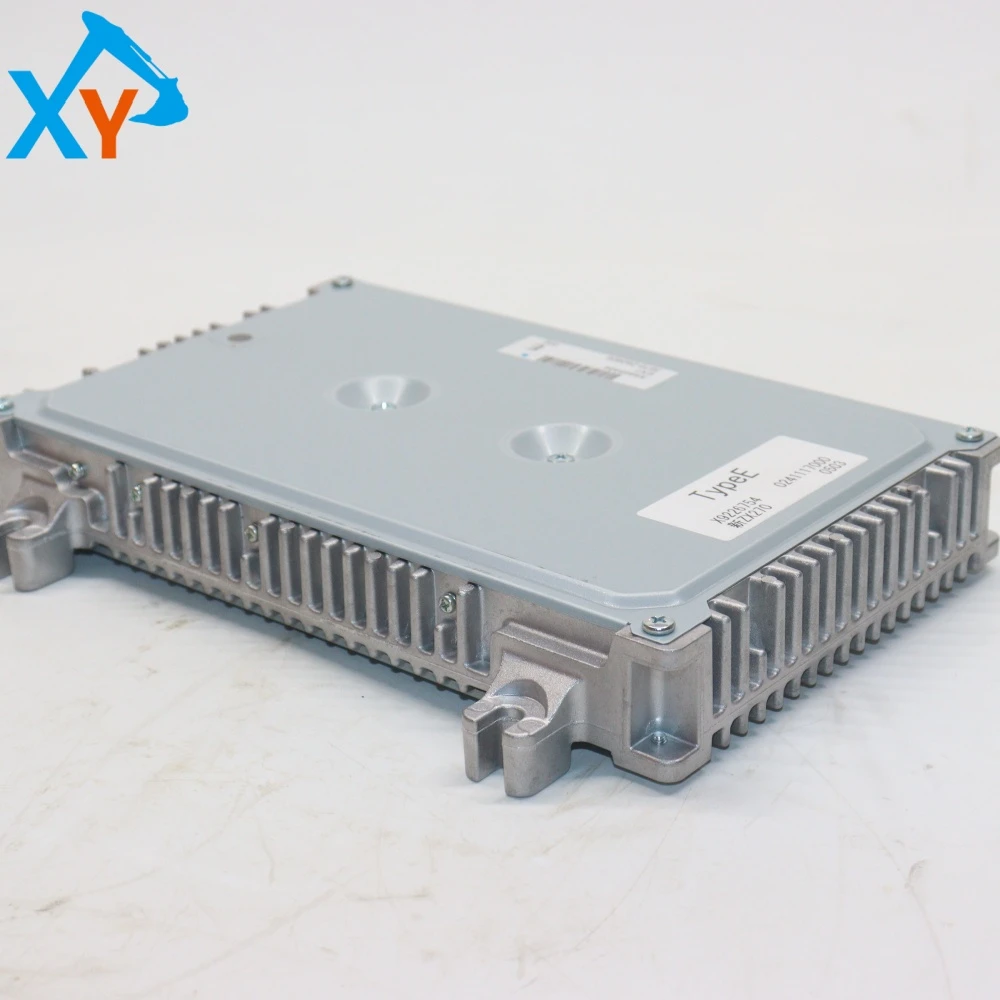

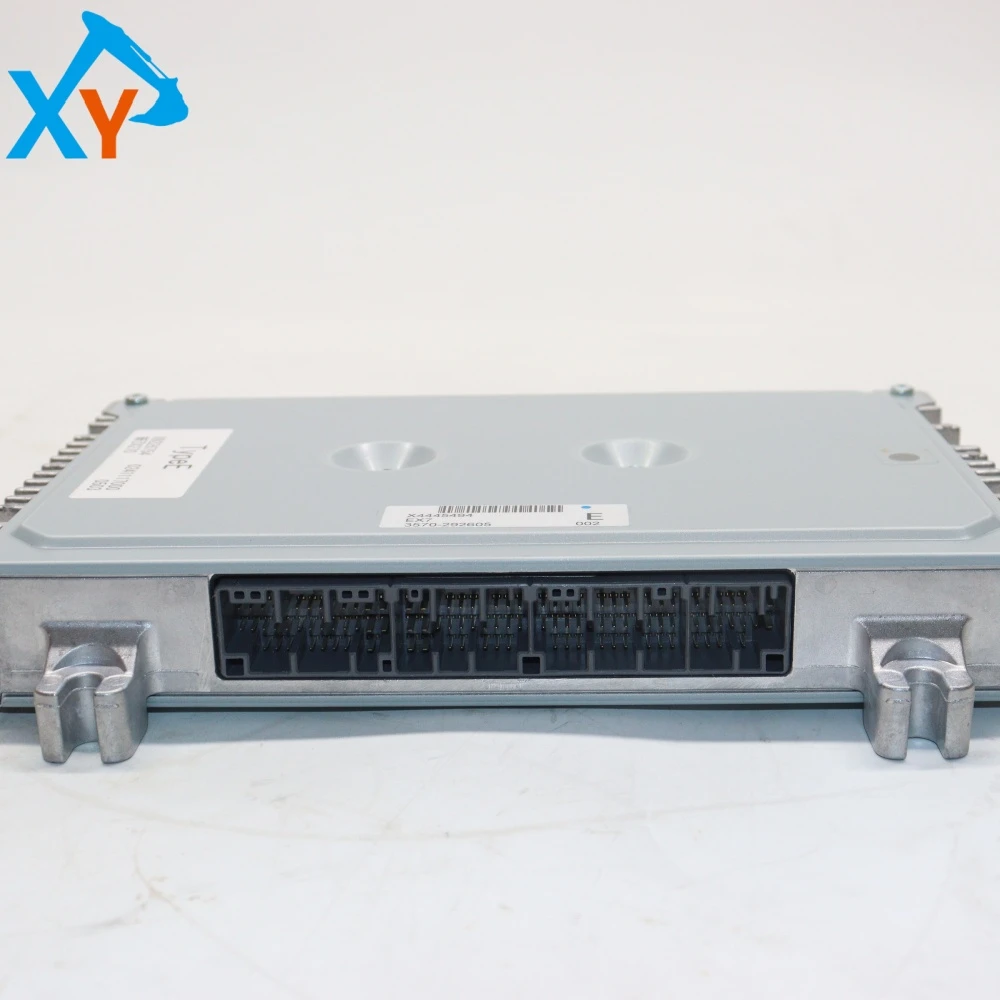

This product is an embedded car controller, with a silver gray die cast aluminum alloy shell and a heat dissipation design texture on the surface, providing excellent electromagnetic shielding, heat dissipation, and shock resistance performance. The row of black multi pin connectors below the front is the core interface for communication with the vehicle's wiring harness. The working voltage is DC 24V, with a protection level of not less than IP65, suitable for the high temperature, dusty, and high vibration environment of excavator cab. Its core adopts a vehicle grade microprocessor, built-in CAN bus controller, supports engineering machinery standard protocols such as J1939, is responsible for processing sensor signals, coordinating engine and hydraulic system work, and realizing fault diagnosis and storage.

Replacement and programming: 1 Safe operation: Before replacement, be sure to disconnect the negative terminal of the battery and wait for more than 5 minutes to fully discharge the system capacitor. 2. Installation: Install the new controller (9226754) smoothly in place, ensuring that all wiring harnesses are securely plugged in and locked. 3. Mandatory programming: It is strictly prohibited to start the device directly after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write the specific calibration parameters of the original equipment into the new controller and complete the "online matching" programming, otherwise the equipment will not work properly. Fault diagnosis: If the device has abnormal operation, power failure or alarm, after basic inspection, it should be connected to a diagnostic instrument to read the fault codes and data flow in this controller for accurate analysis.
