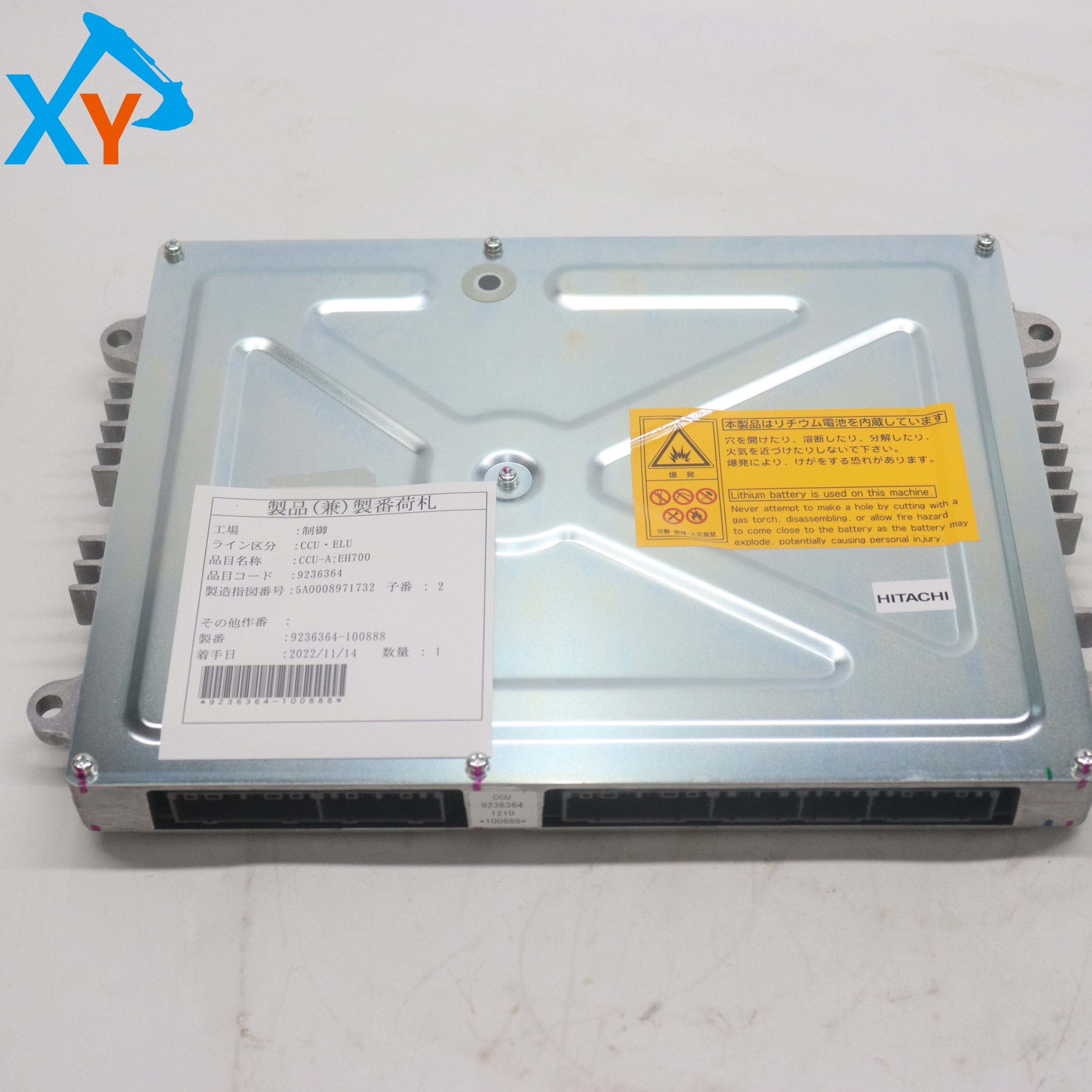

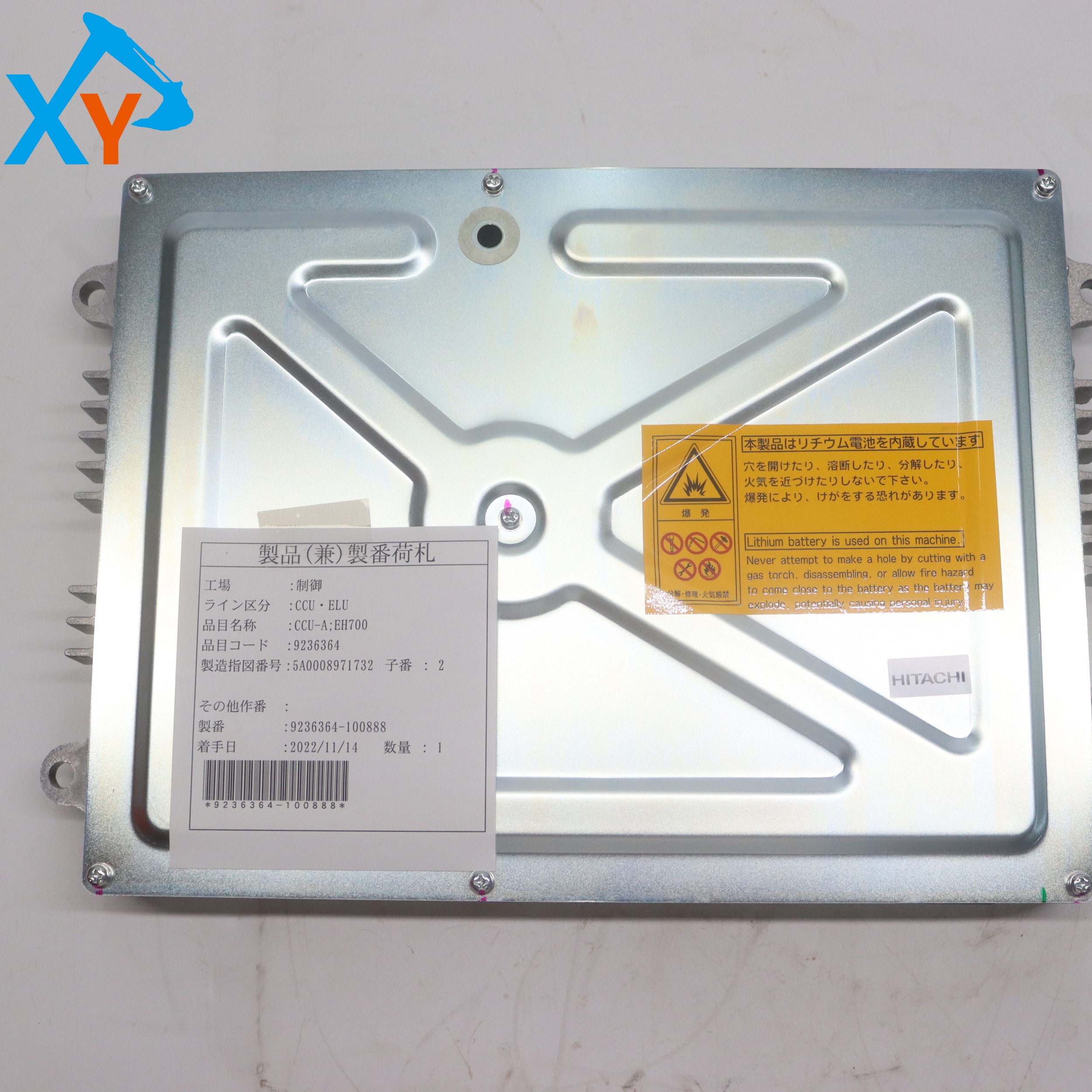

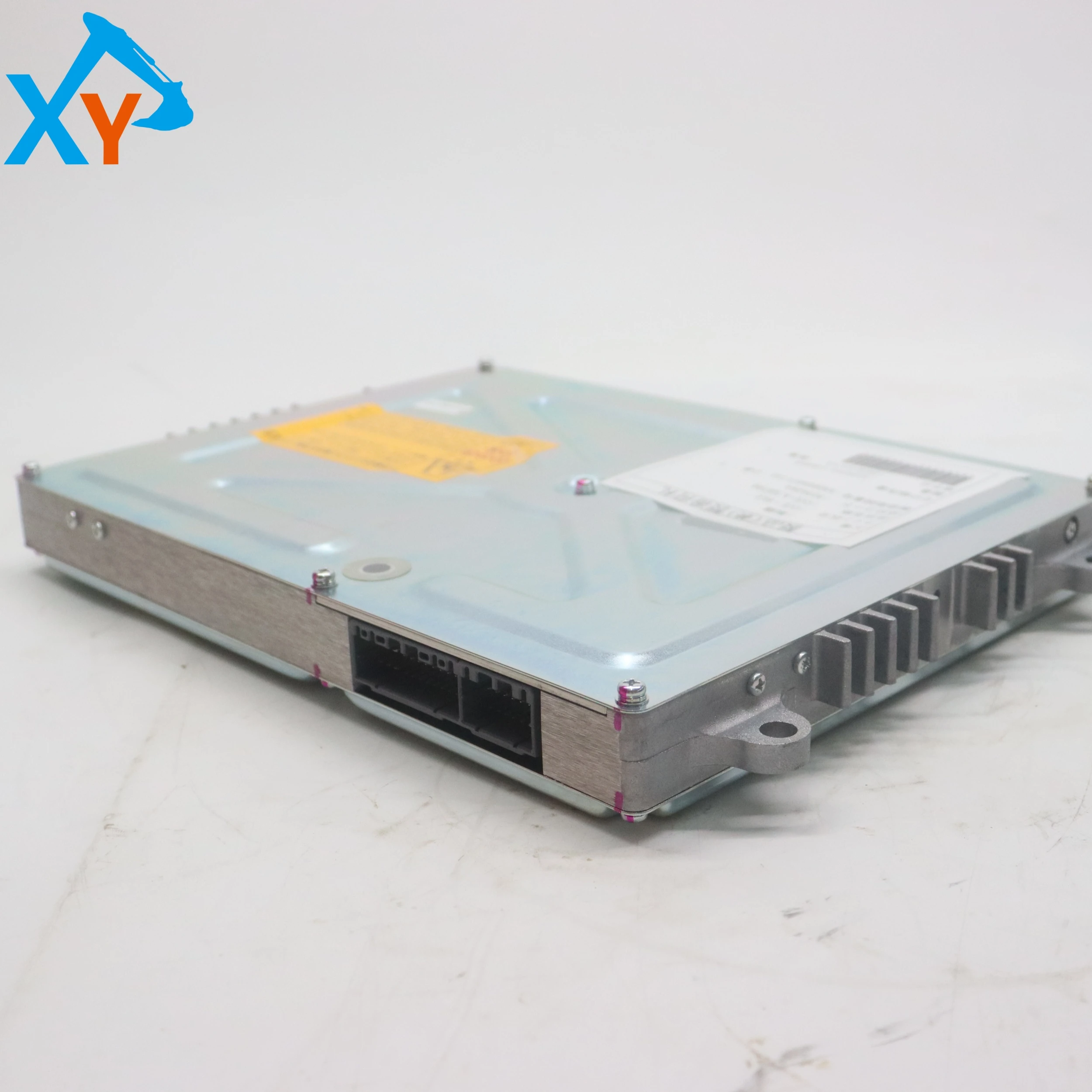

9236364 Dump Truck Controller for EH5000AC2

The original controller part number 9236364 is the core electronic control unit provided by Hitachi Construction Machinery for the EH5000AC2 large rigid dump truck (with a rated load capacity of approximately 296 tons). This controller is mainly used for power transmission management, hydraulic system control, fault diagnosis, and data communication of the entire vehicle, and is the center to ensure efficient, reliable, and intelligent operation of the equipment. Its universal model is usually directly labeled as 9236364 and is also suitable for EH5000AC-3 and other series of large mining dump trucks. It is a proprietary design of the original factory and deeply integrated with the vehicle's CAN bus. It is strictly prohibited to replace it with the auxiliary factory's universal controller to ensure complete matching of control logic and communication protocol.

This product is an original car controller that uses a 32-bit microprocessor (clock frequency ≥ 100MHz) and built-in Flash memory (capacity ≥ 1MB) for storing control programs and fault codes. The core functions include engine power distribution, transmission shift logic, brake system management, and hydraulic control for lifting; Support J1939 and ISO 11898 protocols to achieve real-time data exchange with instrument panels, sensors, and actuators. The hardware interfaces include CAN-H/CAN-L communication lines, analog inputs (0-5V/4-20mA), digital inputs/outputs (24V DC), and power lines (DC24V). Protection level IP67 (dustproof and waterproof), operating temperature range -40 ℃ to+85 ℃, seismic rating in accordance with ISO 10816-1 (vibration acceleration<3.5g). Supports online diagnosis (via OBD-II interface) and parameter calibration (requires dedicated HDS diagnostic instrument), suitable for harsh working conditions such as high vibration, high dust, humidity, and electromagnetic interference in mines.

Daily inspection: Check if the wiring harness connectors are loose and if the waterproof cover is intact every 250 working hours; Use a diagnostic tool to read the fault history record (with a focus on P-codes and U-codes). Functional testing: Check the LED status light (normally green and constantly on) through self checking mode (key switch ON OFF ON OFF ON cycle) every month; Test whether the signals from various sensors (such as throttle position, pressure, temperature) are within a reasonable range. Fault diagnosis: If the controller does not respond, first check the driver's cabin fuse F501 (15A/24V) and power supply voltage (normal 24V ± 10%); If communication is interrupted, check the CAN bus terminal resistance (standard 120 Ω) and the grounding of the wire harness shielding layer; If the parameters are lost, try recalibrating (with original factory authorized software). Software upgrade: Firmware can be upgraded through the diagnostic interface (supporting versions V2.0.0 to V4.5.0), and all calibration data must be backed up before upgrading. Stable operation.
