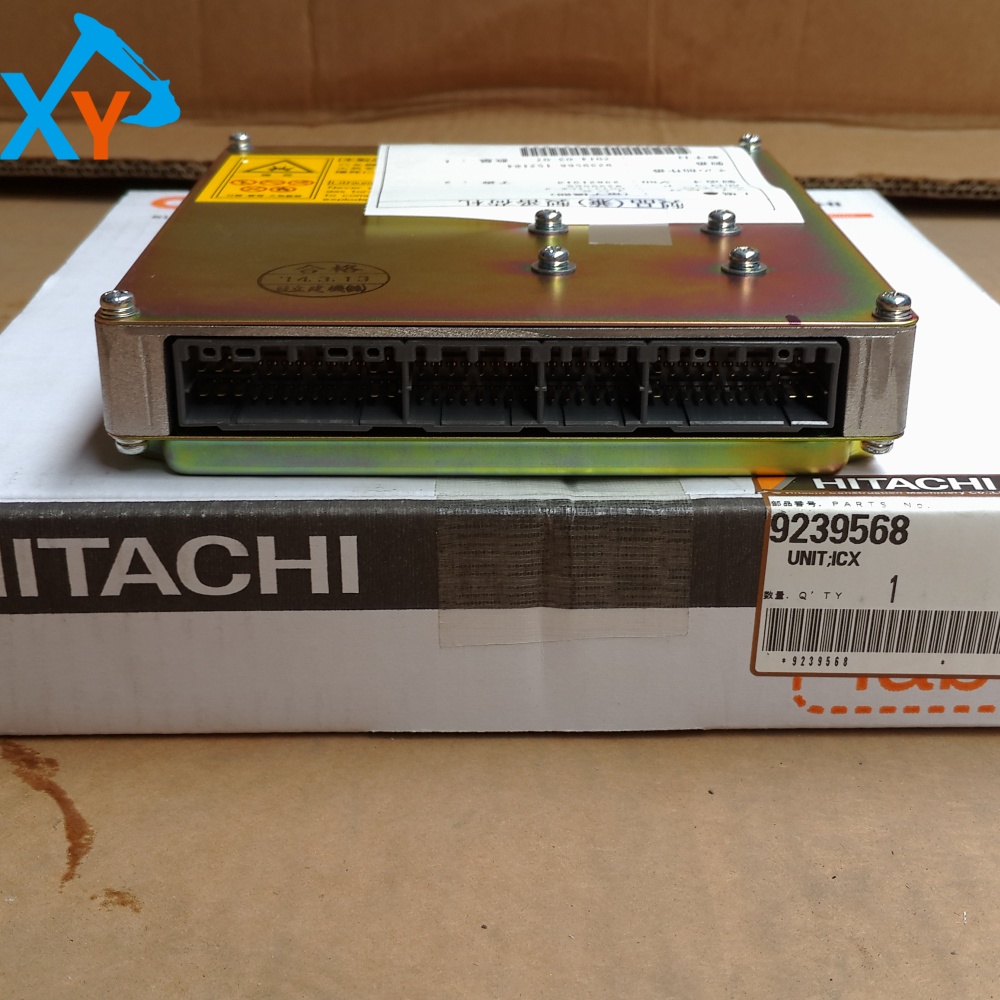

9239568 Original Excavator Control Unit for ZX200-3G

Part number 9239568 is the original control unit (computer board/information board) provided by Hitachi for medium-sized hydraulic excavators such as ZX200-3G. According to the accessory supplier information, the universal model of this component covers multiple series of models such as Hitachi ZAX70, ZAX120, ZAX200, ZAX240, ZAX330-1/3G/6, etc. As the core of the entire electronic control system, it is responsible for integrating and processing signals from sensors such as the engine, hydraulic pump, and valve group, and outputting control commands to achieve functions such as power matching, fault diagnosis, and mode switching.

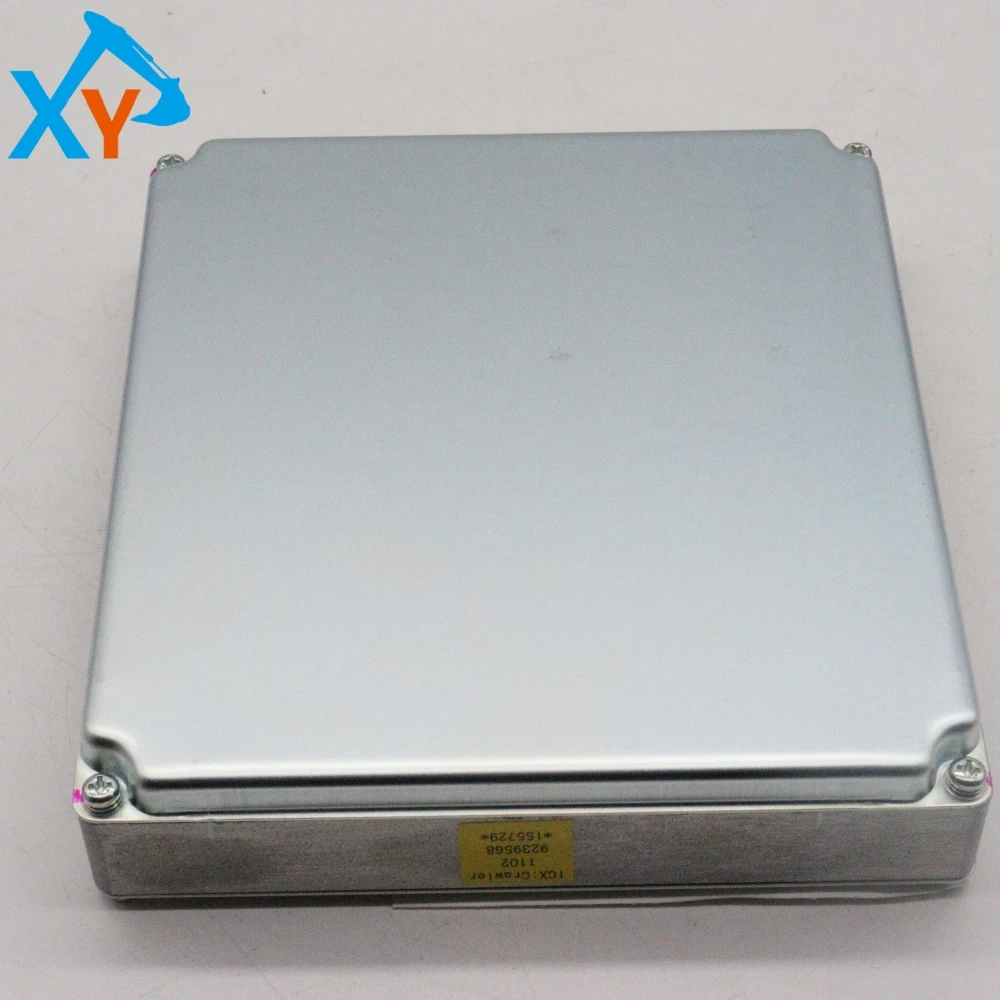

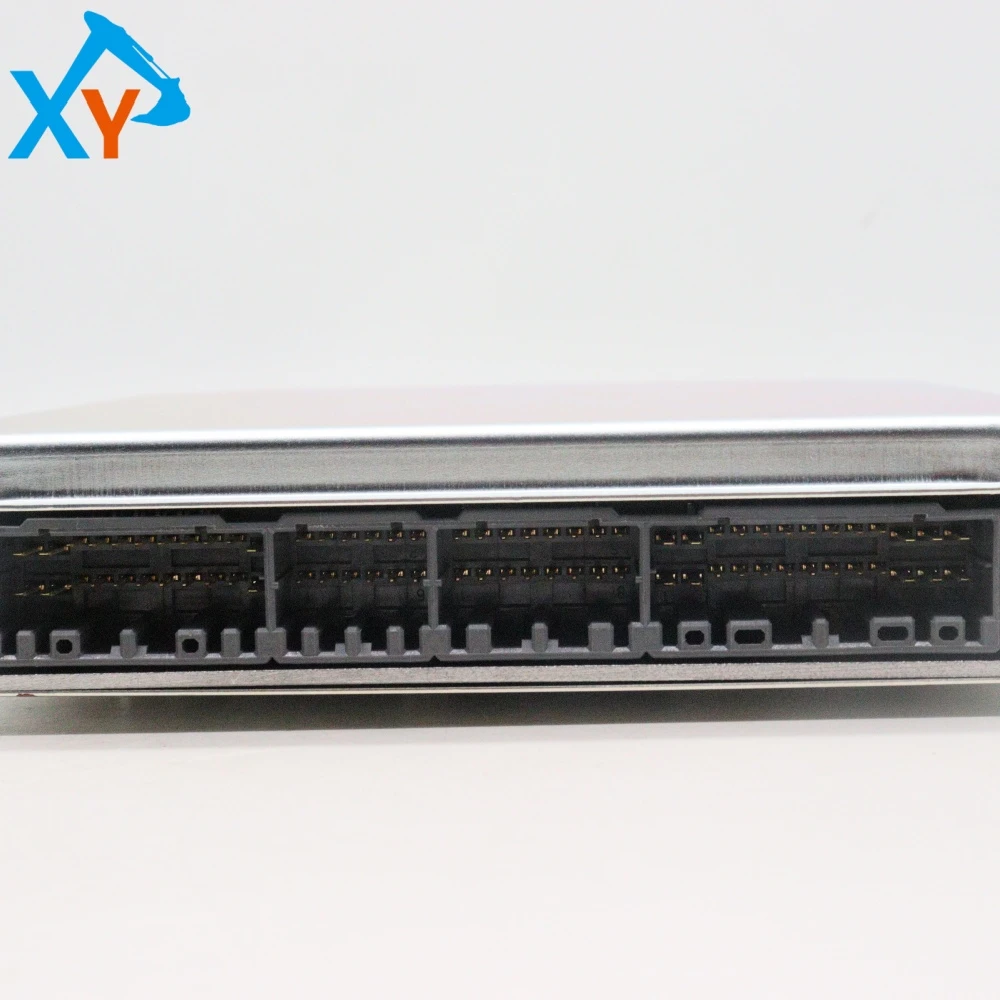

This product is an embedded industrial grade control unit, usually packaged in a metal shell, with shockproof, dustproof, and anti electromagnetic interference design to adapt to the vibration and dusty environment of excavator cab. Its core is a microprocessor (CPU), built-in memory (RAM/ROM), and various input/output interfaces (such as CAN bus, analog, digital), used to connect engine speed sensors, hydraulic pressure sensors, operating handles, and other components. The typical working voltage is 24V DC, and the working temperature range is about -30 ℃ to+70 ℃.

Daily inspection: Every 250 working hours, check whether the wiring harness is securely plugged in, whether there is corrosion or damage. Cleaning and maintenance: Regularly clean the surface dust with dry compressed air and avoid using liquid cleaning agents. Fault diagnosis: If there is no response from the controller, communication interruption, or false alarm, the power supply voltage (24V ± 10%), grounding wire, and fuse should be checked first; Subsequently, use Hitachi's specialized diagnostic tool (such as Dr. ZX) to read fault codes (DTCs). Common issues may involve abnormal sensor signals, CAN communication failures, and internal storage errors. Replacement and programming: 1 Be sure to disconnect the negative terminal of the battery before disassembly; After installing the new unit, system matching and parameter calibration are required. Storage conditions: moisture-proof, anti-static, avoid high temperature and severe vibration.
