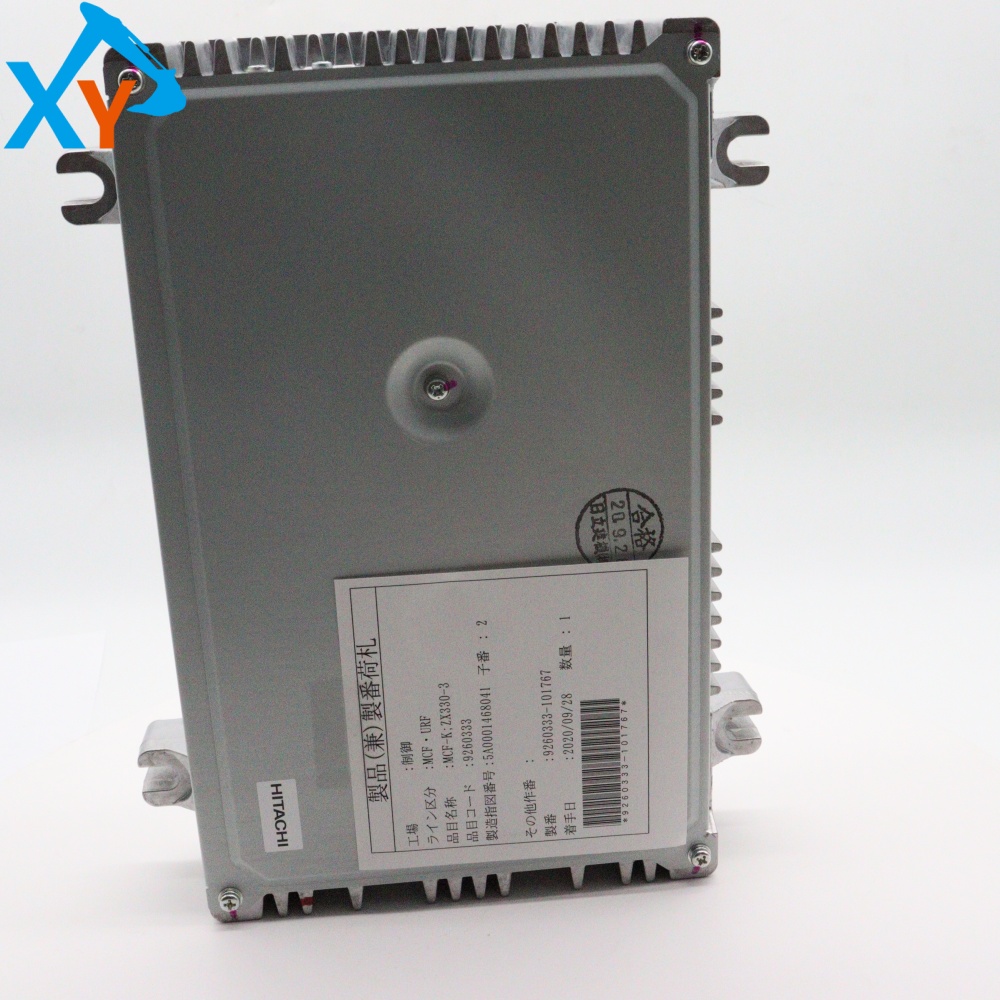

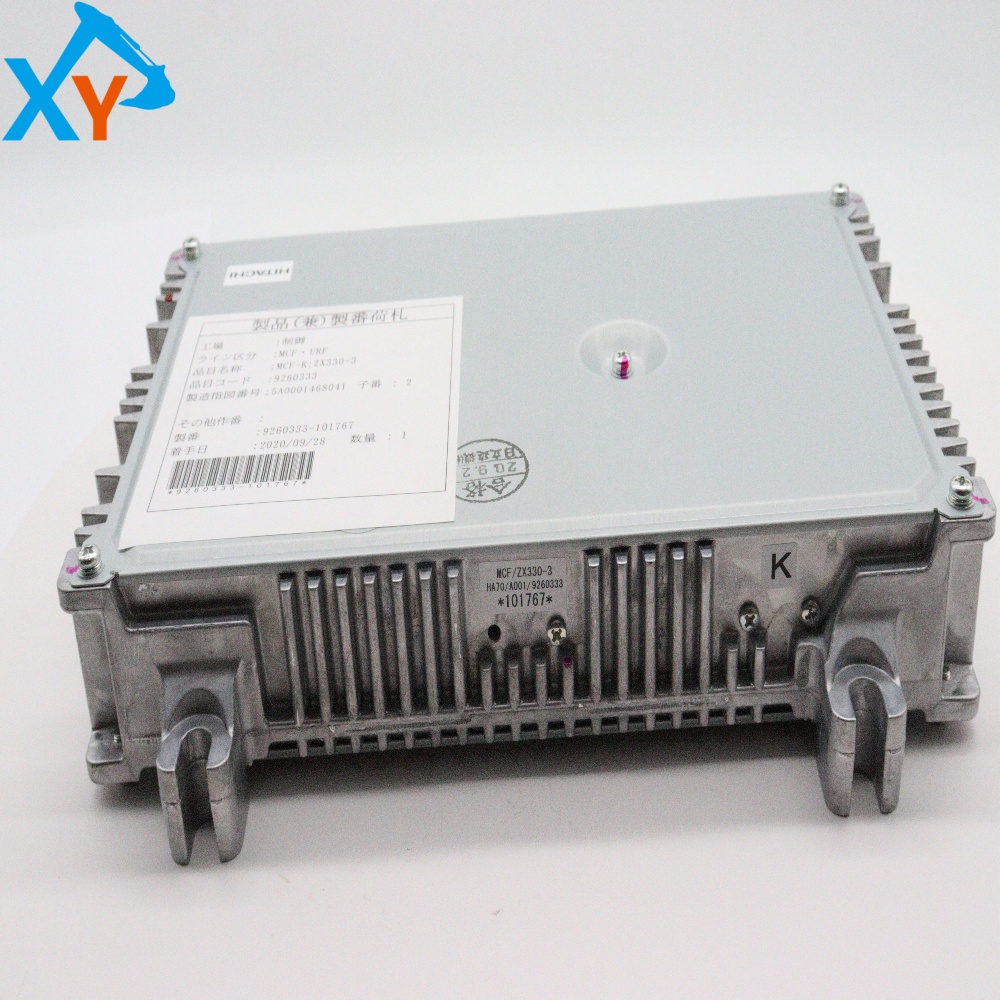

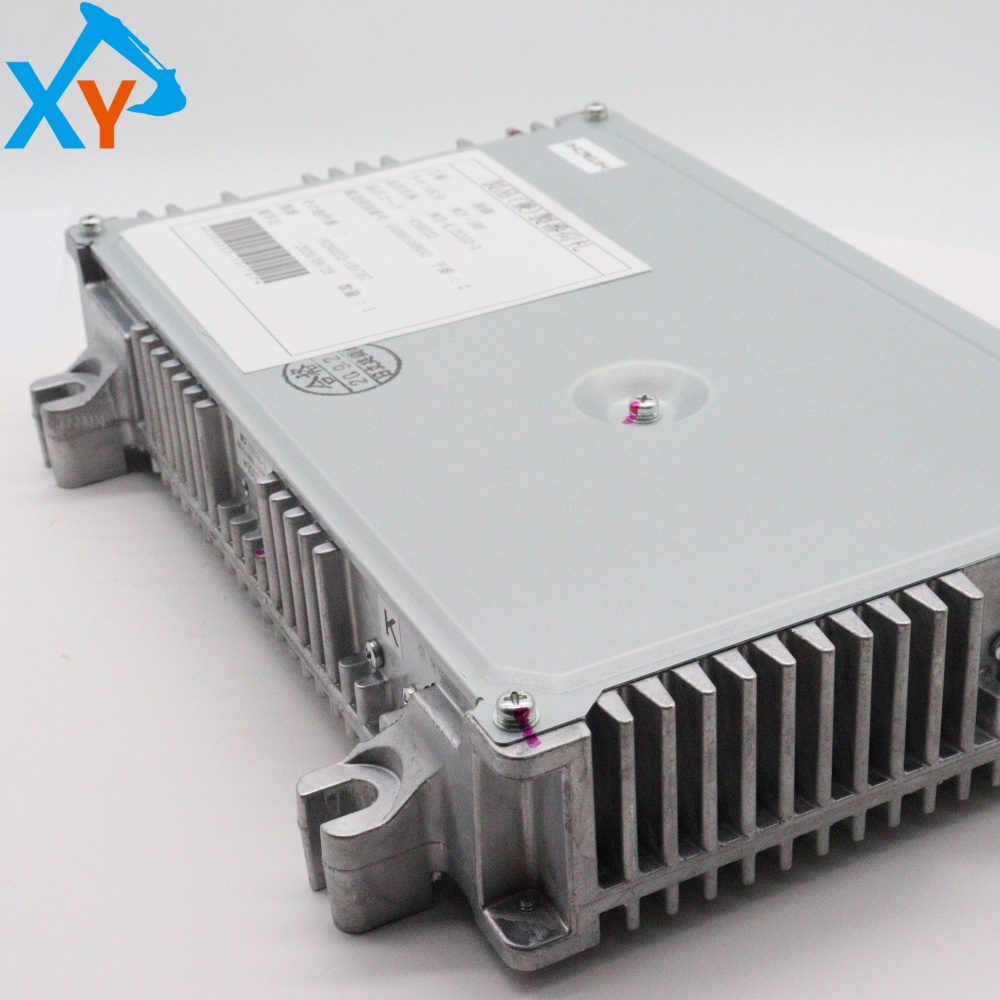

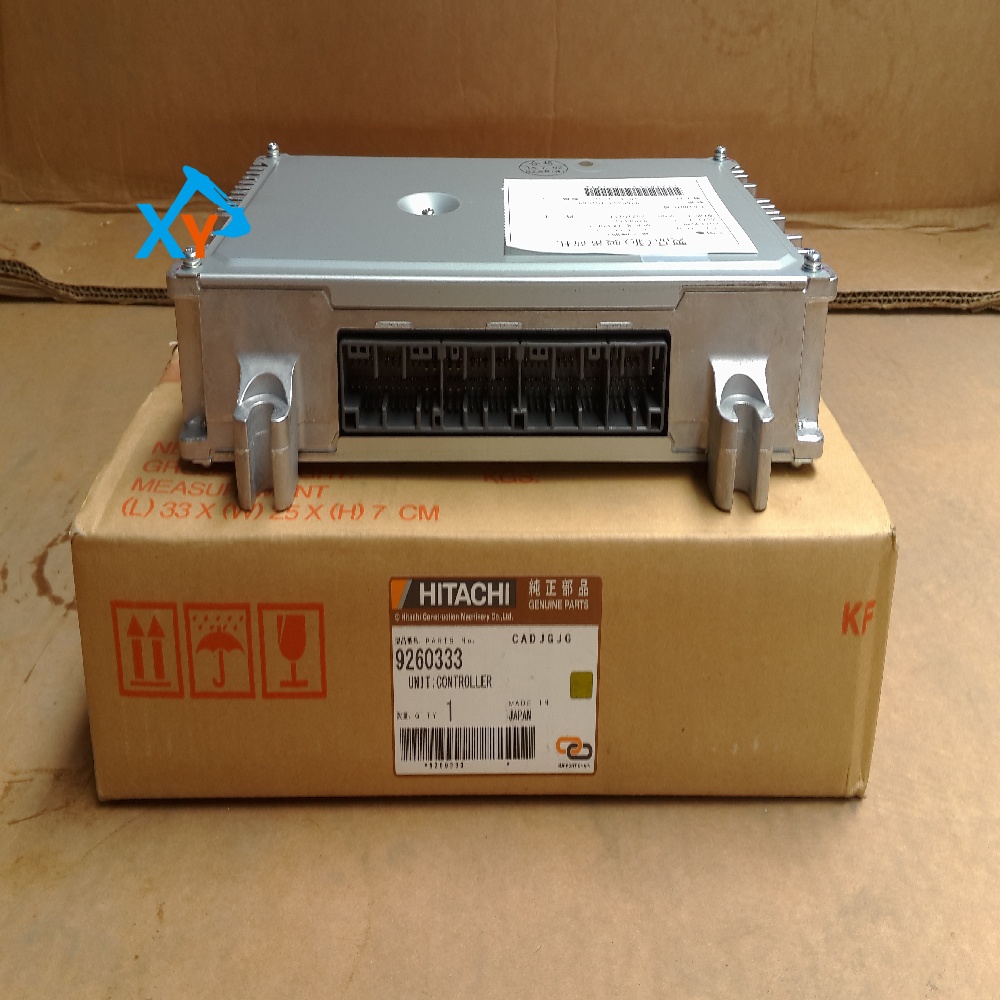

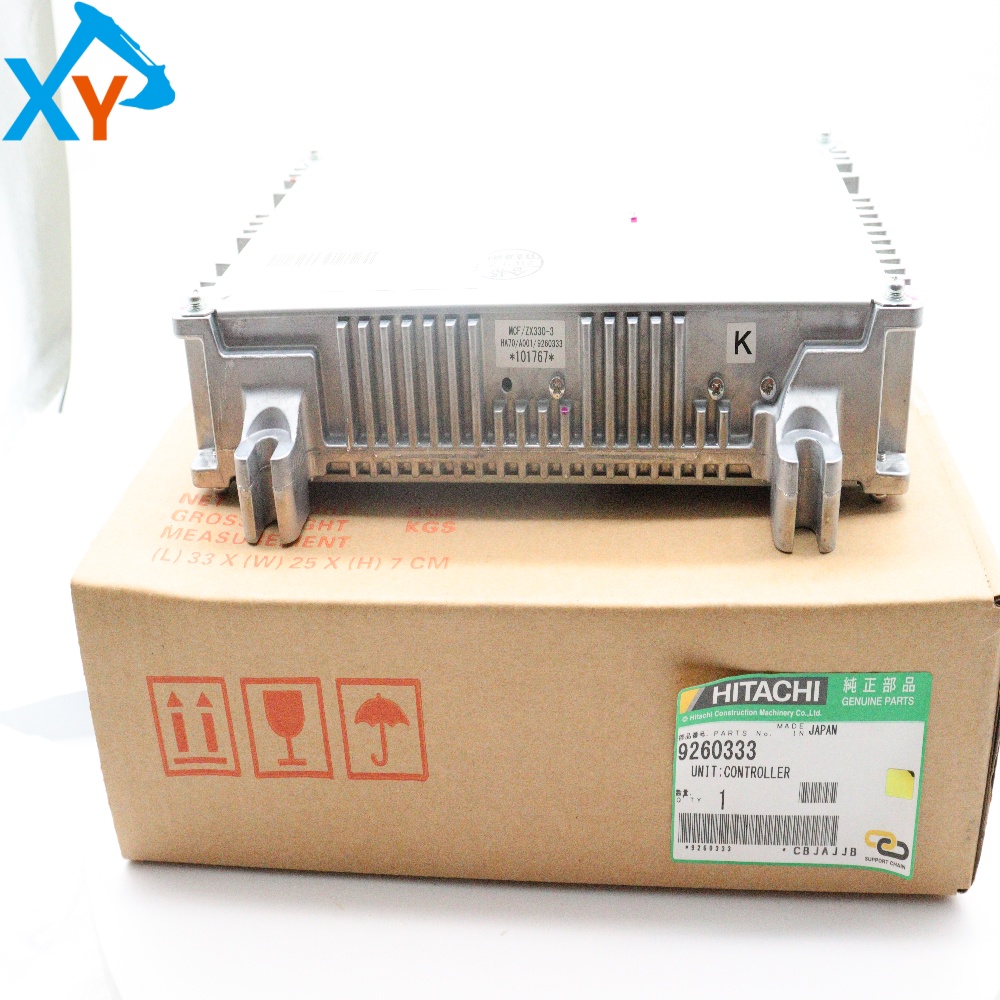

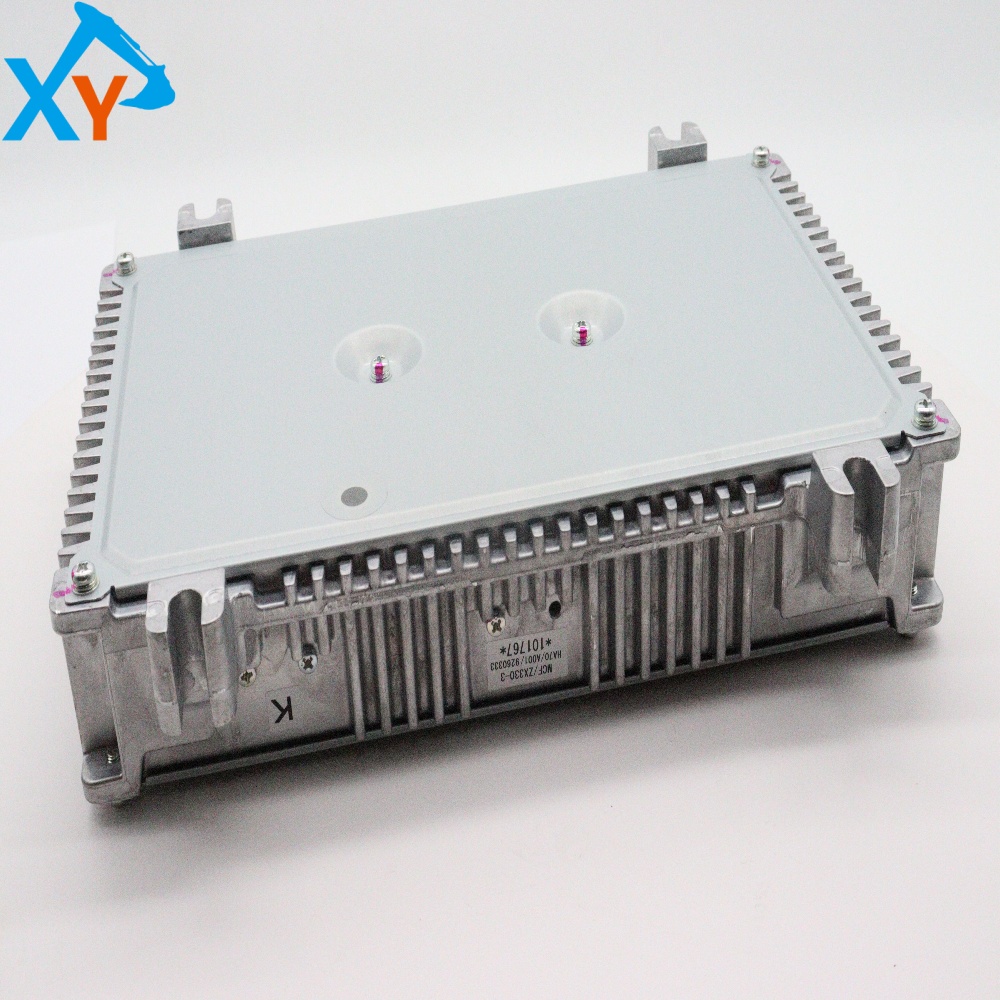

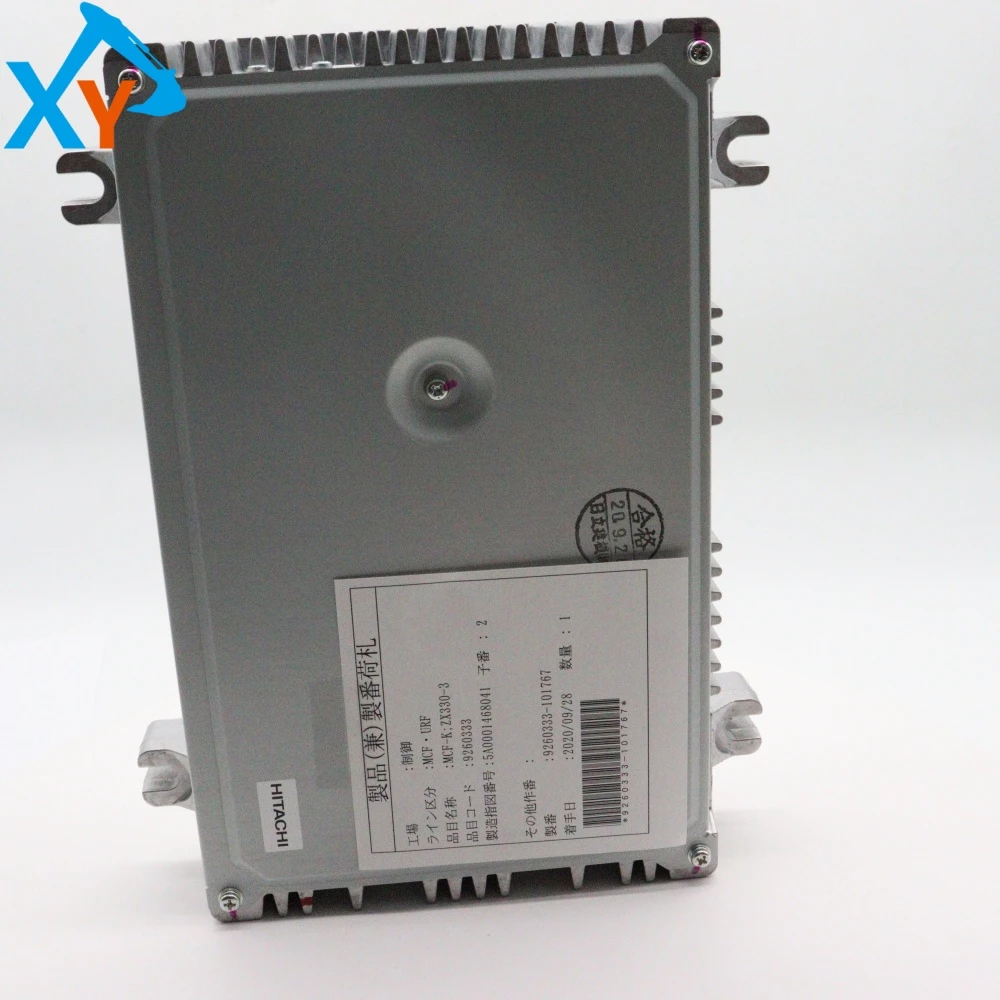

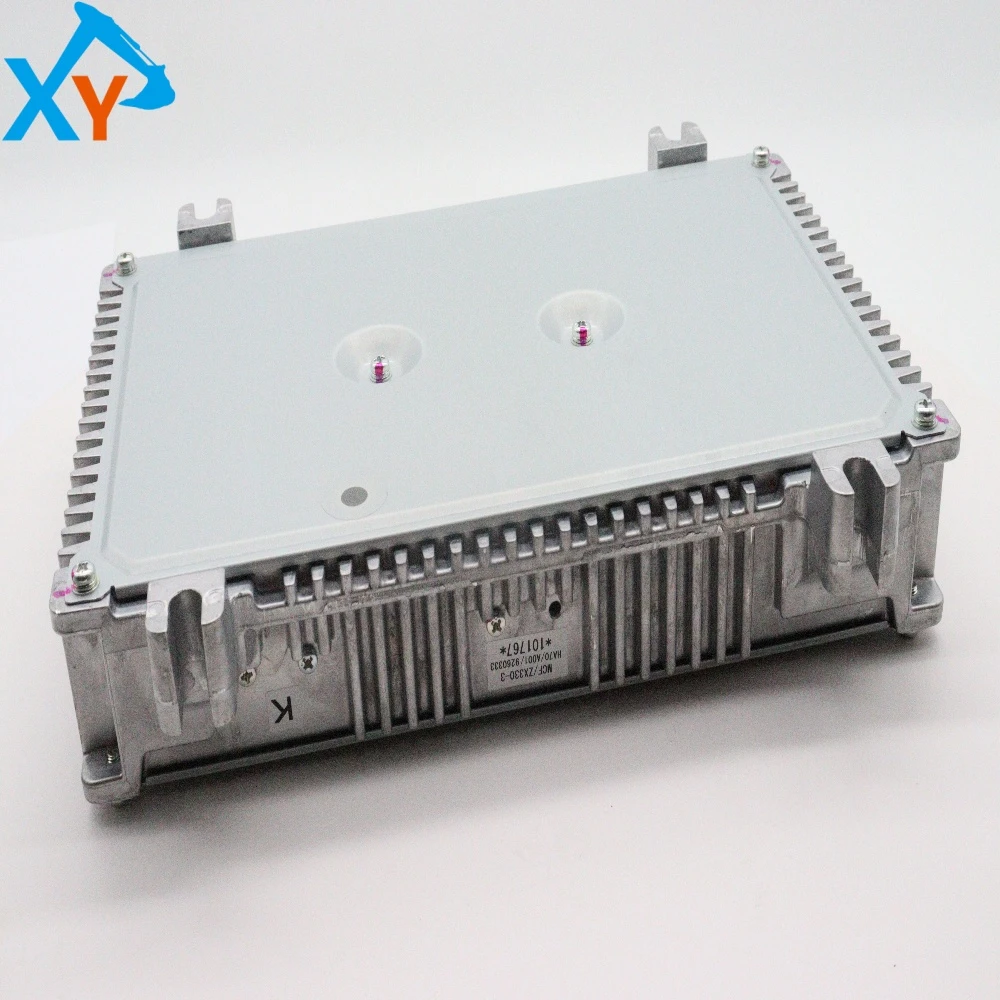

9260333 Original Excavator Controller Unit for ZX330-3

Part number 9260333 is the original main pump controller (also known as hydraulic computer board) provided by Hitachi Construction Machinery for the ZX330-3 series 33 ton large hydraulic excavator. This component is mainly used for electronic control of hydraulic systems, which collects pressure, flow, and temperature signals through sensors to accurately adjust the main pump displacement, valve core opening, and system power. Its universal models cover Hitachi ZX330-3, ZX350-3, ZX200-3 and other three series models, as well as some ZAX330-3 and ZAX350-3 equivalent platform excavators. As the core hydraulic control unit of the original factory, its hardware interface and software protocol are precisely matched with the main pump, multi way valve, and vehicle CAN bus. The use of non-standard auxiliary components is strictly prohibited to avoid abnormal hydraulic action, unstable system pressure, or communication failures.

This product is an original embedded controller, with a shell material usually made of aluminum alloy die-casting, and an internal multi-layer PCB board+automotive grade MCU. Typical technical parameters: working voltage DC 24V, working temperature -30 ℃ to+85 ℃, protection level IP67, communication interface CAN 2.0B, supporting J1939 and ISO 11783 protocols. The controller has built-in EEPROM memory, which can store fault codes, pump calibration parameters, adaptive learning data, and output real-time data streams through diagnostic interfaces. Its software has online calibration, data flashing, and power curve adjustment functions, and complies with ISO 13849 PLd safety level.

Fault diagnosis: If there is slow hydraulic action, weakness, or severe heating, a dedicated diagnostic tool (such as Hitachi Dr. ZX) should be used to read the fault code (such as P0087 low main pump pressure, P0193 abnormal sensor signal, etc.), and focus on checking the power supply voltage, sensor signal, and CAN bus resistance. Disassembly and installation: 1 Turn off the main power switch and wait for 5 minutes to discharge the capacitor; 2. Unplug all wire harness plugs (pay attention to the locking direction); 3. Remove the fixing bolts (usually 4-6 pieces, torque 8-10N · m); 4. Clean the pins before installing the new controller to ensure they are properly inserted and locked. Programming matching: After replacement, original software must be used for online programming (writing VIN, pump serial number, pressure calibration parameters), and system self-learning (including pump flow learning, valve core zero calibration) must be carried out.
