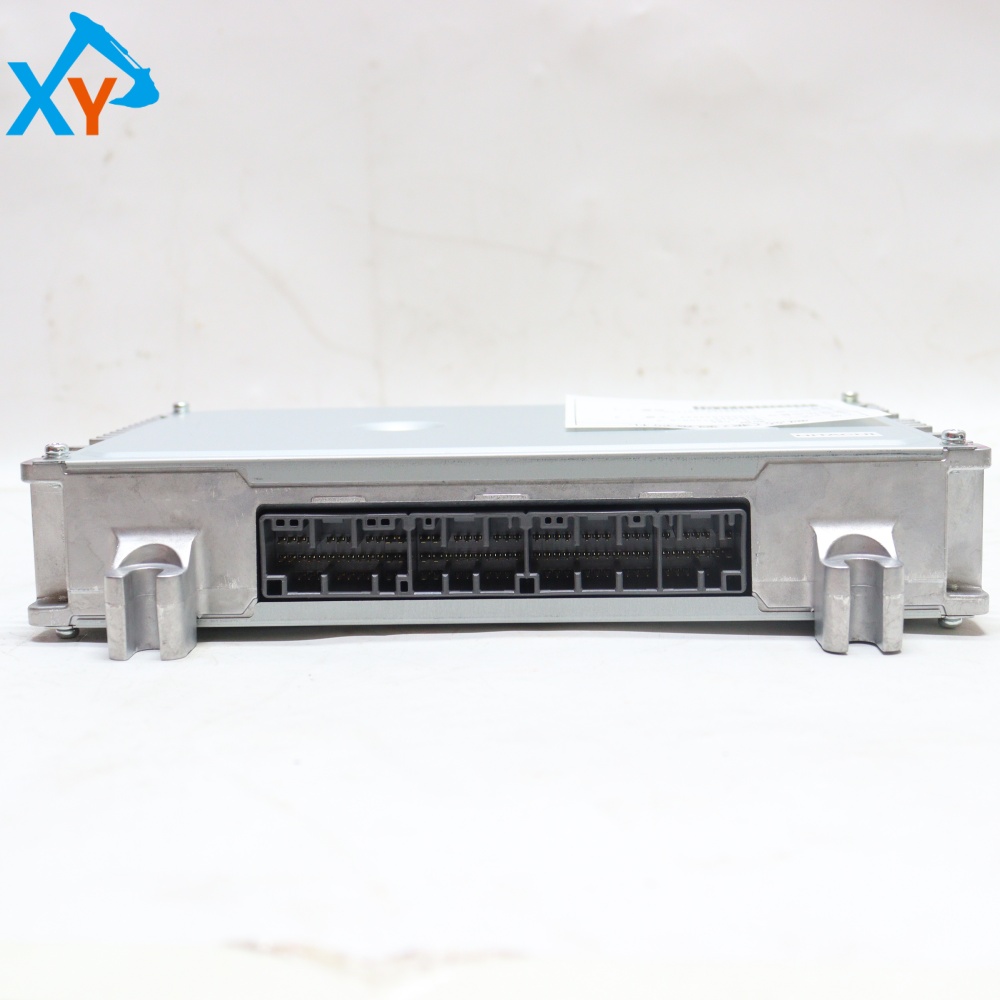

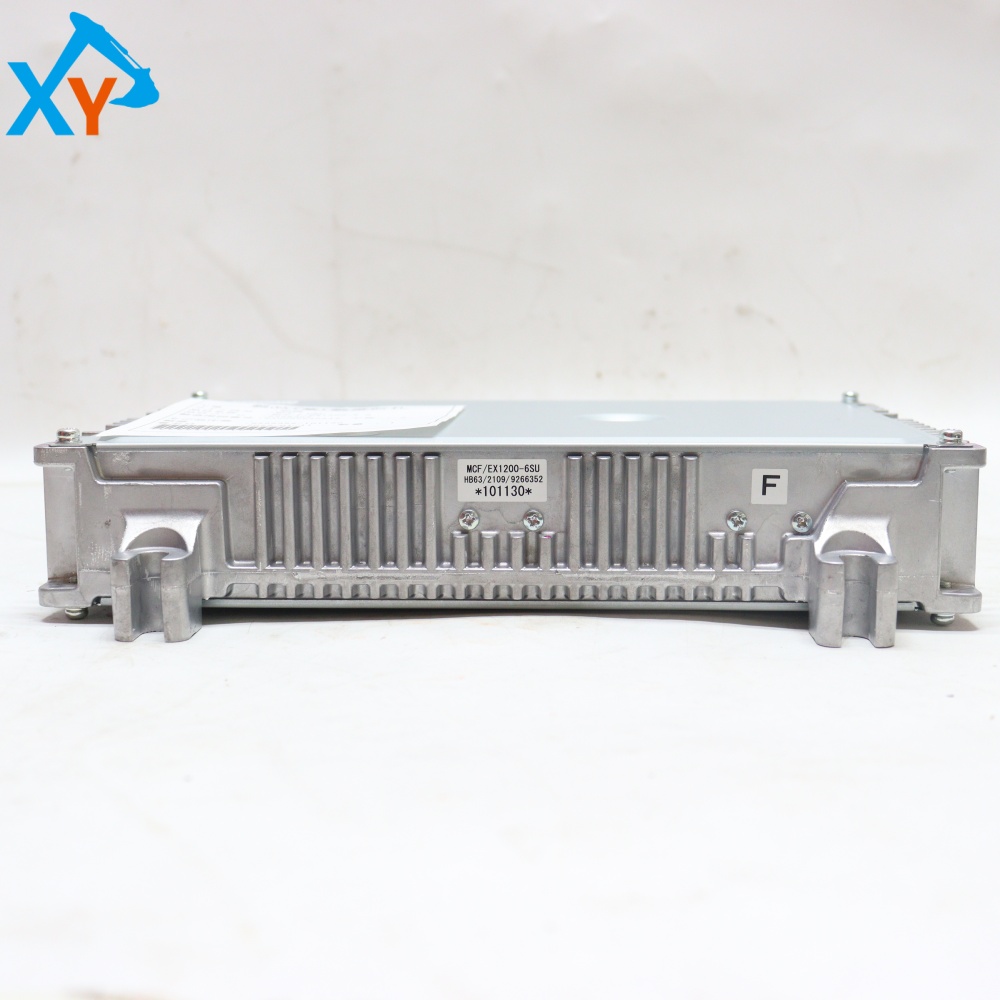

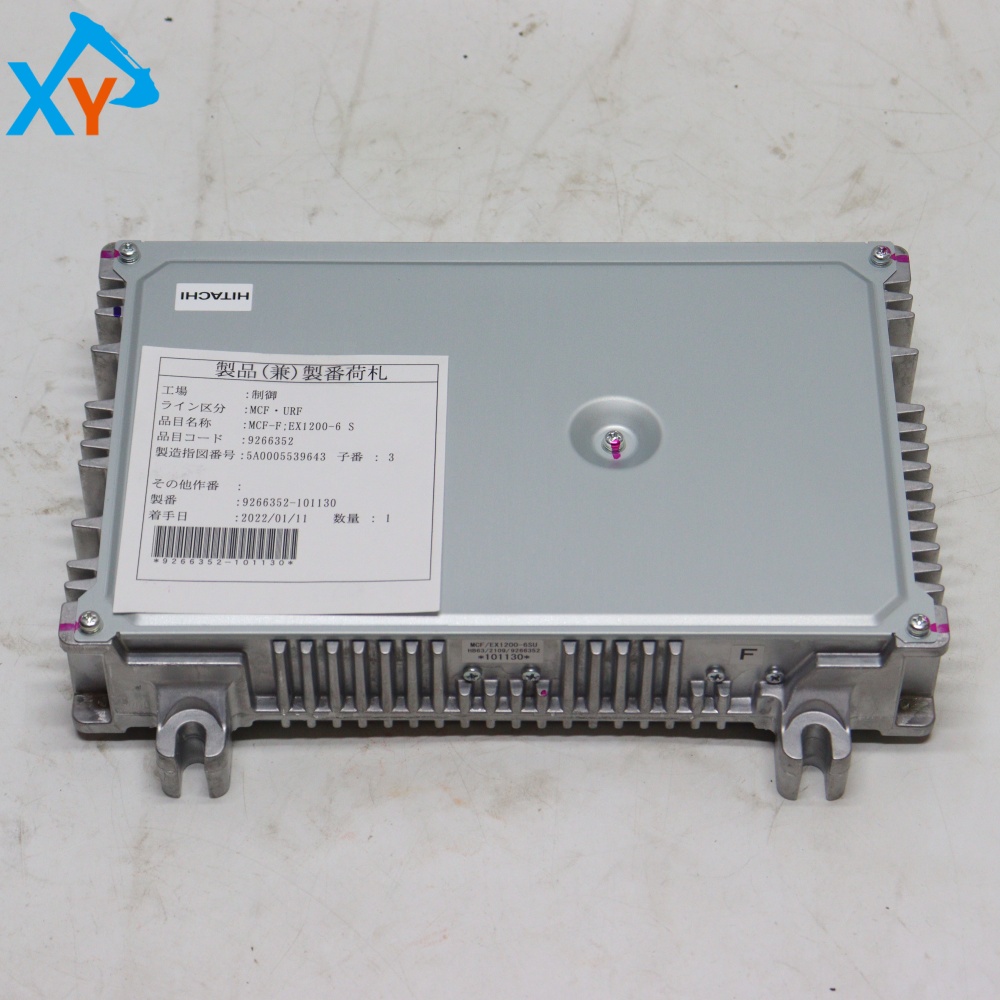

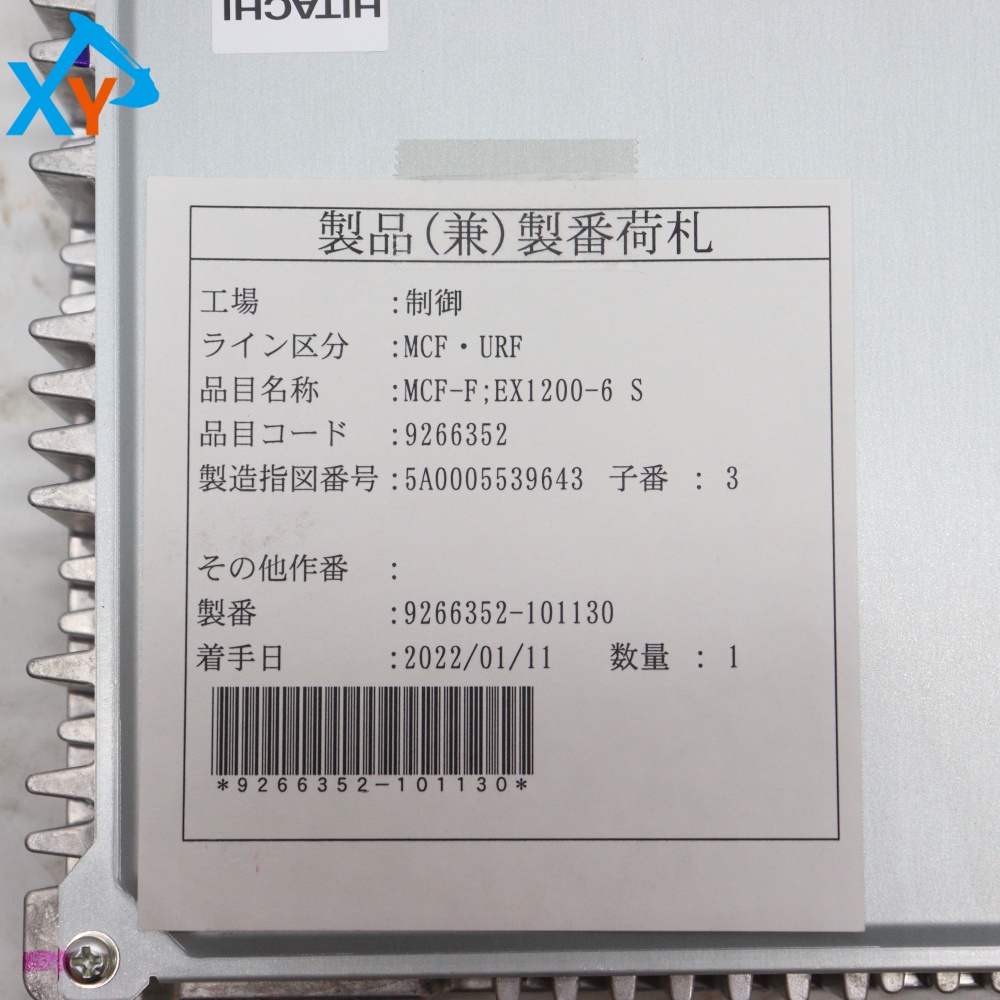

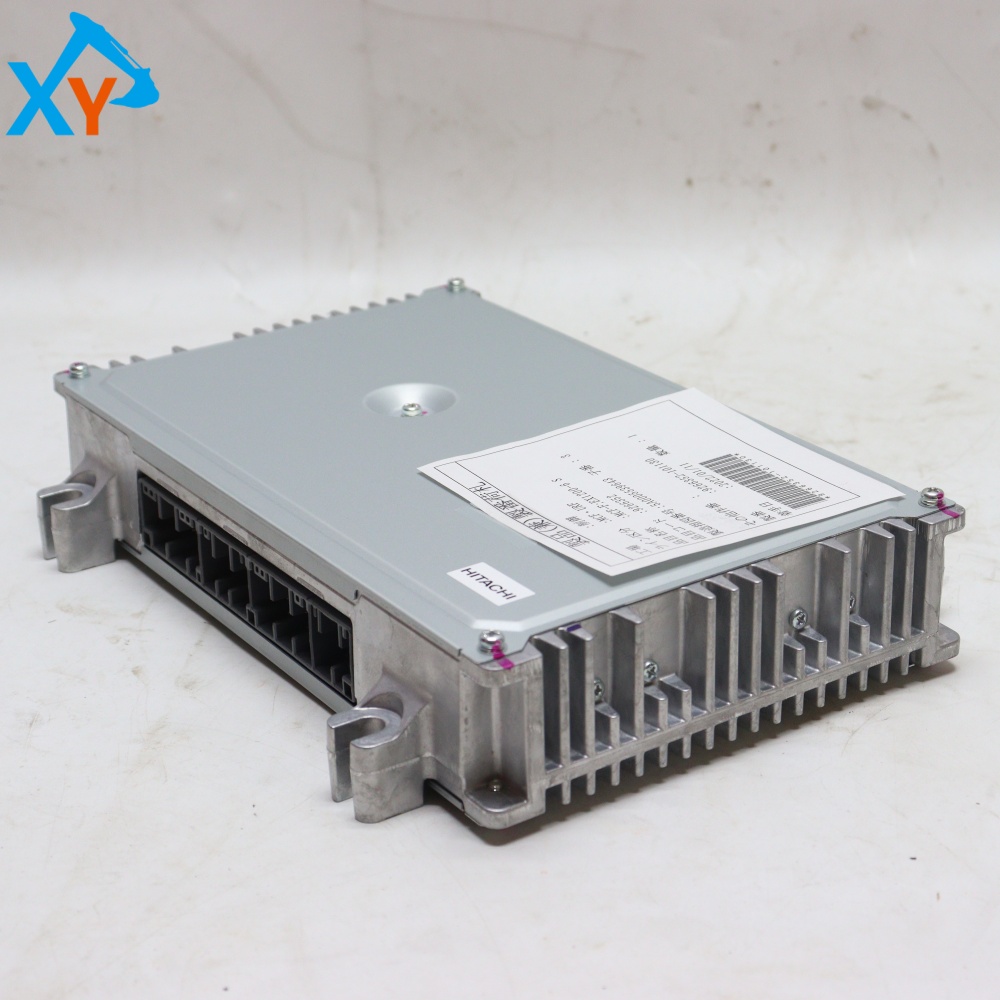

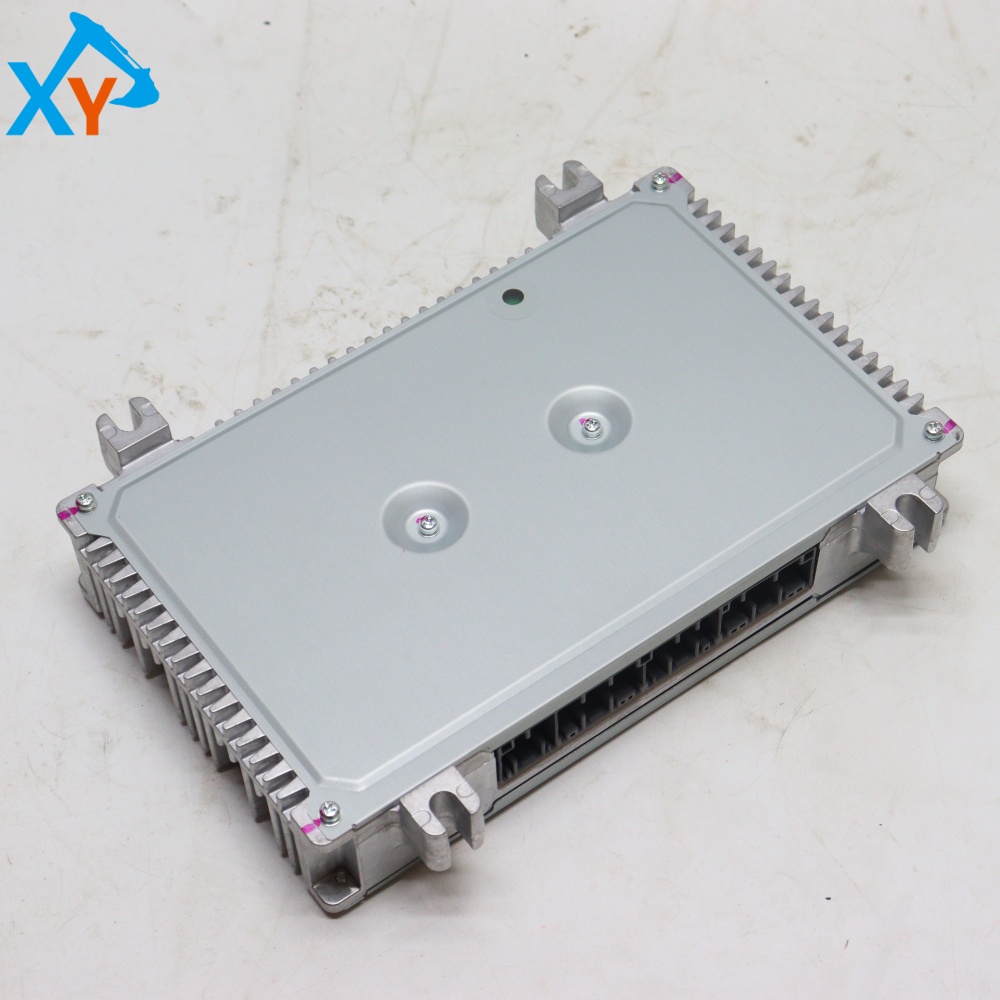

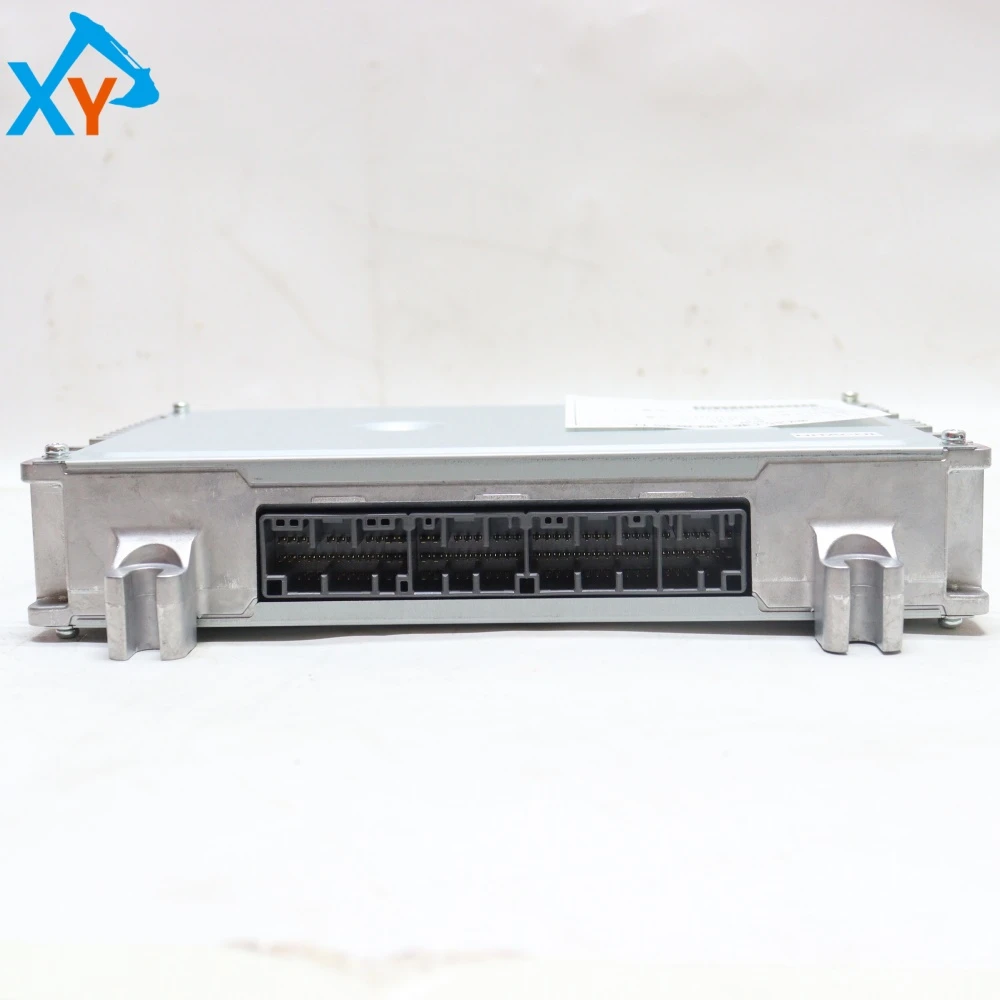

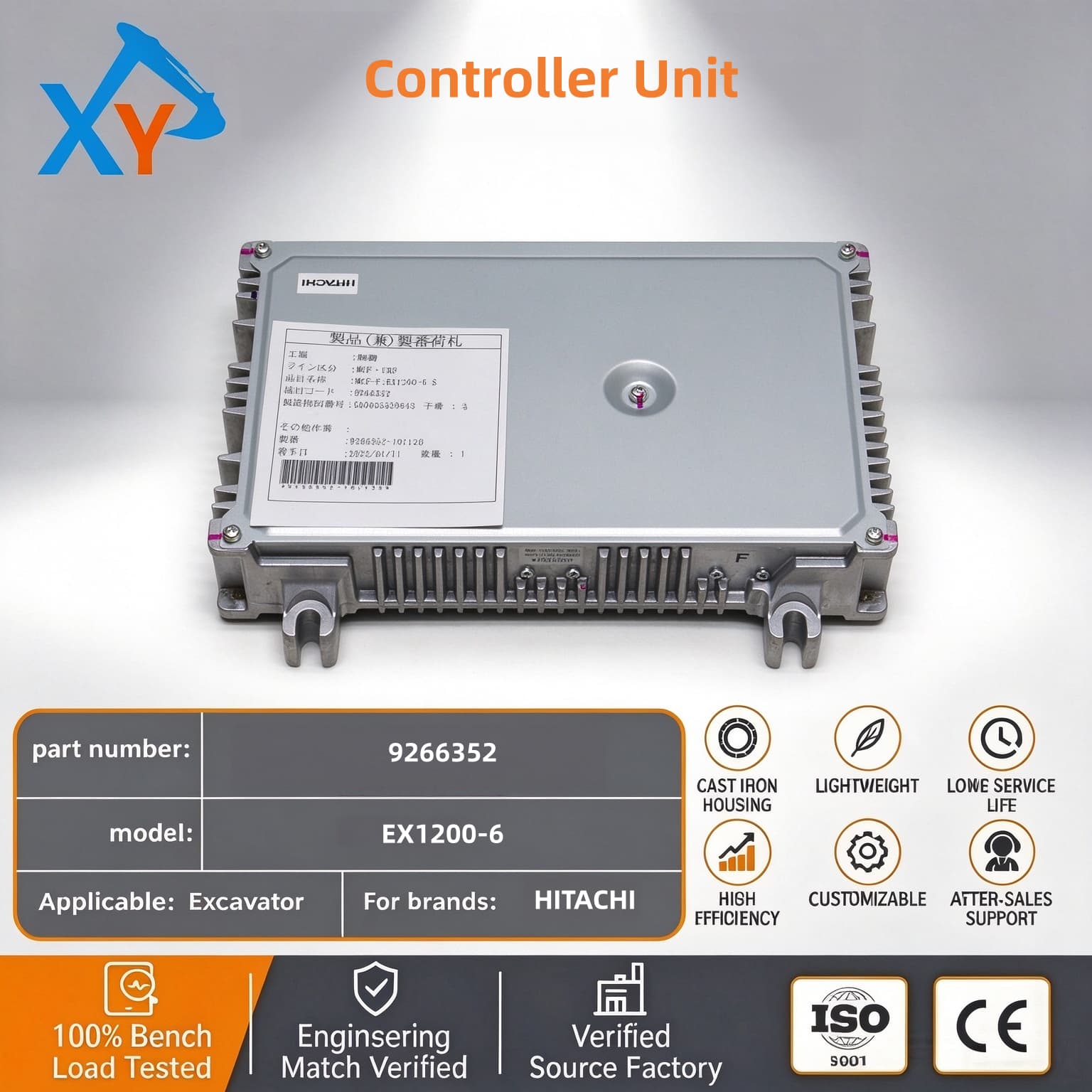

9266352 Original Excavator Controller Unit for Hitachi EX1200-6

The original controller unit (part number 9266352) is the core electronic control module (ECU) of the Hitachi EX1200-6 ultra large mining excavator, mainly used for the integrated control of the Cummins QSK23-C engine and three pump hydraulic system installed on this model. This controller is also widely used in Hitachi EX1200-6LD, EX1200-6BH and other series of large excavators, and its universal number 9266352 is its only identifier in Hitachi's original accessory system. When ordering, it is necessary to provide the complete model, serial number, and engine model of the excavator for verification to ensure that the hardware interface matches the software version completely.

This product belongs to the microprocessor control unit dedicated to construction machinery, using a 32-bit multi-core processor architecture and built-in CAN bus communication protocol (supporting J1939 standard). It is responsible for the engine electronic injection control, hydraulic pump flow/pressure regulation, valve group action logic, and fault self diagnosis of the whole machine. The main technical indicators include: working voltage DC 24V (range 18-32V), working temperature -40 ° C to+85 ° C, protection level IP67, and real-time monitoring and storage of more than 50 fault codes (such as abnormal engine speed, abnormal pump pressure sensor, etc.). The connectors of the original module use gold-plated waterproof terminals to ensure long-term stable operation in vibration, high humidity, and electromagnetic interference environments.

The controller unit is designed to be maintenance free and does not require regular replacement. However, it is necessary to check the fastening status and sealing of the wiring harness connectors every 1000 hours of operation or every 6 months to prevent moisture and oil from entering. Abnormal fluctuations in battery voltage (such as frequent power loss or overcharging) should be avoided in daily life, and non professionals are strictly prohibited from disassembling or flashing programs. If the dashboard displays a fault code, use Hitachi's dedicated diagnostic tool Dr. ZX to read the detailed data stream and troubleshoot sensor, actuator, or wiring issues according to the maintenance manual instructions. After replacing the control unit (9266352), ECU matching and parameter calibration must be performed. It is recommended that authorized service providers use original software to ensure system compatibility and optimal performance.
