9274929 Original Excavator Control Unit for ZX170W-3

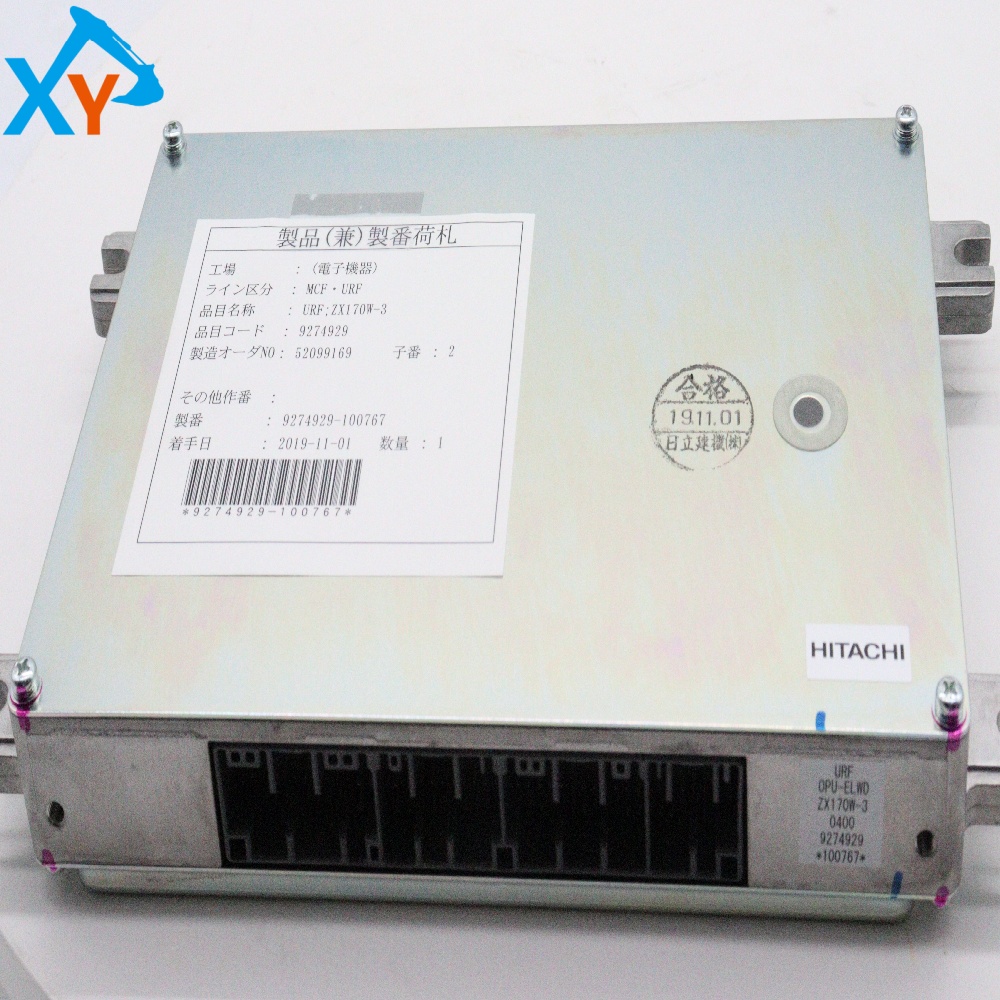

The original control unit part number 9274929 is the core electronic control module provided by Hitachi Construction Machinery for the ZX170W-3 wheeled excavator (with a total working weight of approximately 17.8 tons). This control unit is mainly used for engine management, hydraulic system control, fault diagnosis, and data communication of the entire machine, and is the center to ensure efficient, accurate, and reliable operation of the equipment. Its universal model is usually directly labeled as 9274929 and is also applicable to ZX170-3, ZX170LC-3 and other series of models. It is a proprietary design of the original factory and deeply integrated with the vehicle's CAN bus. It is strictly prohibited to replace it with the generic module of the subsidiary factory to ensure complete matching of control logic and communication protocol.

This product is an original electronic control unit, equipped with a 32-bit microprocessor (clock frequency ≥ 80MHz) and built-in Flash memory (capacity ≥ 512KB) for storing control programs and fault codes. The hardware interfaces include CAN-H/CAN-L communication lines (supporting J1939 and ISO 11898 protocols), analog inputs (0-5V/4-20mA), digital inputs/outputs (24V DC), and power lines (DC24V). Protection level IP67 (dustproof and waterproof), operating temperature range -40 ℃ to+85 ℃, seismic rating in accordance with ISO 10816-1 (vibration acceleration<3.5g). Supports online diagnosis (via OBD-II interface) and parameter calibration (requires dedicated HDS diagnostic instrument), suitable for harsh working conditions such as high vibration, high dust, humidity, and electromagnetic interference in excavators.

Daily inspection: Check if the wiring harness connectors are loose and if the waterproof cover is intact every 250 working hours; Use a diagnostic tool to read the fault history record (with a focus on P-codes and U-codes). Functional testing: Check the LED status light (normally green and constantly on) through self checking mode (key switch ON OFF ON OFF ON cycle) every month; Test whether the signals from various sensors (such as throttle position, pressure, temperature) are within a reasonable range. Fault diagnosis: If the control unit does not respond, first check the cabin fuse F301 (10A/24V) and power supply voltage (normal 24V ± 10%); If communication is interrupted, check the CAN bus terminal resistance (standard 120 Ω) and the grounding of the wire harness shielding layer; If the parameters are lost, try recalibrating (with original factory authorized software). Software upgrade: Firmware can be upgraded through the diagnostic interface (supporting versions V1.5.0 to V3.2.0), and all calibration data must be backed up before upgrading. Preventive maintenance: It is recommended to check the control unit housing for cracks and deformation every 5000 working hours; Replace the waterproof sealing ring every 2 years (recommended fluororubber material).
