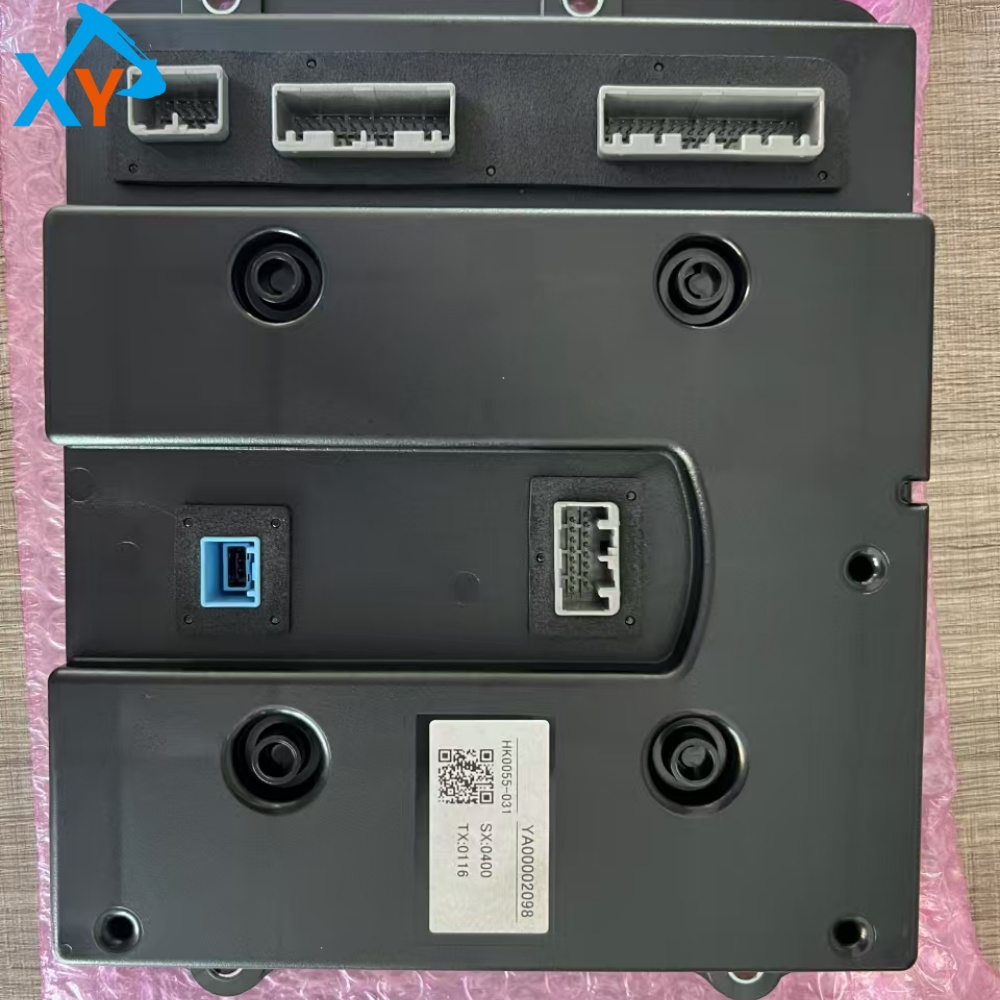

YA00002098 Excavator Controller UNIT for ZX200-5G

Part number YA00002098 is the original controller unit (usually referring to the engine ECU or hydraulic computer board) provided by Hitachi Construction Machinery for the ZX200-5G series 20 ton medium-sized hydraulic excavator. This component is mainly used in the electronic control system of the whole machine, responsible for engine fuel injection, hydraulic pump flow regulation, fault diagnosis, and data communication. Its universal models cover Hitachi ZX200-5G, ZX210-5G, ZX240-5G, ZX330-5G, ZX470-5G and other 5G series models, as well as some ZAX130, ZAX200, ZAX240, ZAX350-5G equivalent platform excavators. As the core electronic control unit of the original factory, its hardware interface and software protocol are precisely matched with the CAN bus of the whole machine. It is strictly prohibited to use non-standard auxiliary components to avoid engine torque limitation, hydraulic action abnormalities or system communication failures.

This product is an original embedded controller, with a shell material usually made of aluminum alloy or engineering plastic, and an internal multi-layer PCB board+automotive grade MCU. Typical technical parameters: working voltage DC 24V, working temperature -30 ℃ to+85 ℃, protection level IP67, communication interface CAN 2.0B, supporting J1939 and ISO 15765 protocols. The controller has built-in EEPROM memory, which can store fault codes, operating parameters, maintenance reminders, and output status information through LED indicator lights or diagnostic interfaces. Its software has adaptive learning, online calibration, and data flashing functions, which comply with the ISO 26262 ASIL-B functional safety level.

Fault diagnosis: If the engine cannot start, the power is insufficient, or the hydraulic action is slow, a dedicated diagnostic tool (such as Hitachi Dr. ZX) should be used to read the fault code, with a focus on checking the power supply voltage, CAN bus resistance, and sensor signals. Disassembly and installation: 1 Turn off the main power switch and wait for 5 minutes to discharge the capacitor; 2. Unplug all wire harness plugs (pay attention to the locking direction); 3. Remove the fixing bolts (usually 4-6 pieces, torque 8-10N · m); 4. Clean the pins before installing the new controller to ensure they are properly inserted and locked. Programming matching: After replacement, original software must be used for online programming (writing VIN, engine serial number, pump calibration parameters), and system self-learning (including accelerator pedal learning, pump flow learning) must be carried out.
