YA00004267 Excavator Engine Controller for ZX200-5G

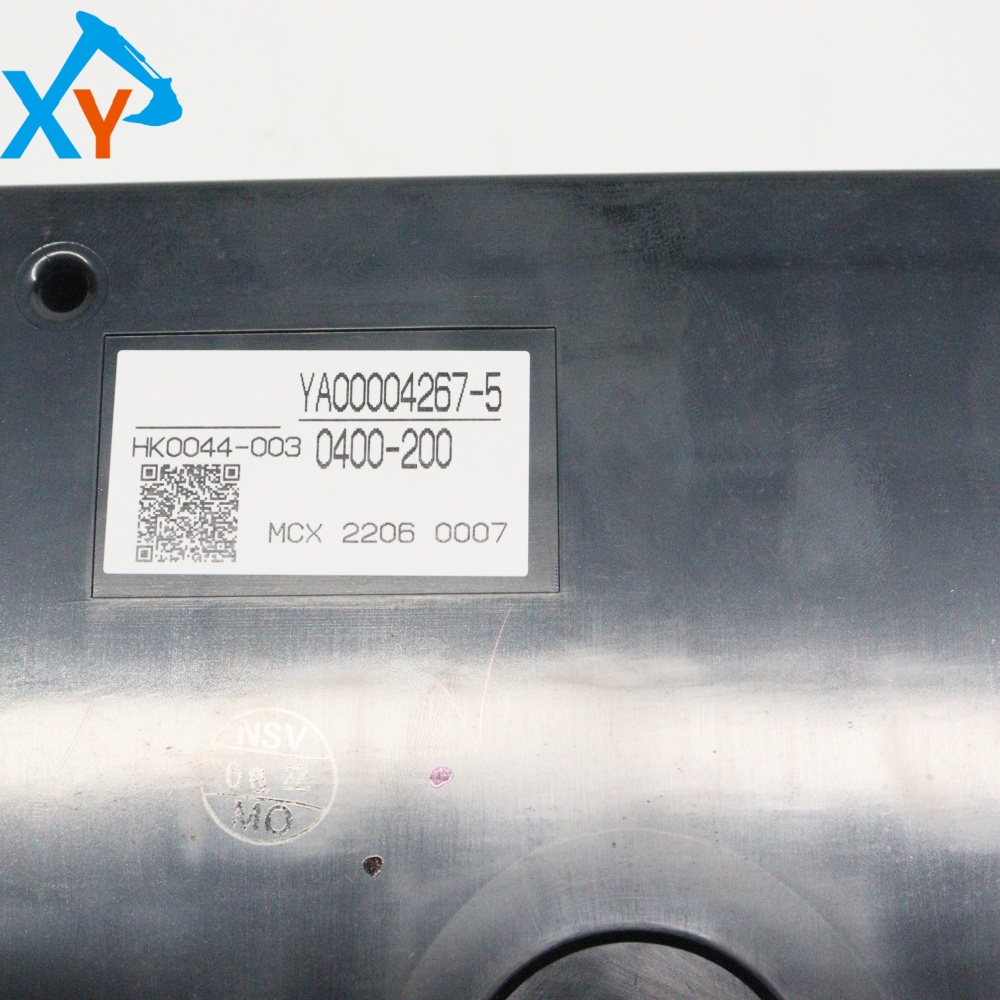

Part number YA00004267 is the original engine controller (ECU/ECM) provided by Hitachi Construction Machinery for the ZX200-5G series 20 ton medium-sized hydraulic excavator. This component is mainly used in the engine electronic control system to collect engine status information through sensors, accurately control fuel injection quantity, ignition timing, idle speed, and emissions. Its universal models cover 5G series models such as Hitachi ZX200-5G, ZX210-5G, ZX200LC-5, as well as some equivalent platform excavators such as ZX240-5G and ZX330-5G. As the core electronic control unit of the original factory, its hardware interface, software protocol, engine sensors, actuators, and vehicle CAN bus are precisely matched. The use of non-standard auxiliary components is strictly prohibited to avoid engine torque limitation, black smoke emission, difficult start-up, or communication failures.

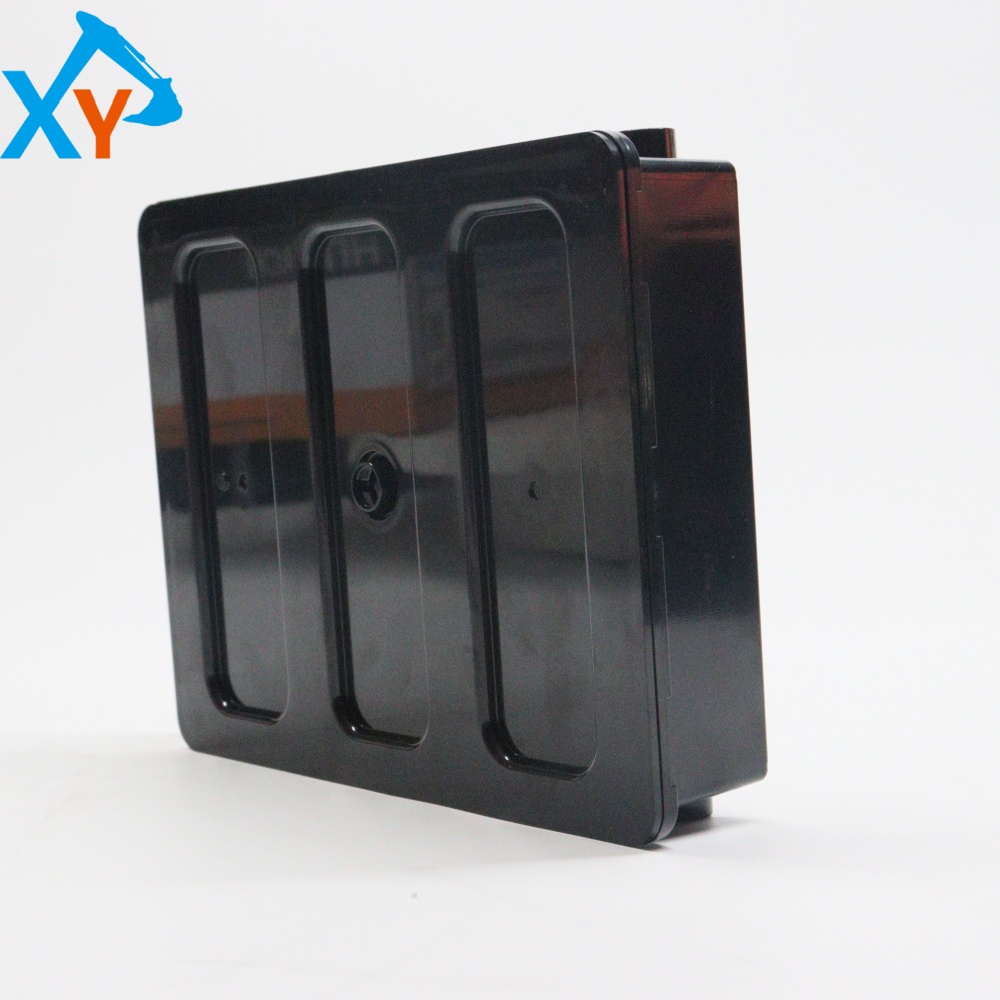

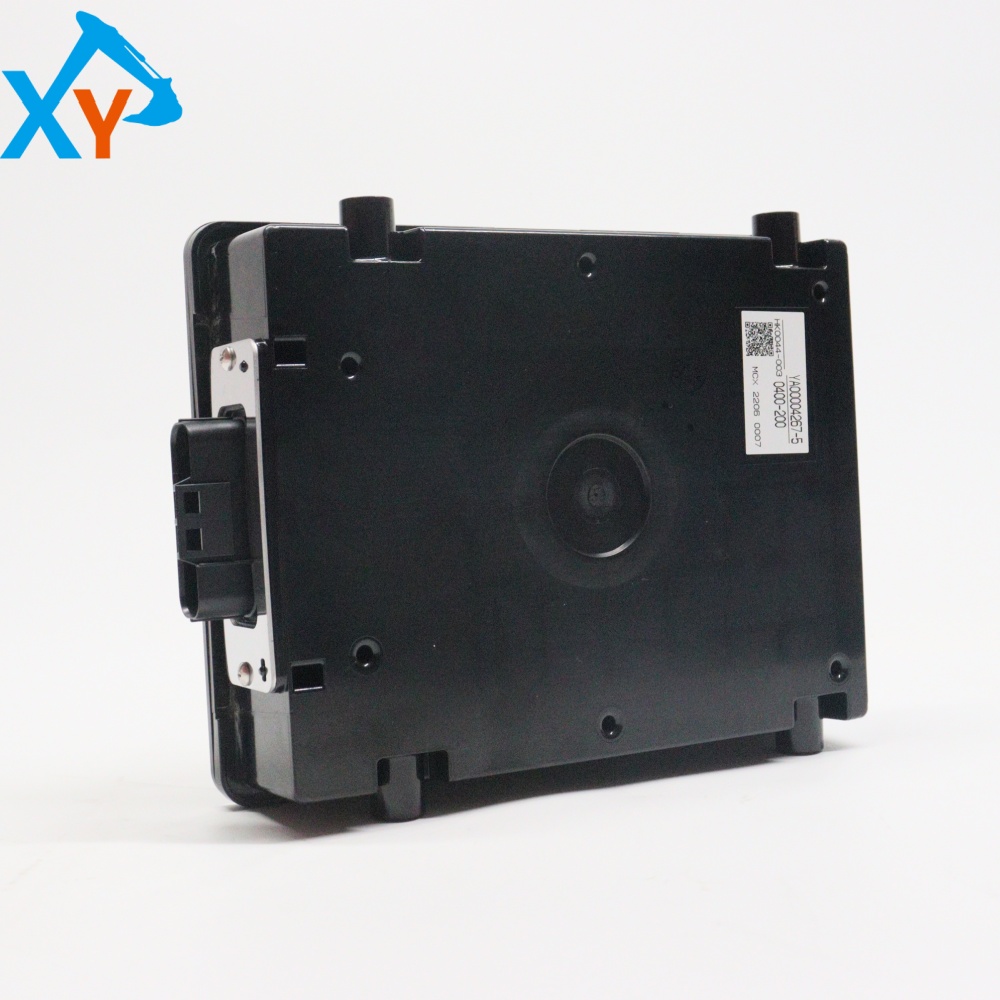

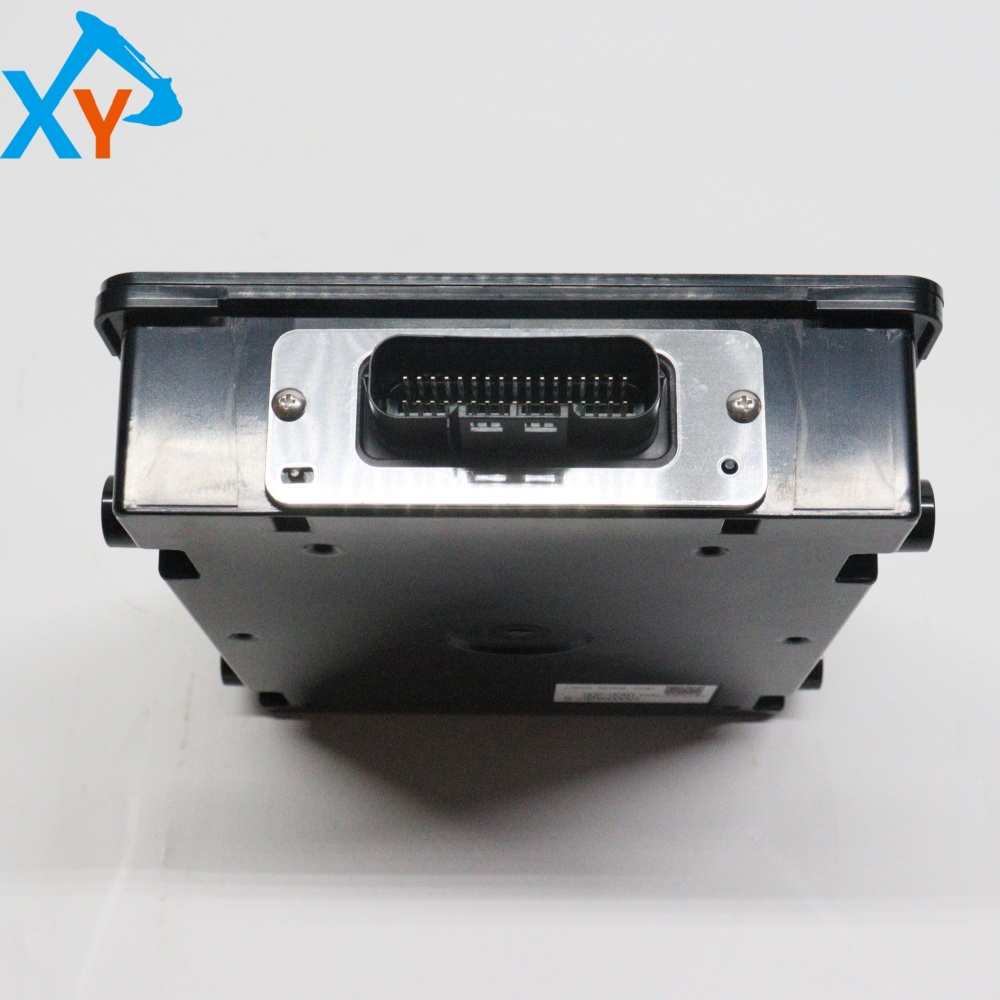

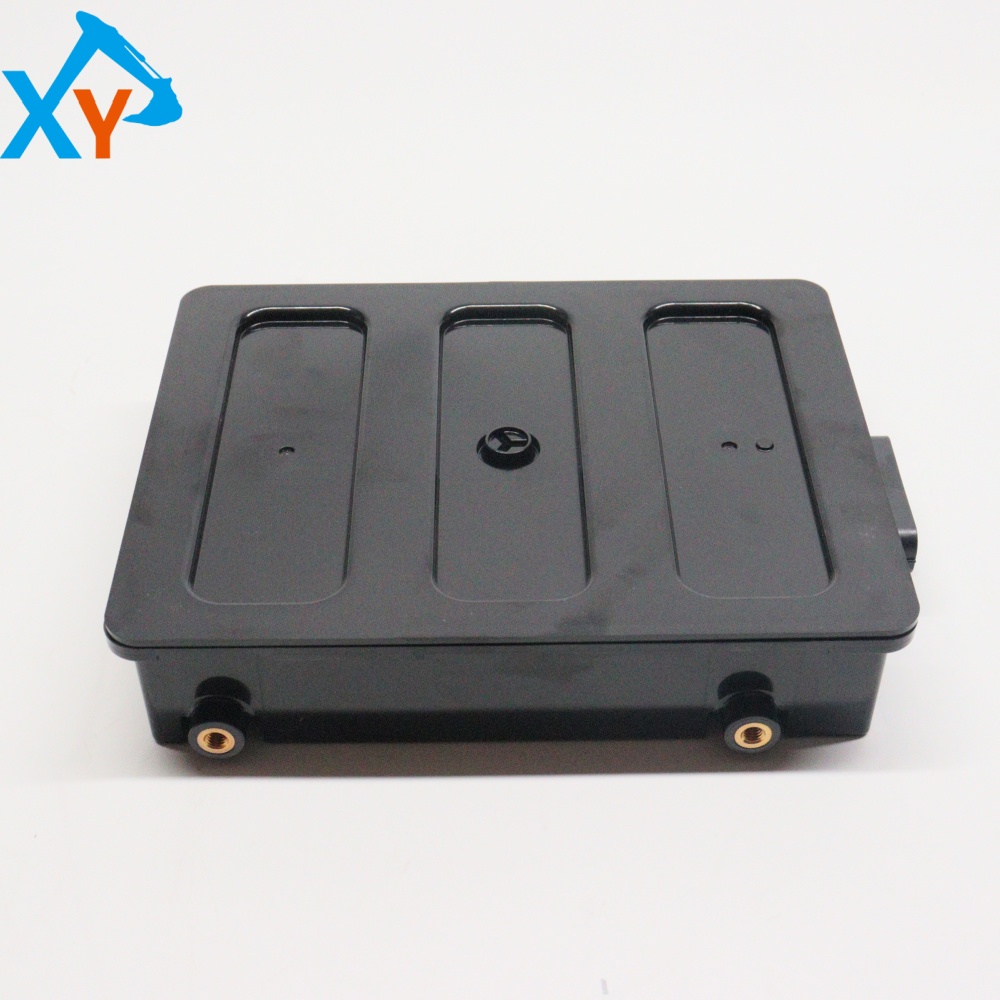

This product is an original embedded controller, with a shell material usually made of aluminum alloy or engineering plastic, and an internal multi-layer PCB board+automotive grade MCU. Typical technical parameters: working voltage DC 24V, working temperature -30 ℃ to+85 ℃, protection level IP67, communication interface CAN 2.0B, supporting J1939 and ISO 15765 protocols. The controller has built-in EEPROM memory, which can store fault codes, operating parameters, adaptive learning data, and output real-time data streams through diagnostic interfaces. Its software has online calibration, data flashing, and limp home functions, which comply with ISO 26262 ASIL-B functional safety level.

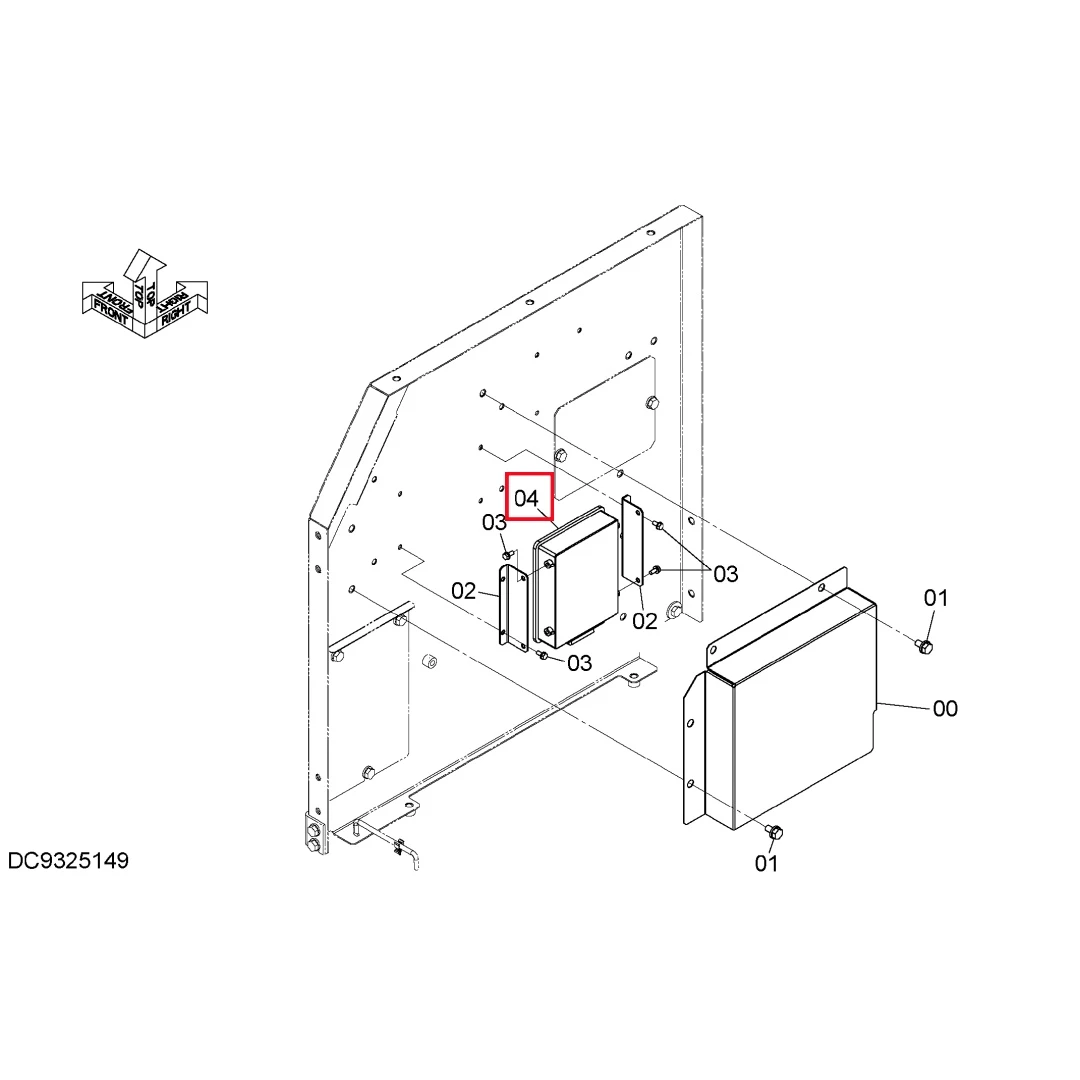

Fault diagnosis: If the engine fails to start, has insufficient power, or emits black smoke, a dedicated diagnostic tool (such as Hitachi Dr. ZX) should be used to read the fault code (such as E13 speed sensor fault, EE07 DPF blockage, etc.), focusing on checking the power supply voltage, sensor signal, and CAN bus resistance. Disassembly and installation: 1 Turn off the main power switch and wait for 5 minutes to discharge the capacitor; 2. Unplug all wire harness plugs (pay attention to the locking direction); 3. Remove the fixing bolts (usually 4-6 pieces, torque 8-10N · m); 4. Clean the pins before installing the new controller to ensure they are properly inserted and locked. Programming matching: After replacement, original software must be used for online programming (writing VIN, engine serial number, fuel injection quantity correction parameters), and system self-learning (including idle learning, fuel quantity learning) must be carried out.
