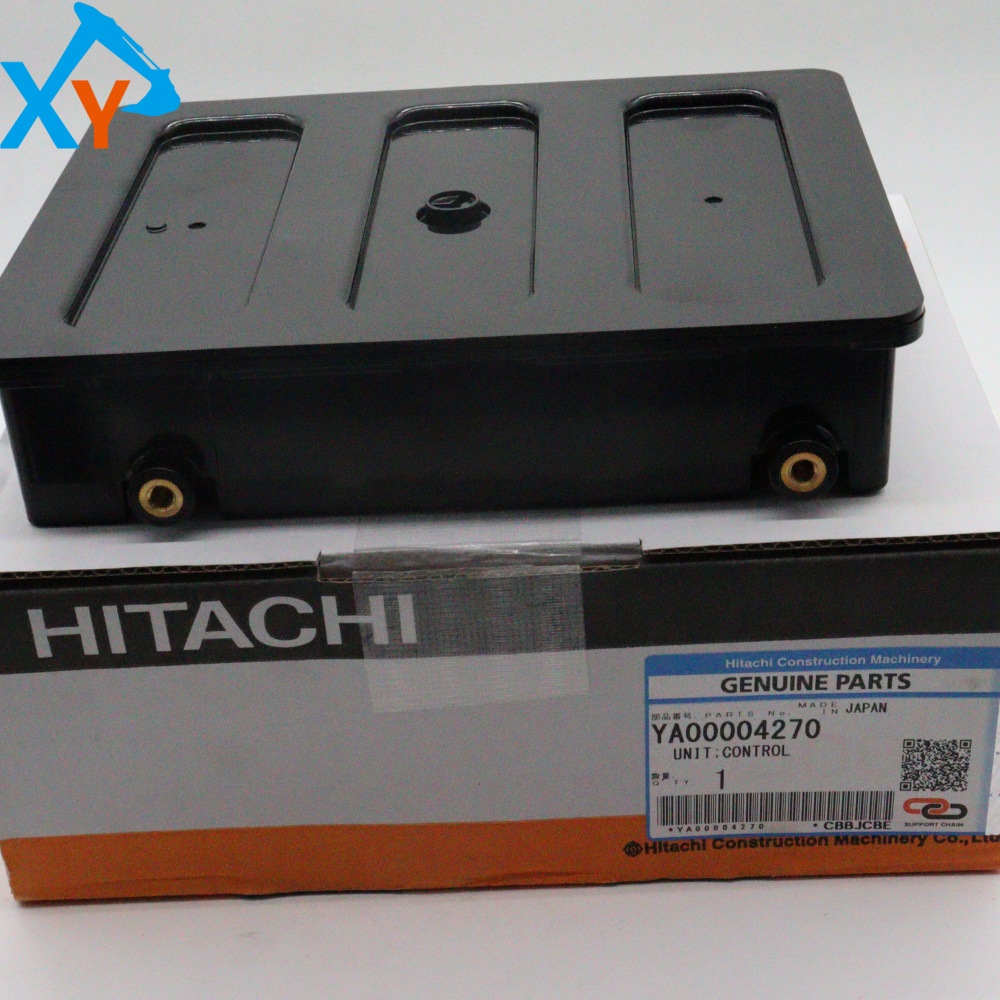

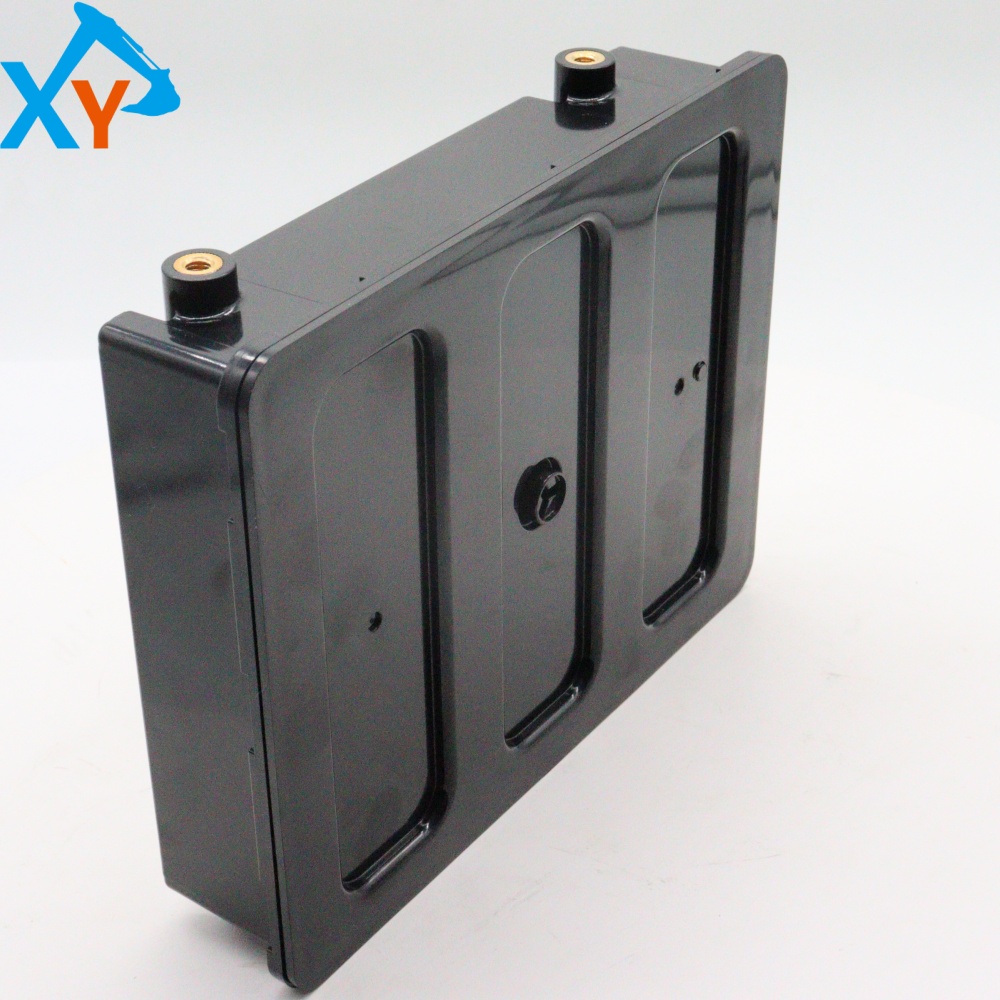

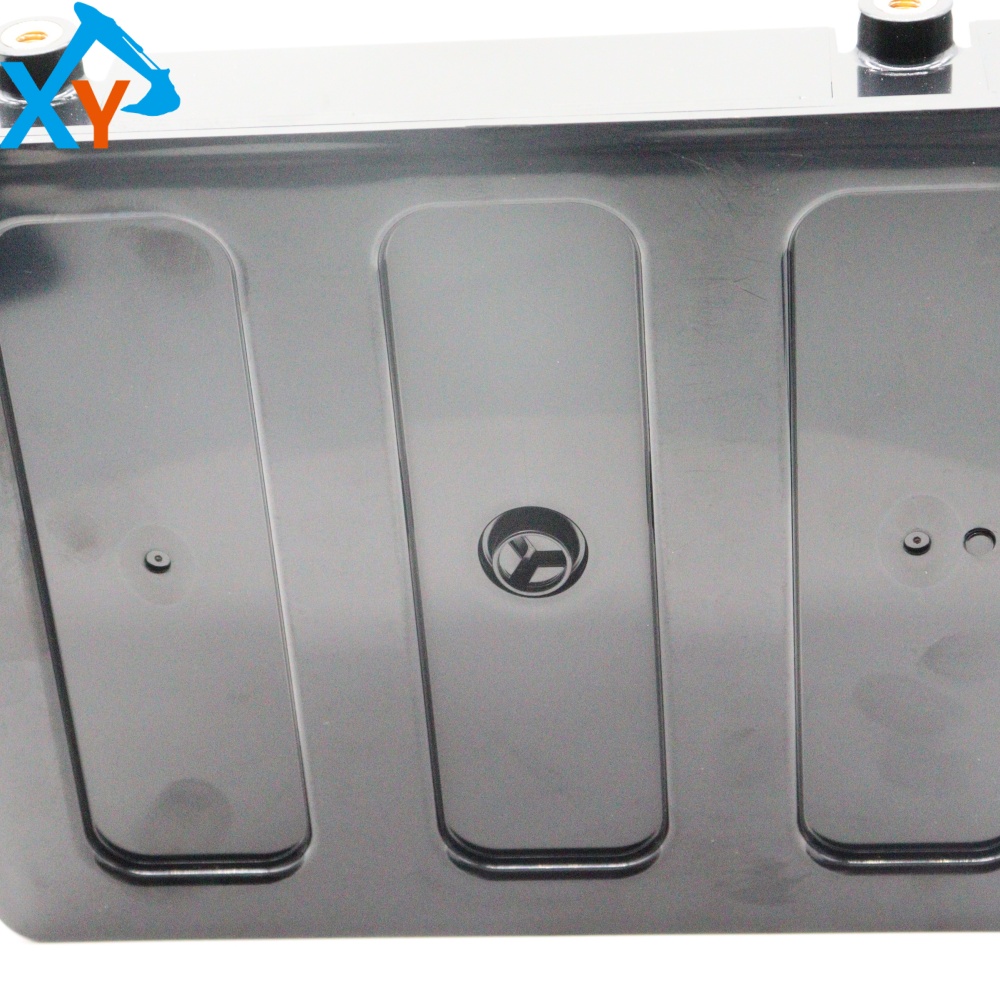

YA00004270 Original Excavator Control Unit for Hitachi ZX330-5G

Part number YA00004270 is the original control unit provided by Hitachi for the ZX330-5G series medium-sized hydraulic excavator (with a total working weight of approximately 33 tons). Its universal models usually cover 5G series models with the same tonnage and platform, such as ZX330-5G, ZX350-5G, ZX370-5G, etc. As the core of the electronic control system of the entire machine, this unit is likely to be the main controller (MC) or a dedicated controller for hydraulic pumps, responsible for managing the coordinated work of the engine and hydraulic system.

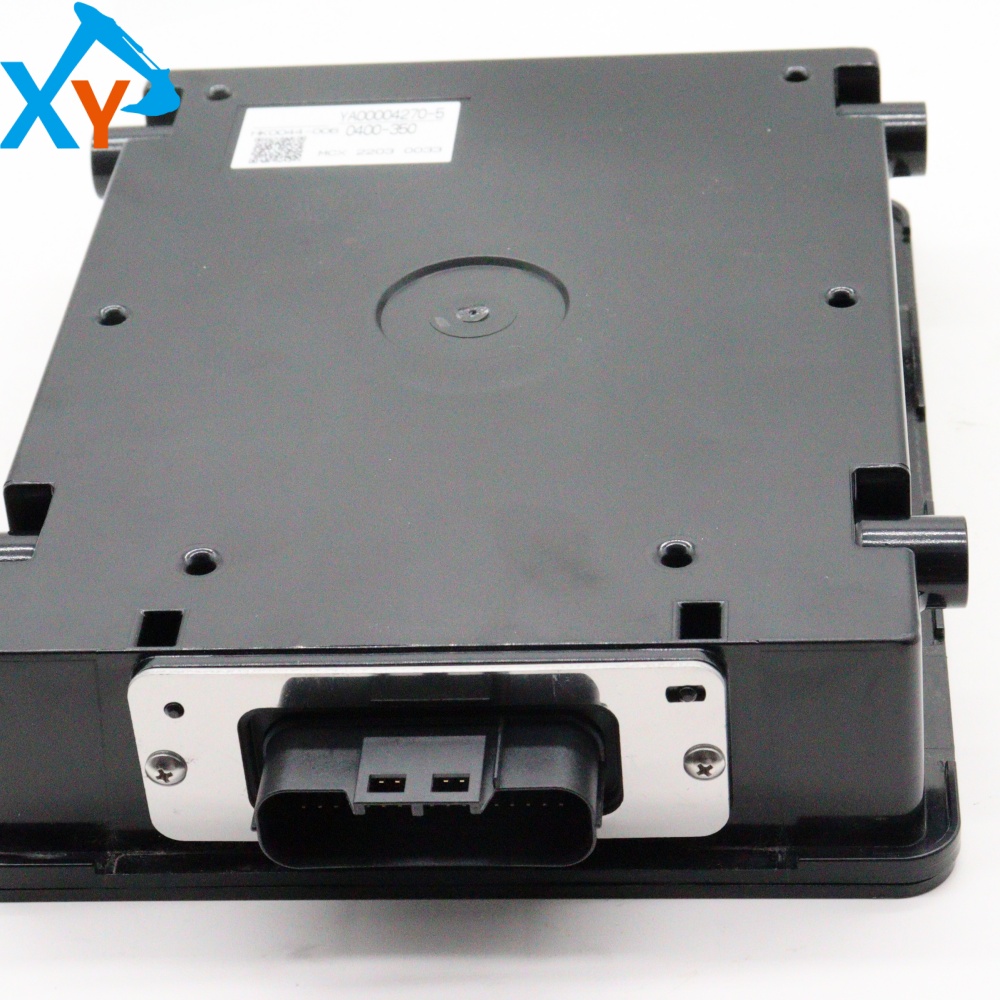

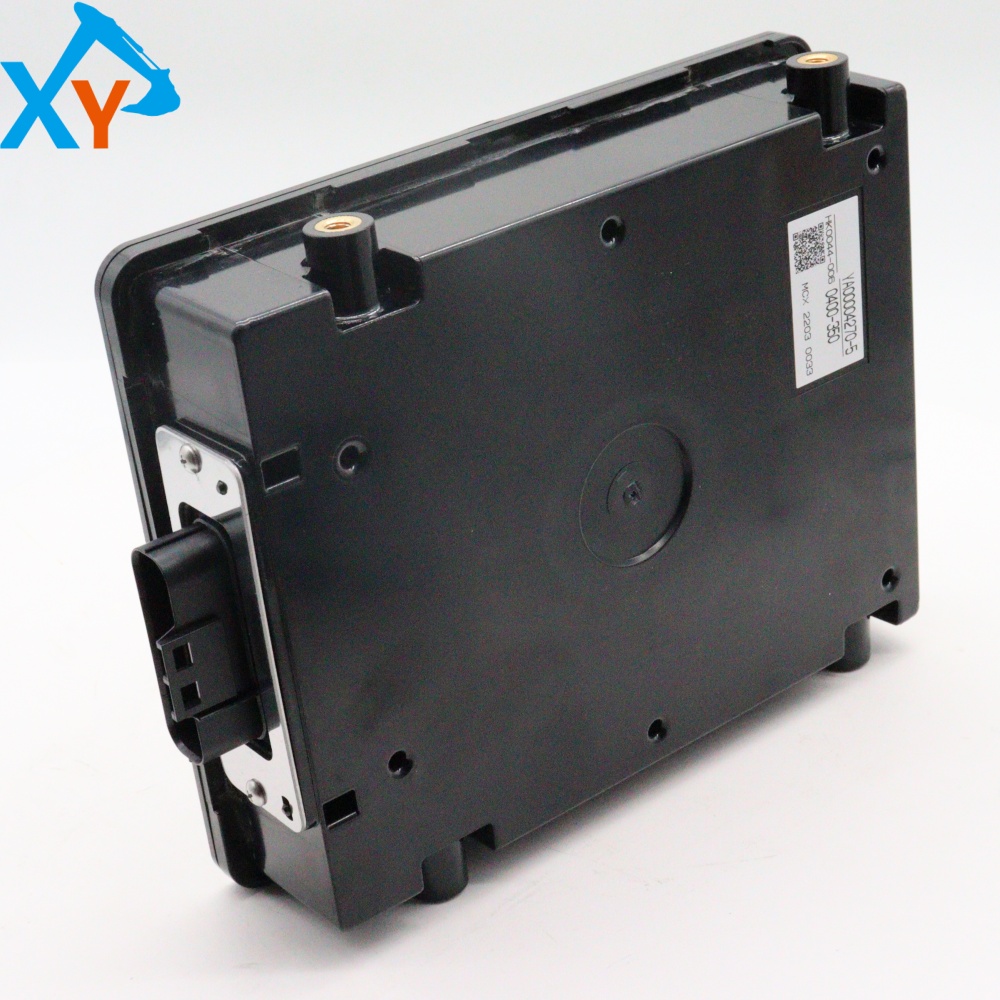

This product is an embedded car control unit, with multiple circular interfaces and slots with gold contacts visible on the side, used to connect the vehicle's wiring harness. The core adopts high-performance microprocessors and supports CAN bus communication (protocol should be J1939 or ISO 11898). The working voltage is DC 24V, and the protection level is expected to be IP65 or higher to adapt to vibration, dust, and temperature changes inside the excavator cab or electrical cabinet (working temperature range is about -30 ℃ to+85 ℃). Its main function is to process various sensor signals (speed, pressure, temperature), and communicate with the engine ECU and monitor through the CAN bus to achieve engine power distribution, hydraulic pump displacement adjustment, fault diagnosis and storage. The "CNC" on the label may indicate that it is a "computer numerical control" unit.

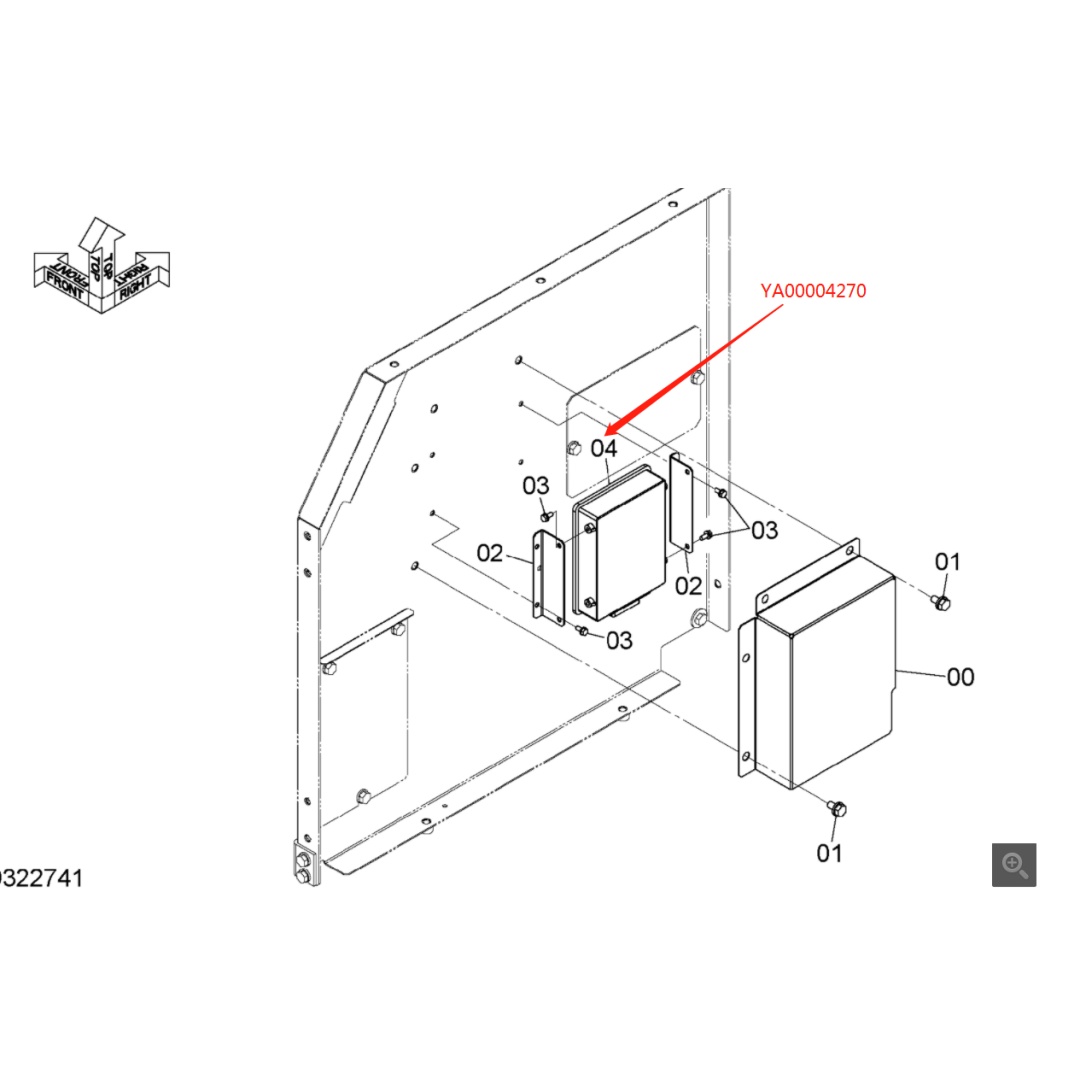

Replacement and Programming (Key Steps): 1 Safe operation: Before replacement, the negative terminal of the battery must be disconnected and wait for at least 5 minutes for the system capacitor to fully discharge. 2. Installation: Align the slots and install the new control unit (YA00004270) in place, ensuring that all wire harness connectors are plugged in and locked. 3. Programming is required: It is strictly prohibited to start the device directly after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write specific parameters of the original equipment into the new controller, which is called "matching programming". Otherwise, the controller will not be able to recognize the equipment, resulting in the entire machine not working or having abnormal performance.
