YA00011100 Original Excavator Controller for ZX470-5G

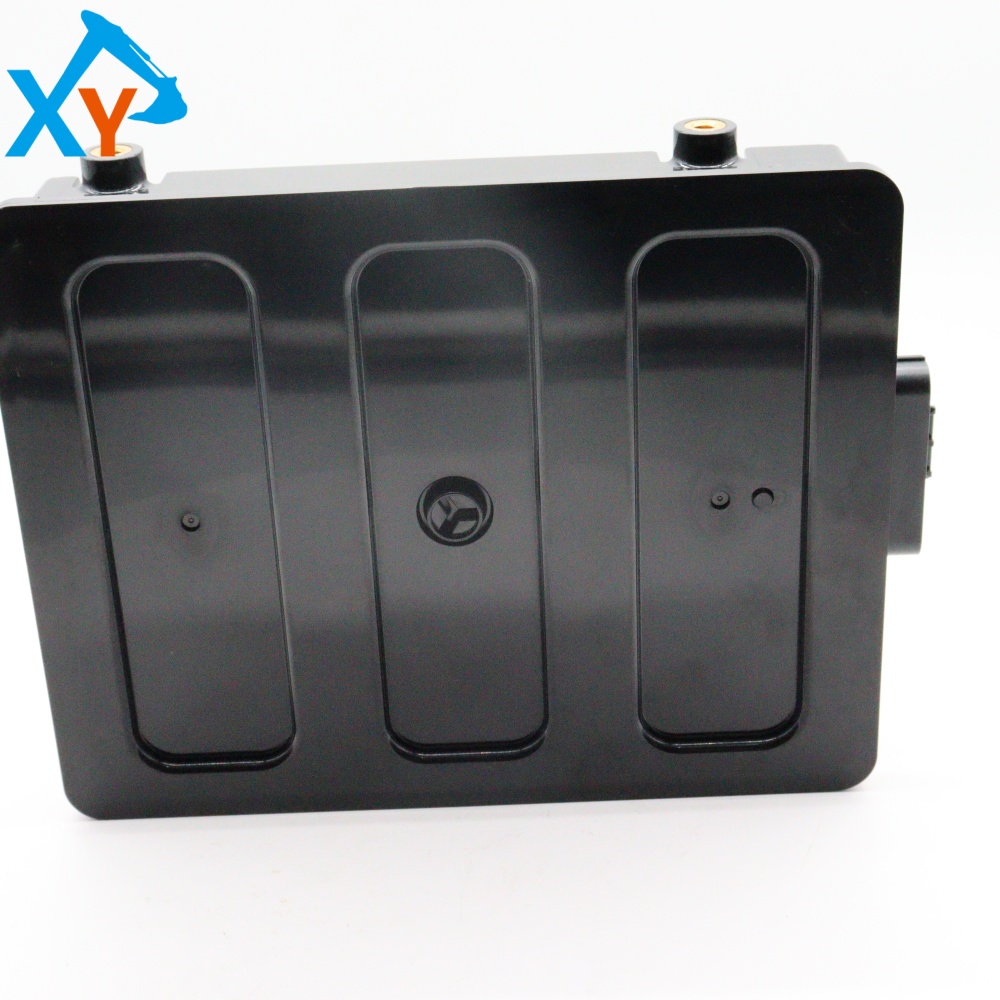

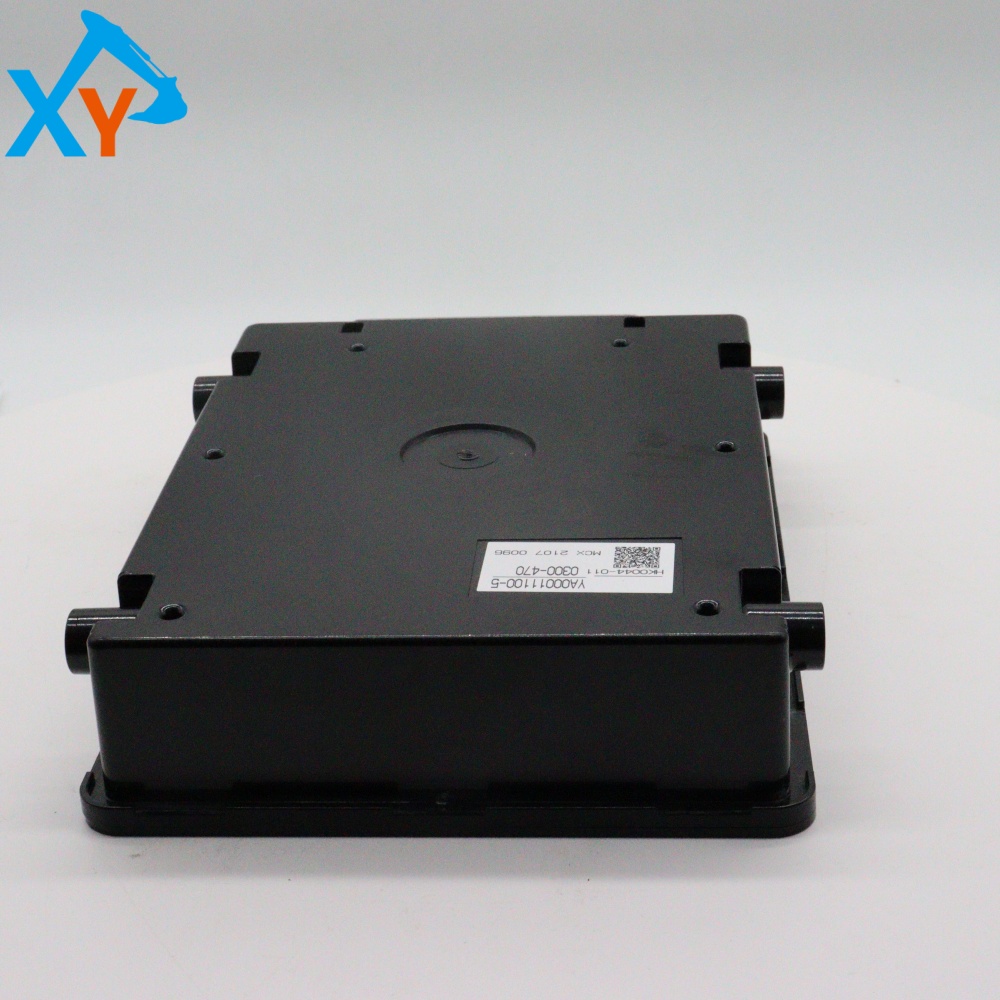

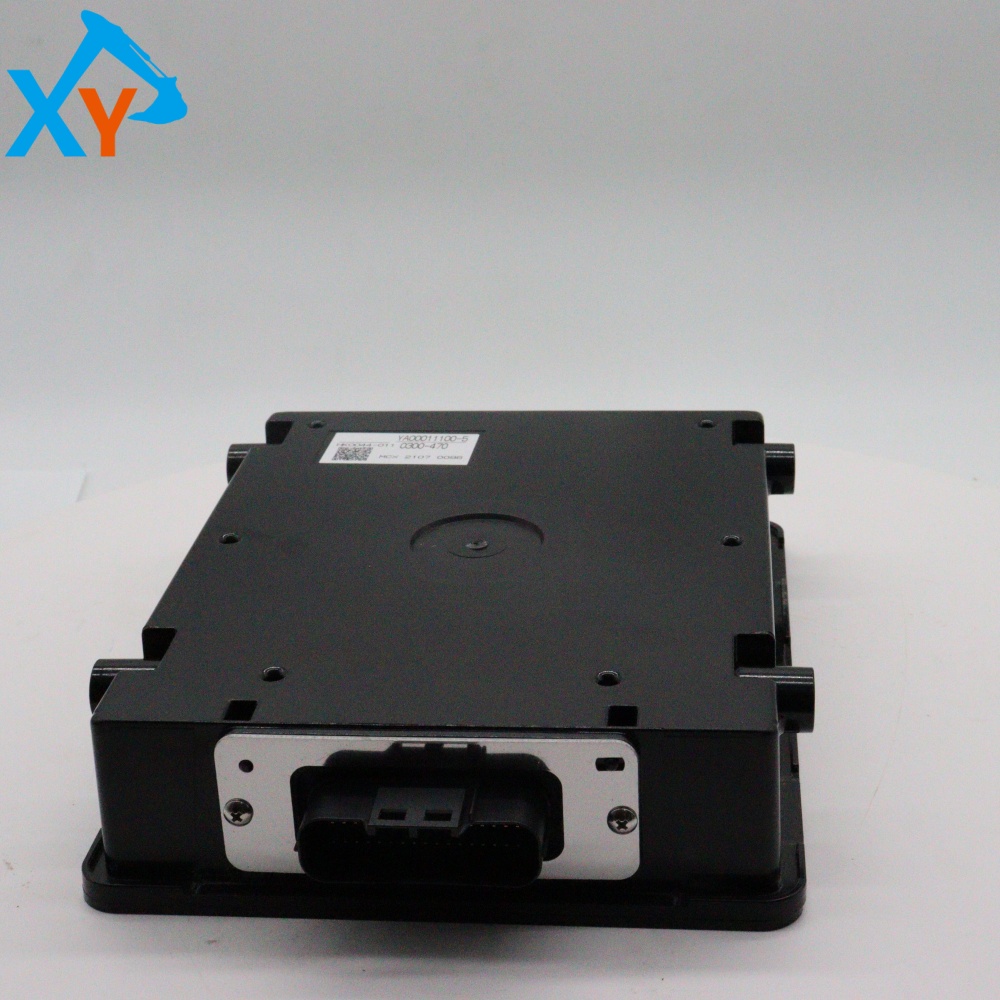

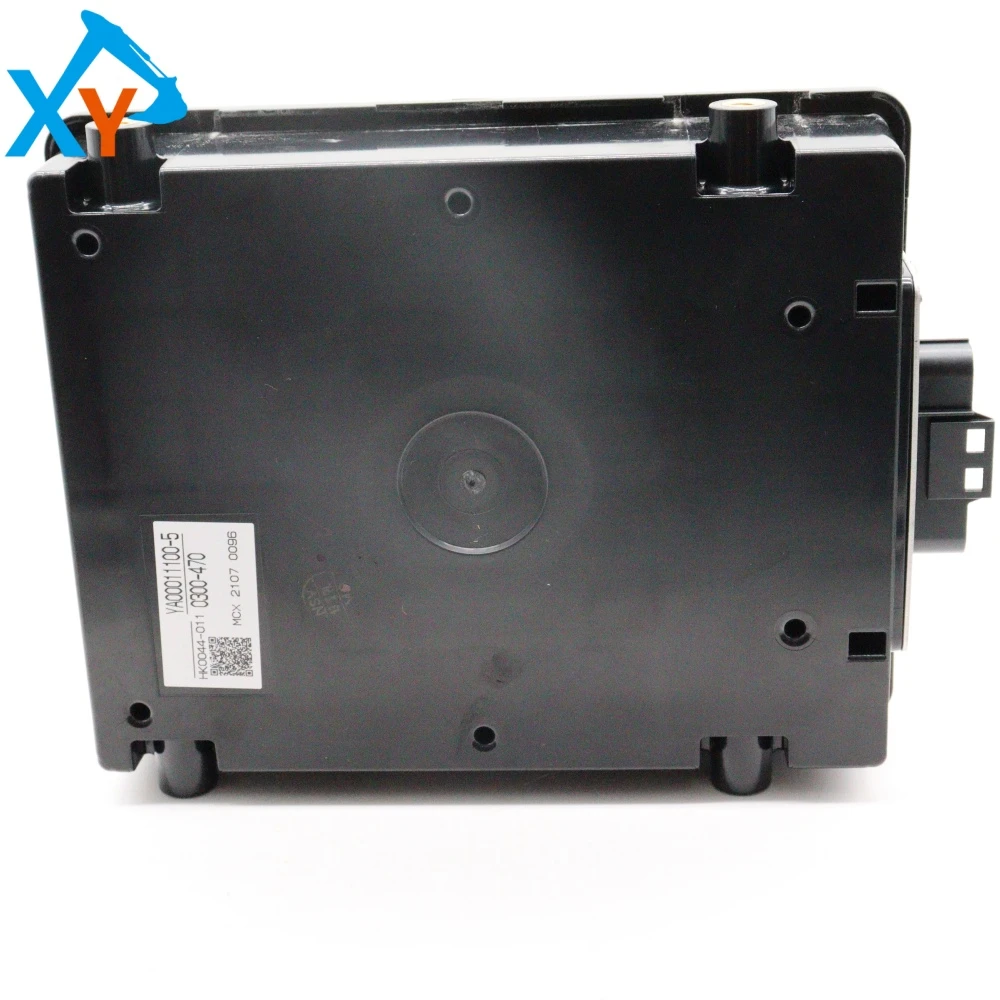

Part number YA00011100 is the original main controller provided by Hitachi for large hydraulic excavators such as ZX470-5G. This component is a Japanese original core electronic control unit with the "HITACHI GENUINE PARTS" logo. The picture clearly shows its black metal casing and integrated communication interface. Its universal models cover large 5G series models on the same platform, such as Hitachi ZX470-5G, ZX450-5G, ZX490-5G, etc. As the "brain" of the entire electronic control system, it is responsible for processing all sensor signals, executing power coordination control between the engine and hydraulic pump, managing operating modes, and achieving fault self diagnosis.

This product is an original car mounted main controller, identical to the picture: it is packaged in a metal shell to ensure good electromagnetic shielding and heat dissipation performance. Its core is a high-performance microprocessor with a built-in CAN bus communication module, supporting general protocols for engineering machinery such as J1939 and ISO 11898. The typical working voltage is DC 24V, the working temperature range is -30 ℃ to+85 ℃, and the protection level is IP67. The controller receives signals from the throttle knob, pressure sensor, temperature sensor, joystick, etc., and after internal calculation, outputs commands to accurately control the fuel injection quantity of the engine ECU, the proportional solenoid valve of the hydraulic pump, the valve core opening of the multi way valve, etc., achieving efficient and low fuel consumption intelligent operation.

Replacement and programming: 1 Before dismantling, be sure to disconnect the main switch of the battery and wait for at least 5 minutes for the system capacitor to discharge. 2. Record the calibration codes or serial numbers that may exist on the old controller. After installing the new controller (YA00011100), it is necessary to use a Hitachi specialized diagnostic tool (such as Dr. ZX) for online programming, and write the device's exclusive parameters (such as engine serial number, pump calibration value, valve characteristic curve) into the new controller. It is strictly prohibited to use without programming, otherwise the device will not work properly. Fault diagnosis: If the whole machine experiences abnormal operation, insufficient power, inability to start, or multiple system alarms, after checking the power supply and wiring harness, a diagnostic instrument can be connected to read the internal fault codes and data streams of the controller for accurate judgment.
