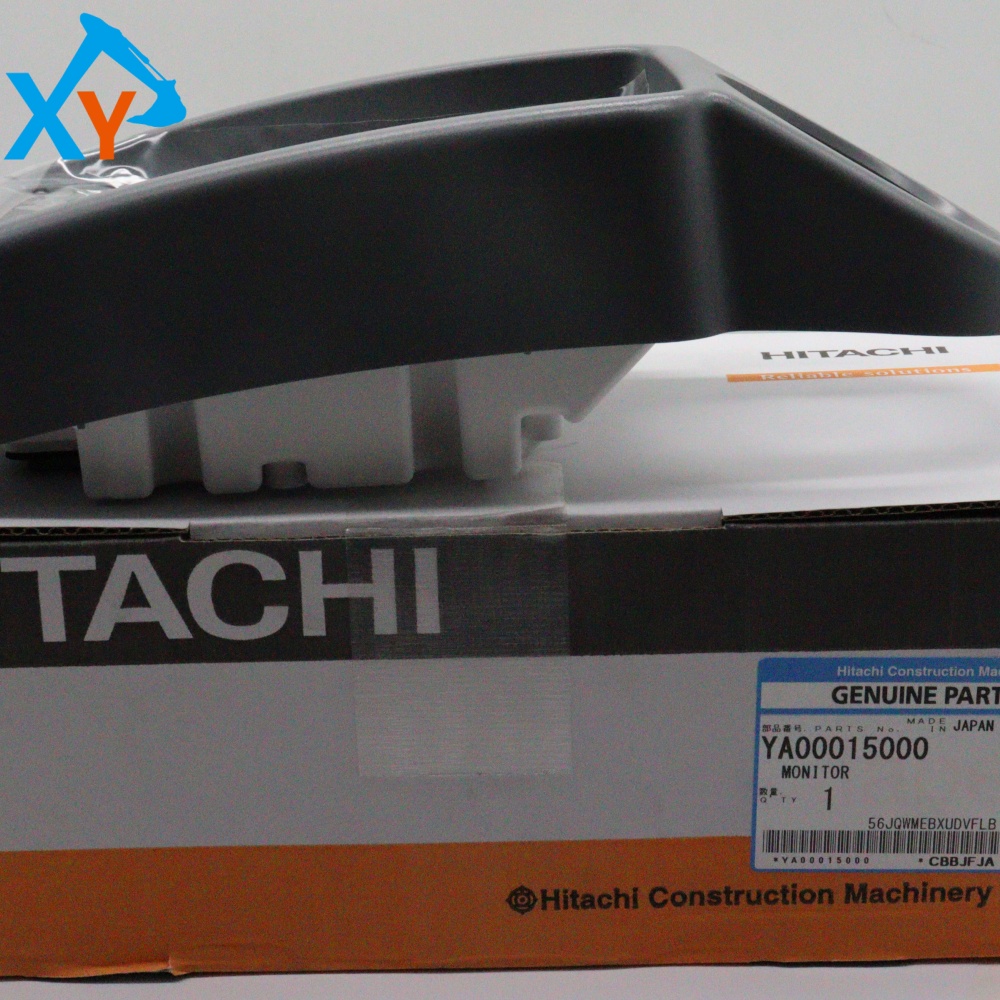

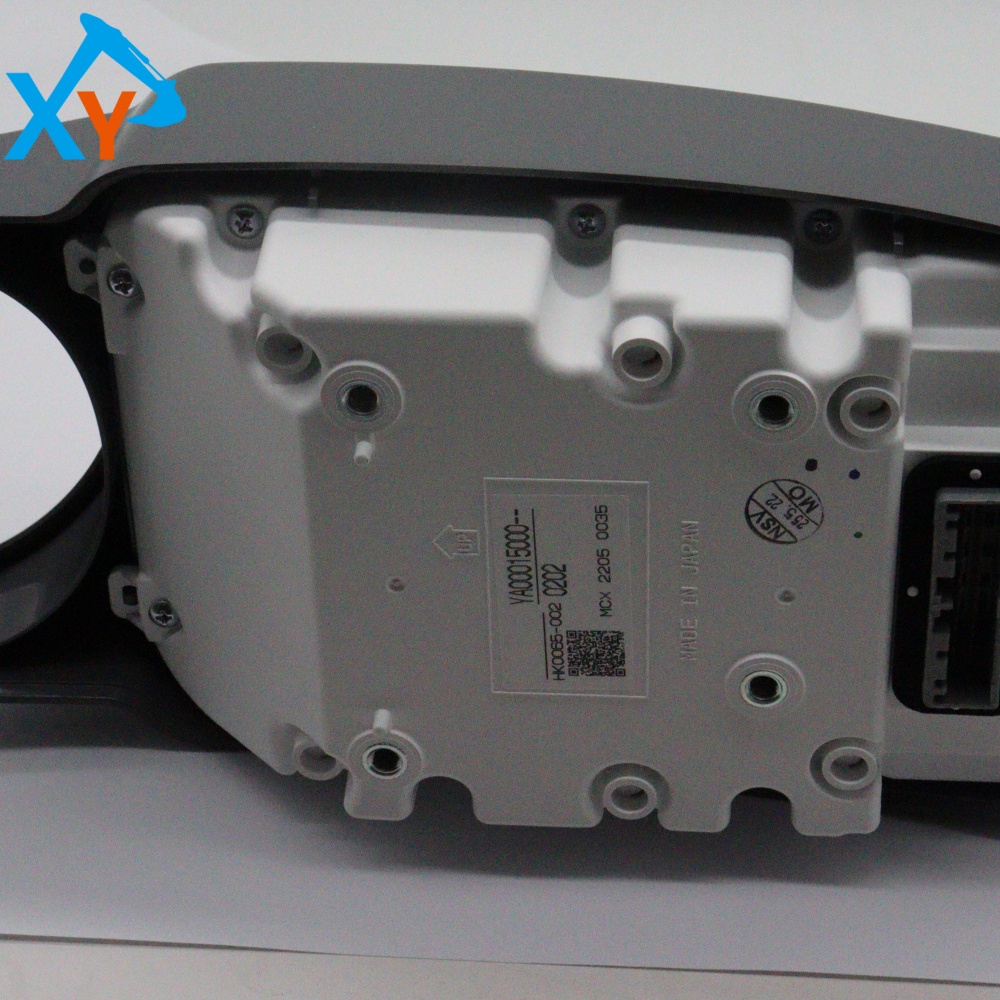

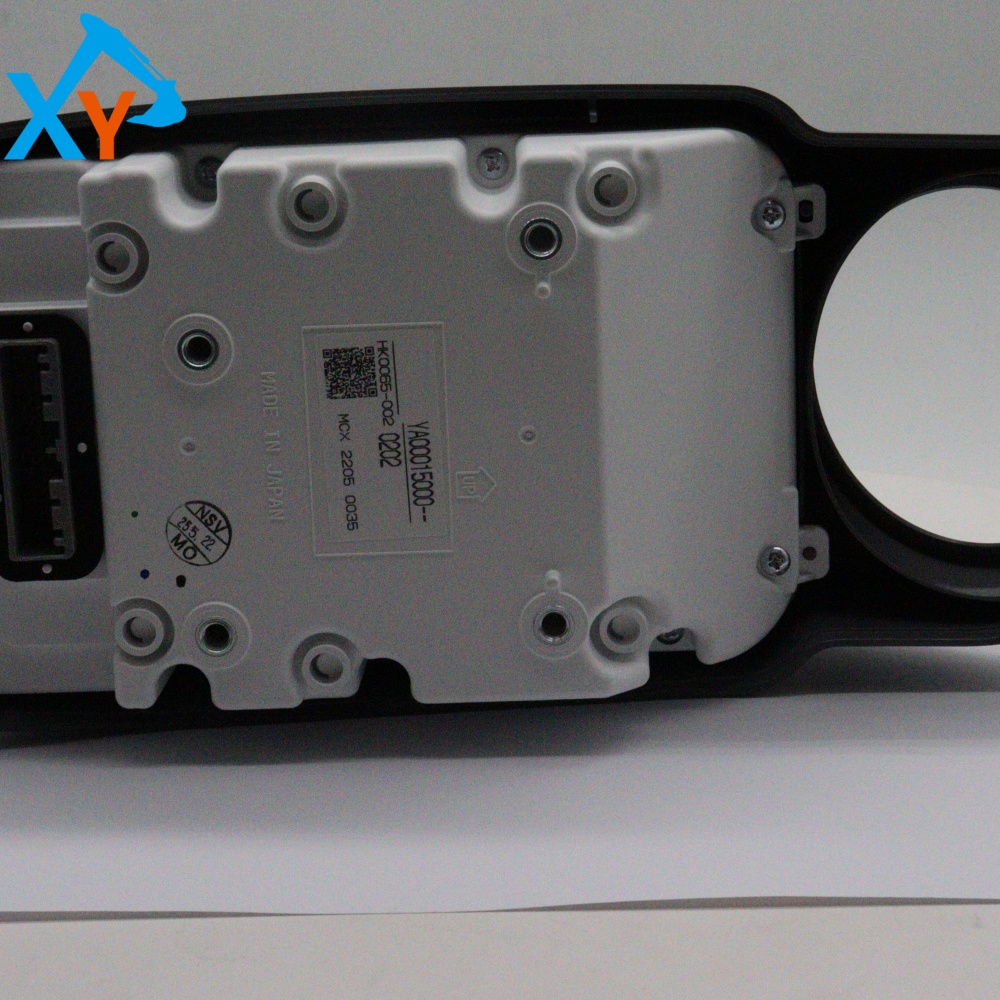

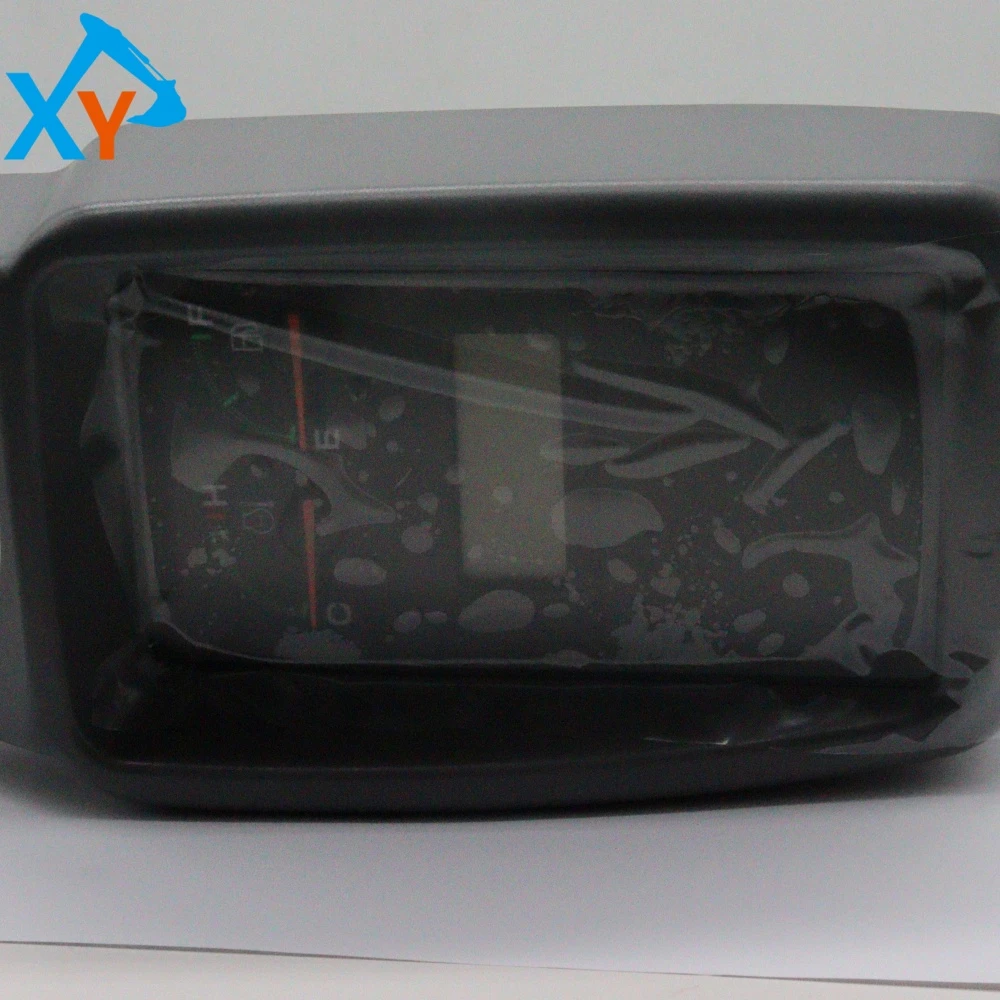

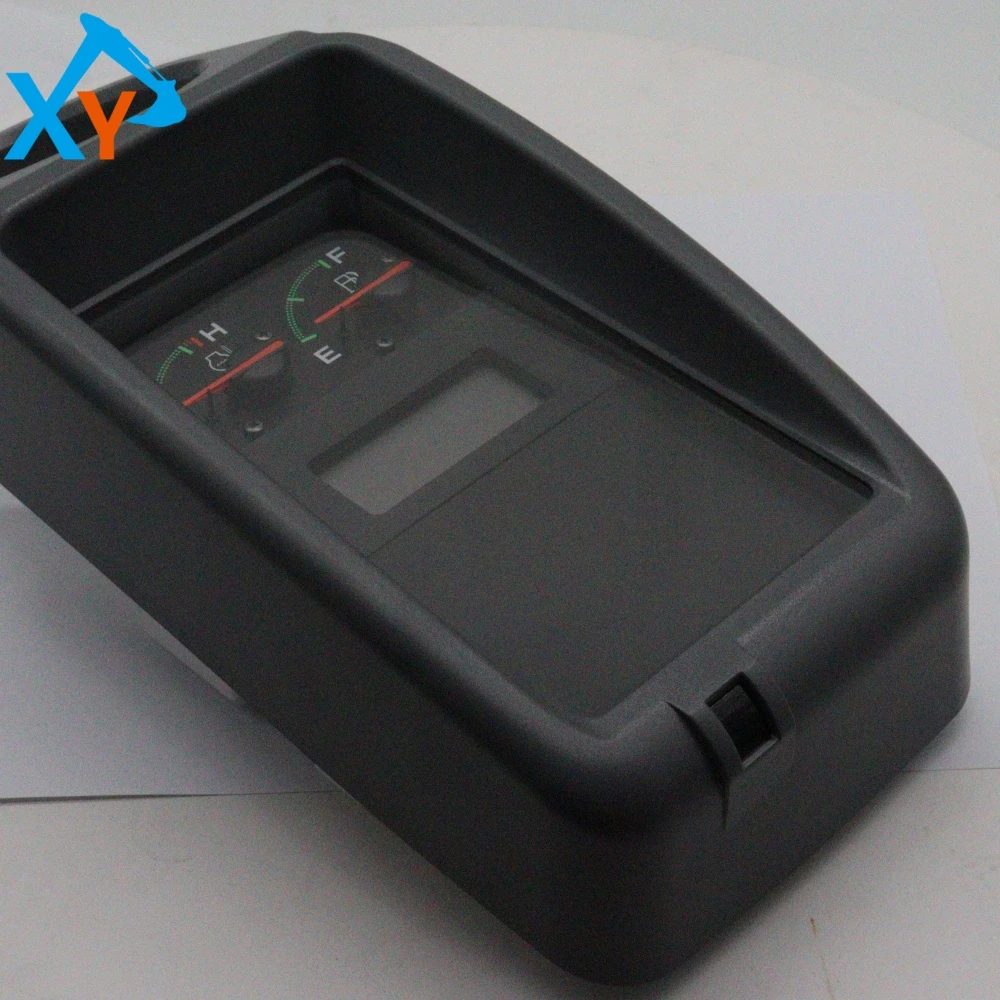

YA00015000 Original Excavator Monitor for ZX130-5G

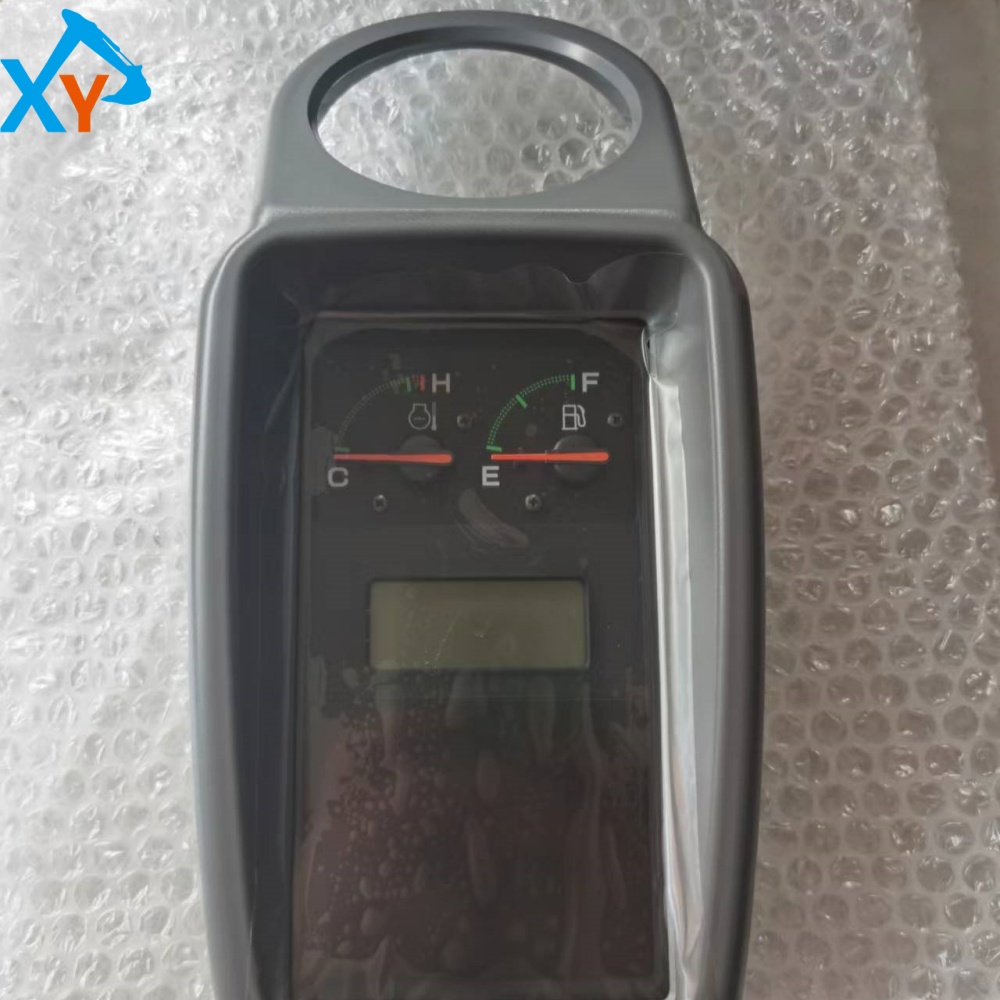

The original monitor part number YA00015000 is an integrated information display unit on medium-sized excavators such as Hitachi ZX130-5G. It is mainly compatible with ZX130-5G, ZX160-5G, ZX200-5G and other ZX-5G series models, and may also be compatible with the full range of 5G models from ZX70-5G to ZX350-5G. This component is usually installed as a multifunctional LCD monitor in the center of the dashboard in the driver's cabin, responsible for displaying key information such as engine speed, water temperature, hydraulic oil temperature, fault codes, working hours, and accessory modes. When placing an order, the complete model and serial number of the equipment must be provided to ensure that the software version and wiring harness interface are fully matched.

This product belongs to the embedded LCD display unit, with a common screen size of 5-7 inches. It uses a TFT LCD screen and has high brightness, wide viewing angle, and anti glare characteristics to adapt to outdoor strong light environments. The shell is made of engineering plastic and designed to be dustproof, shockproof, and waterproof (IP grade). It integrates a microprocessor internally and communicates with the engine ECU, hydraulic controller, and various sensors through the CAN bus, with a working voltage of DC 24V. As an original component, its display interface, menu logic, and fault diagnosis functions are deeply matched with the overall system, ensuring accurate information and intuitive operation, and avoiding display abnormalities and functional deficiencies caused by compatibility issues with secondary components.

It is recommended to clean the screen surface with a soft dry cloth every 250 working hours and avoid using corrosive cleaning agents; Check if the harness connectors are secure and if there is any water ingress; Avoid placing heavy or sharp objects on the surface of the monitor. Troubleshooting: If there is a black screen, blurred screen, or touch failure, the power supply, fuse, and grounding circuit should be checked first; Relevant fault codes can be read through Hitachi's dedicated diagnostic tool; Be sure to disconnect the negative terminal of the battery before disassembling. Replacement and matching: After replacing the monitor with a new one, it is usually necessary to use a diagnostic tool for parameter initialization or software matching.
