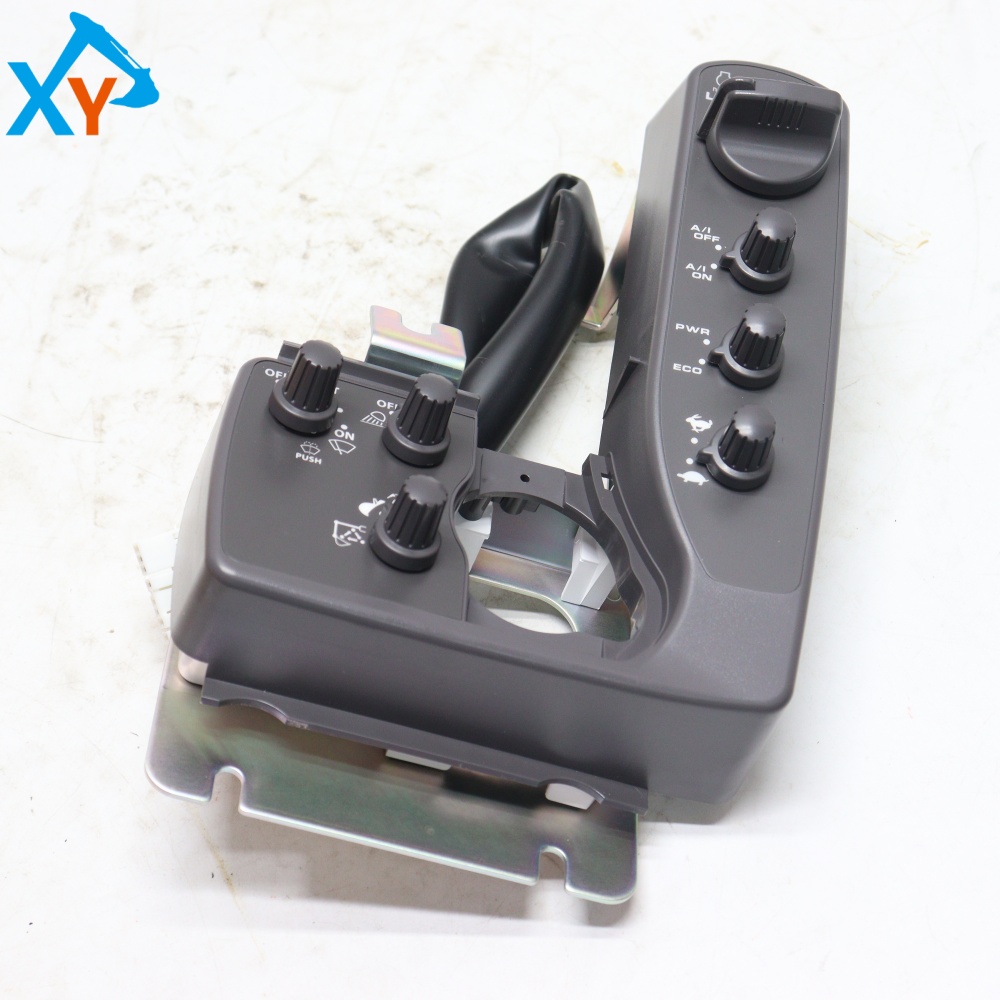

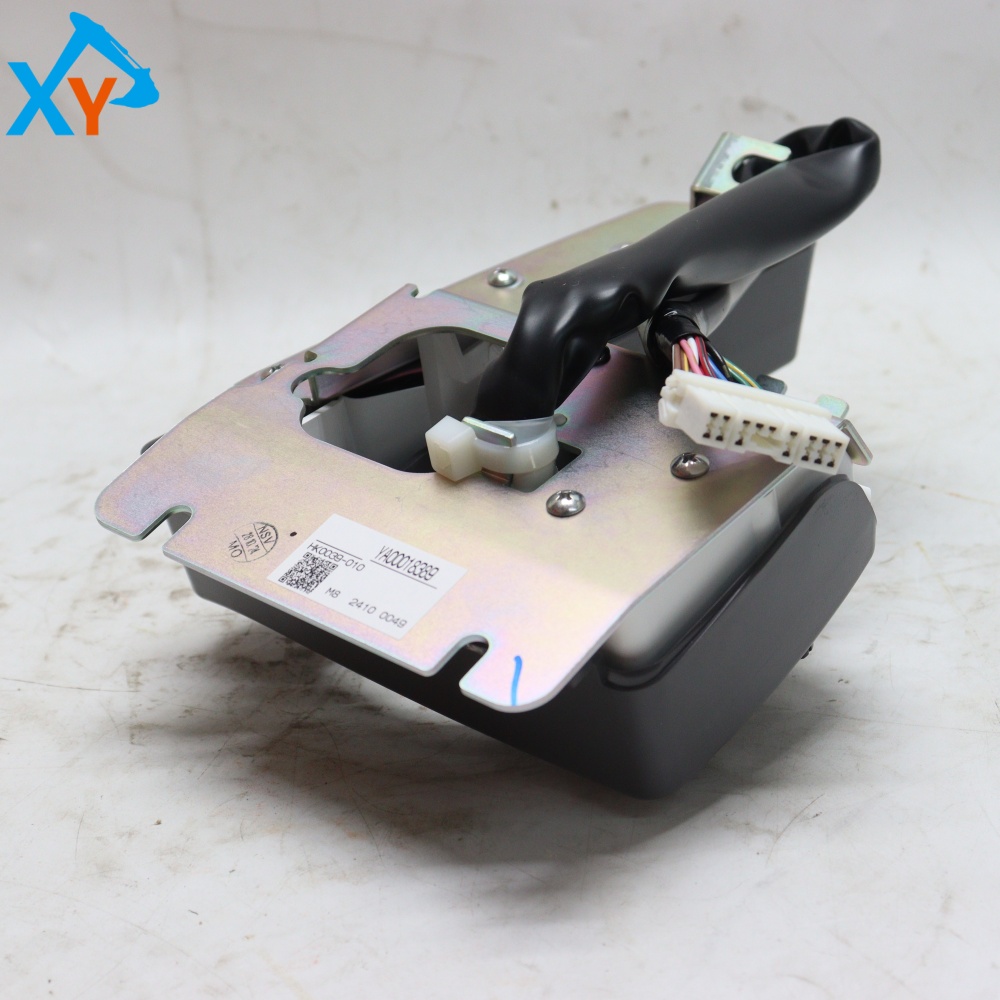

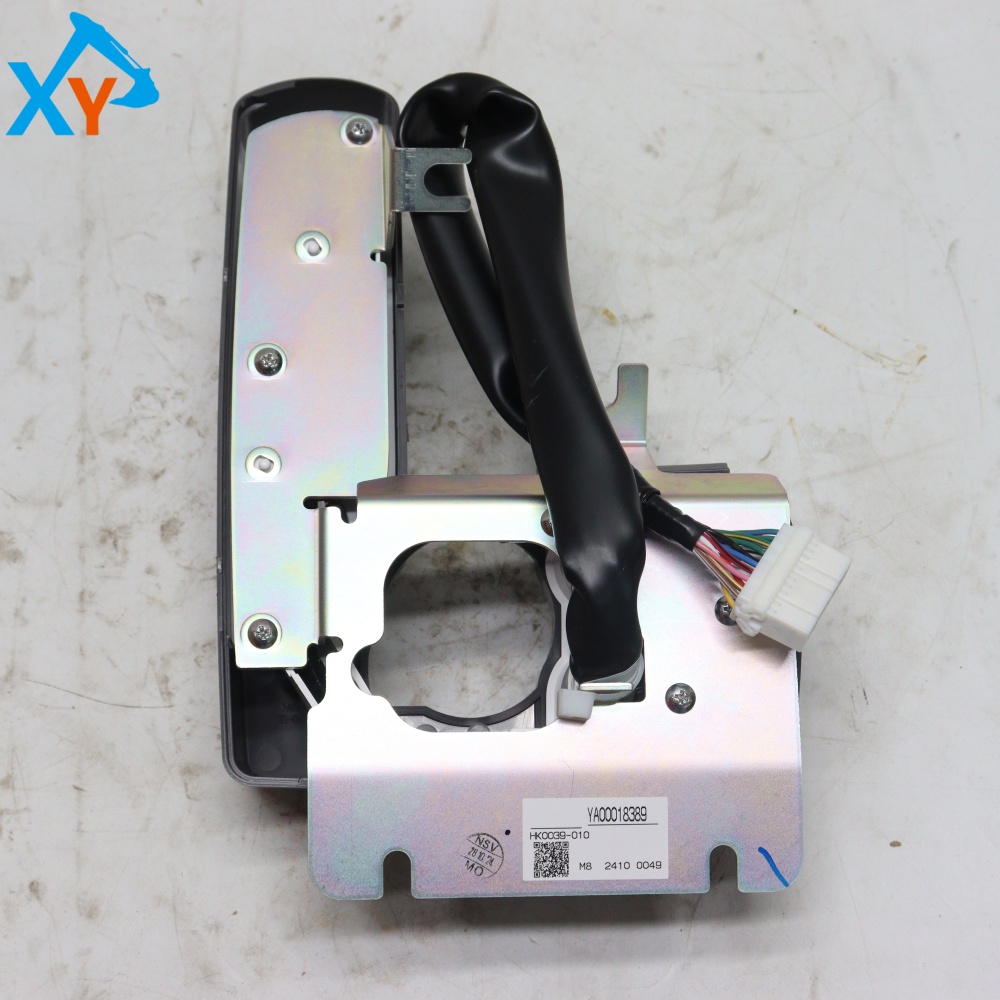

YA00018389 Original Excavator Switch Box Panel for Hitachi ZX130-5G

The original switch box panel (part number YA00018389) is the electrical control unit for the cab of Hitachi ZX130-5G excavator, mainly used to integrate operation switches for functions such as lighting, wipers, throttle/throttle knobs, etc. This panel is also widely applicable to Hitachi ZX120-5G, ZX140-5G, ZX160-5G and other 5G models in the same series (including generations -5A, -5B, etc.). Its universal number YA00018389 is its unified identification in Hitachi's original factory and third-party accessory systems. When ordering, the complete model and serial number of the excavator need to be provided for verification to ensure that the wiring harness interface matches the functional layout completely.

This product belongs to the integrated switch controller assembly for construction machinery, which adopts a combination structure of engineering plastic shell and metal bracket. The panel integrates knob type throttle controller, light switch (headlight, work light), wiper switch, emergency stop button and other functional modules. The main electrical indicators include: rated voltage DC 24V, maximum load current 10A (lighting circuit), and protection level IP54 (dustproof and waterproof). Internally, gold-plated terminals and waterproof connectors are used to communicate with the vehicle control unit (ECU) through CAN bus or hard wired signals, achieving engine speed regulation, lighting system control, and wiper action. The buttons and knobs on the original panel have undergone over 100000 life tests to ensure reliable operation in vibration, high and low temperature (-30 ° C to+85 ° C) environments.

It is recommended to perform maintenance every 250 hours of work or every 3 months: clean the surface of the panel with a dry soft cloth and avoid using corrosive solvents; Check if all switch buttons and knobs are stuck or have poor return. Open the back cover of the panel every 500 hours of work (disconnect the negative terminal of the battery first), check whether the internal connectors are loose or oxidized, and spray the terminals with electrical contact agent to prevent corrosion. Daily use should avoid direct splashing of liquids, and the inspection cycle can be shortened in humid or dusty conditions. If the lights do not turn on, the wipers do not operate, or the throttle control fails, the corresponding circuit fuse (usually 5-15A) and grounding wire should be checked first; If the panel fails as a whole, a multimeter should be used to measure the power supply voltage (24V ± 10%) and whether the CAN signal is normal. After replacing the panel (YA00018389), functional matching (such as throttle stroke calibration) is required. It is recommended to have a professional technician perform the operation.
