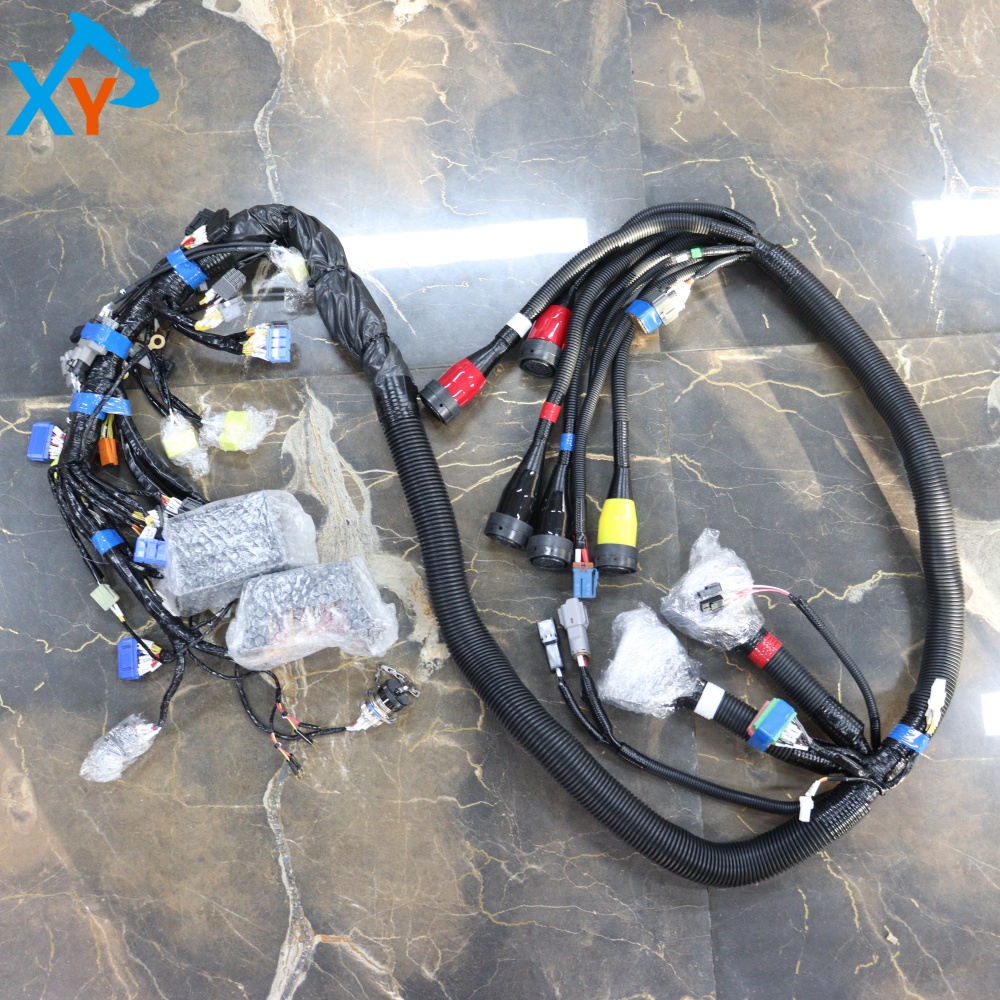

YA00020382 Original Excavator Wire Harness for Hitachi EX1200-6

Part number YA00020382 is the original wiring harness assembly provided by Hitachi for the EX1200-6 series ultra large hydraulic excavator. This component is the "backbone" of the massive electrical control network of the entire machine, responsible for connecting the Cummins QSK23 engine ECU with a power of up to 567kW, the controller of three variable slant disc axial piston pumps, various sensors, actuators, and all operating and display units in the cab that are distributed throughout the entire machine. According to the search results, EX1200-6, as a 100 ton mining excavator, has an extremely complex electrical system, which requires high temperature resistance, vibration resistance, waterproofing, and electromagnetic interference resistance of the wiring harness

This product is a super large, multi branch, fully covered wiring harness assembly, wrapped in double-layer flame-retardant, oil resistant, and UV resistant insulation materials. Key parts are protected by metal braided mesh shielding layers and heavy-duty corrugated pipes. Its core function is to provide stable power and grounding circuits for all electronic control units (ECUs) in the vehicle, and to transmit various key control signals (such as engine operating conditions, pump displacement commands, pilot pressure, various temperature/pressure sensor signals, etc.) at high speed and reliably. As an original component, its wire diameter specifications, color coding system, waterproof rating of connectors (such as IP67), and shielding grounding treatment all comply with Hitachi's strictest electrical specifications for mining equipment, ensuring long-term reliable operation under harsh working conditions such as severe vibration, large temperature differences, and high dust.

Inspection and replacement: When multiple unrelated electrical faults occur (such as multiple alarm lights on the dashboard, communication interruption with the controller, abnormal engine or pump control), there are burn marks or damage on the wiring harness locally, or the connector is corroded extensively due to water/oil ingress, it should be suspected that the wiring harness is aging or damaged. Simple inspection method: visually inspect the outer skin of the wiring harness for cracks and wear; Monitor for any discharge noise near the wiring harness during idle and operation of the equipment; Use a multimeter and insulation resistance tester to measure the conductivity, short circuit to ground/power, and insulation resistance of critical circuits. Caution: It is strictly prohibited to operate any electronic control unit connector without completely cutting off the power; During storage, it is necessary to prevent moisture, pressure, and rodent bites; Replacing such large wiring harnesses is a systematic project, and it is recommended to have a professional maintenance team perform it in a clean environment, and simultaneously inspect or clean all relevant sensor and actuator interfaces.
