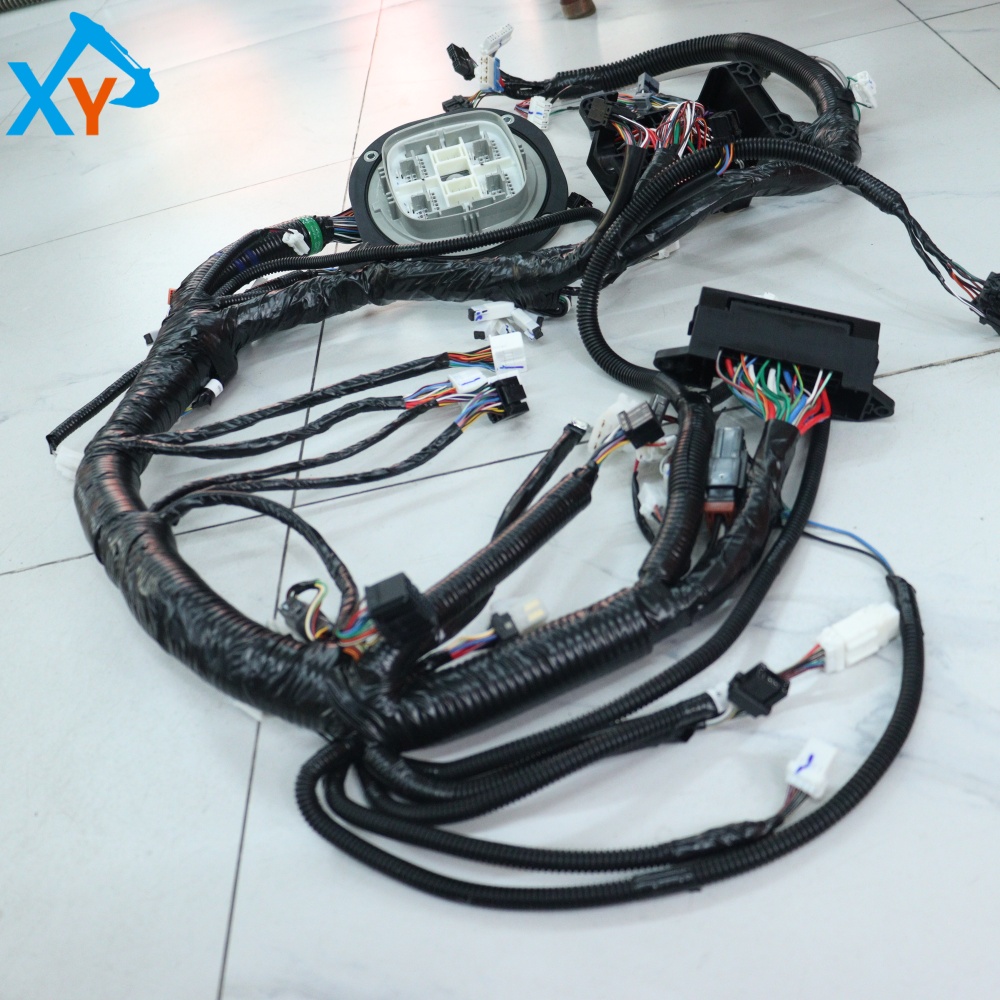

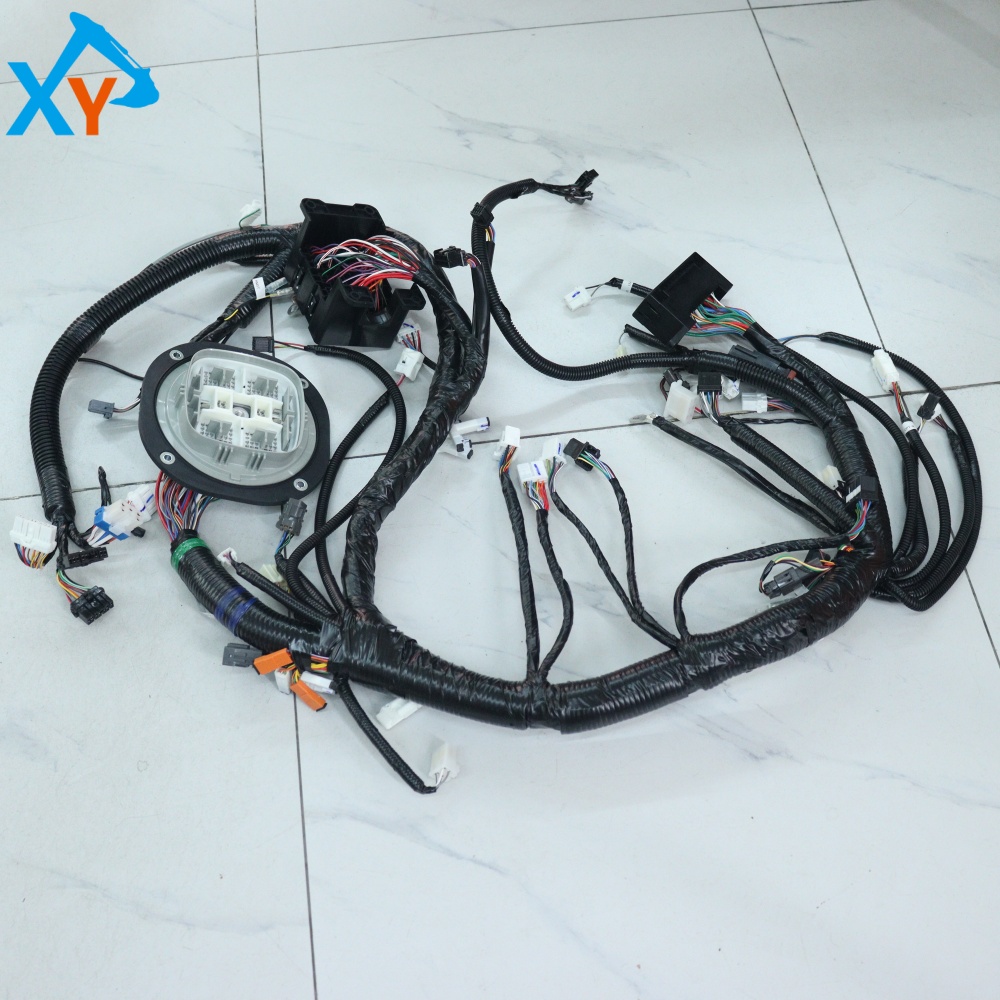

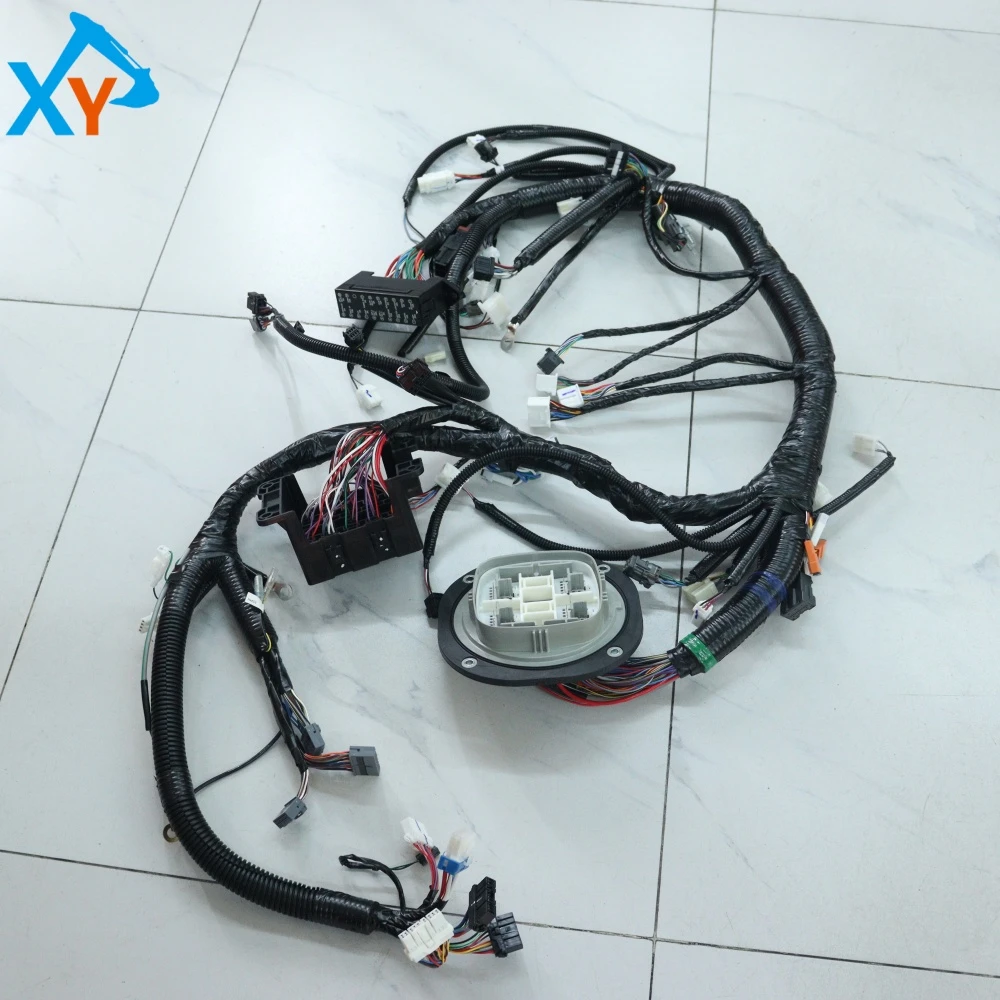

YA00028880 Original Excavator Wire Harness for ZX210LCH-5G Hitachi

The part number YA00028880 is a specialized part number for Hitachi's original excavator wiring harness. This wiring harness is the core cable assembly that connects various sensors, actuators, and control units in the excavator electrical system. According to the general rules for Hitachi excavator parts numbering, part numbers starting with "YA" usually represent the entire vehicle harness or main subsystem harness. It is widely compatible with Hitachi ZX series and EX series medium to large hydraulic excavators. Common models may include ZX200-3, ZX210LC-3, ZX240-3, ZX330, ZX360 and other ZX series models, as well as EX200, EX300 and other EX series models. This part is specially designed for the original factory vehicle, and its original part number is YA00028880. It must be verified based on this during procurement.

This wiring harness is the "neural network" of the excavator electrical system, whose core function is to provide stable power supply and accurate signal transmission channels for various sensors (such as pressure, temperature, angle sensors), actuators (such as solenoid valves, lights, horns), and controllers (such as ECU, displays) distributed throughout the vehicle. As an original part, it uses special PVC or TPE materials that are oil resistant, high temperature resistant, UV resistant and anti-aging as the outer sheath. The internal conductor is high-purity tinned copper wire. The cross section area is carefully designed according to the load current to ensure low resistance and bearing capacity. All connectors are designed to be waterproof and dustproof, with anti misoperation structure and self-locking function to cope with harsh working conditions such as excavator vibration, moisture, and oil stains. The wiring harness is usually integrated with shielding layers and anti-interference magnetic rings to resist signal interference in strong electromagnetic environments.

The maintenance core of this wiring harness lies in regular inspections, waterproof and wear-resistant measures, and standardized testing. Every 250 working hours or every month, a multimeter should be used to test the conductivity and insulation resistance of critical circuits (the standard value usually requires ≥ 500M Ω), and the plug terminals should be cleaned to prevent oxidation. Waterproof and moisture-proof: During the rainy season or after working in water, it is necessary to focus on checking the water prone areas such as wire harness through holes and under fixed buckles. If necessary, special waterproof glue or heat shrink tubing should be used to strengthen the sealing. When installing a new wiring harness, it is necessary to strictly follow the original vehicle wiring path and fixed point layout to avoid contact with high-temperature components (such as exhaust pipes) or moving parts. After installation, a full vehicle electrical function test is required to ensure that all signals are normal.
