YA00048010 Excavator Controller for ZX200-5A

The part number YA00048010 is the original controller provided by Hitachi for the ZX200-5A excavator. Its universal model is clearly applicable to the ZX200-5A model, and may also be applicable to 5A/5G series excavators on the same platform, such as ZX200-5G and ZX210-5A, which use the same electronic control system. As the core electronic control unit of the original factory, its hardware and underlying software are deeply integrated with the CAN bus network of the entire machine. It is strictly prohibited to use non DENSO produced auxiliary components to avoid communication interruption or control logic errors.

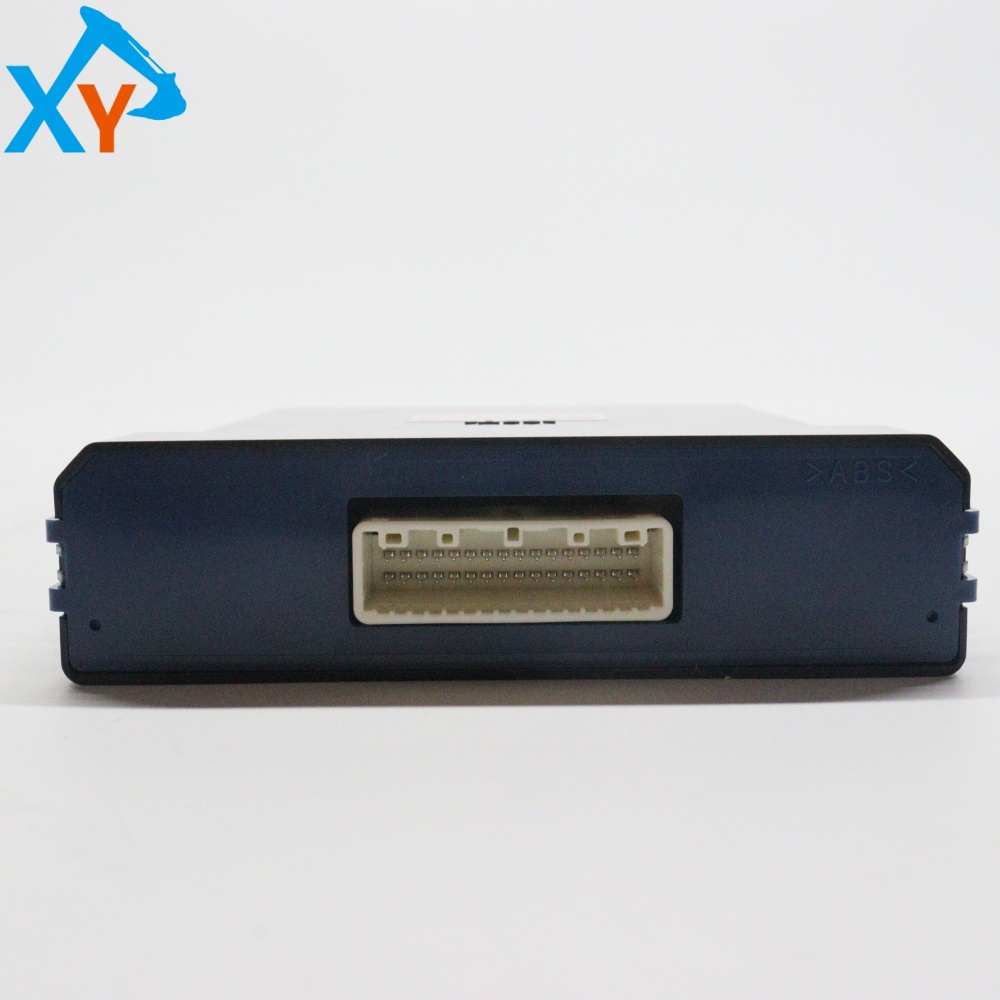

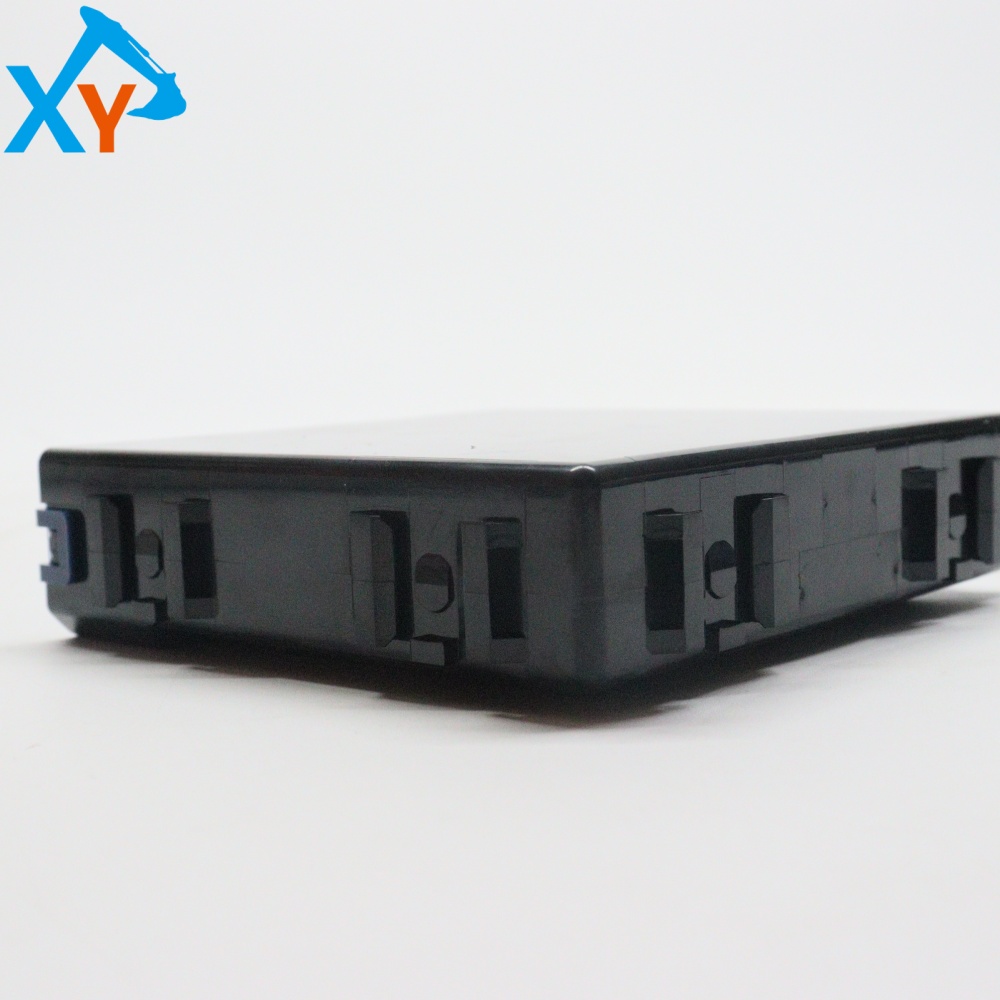

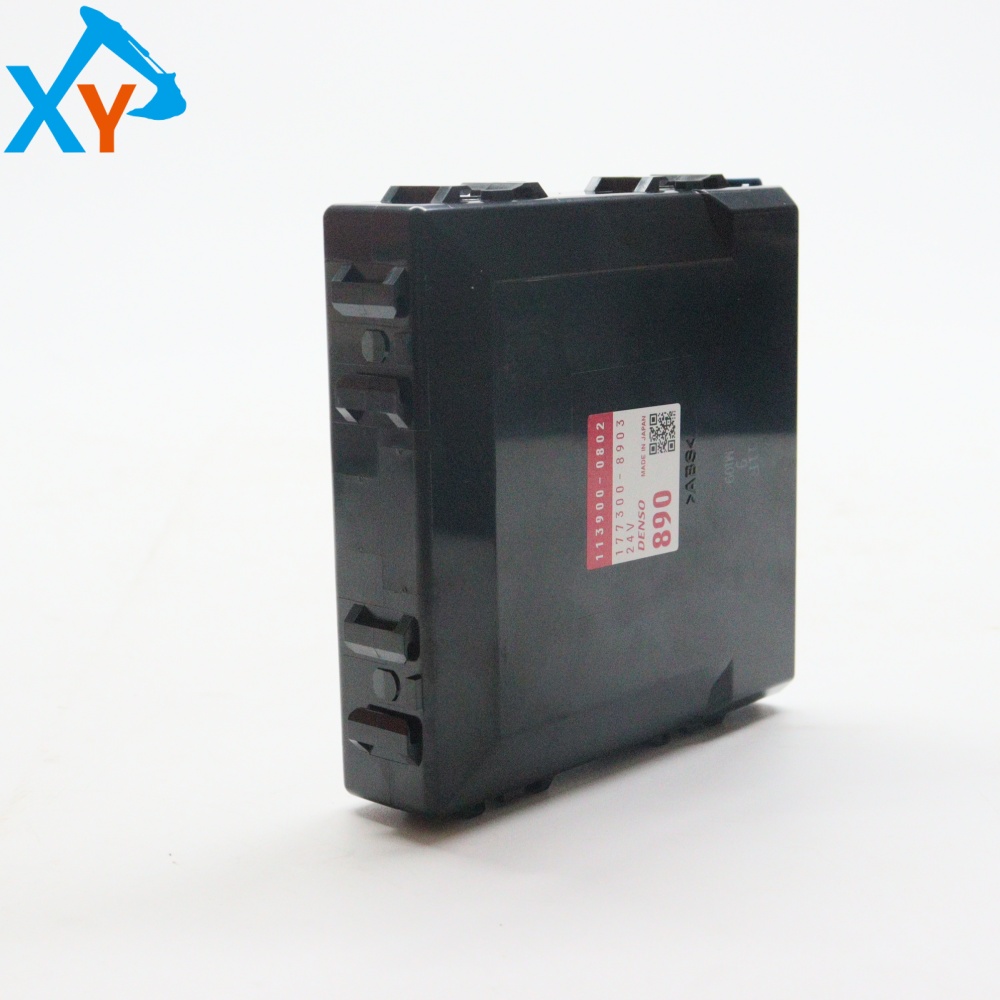

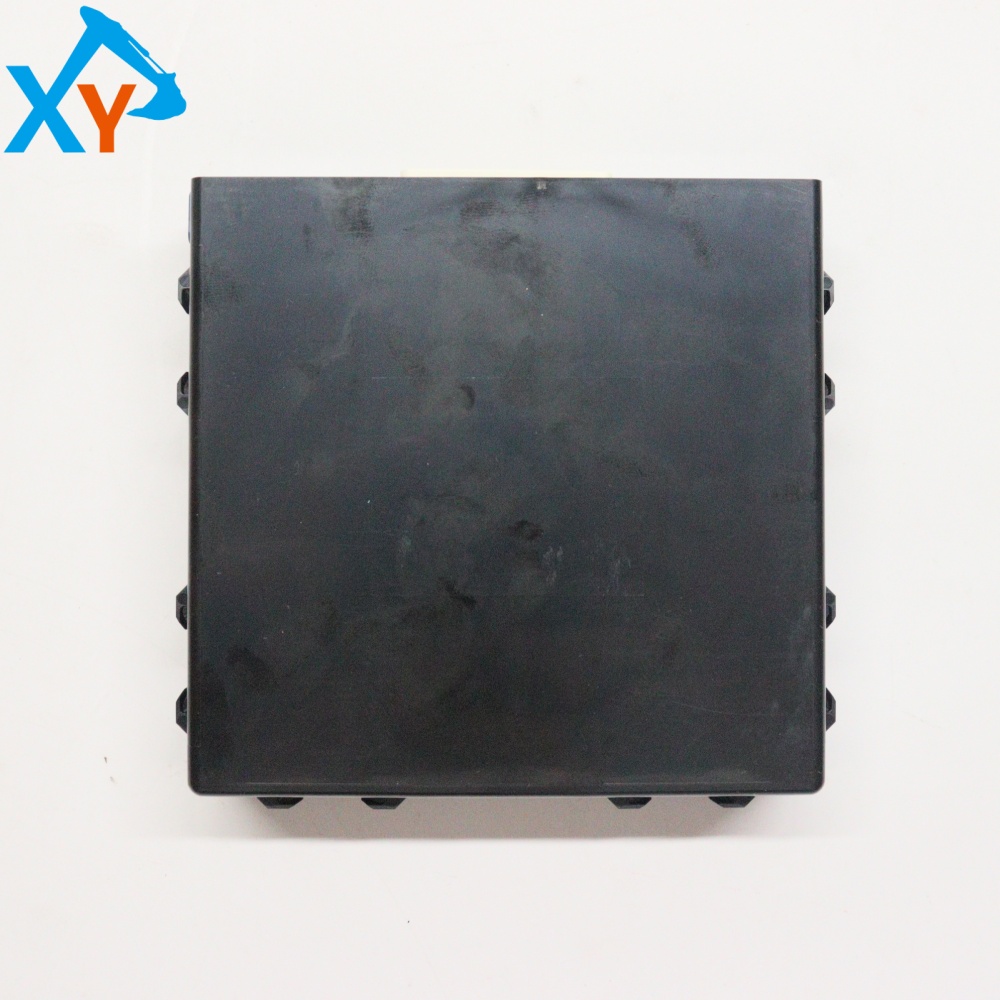

This product is a vehicle grade embedded controller manufactured by Denso, with a black metal casing and excellent electromagnetic shielding properties. There is a multi pin connector at the bottom. The core parameters are clear: the working voltage is DC 24V (as indicated on the label). Its core chip, memory, and communication module all comply with automotive grade standards, with a wide operating temperature range and high reliability. Usually responsible for managing core functions such as fuel injection, idle, and fault diagnosis of the engine (which may be the engine ECU), or the main controller (MC) of the entire machine. It interacts with the instrument panel, hydraulic controller, etc. through the CAN bus.

Replacement and matching (professional operation): 1 Safety preparation: Before operation, the negative terminal of the battery must be disconnected and left to stand for more than 5 minutes to discharge the system capacitor. 2. Swap installation: Install the new controller (YA00048010) in place, ensuring that the bottom harness connector is plugged in and locked. 3. Mandatory programming: It is absolutely forbidden to directly start the device after installation. Hitachi's dedicated diagnostic tool must be used to write the original device's identity information (VIN, engine code, etc.) and all calibration parameters into the new controller. Without this' online matching 'programming, the device cannot recognize the new controller, which will result in inability to start or abnormal performance.
