YA60001373 Original Excavator Control Unit for ZX200-5B

Part number YA60001373 is a genuine control unit produced by Hitachi Construction Machinery in Japan. It is an original main controller designed specifically for the ZX200-5B model (with a total working weight of approximately 20 tons) hydraulic excavator. Its universal model usually covers models on the same platform as ZX200-5B, and may also be applicable to devices such as ZX200-5A and ZX210-5B that are compatible with software versions. As the core "brain" of the entire electronic control system, its hardware interface and internal software version (Ver.2600) are deeply bound to the engine, hydraulic system, and all sensors of the ZX200-5B. It is strictly prohibited to use controllers that are not original or do not match the version, in order to avoid confusion in the control logic, abnormal performance, or communication paralysis of the entire machine.

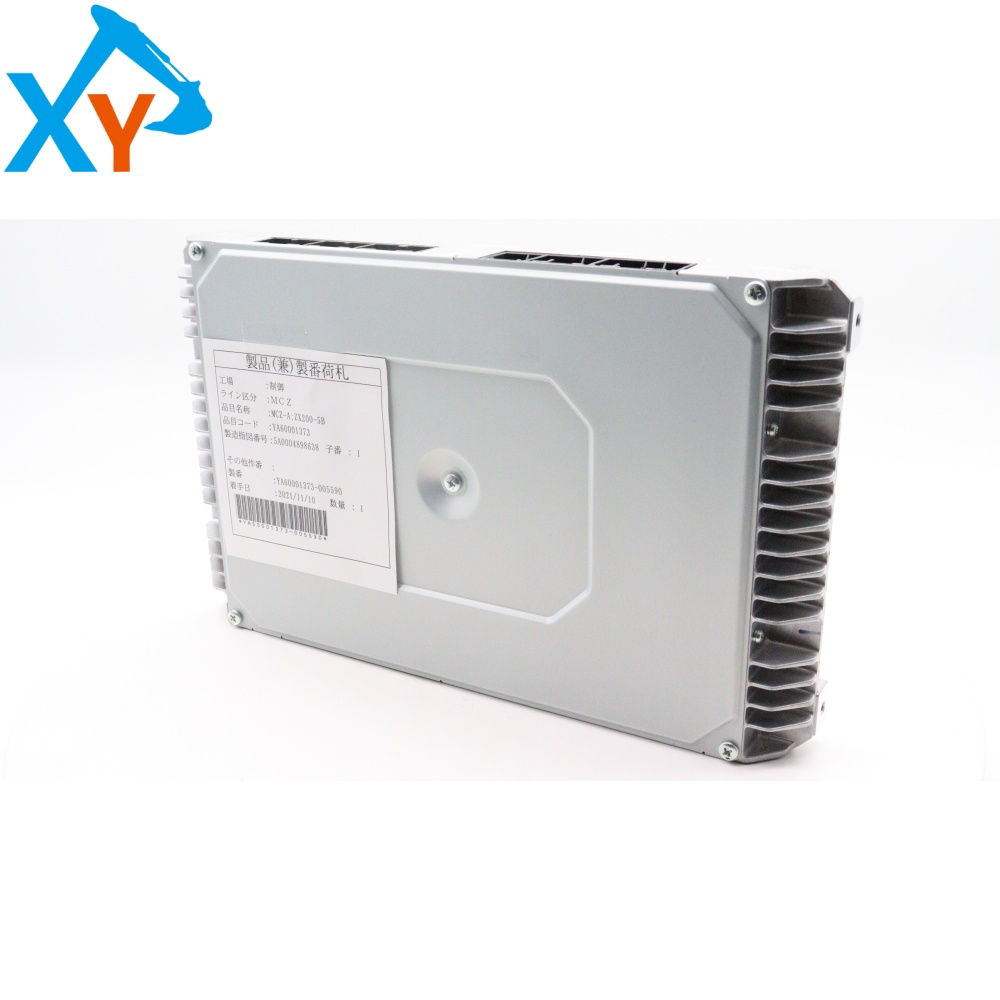

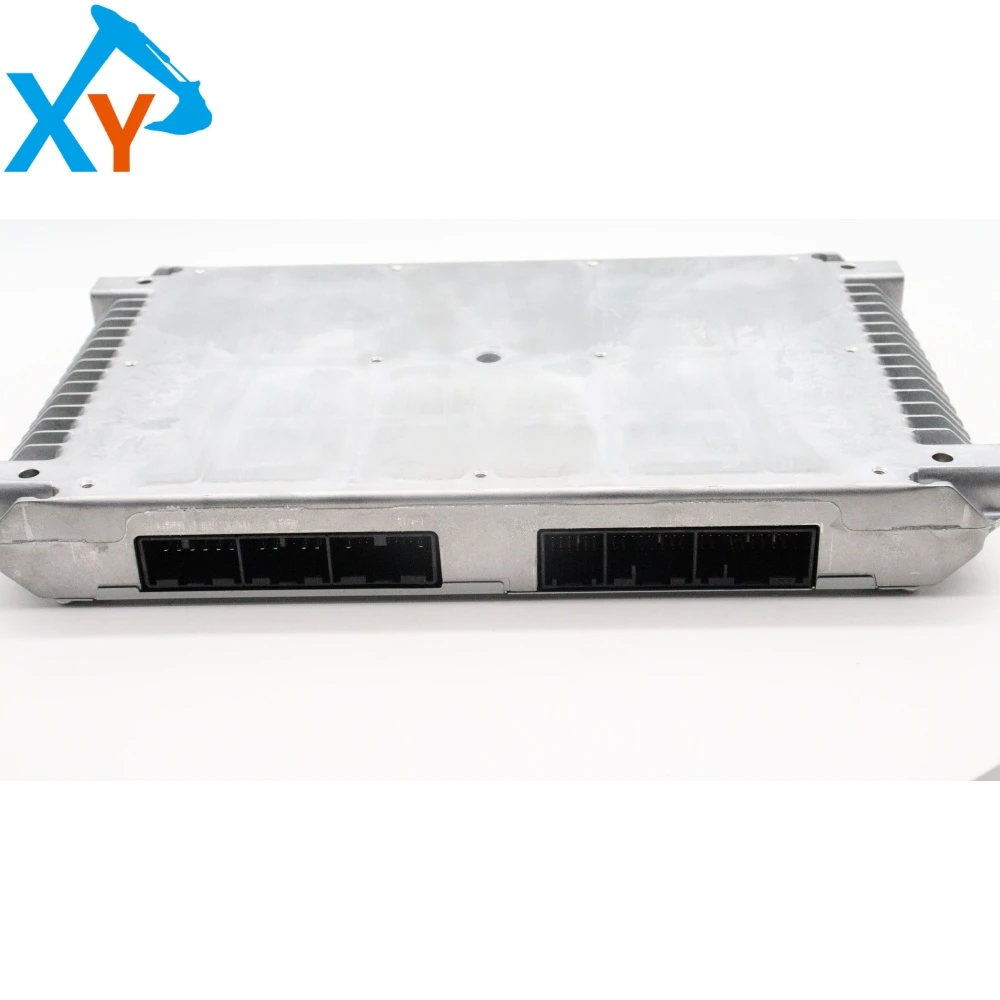

This product is an embedded main controller with a silver gray die cast aluminum alloy shell with heat dissipation fins, which combines high strength, excellent heat dissipation, and electromagnetic shielding characteristics. The working voltage is DC 24V, and the protection level is expected to be IP65 or higher, suitable for harsh working conditions of excavators. Its core is a high-performance automotive grade microprocessor with a built-in CAN bus controller. It communicates in real-time with the engine ECU, pump valve controller, and monitor through standard protocols (such as J1939), achieving core intelligent control functions such as power coordination control between the engine and hydraulic pump, management of multiple operating modes, vehicle wide fault diagnosis and storage.

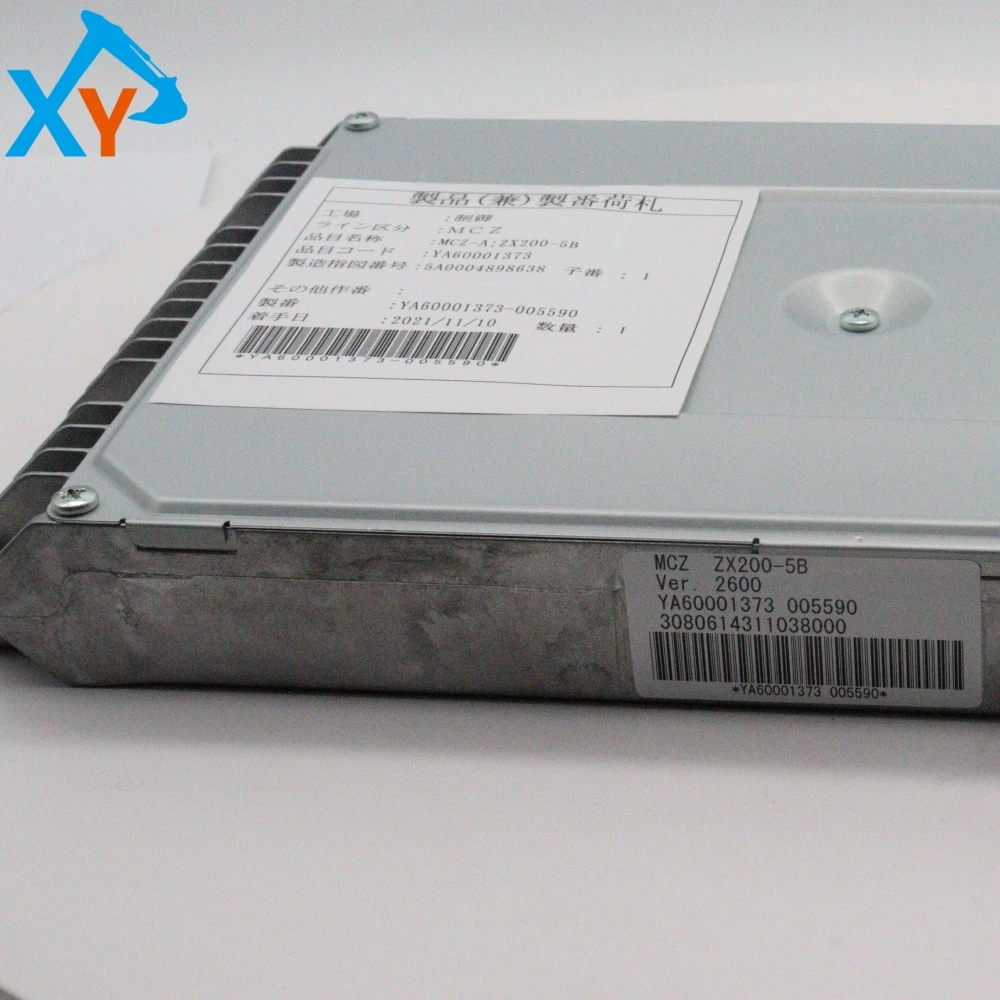

Replacement and programming (safety and matching are key): 1 Safety preparation: Before operation, be sure to disconnect the negative terminal of the battery and wait for more than 5 minutes to completely discharge the system capacitor. 2. Disassembly and assembly operation: Record the connection method of the old controller harness. After disassembly, install the new controller (YA60001373) smoothly in place, ensuring that all harnesses are firmly plugged in and locked. 3. Mandatory programming matching: It is absolutely forbidden to directly start the device after installing a new controller. It is necessary to use Hitachi's dedicated diagnostic tool to write the original equipment's identity information, engine calibration data, and hydraulic system parameters into the new controller. Without this' online matching 'programming, the device will not be able to recognize the new controller, resulting in inability to start or abnormal functionality. The "Ver.2600" version of the controller in your picture has preloaded the basic program, but device specific parameter matching is still required. Fault diagnosis: If the equipment has abnormal operation, weakness, or frequent alarms, after basic inspection, it should be connected to a diagnostic instrument to first read the fault codes and data streams in this controller for accurate analysis.
