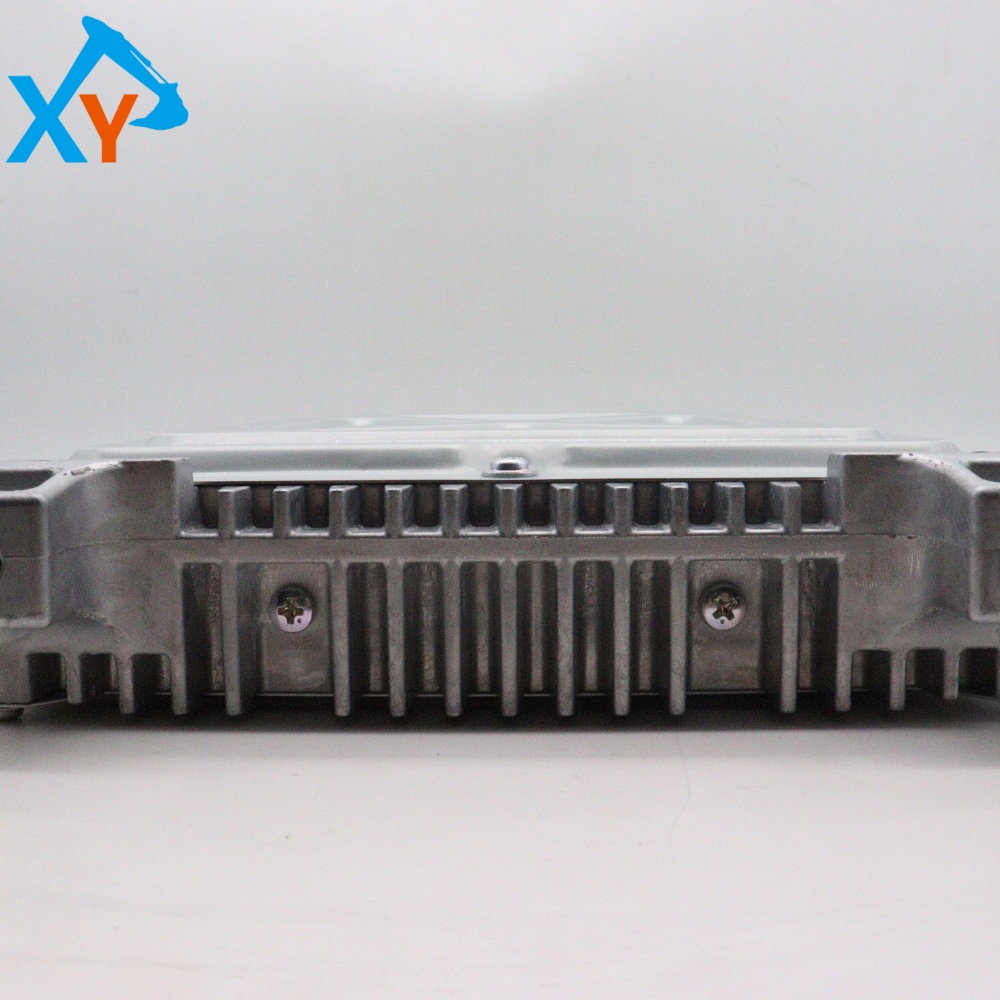

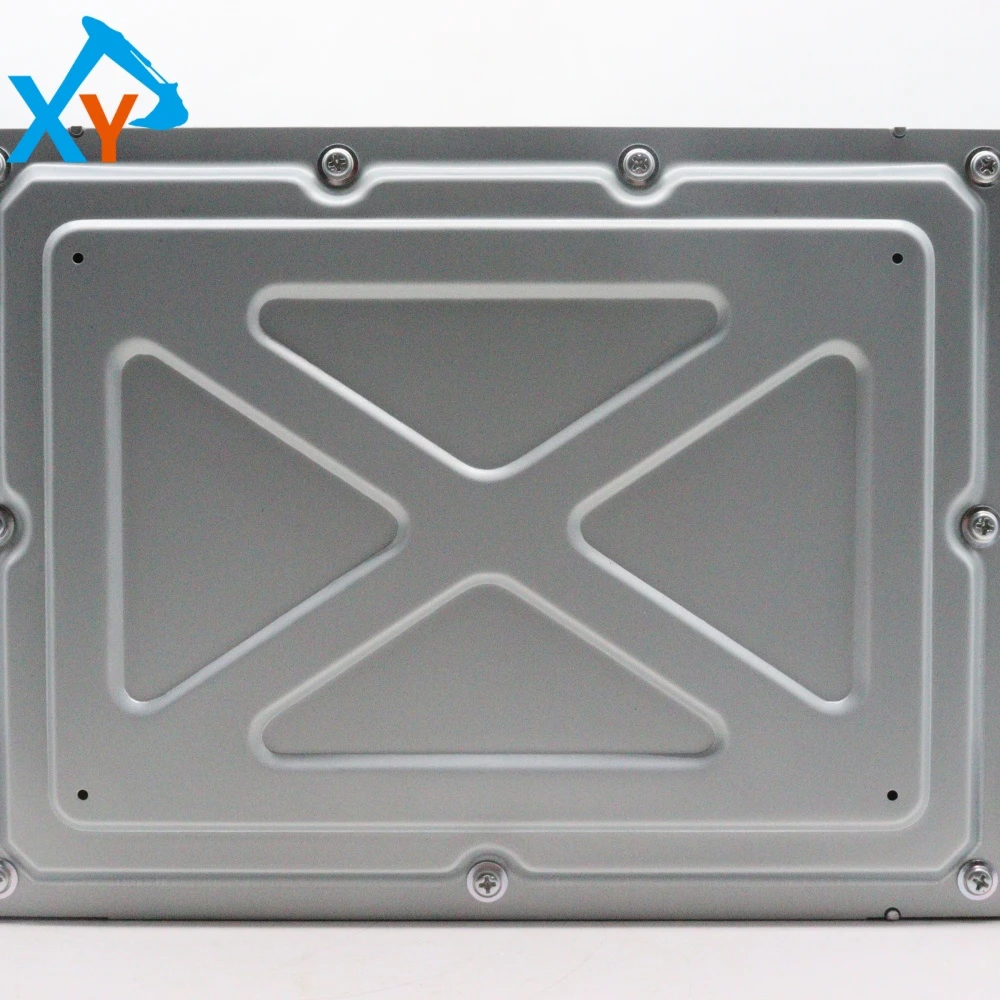

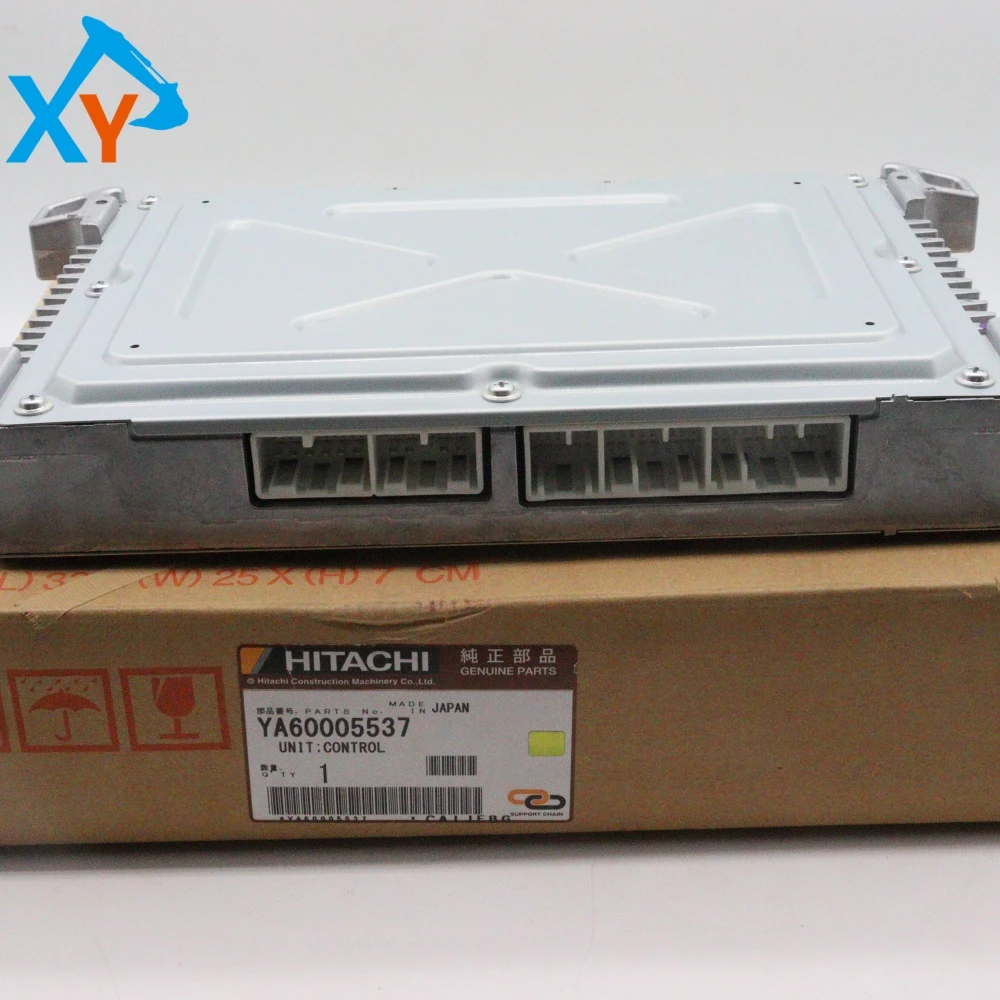

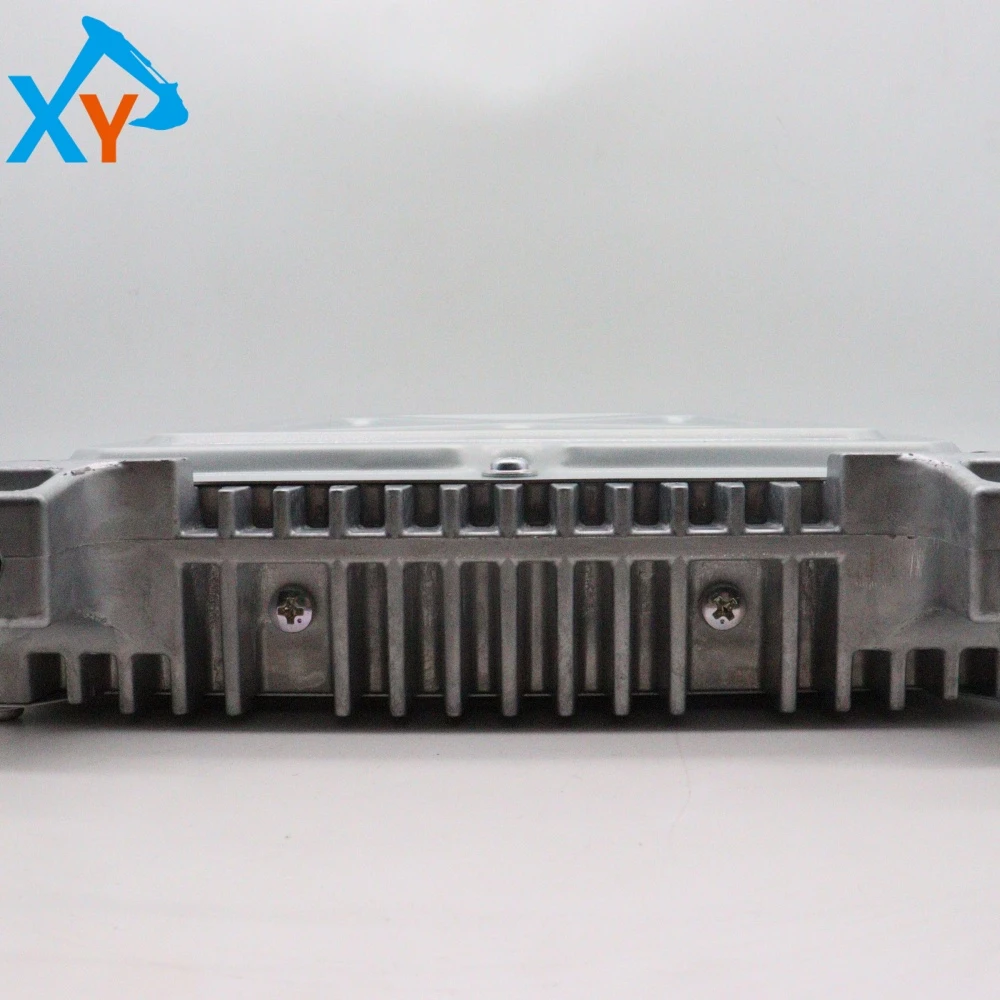

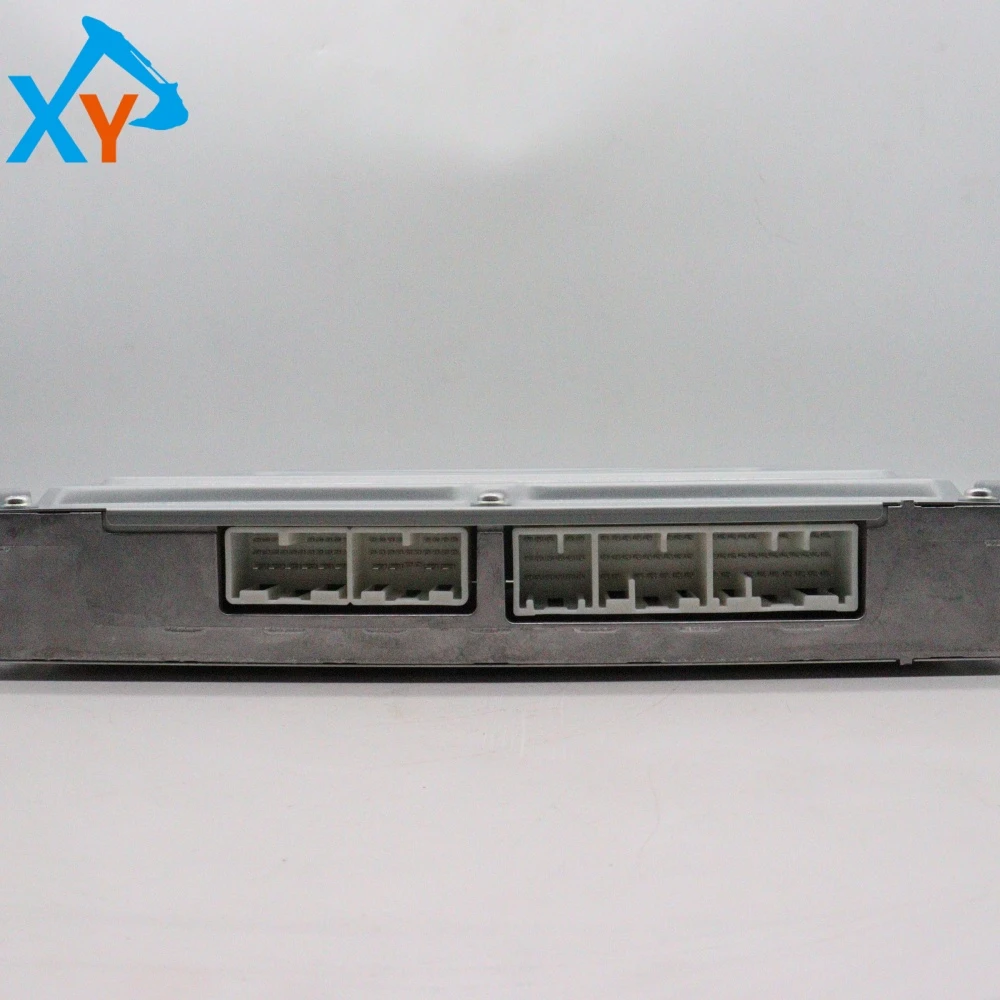

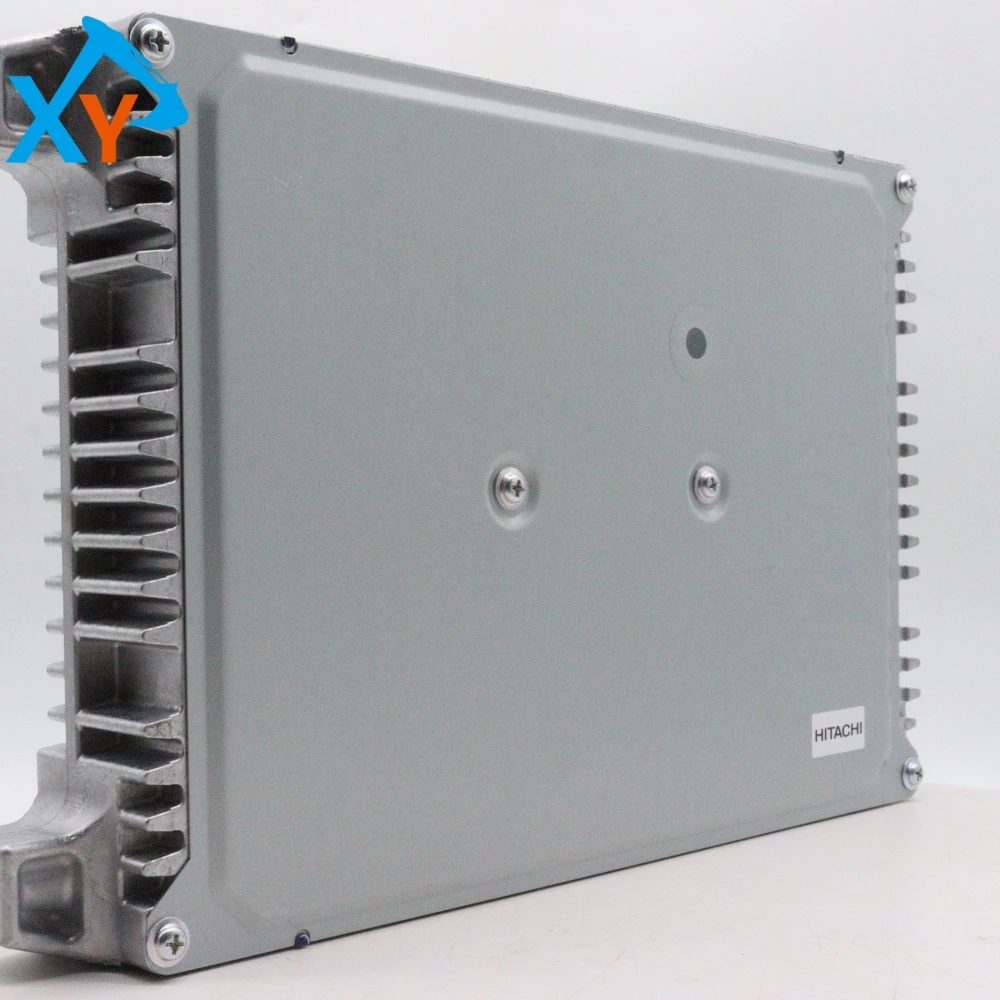

YA60005537 Original Excavator Control Unit ZX160LC-5G

Part number YA60005537 is the original control unit (main controller) provided by Hitachi for the ZX160LC-5G medium-sized hydraulic excavator. This component is the core of the entire electronic control system, responsible for receiving and processing various sensor signals (such as pressure, temperature, speed), and outputting commands to coordinate the execution mechanisms of the engine, hydraulic pump, valve group, etc., achieving functions such as power matching, mode switching, and fault diagnosis. Its universal models usually cover 16-20 ton same platform models such as ZX160LC-5G, ZX180LC-5G, ZX200-5G, etc. As the original electronic control brain, its hardware interface and communication protocol are perfectly matched with the vehicle's sensors and actuators. The use of non-standard spare parts is strictly prohibited to avoid system disorder, performance degradation, or safety risks.

This product is an embedded industrial grade control unit, with a core using 32-bit or 64 bit microprocessors, a main frequency of ≥ 400MHz, a memory of ≥ 32MB RAM, and a flash memory of ≥ 256MB. The working voltage is 24V DC, the power consumption is about 10-20W, and the working temperature range is -30 ℃ to+85 ℃. It is designed to be shock resistant, dust-proof, and electromagnetic interference resistant. The input interface supports analog signals (0-5V/4-20mA), digital signals (switch/frequency), CAN bus RS232/485； The output interfaces include PWM, relays, and CAN bus. Built in fault diagnosis system, capable of storing historical fault codes (DTCs), supporting parameter reading, calibration, and programming through dedicated diagnostic instruments (such as Dr. ZX).

Daily inspection: Check if the wiring harness connections are secure and if the plugs are oxidized every 250 working hours. Fault diagnosis: If there is no response from the controller, communication interruption, or false alarm, first check the power supply voltage (24V ± 10%), grounding wire, and fuse (usually 10A); Next, use a diagnostic tool to read the fault code. Common problems include abnormal sensor signals, CAN communication timeout, and internal storage errors. Software maintenance: Regularly update control programs through official channels to optimize performance and fix known vulnerabilities. Replacement precautions: 1 Be sure to disconnect the negative terminal of the battery before disassembly; 2. Record the original controller number and parameter configuration; After the installation of the new unit, system matching and calibration are required. Storage conditions: moisture-proof, anti-static, and avoid high temperatures.
