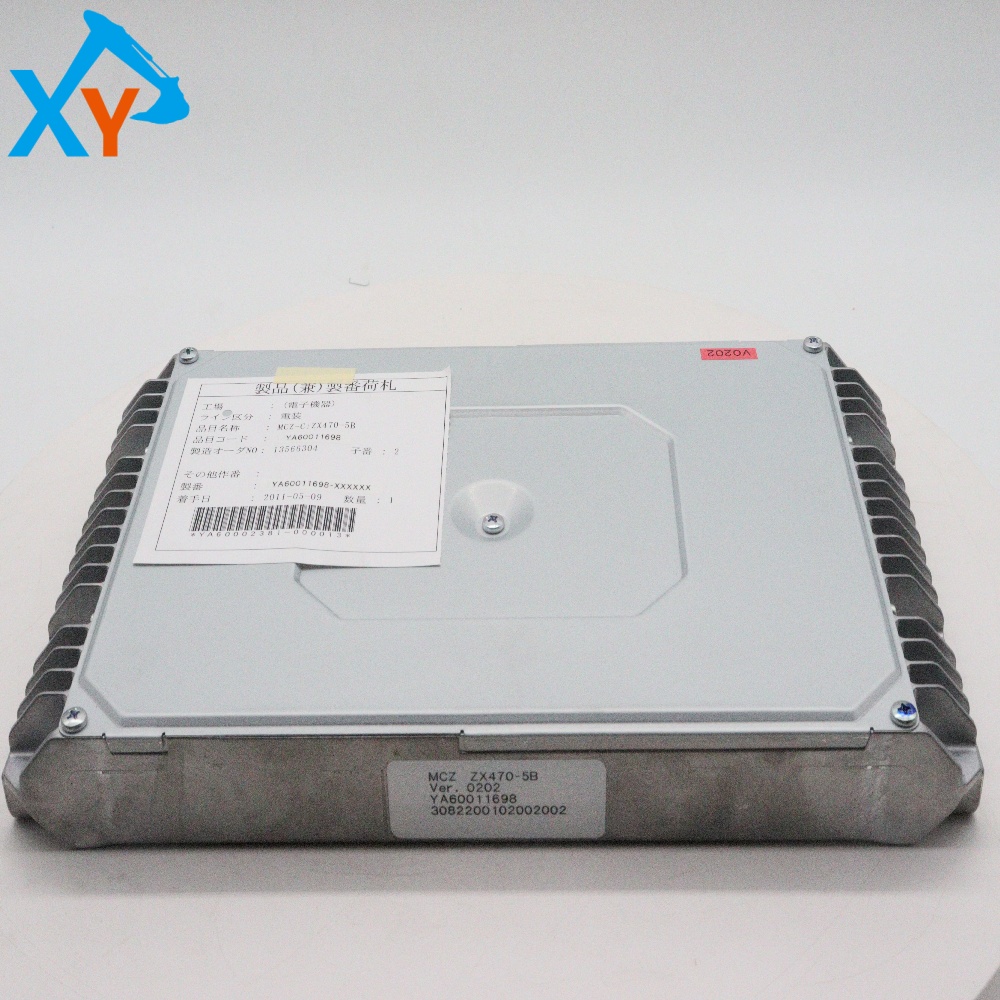

YA60011698 Original Excavator Control Unit for ZX470-5B

YA60011698 is the original control unit provided by Hitachi for the ZX470-5B series large hydraulic excavator. Its universal models usually cover 5B series models with the same tonnage and electronic control platform, such as ZX470-5B, ZX450-5B, ZX490-5B, etc. As the core of the overall electronic control system (usually the main controller MC), it is responsible for coordinating the engine, hydraulic pump, and various sensors. It is strictly prohibited to use any non original or refurbished parts to avoid confusion in the control logic, communication interruption, or abnormal performance of the entire machine. To ensure 100% compatibility, it is recommended to verify with the business opportunity through the device body serial number.

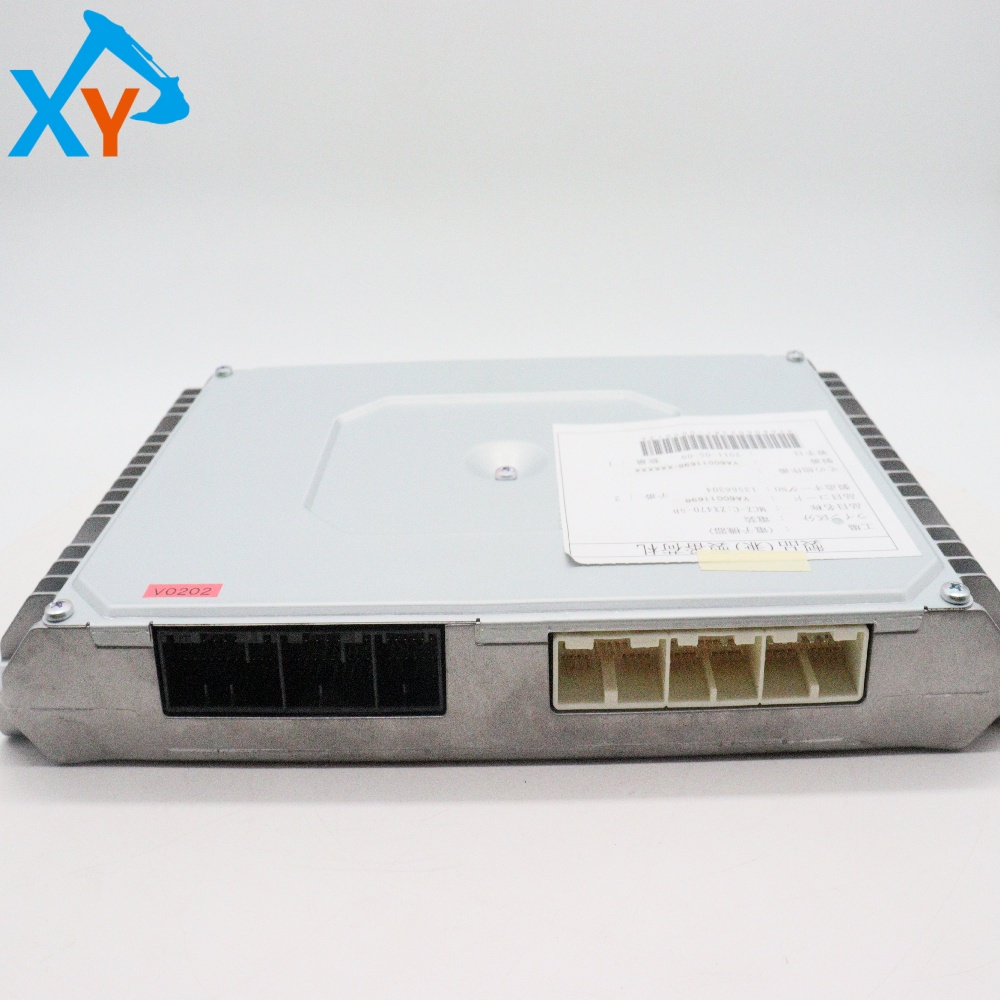

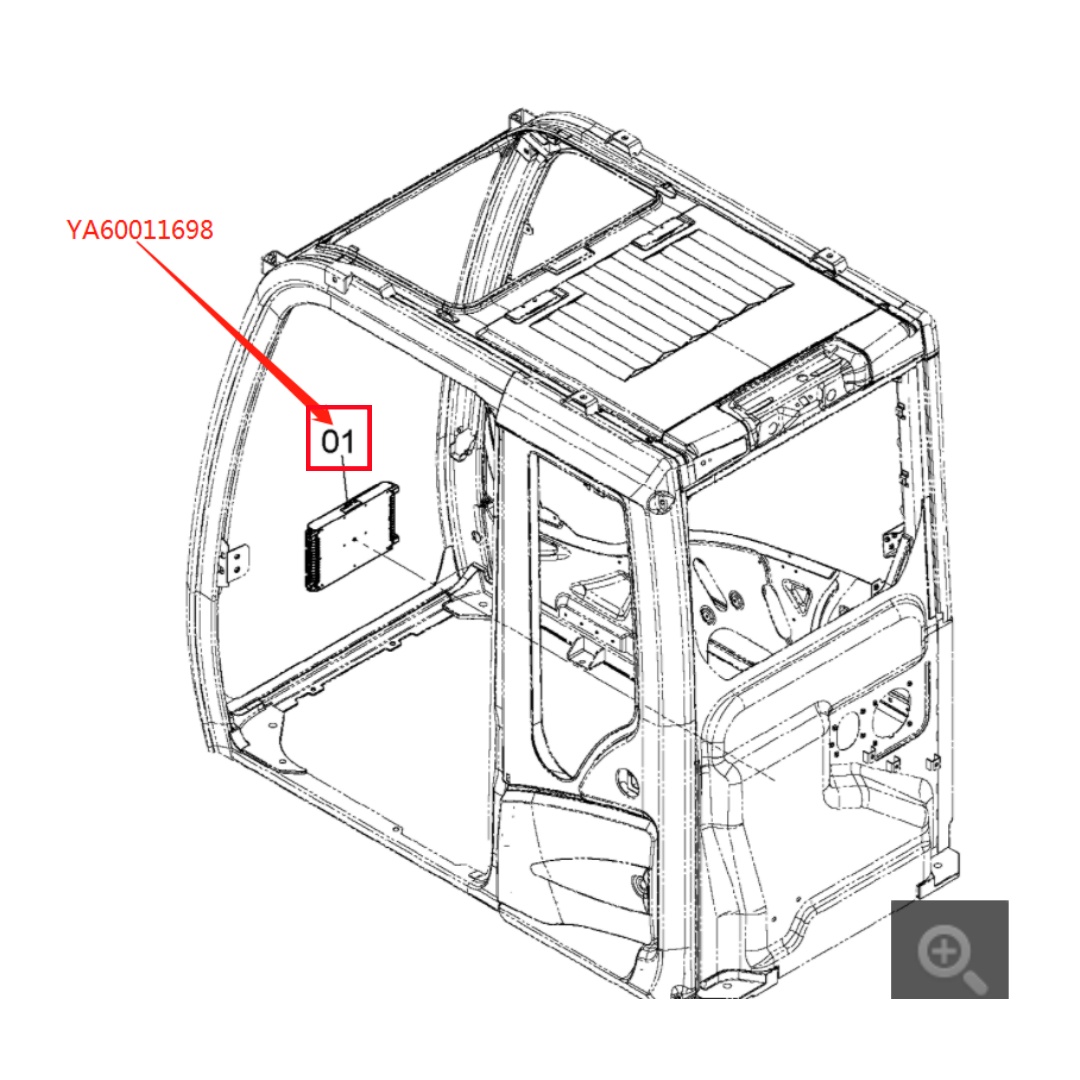

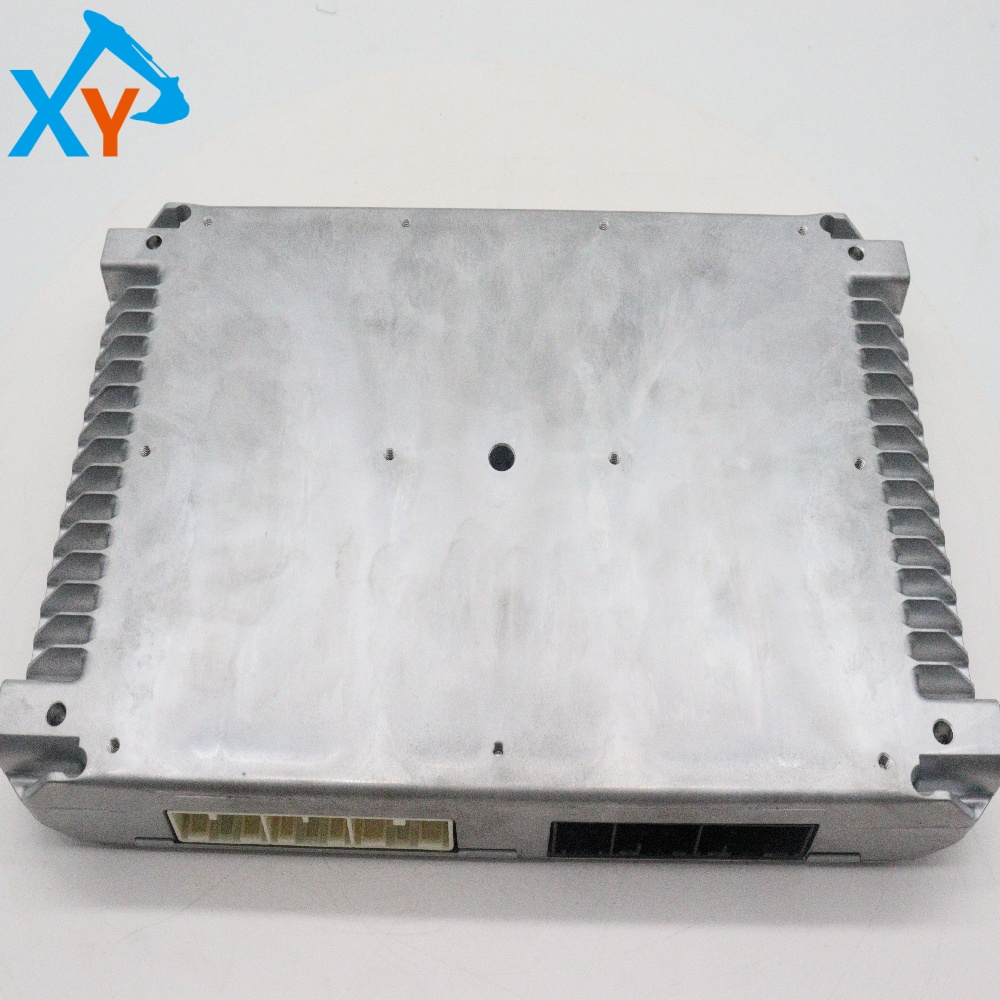

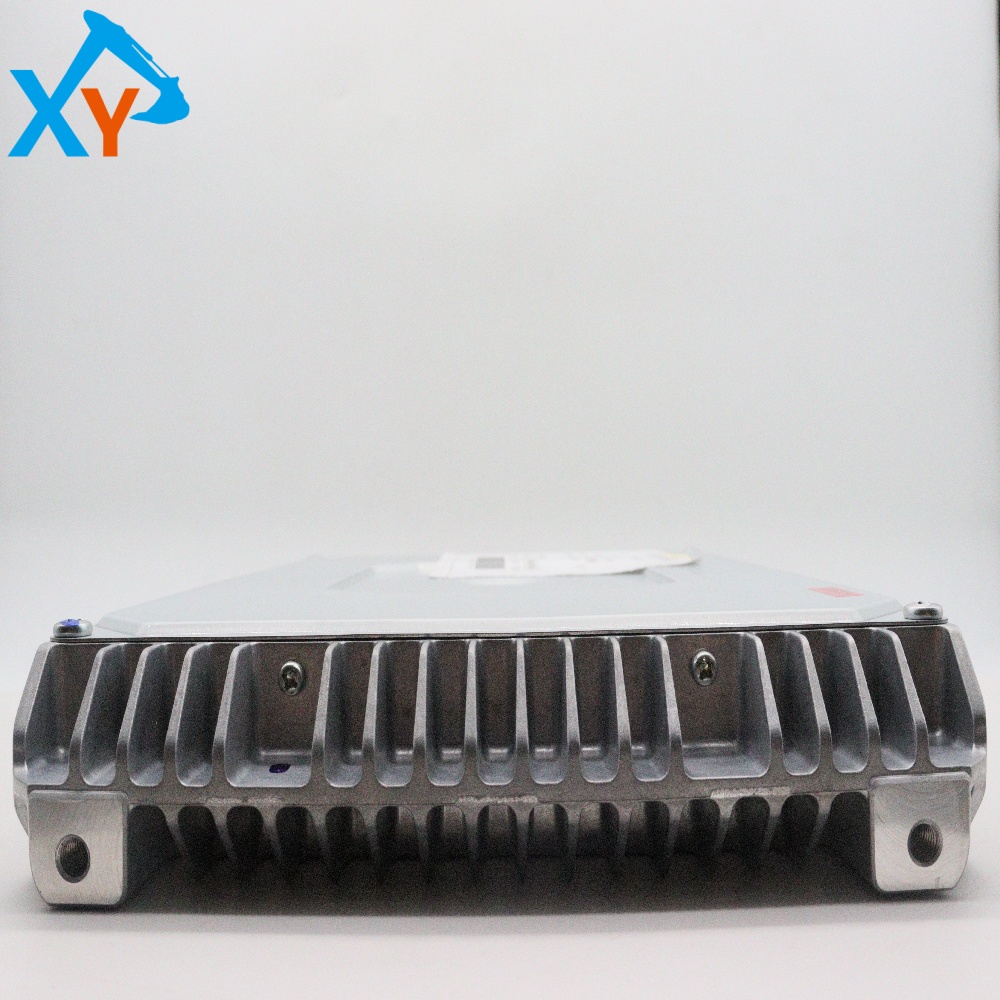

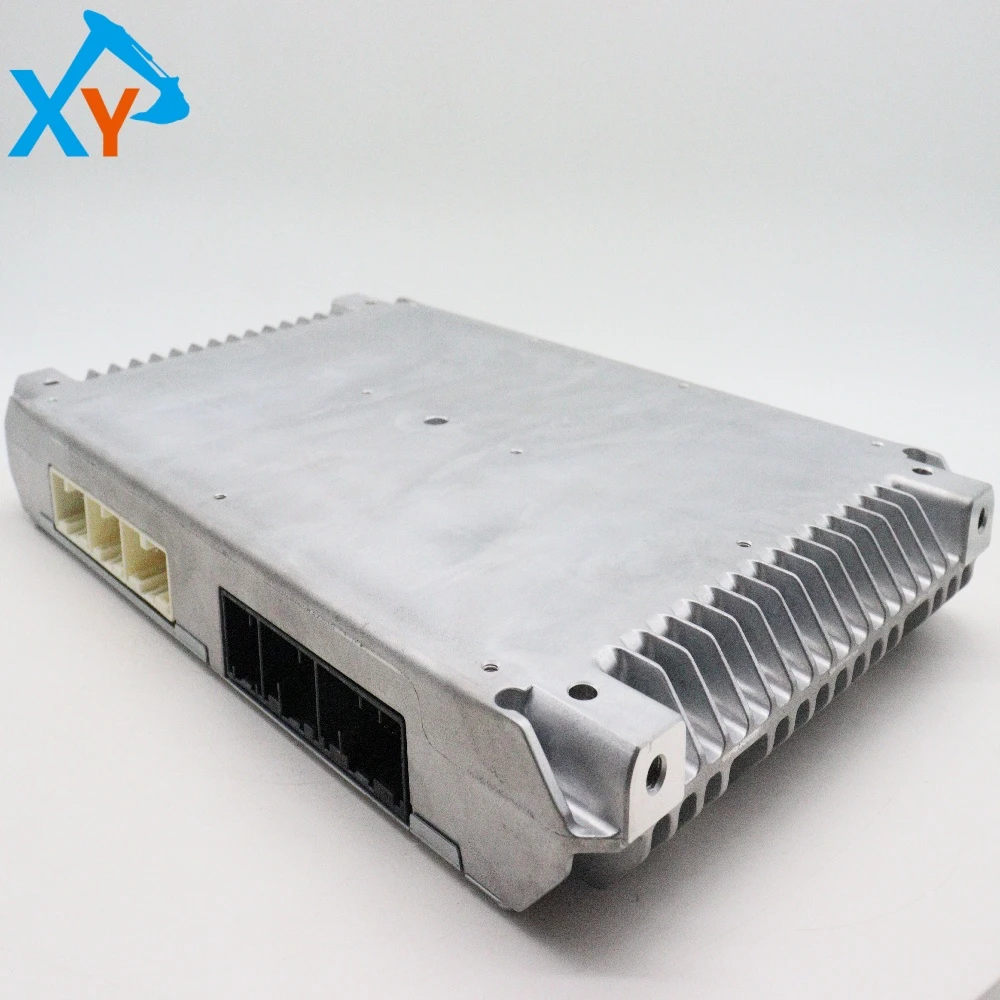

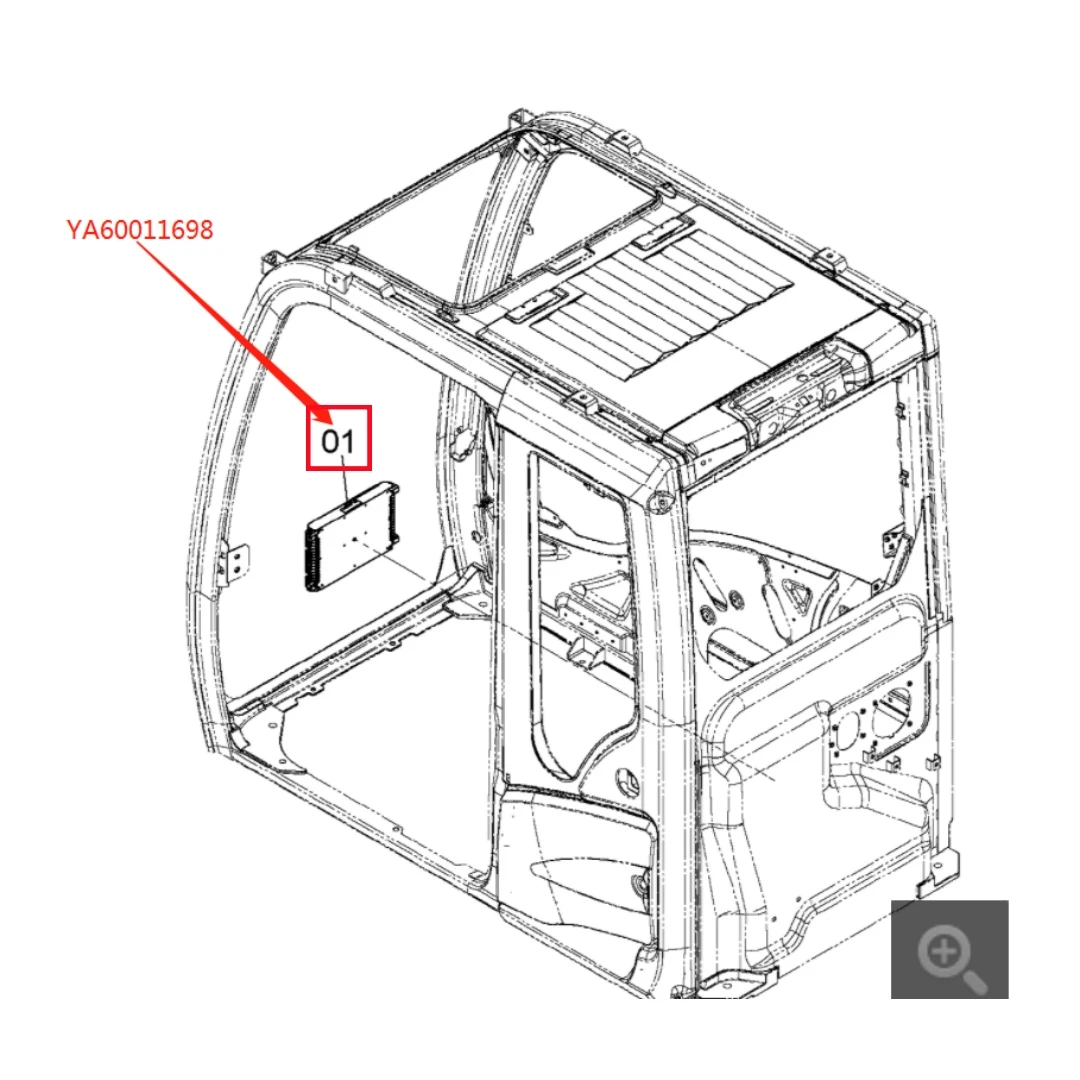

This product is an embedded car control unit with a silver gray die cast aluminum alloy shell with heat dissipation fins, which has excellent electromagnetic shielding, heat dissipation, and shock resistance performance. Two multi pin connectors, one black and one white, are integrated on the side for connecting the vehicle's wiring harness. Its core is a high-performance automotive grade microprocessor that supports CAN bus communication (J1939 and other protocols). The working voltage is DC 24V, with a protection level of not less than IP65, suitable for the high temperature, high dust and vibration environment of excavator cab. The core function is to process sensor signals, achieve intelligent power matching between the engine and hydraulic system, manage multiple operating modes, and diagnose and store faults throughout the vehicle.

Replacement and programming (safety critical): 1 Safe operation: Before replacement, be sure to disconnect the negative terminal of the battery and wait for more than 5 minutes for the system capacitor to discharge. 2. Installation: Align and lock the two connectors on the side, and install the unit smoothly. 3. Mandatory programming: It is strictly prohibited to start directly after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write the identity information and calibration parameters of the original equipment into the new controller. This "online matching" programming is essential, otherwise the equipment will not work properly. Daily inspection: Every 500 working hours, check if the wiring harness connections are secure and if the casing is free of oil stains.
