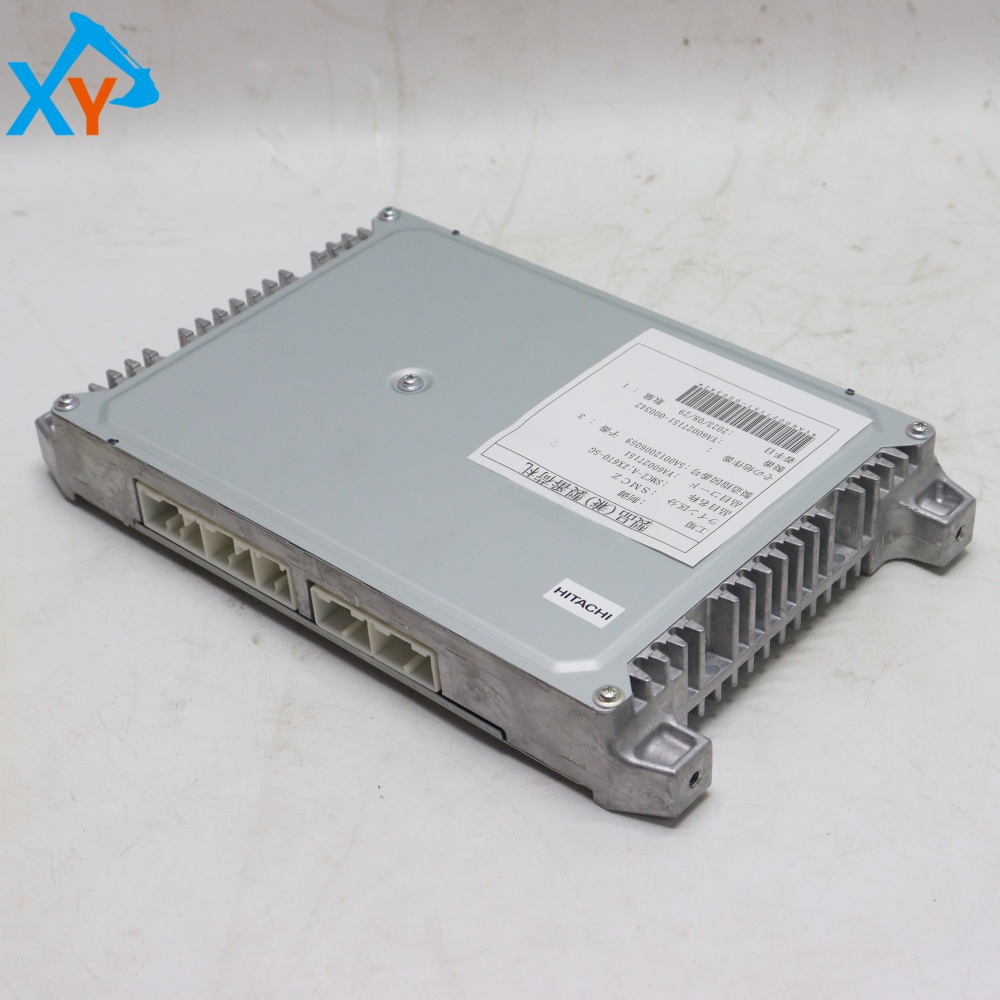

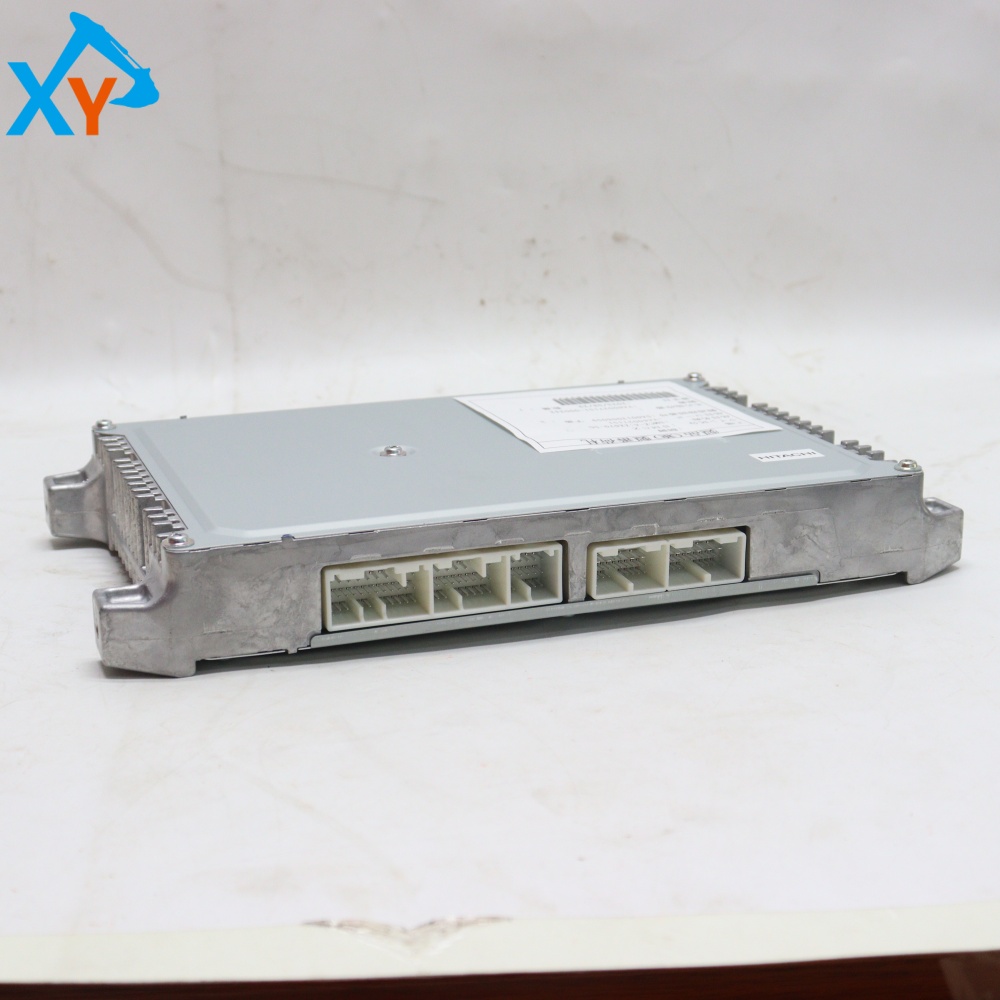

YA60027151 Original Excavator Control Unit for Hitachi ZX670LC-5G

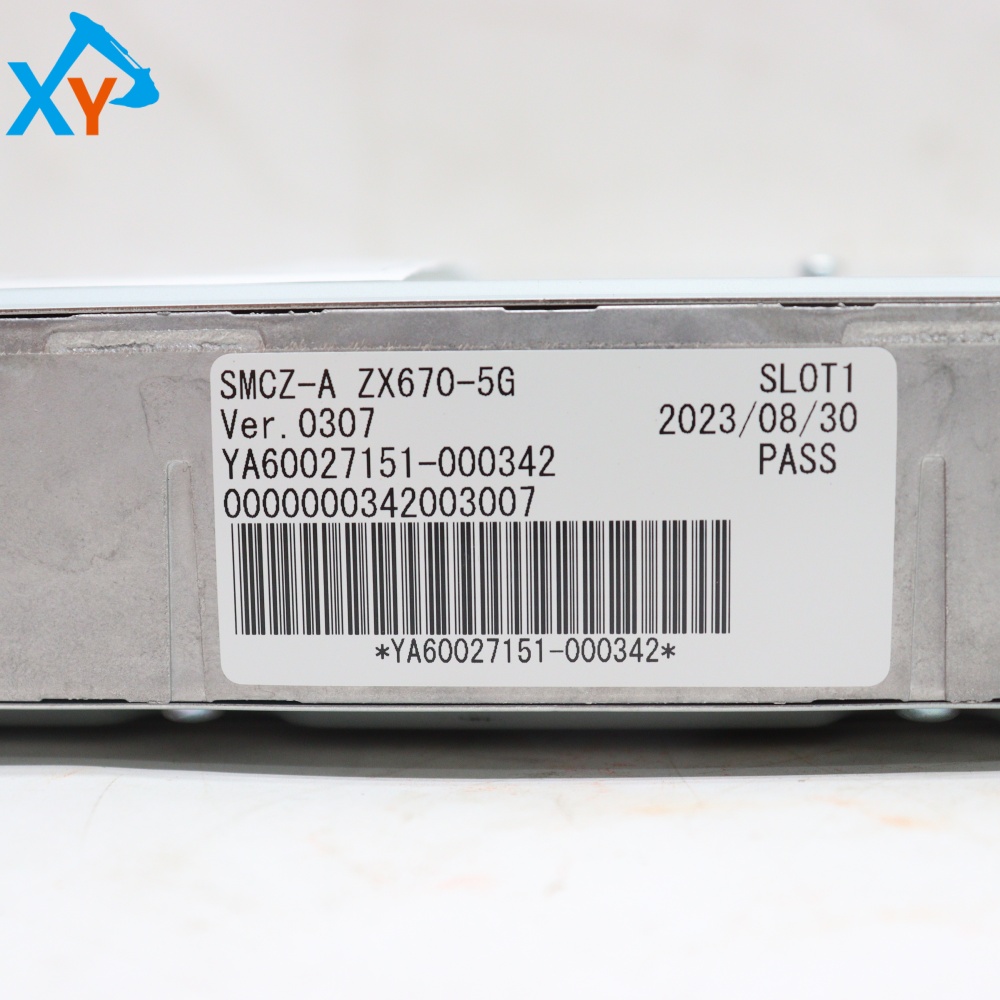

The original control unit (part number YA60027151) is the core electronic control module (ECU) of the Hitachi ZX670LC-5G large excavator, mainly used for the integrated control of the Isuzu BB-6WG1XQA-05 engine and hydraulic pump valves installed on this model. This control unit is also widely used in Hitachi ZX670LCH-5G (BE), ZX690LCH-5G and other 5G series large excavators on the same platform. Its universal number YA60027151 is its unique identifier in Hitachi's original accessory system. When ordering, it is necessary to provide the complete model, serial number, and engine model of the excavator for verification to ensure that the hardware interface matches the software version completely.

This product belongs to the microprocessor control unit dedicated to construction machinery, using a 32-bit multi-core processor architecture and built-in CAN bus communication protocol (supporting J1939 standard). It is responsible for the engine electronic injection control, hydraulic pump flow/pressure regulation, valve group action logic, and fault self diagnosis of the whole machine. The main technical indicators include: working voltage DC 24V (range 18-32V), working temperature -40 ° C to+85 ° C, protection level IP67, and real-time monitoring and storage of more than 40 fault codes (such as abnormal engine speed, abnormal pump pressure sensor, etc.). The connectors of the original module use gold-plated waterproof terminals to ensure long-term stable operation in vibration, high humidity, and electromagnetic interference environments.

The control unit is designed to be maintenance free and does not require regular replacement, but the fastening status and sealing of the wiring harness connectors need to be checked every 1000 hours of operation or every 6 months to prevent moisture and oil from entering. Abnormal fluctuations in battery voltage (such as frequent power loss or overcharging) should be avoided in daily life, and non professionals are strictly prohibited from disassembling or flashing programs. If the dashboard displays fault codes (such as 1100-2, 11200-3, etc.), the Hitachi dedicated diagnostic tool Dr. ZX should be used to read the detailed data stream and troubleshoot sensor, actuator, or wiring issues according to the maintenance manual instructions. After replacing the control unit (YA60027151), ECU matching and parameter calibration must be performed. It is recommended that authorized service providers use original software to ensure system compatibility and optimal performance.
