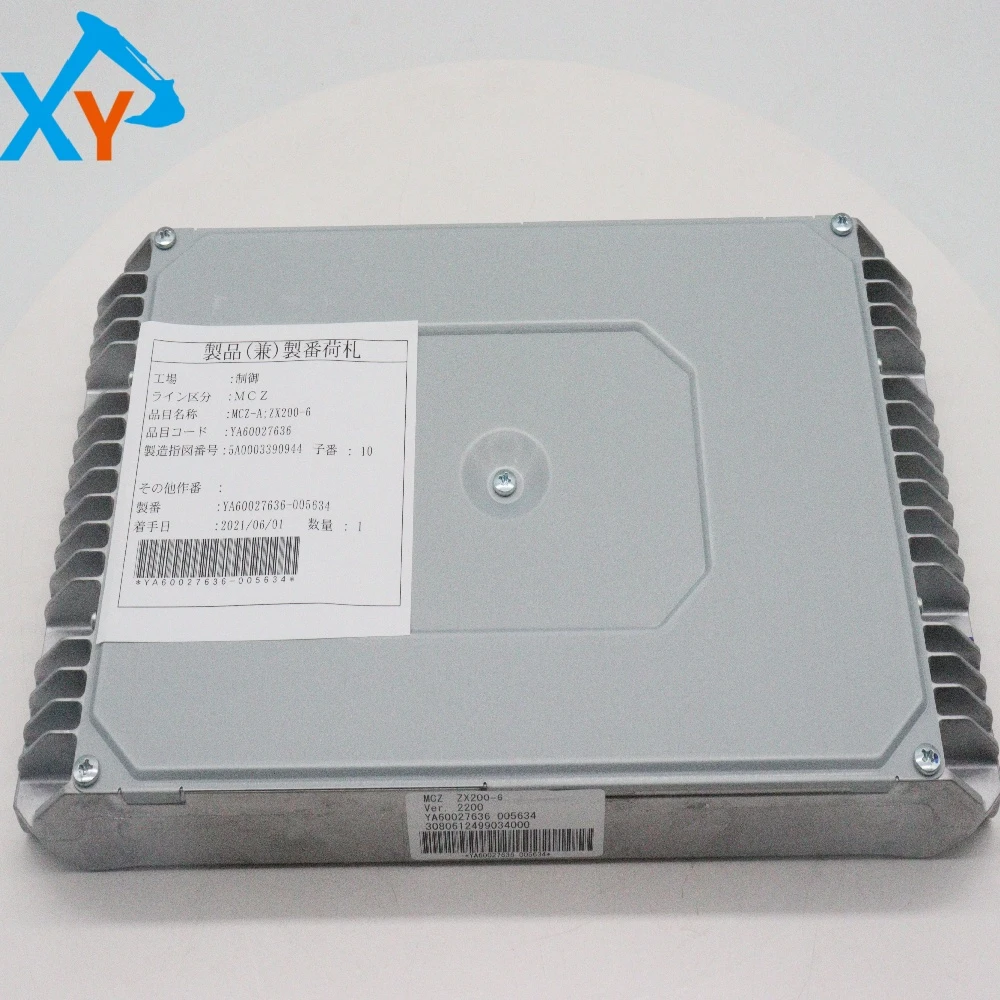

YA60027636 Excavator Control Unit for ZX200-6

Part number YA60027636 is the original control unit provided by Hitachi for the ZX200-6 hydraulic excavator (with a total working weight of approximately 20 tons). This component is the core processing unit of the entire electronic control system, usually serving as the main controller (MC), responsible for coordinating the collaborative work of the engine, hydraulic pump, and multi way valve. Its universal model clearly covers the ZX200-6 model, and may also be applicable to 6 series models such as ZX210-6 and ZX200LC-6 on the same platform. As an original "brain" level component, its hardware interface and internal software protocol are deeply bound to the CAN bus network of the entire machine

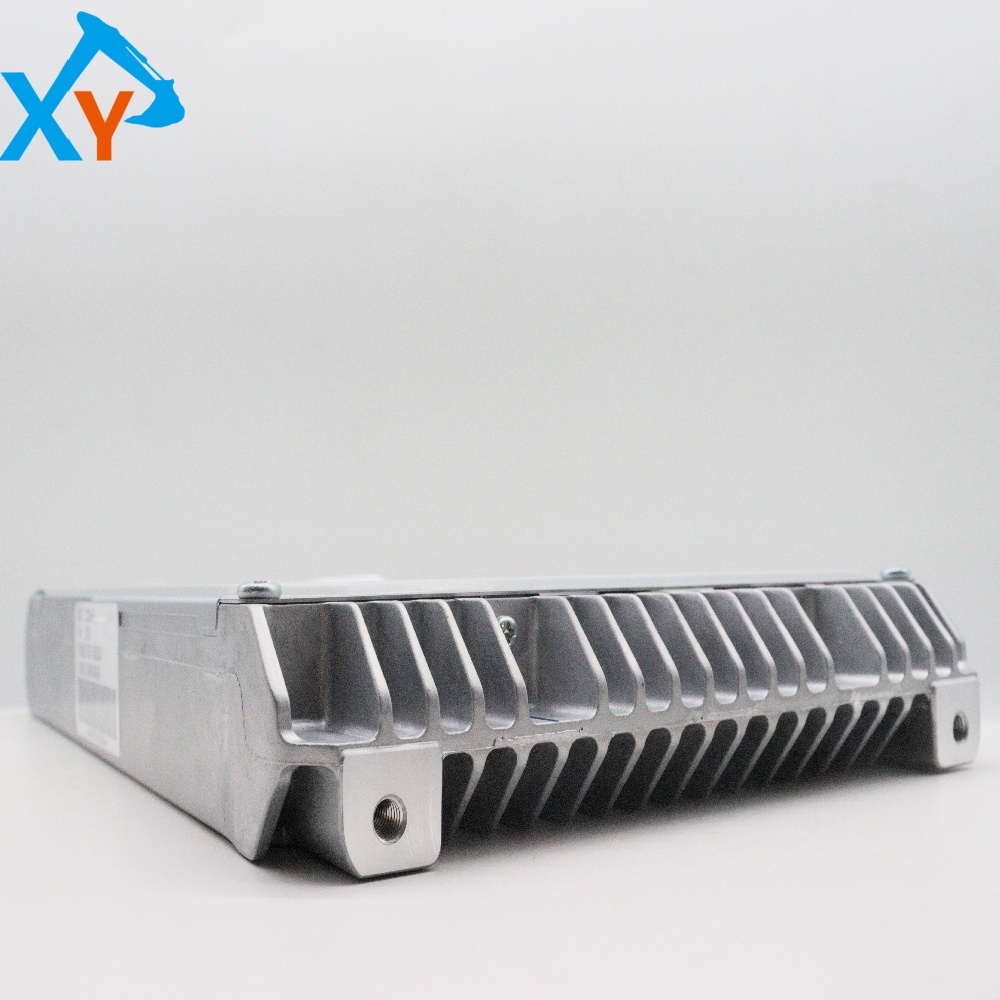

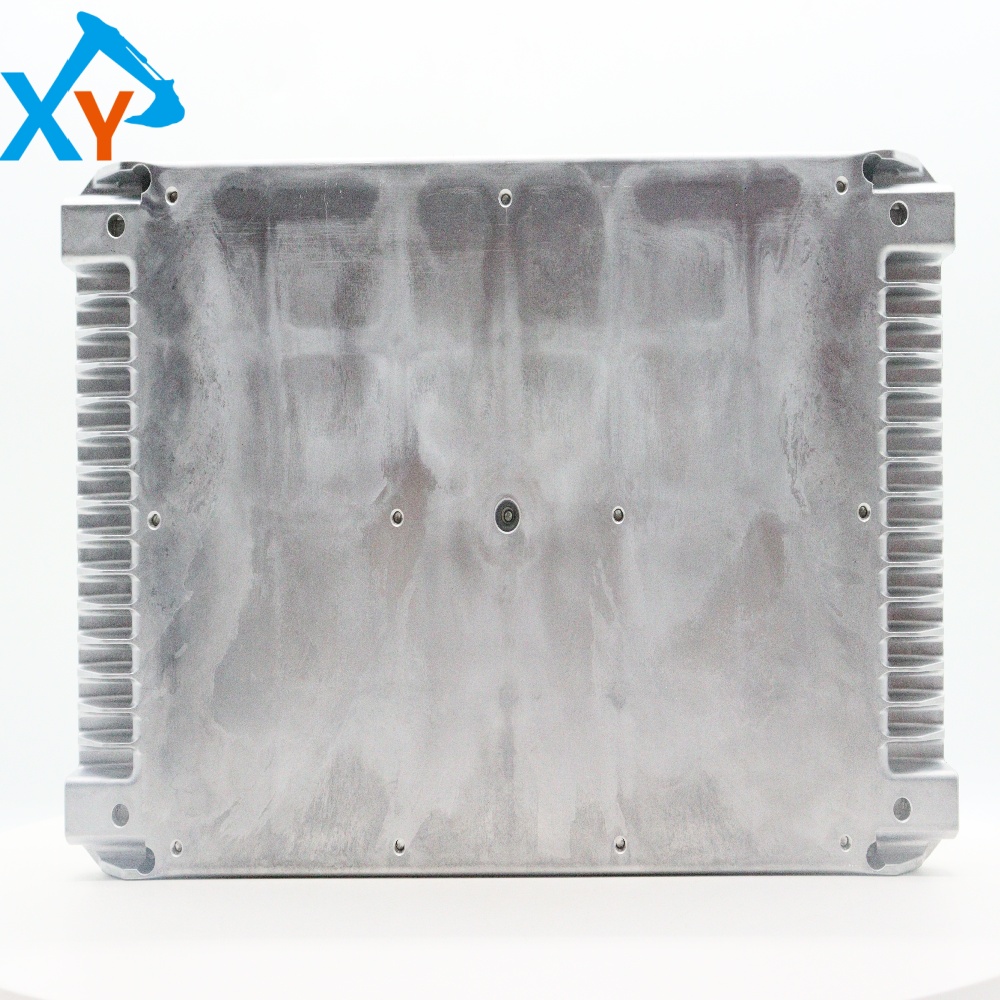

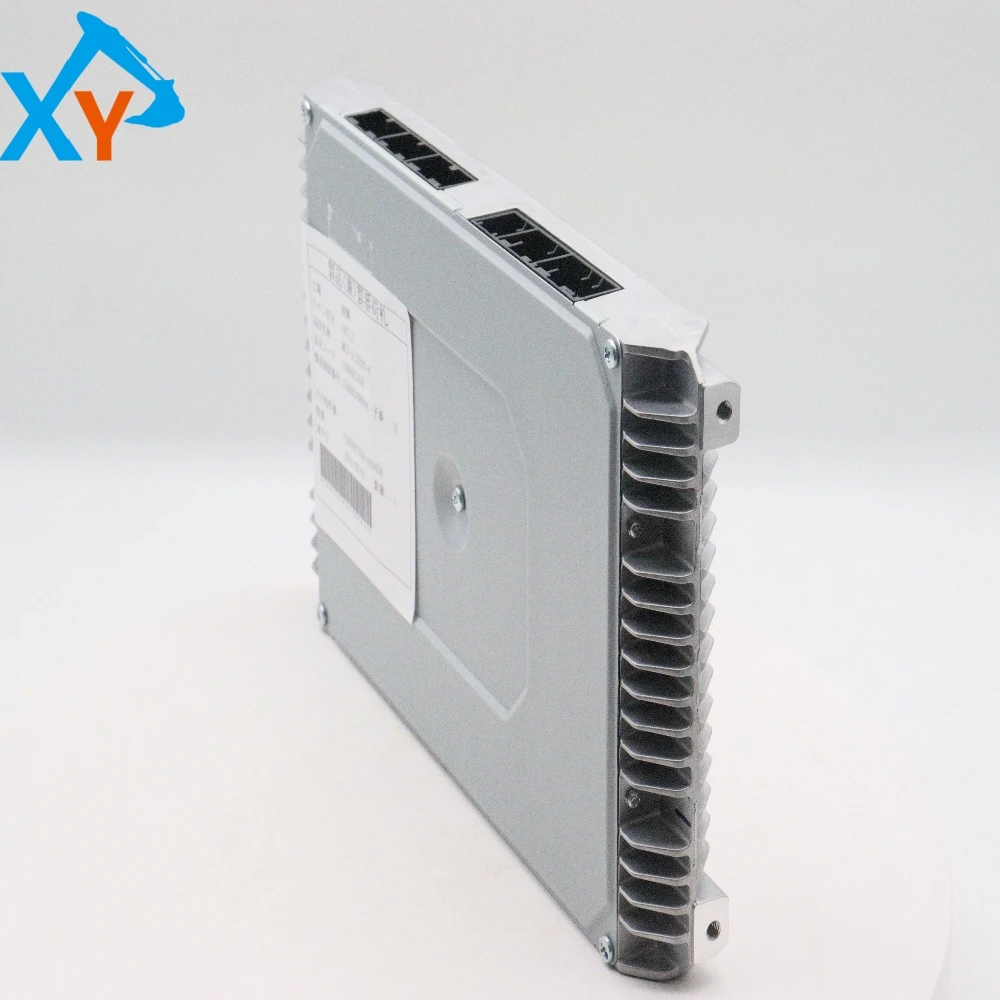

This product is an embedded industrial grade control unit, with a shell made of die cast aluminum alloy with dense heat dissipation fins, appearing silver gray. This design ensures excellent heat dissipation, electromagnetic shielding, and vibration resistance even in a closed electrical cabinet. The working voltage is DC 24V, and the protection level is not lower than IP65. It can adapt to the high temperature, high dust, and continuous vibration environment in the excavator cab or electrical cabinet. Its core adopts a vehicle grade microprocessor, built-in CAN bus controller, and supports standard communication protocols such as J1939 for engineering machinery. The core functions include: processing all sensor signals, achieving intelligent power matching between the engine and hydraulic system, managing multiple operating modes, performing whole vehicle fault diagnosis and data storage.

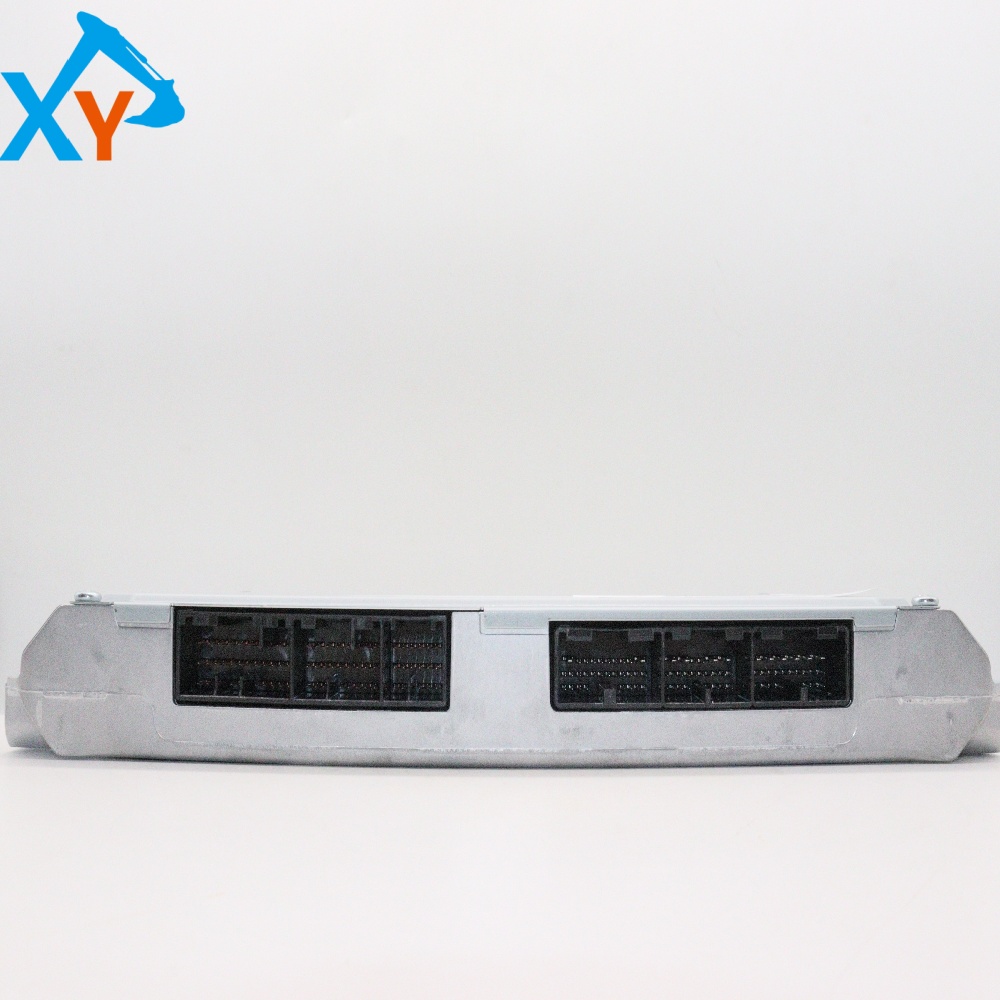

Replacement and programming (safety and matching are key): 1 Safe operation: Before operation, be sure to disconnect the negative terminal of the battery and let it stand for at least 5 minutes to fully discharge the internal capacitors of the system. 2. Swap installation: After disassembling the old parts, install the new control unit (YA60027636) smoothly in place, ensuring that all wire harness connectors are plugged in and locked. 3. Mandatory programming matching: It is absolutely forbidden to directly start the device after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write the original device's identity information (VIN, serial number) and all calibration parameters into the new controller. This "online programming" step is essential, otherwise the device will not be able to recognize the new controller, resulting in inability to start or functional confusion.
