YA60041523 Original Excavator Control Unit for ZX330-5G

The part number YA60041523 is an original control unit produced by Hitachi Construction Machinery in Japan, with the specific model being HPRO-100 (SP). This component serves as the original main controller (MC) for the ZX330-5G (approximately 33 ton class) excavator and is the core "brain" of its electronic control system. Its universal models usually cover 5G series models such as ZX350-5G and ZX370-5G with the same tonnage and electronic control platform.

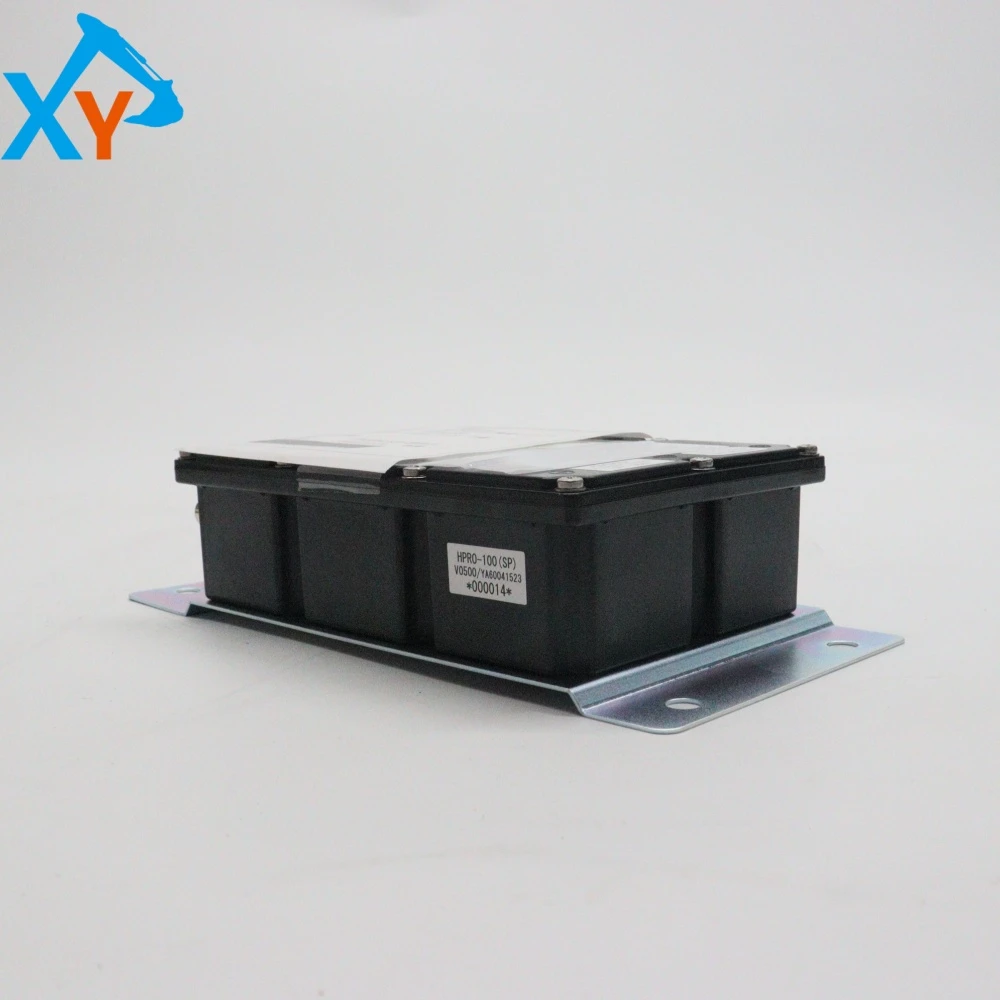

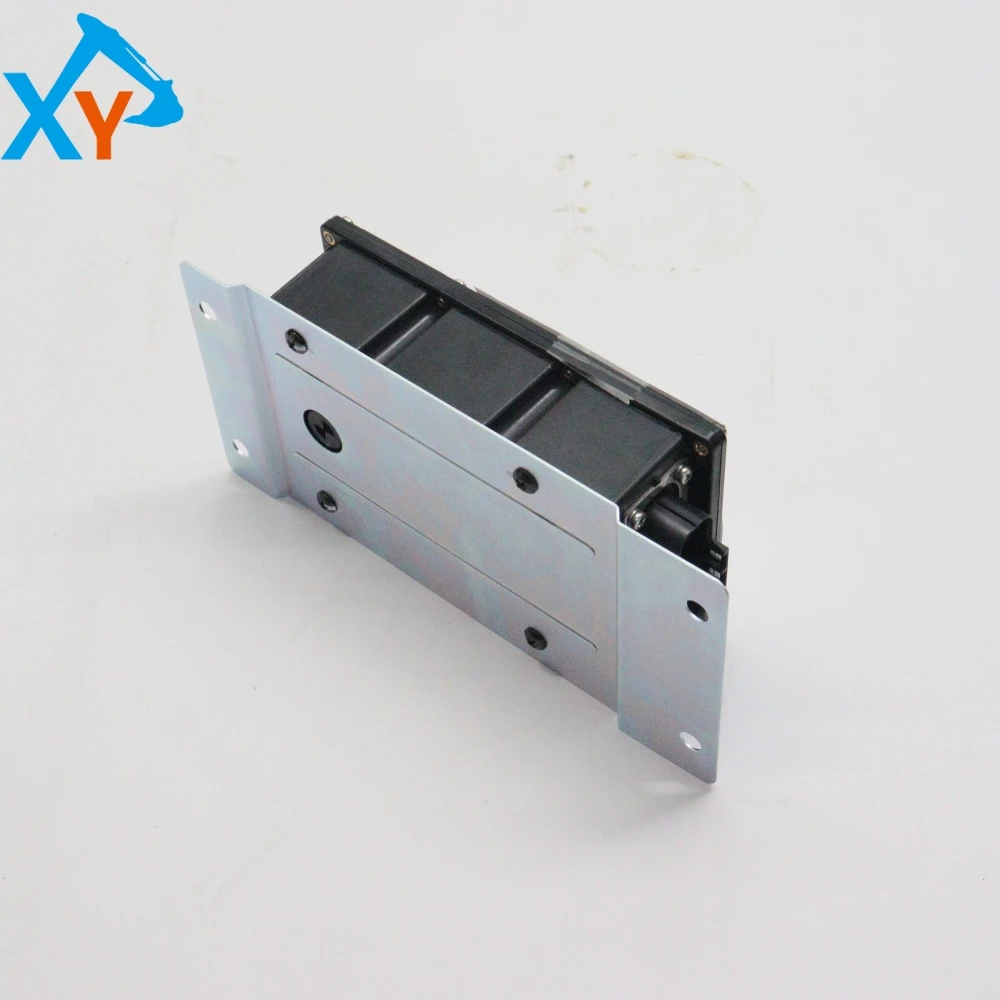

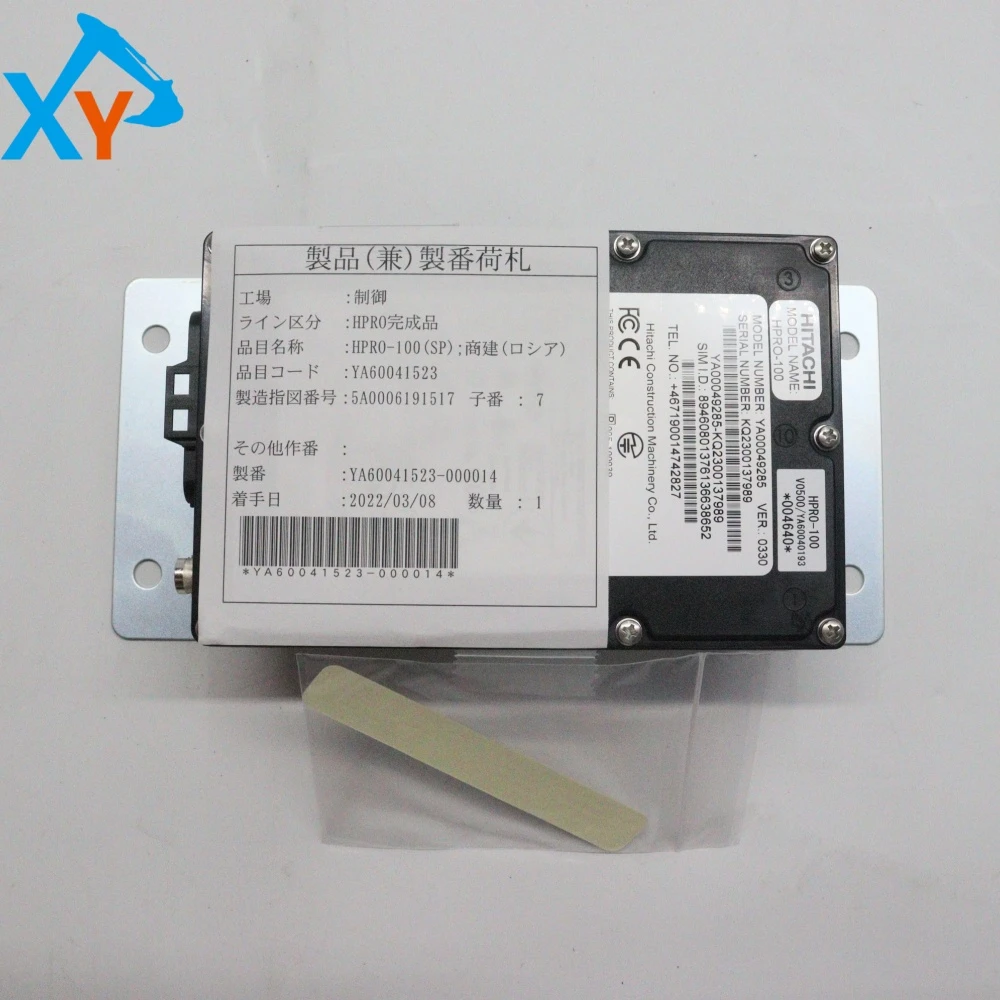

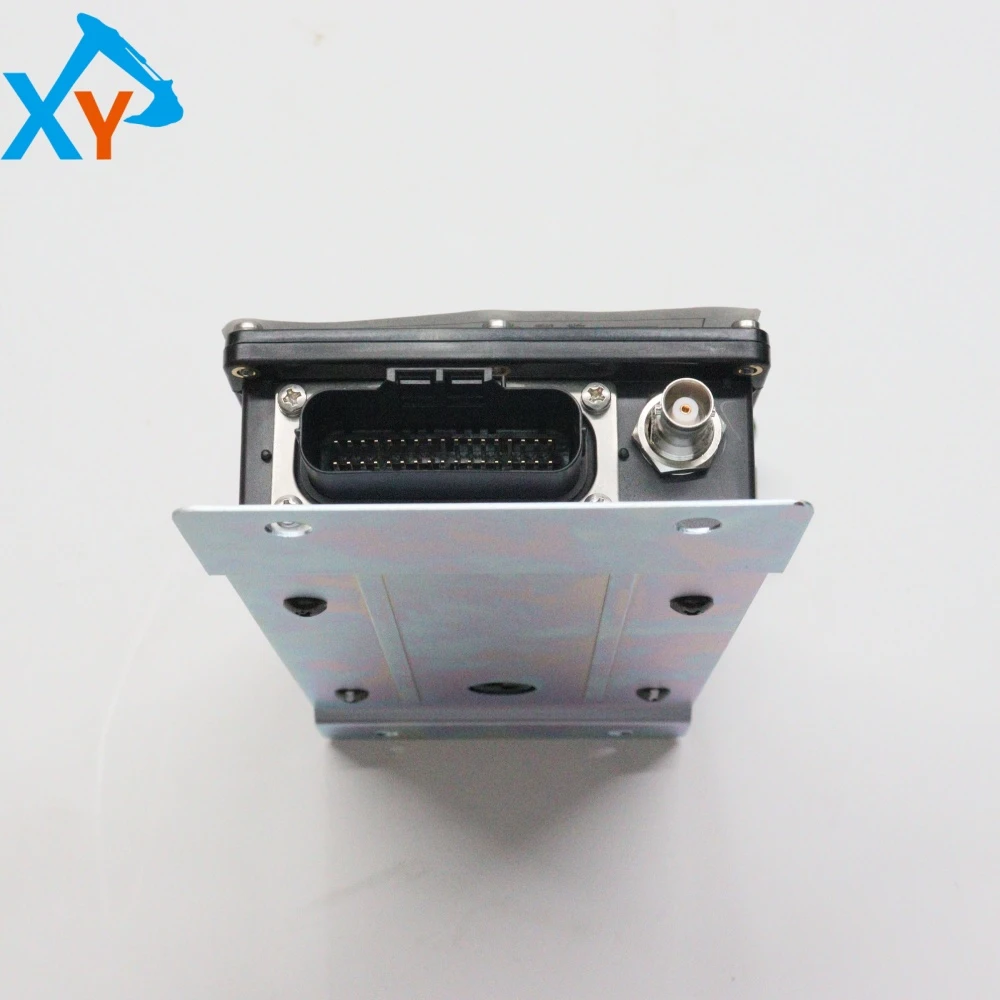

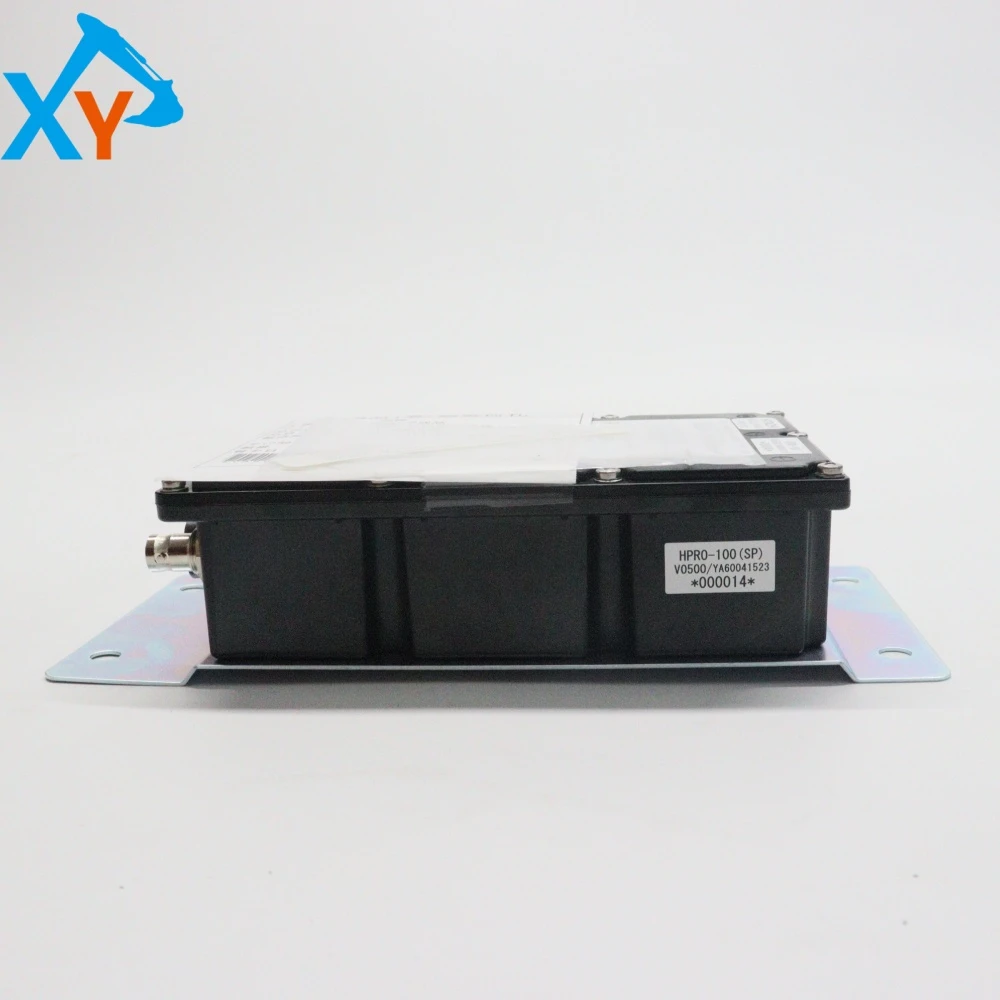

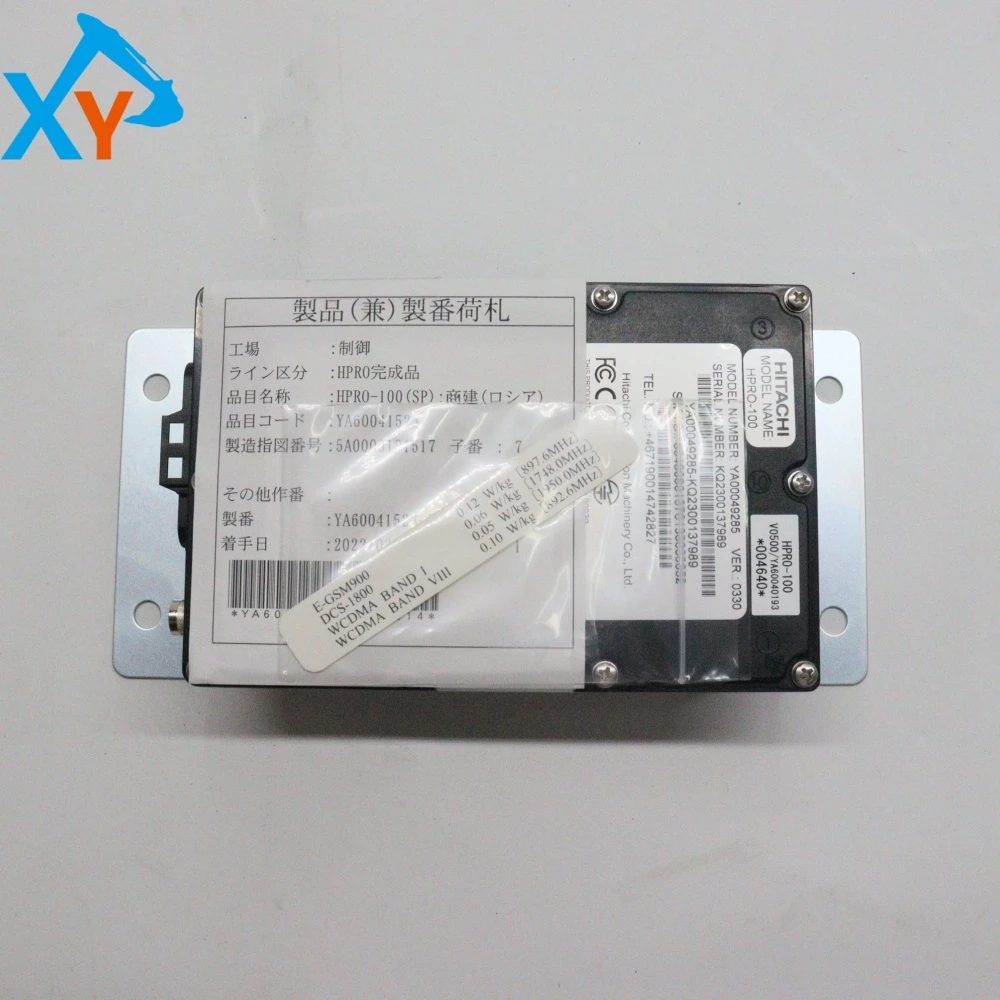

This product is a high-performance vehicle control unit (HPRO-100), with the main module packaged in black engineering plastic and supported by a silver metal base plate with multiple fixing screws, ensuring sturdy installation, efficient heat dissipation, and electromagnetic interference resistance under harsh working conditions of excavators. The key information on the label "Start date: March 8, 2022" and "Serial number: KQ3300137989" confirm that it is a brand new original part manufactured in March 2022. It is equipped with a high-performance processor internally, which manages the collaborative work of the engine, hydraulic pump, and multi way valve through the CAN bus, achieving precise power control and multiple operating modes.

Replacement and programming (safety and matching are key): 1 Safe operation: Before replacement, the negative terminal of the battery must be disconnected and wait for more than 10 minutes to completely discharge the system capacitor. 2. Swap installation: After disassembling the old parts, align the new controller (YA60041523) in position and install it smoothly, ensuring that all wire harness connectors are plugged in and locked in place. 3. Mandatory programming matching: It is absolutely forbidden to directly start the device after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write the original device's identity information, all calibration parameters, and any specific area software that may be required into this new controller. Without this' online matching ', the device will not be able to recognize the new controller, resulting in inability to start or disrupted actions.
