YD00005463 Original Excavator Monitor for ZX70-5A

The part number is YD00005463, which is an original monitor specially designed by Hitachi for the ZX70-5A ultra small hydraulic excavator (with a total working weight of about 7 tons). Its universal models usually cover small models on platforms such as ZX70-5A, ZX70-5G, and ZX60. As the core unit for displaying and controlling overall information, it integrates engine status monitoring, parameter setting, and function buttons.

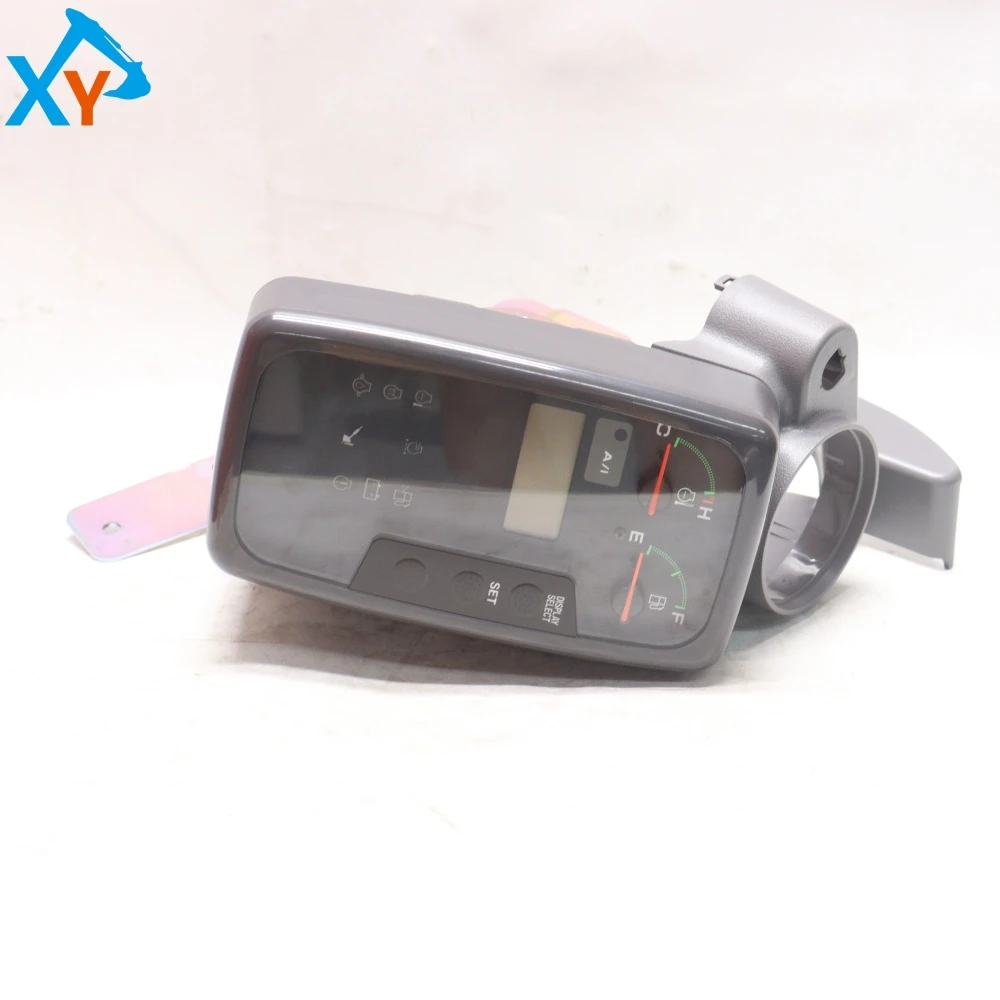

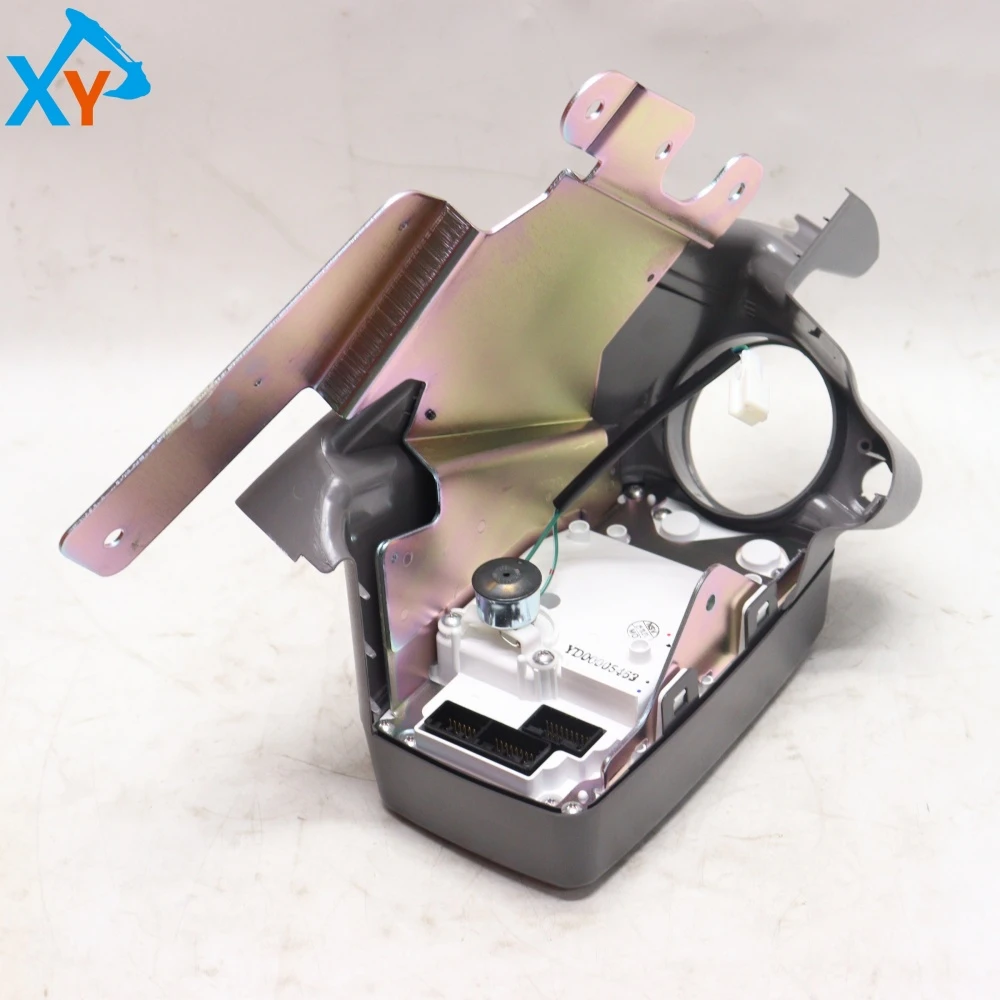

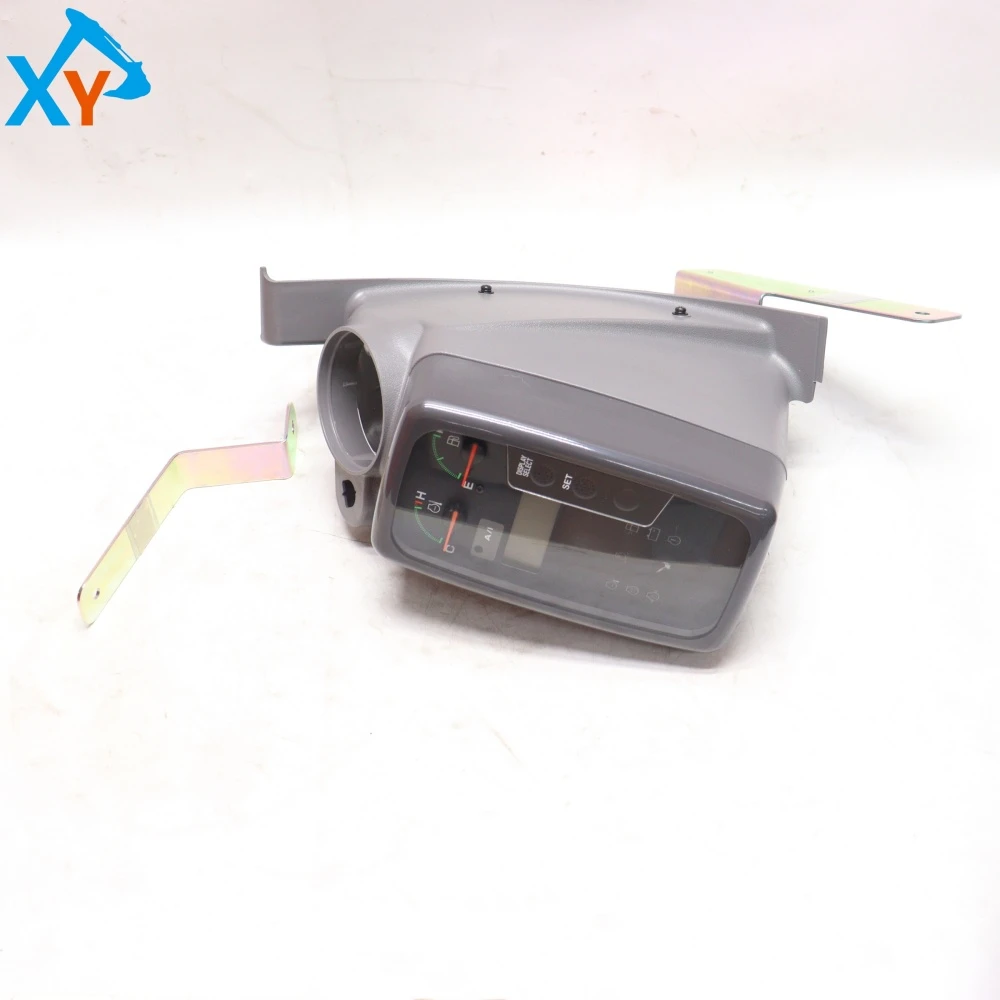

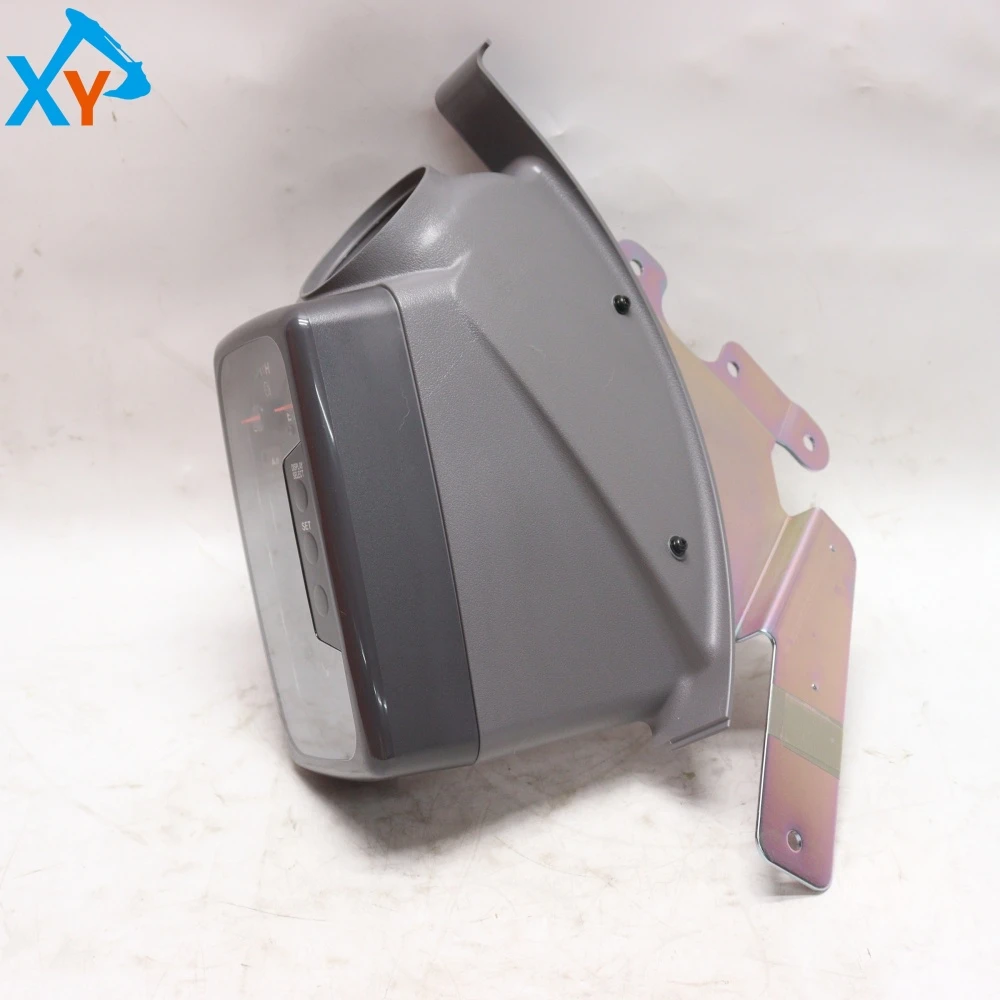

This product is an integrated monitor that combines a pointer and a digital screen. The outer shell is made of gray engineering plastic, and the dark transparent plastic cover on the left end is designed for protection. Clear panel layout: On the right side are two pointer gauges, with the engine coolant temperature gauge (scales C/H/E) above and the fuel level gauge (scales E/F) below. The central rectangular monochrome LCD display screen is used to display information such as hour meters and fault codes. There are eight white icon buttons (F1-F8) arranged vertically on the left side, which are used to control accessories such as lights, wipers, and horns; There are "SET" and "PLAY SELECT/CLEAR" function keys below. The metal piece extending from the right side serves as a grounding and mounting bracket. Its working voltage is DC 12V/24V, and it is the core interactive interface for drivers to monitor the status of equipment and operate auxiliary functions.

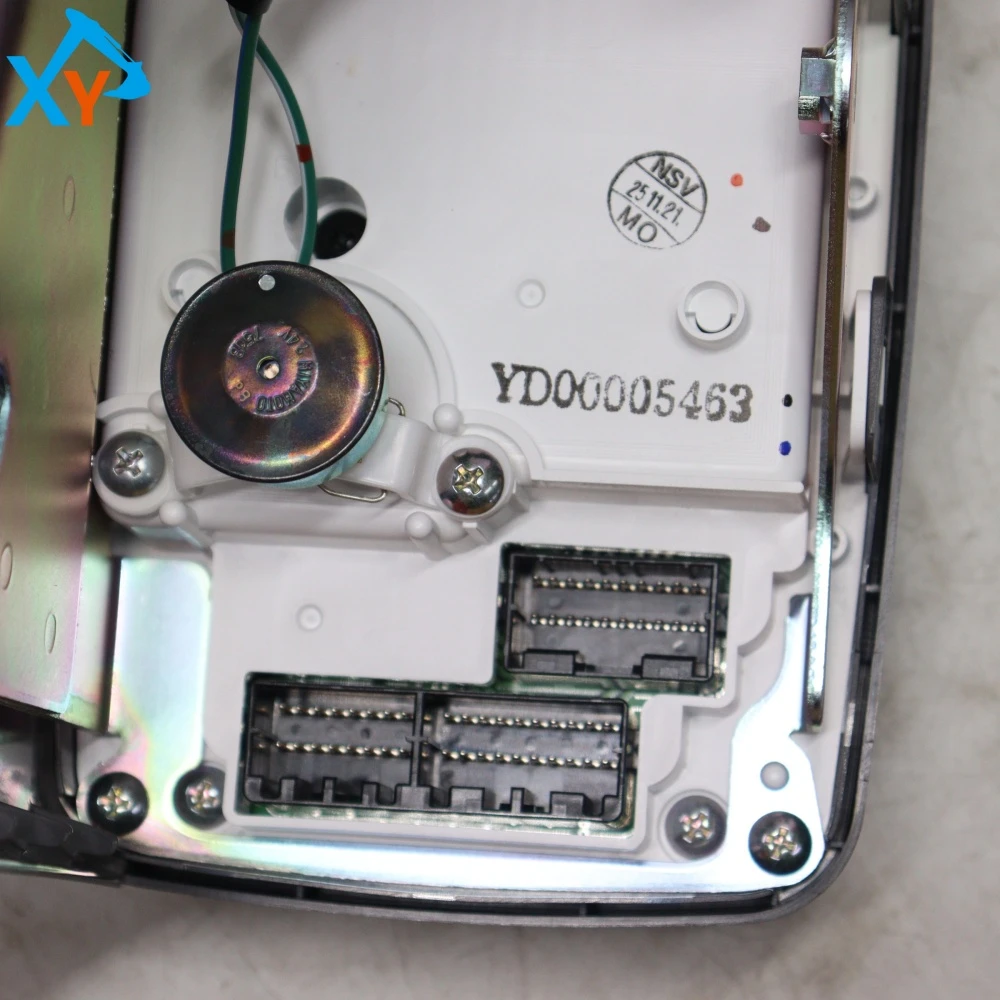

Basic operation: Switch the central screen display information (such as hours) by pressing the "PLAY SELECT/CLEAR" key; The "SET" button can enter the settings menu (such as adjusting maintenance reminders). The F1-F8 buttons on the left are used to control the corresponding accessory functions. Daily maintenance: Clean the screen and panel with a soft, slightly damp cloth every week, avoiding the use of corrosive solvents. Check the back harness plug of the monitor for secure connection, water ingress, or oxidation every 250 working hours.
