YD00011602 Original Excavator Monitor for Hitachi ZX60USB-5N

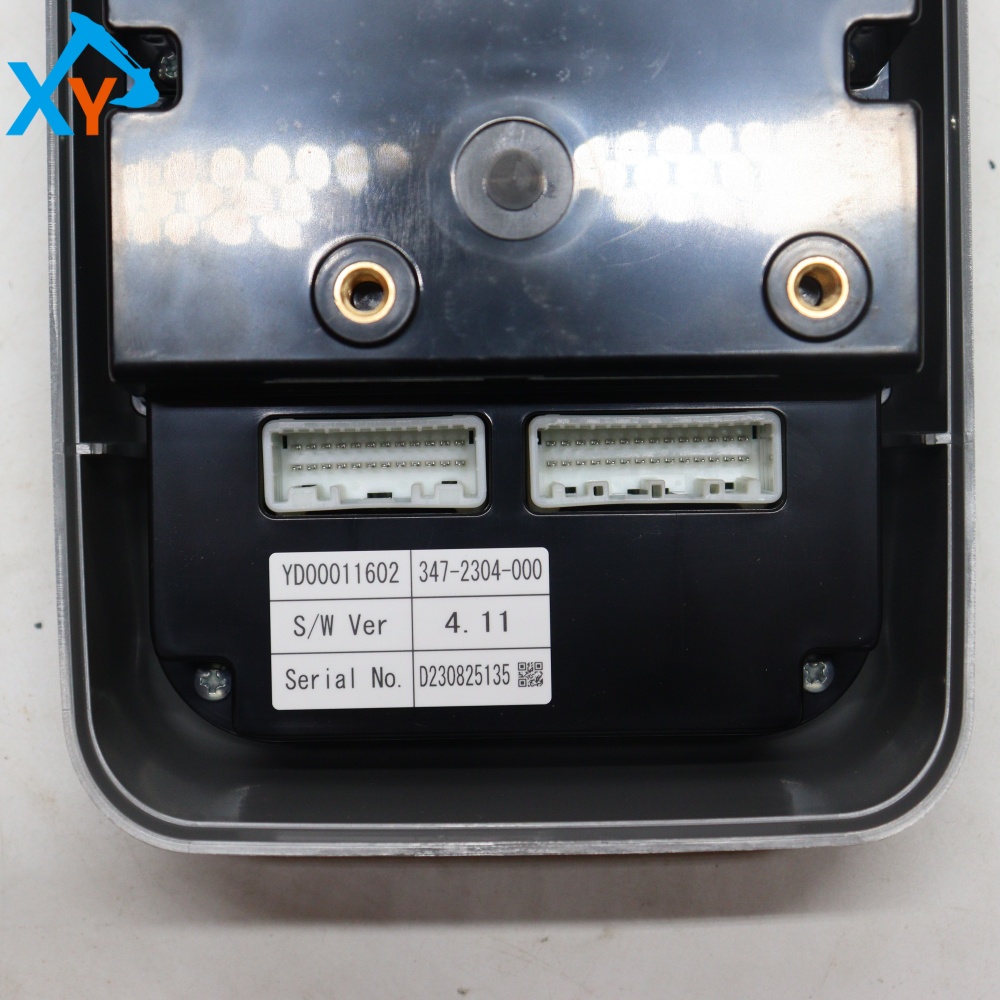

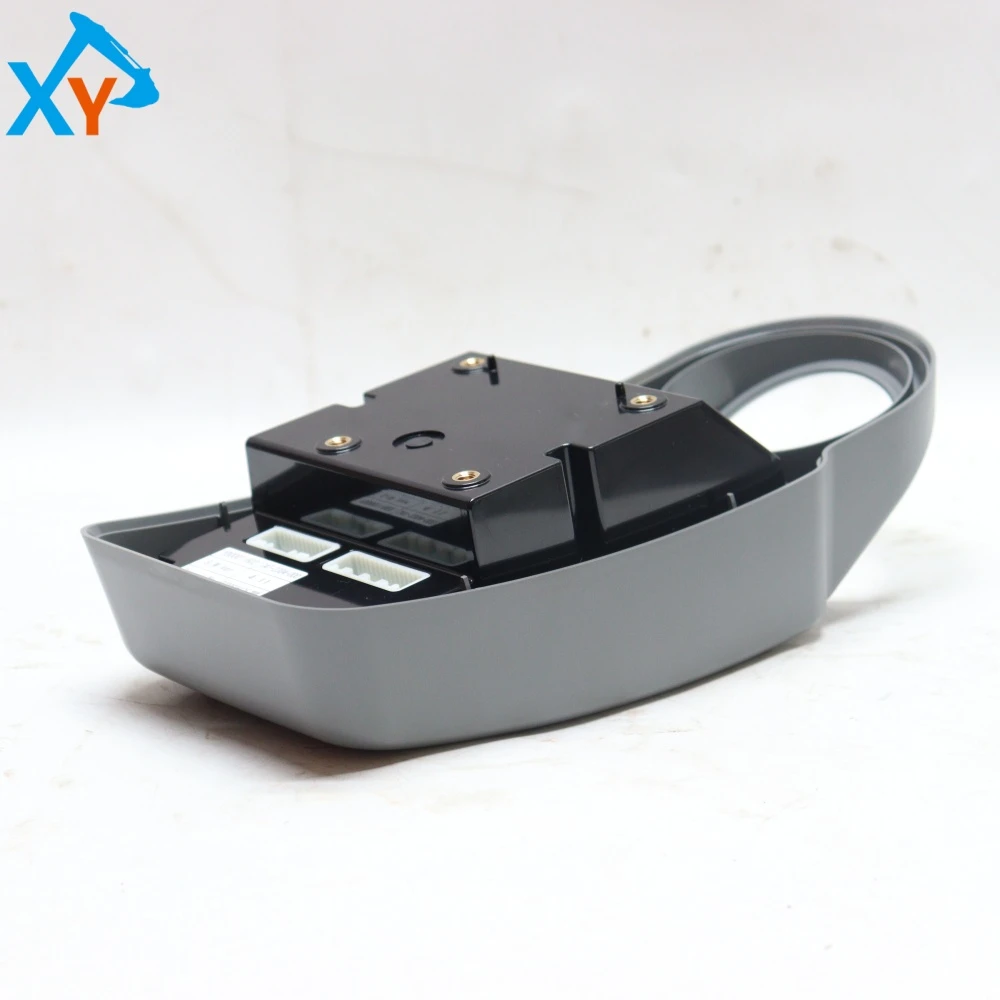

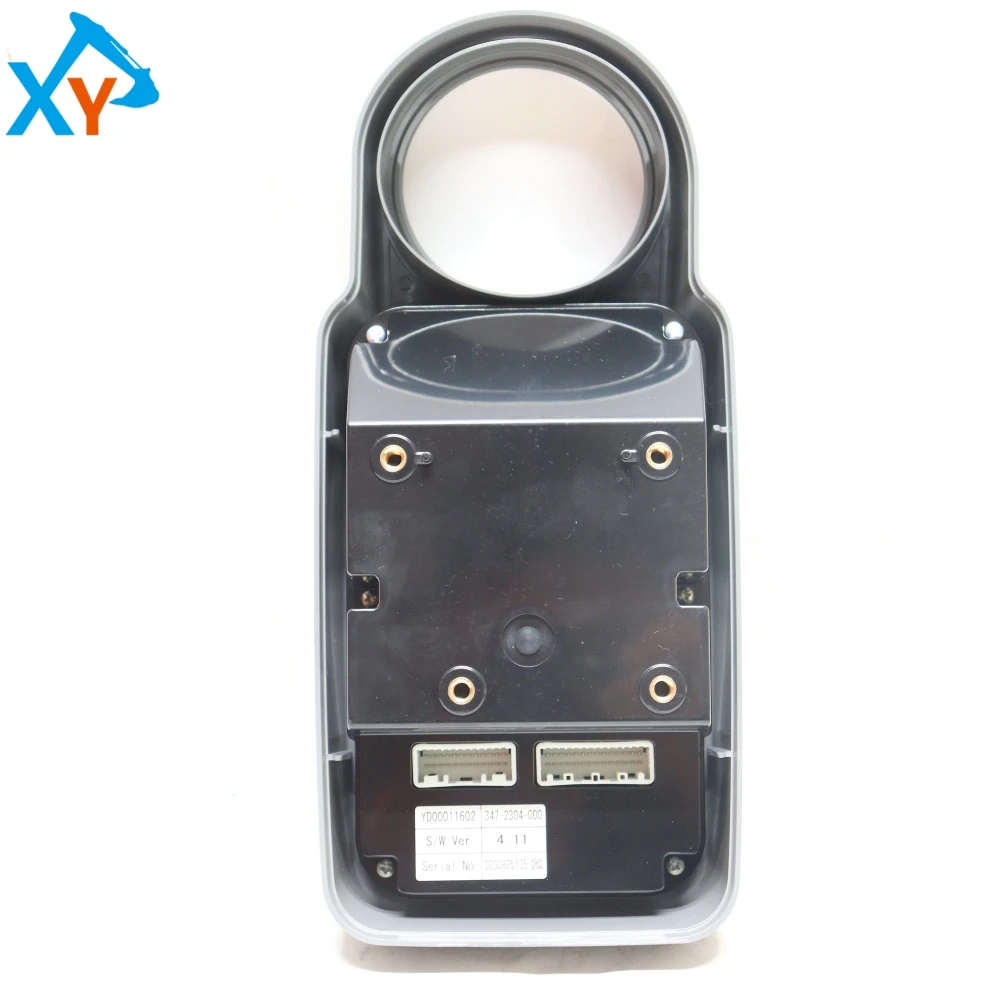

The original monitor (part number YD00011602) is the standard cab information display unit of Hitachi ZX60USB-5N small excavator, mainly used for integrated status monitoring of the HIOS III hydraulic system and electronic fuel injection engine of this model. This monitor is also widely used in Hitachi ZX60-5N, ZX70-5N, ZX85USB-5N and other series of small excavators, and its universal number YD00011602 is its unique identifier in Hitachi's original accessory system. When ordering, the complete model and serial number of the excavator must be provided for verification to ensure that the wiring harness interface matches the software version completely.

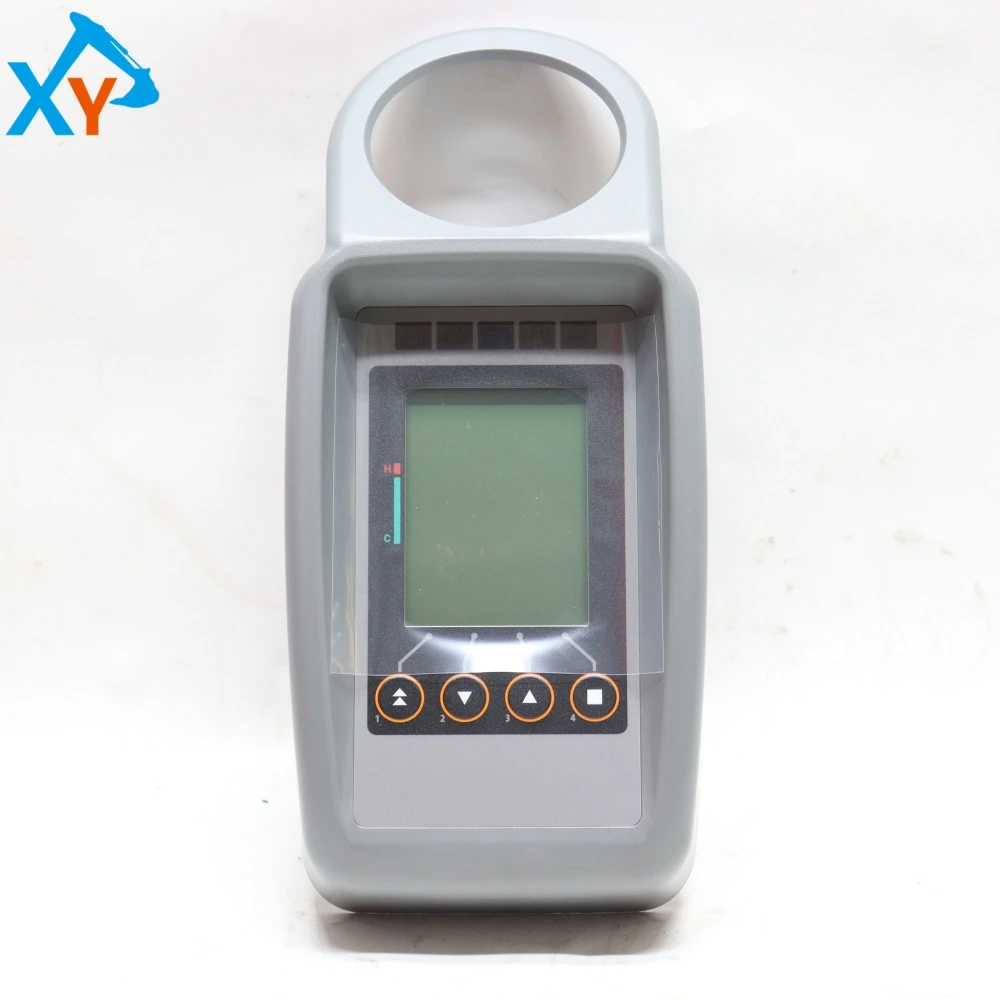

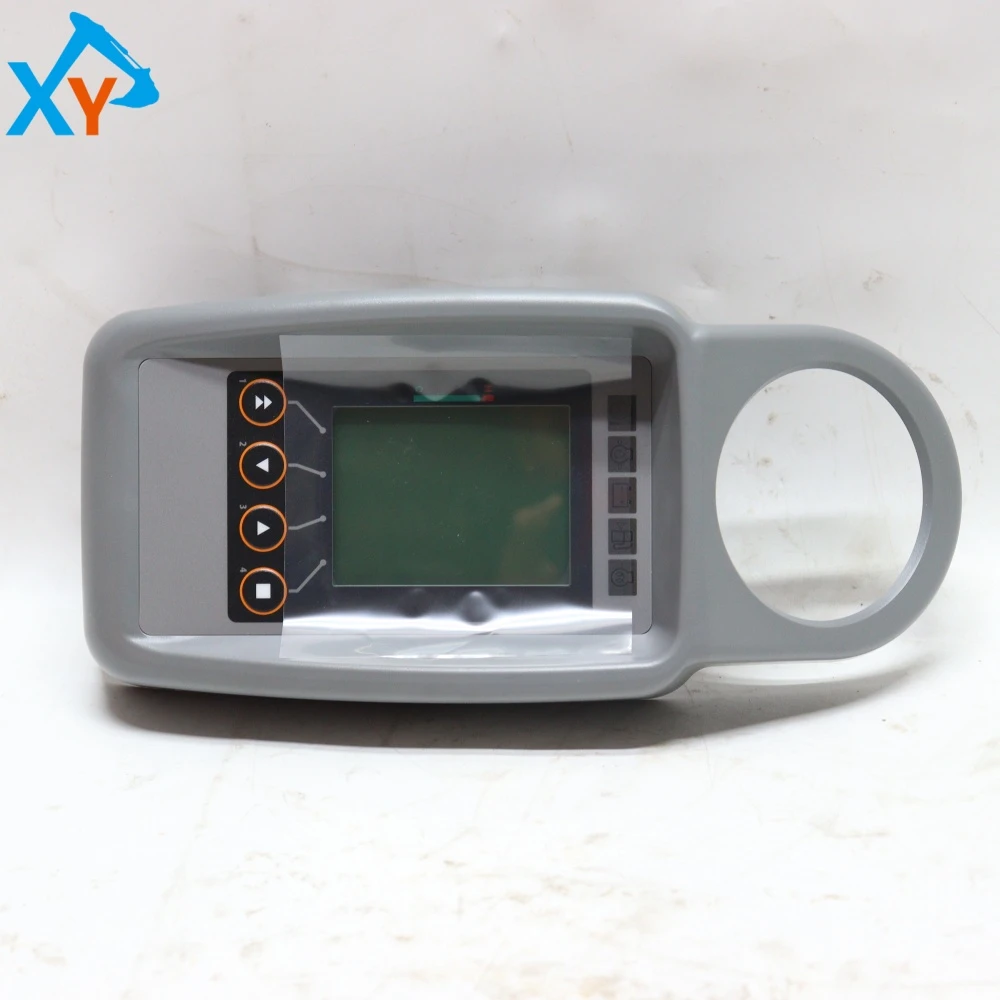

This product is a color LCD monitor specifically designed for construction machinery. It features a 5-7 inch TFT LCD screen (with a resolution of approximately 400 × 234 pixels) and a built-in CAN bus communication module. It can display key parameters such as engine speed, coolant temperature, hydraulic oil temperature, fuel level, working hour meter, and fault codes in real-time. The main technical specifications include: working voltage DC 24V (range 18-32V), working temperature -30 ° C to+70 ° C, protection level IP65 (dustproof and waterproof), support for multilingual menu (including Chinese) and backlight adjustment. The monitor communicates with the engine ECU and pump controller (MC) through J1939 protocol, and has self diagnostic function. It can store and display more than 50 sets of historical fault codes (such as 1100-2, 11200-3, etc.), helping to quickly locate system abnormalities.

The monitor is designed to be maintenance free and does not require regular replacement, but the screen surface needs to be cleaned with a soft dry cloth every 500 hours of operation or every 3 months to avoid the use of corrosive solvents. Daily checks should be conducted to ensure that the wiring harness connectors are not loose or oxidized, and to ensure that the shielding layer of the CAN-H/CAN-L signal line is intact. If there is a screen distortion, no display, or button failure, the fuse (usually 5-10A) and grounding wire connection should be checked first. Software upgrades must be completed by authorized service providers using Hitachi's dedicated diagnostic tool Dr. ZX. Non professionals are strictly prohibited from disassembling or flashing programs. After replacing the monitor (YD00011602), system matching is required to restore personalized parameters such as hour meter and language settings. It is recommended to have a professional technician perform the operation.
