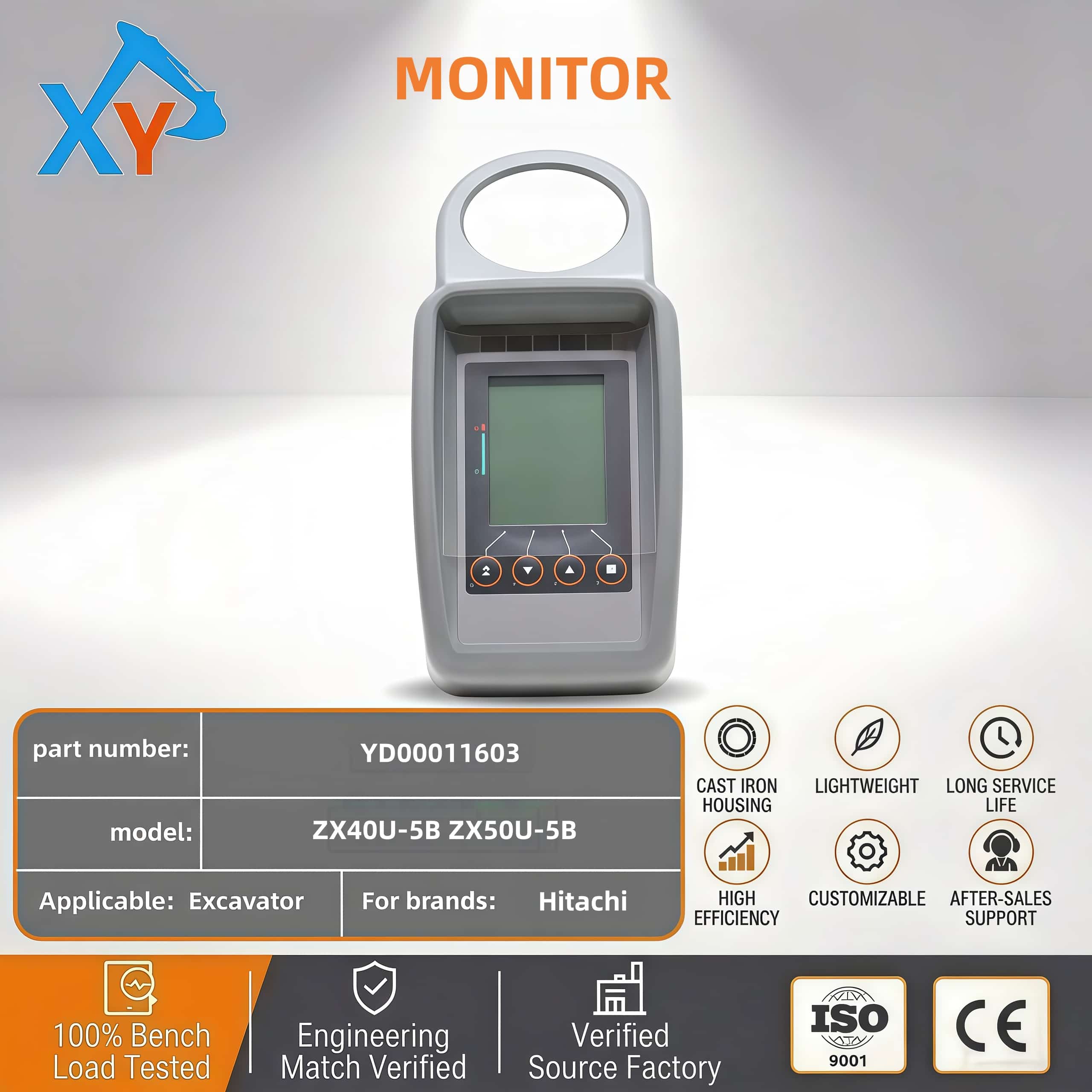

YD00011603 Genuine Hitachi controller for excavator ZX40U-5B

Part number YD00011603 is a dedicated cab monitor (instrument assembly) for Hitachi ZX40U-5B mini excavators, compatible with ZX40U-5B/ZX40U-5A, as well as ZX30U-5A/ZX35U-5A/ZX48U-5A/ZX50U-5A and other Zaxis-5 series mini excavators. It adopts a 5-inch high-definition LCD color display, integrates CAN 2.0B bus communication, has 24 input channels (including analog/switch/frequency signals), 16 output channels (including alarm light/buzzer drive), operating voltage DC24V (fluctuation range 18-32V), power consumption ≤15W, operating temperature -30°C to 70°C, and protection class IP65. It is responsible for vehicle operating parameter display, fault diagnosis and alarm, operation mode switching and maintenance reminder, suitable for Yanmar 4TNV98 engine and electro-hydraulic control system, ensuring precise operation and safe operation of mini excavators.

Core functions include real-time display of engine speed/water temperature/oil pressure/fuel level, hydraulic pump pressure/flow monitoring, operating hour meter recording, fault diagnosis (supporting storage and clearing of more than 100 fault codes), operation mode (standard/fuel-saving) switching, safety alarm (low oil pressure/high water temperature/low fuel/overload), maintenance cycle reminder and parameter setting (such as time/language/alarm threshold). The display brightness is ≥300cd/m², supporting strong light visibility. The PCB board is coated with three-proof (moisture-proof, mold-proof, anti-salt spray) coating, and key interfaces are gold-plated. The Mean Time Between Failures (MTBF) is ≥8000 hours, suitable for working conditions of mini excavators such as heavy dust, vibration and large temperature difference, ensuring long-term stable operation.

Disconnect the negative pole of the battery before replacement. When disassembling, remove the fixing bolts with a torque of 5-8N·m. Avoid live operation when plugging or unplugging connectors. Ensure the connector latches are in place during installation, and tighten the bolts symmetrically. After installation, use a dedicated diagnostic tool to complete CAN communication matching between the monitor and the main controller, parameter calibration and fault code clearing. This monitor can reduce the incidence of electrical faults of mini excavators by more than 40%, improve parameter reading efficiency, shorten fault troubleshooting time, reduce the risk of misoperation, increase operating efficiency by about 12%, and reduce maintenance costs.
