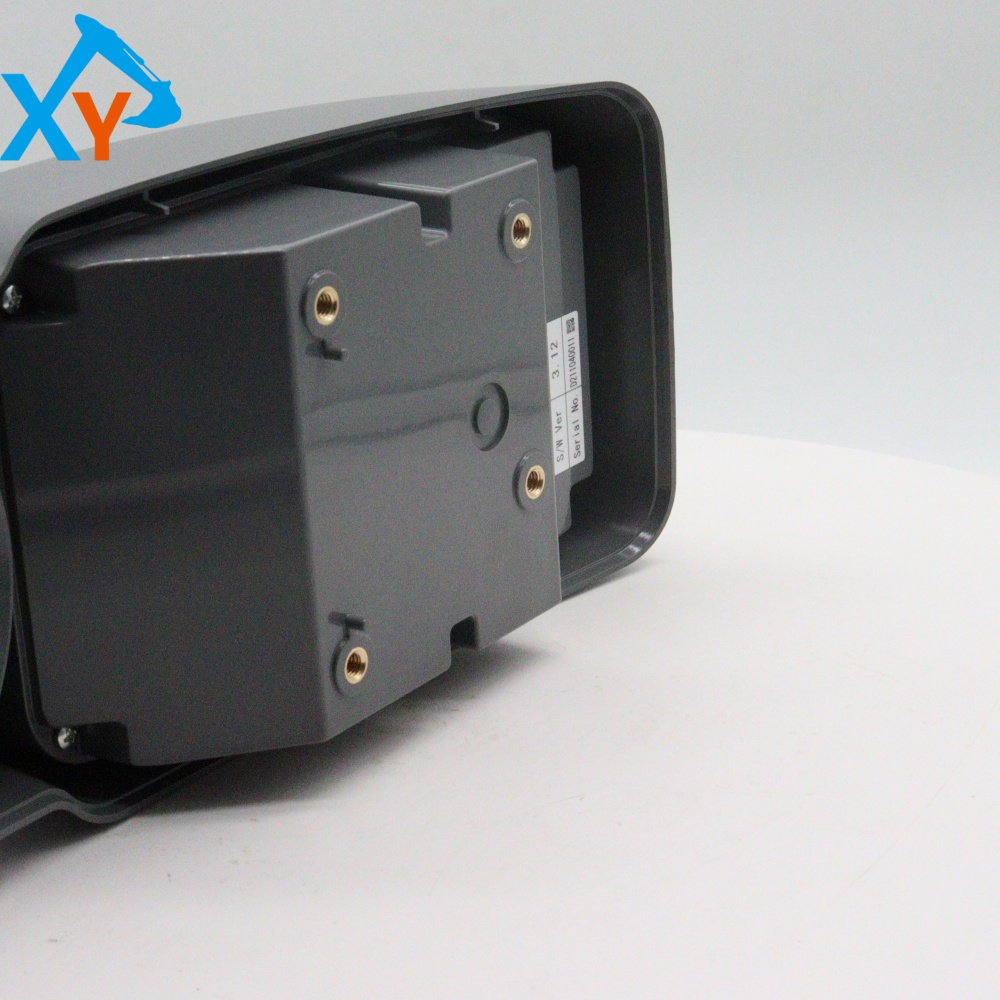

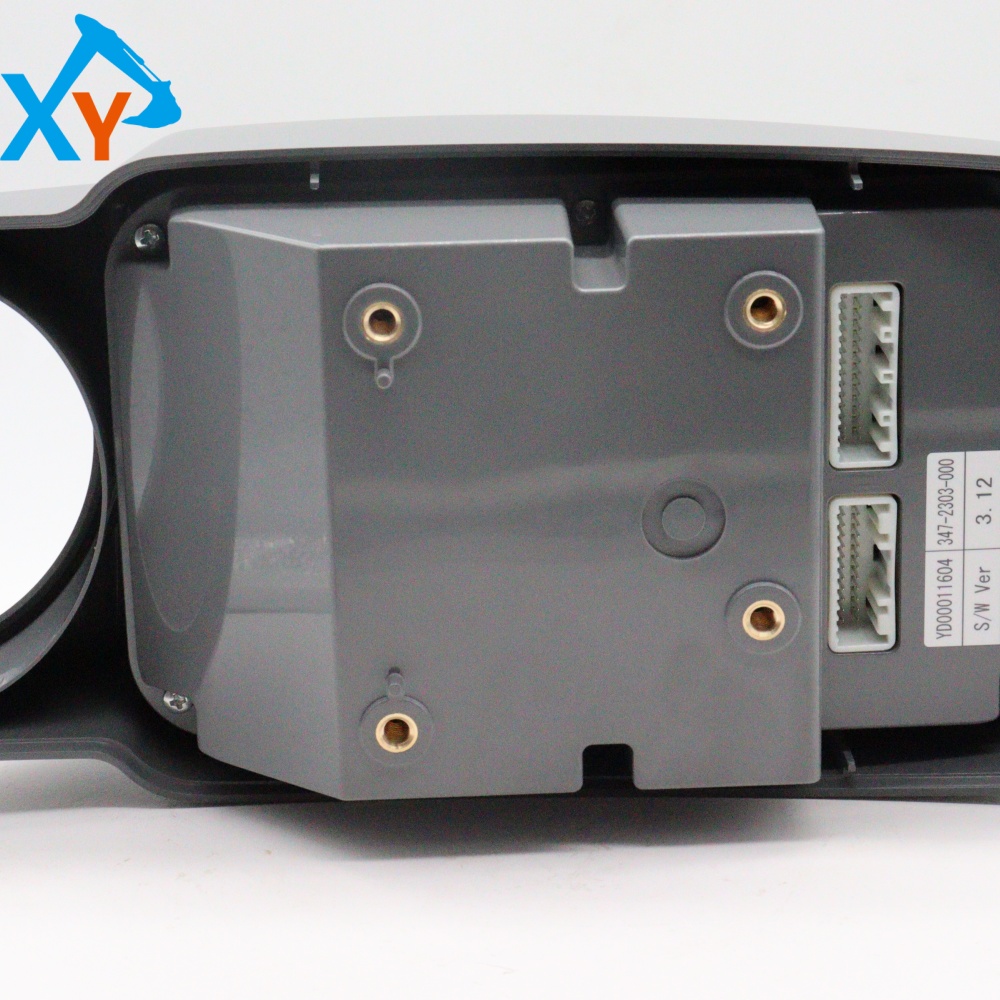

YD00011604 Excavator Monitor for ZX33U-6

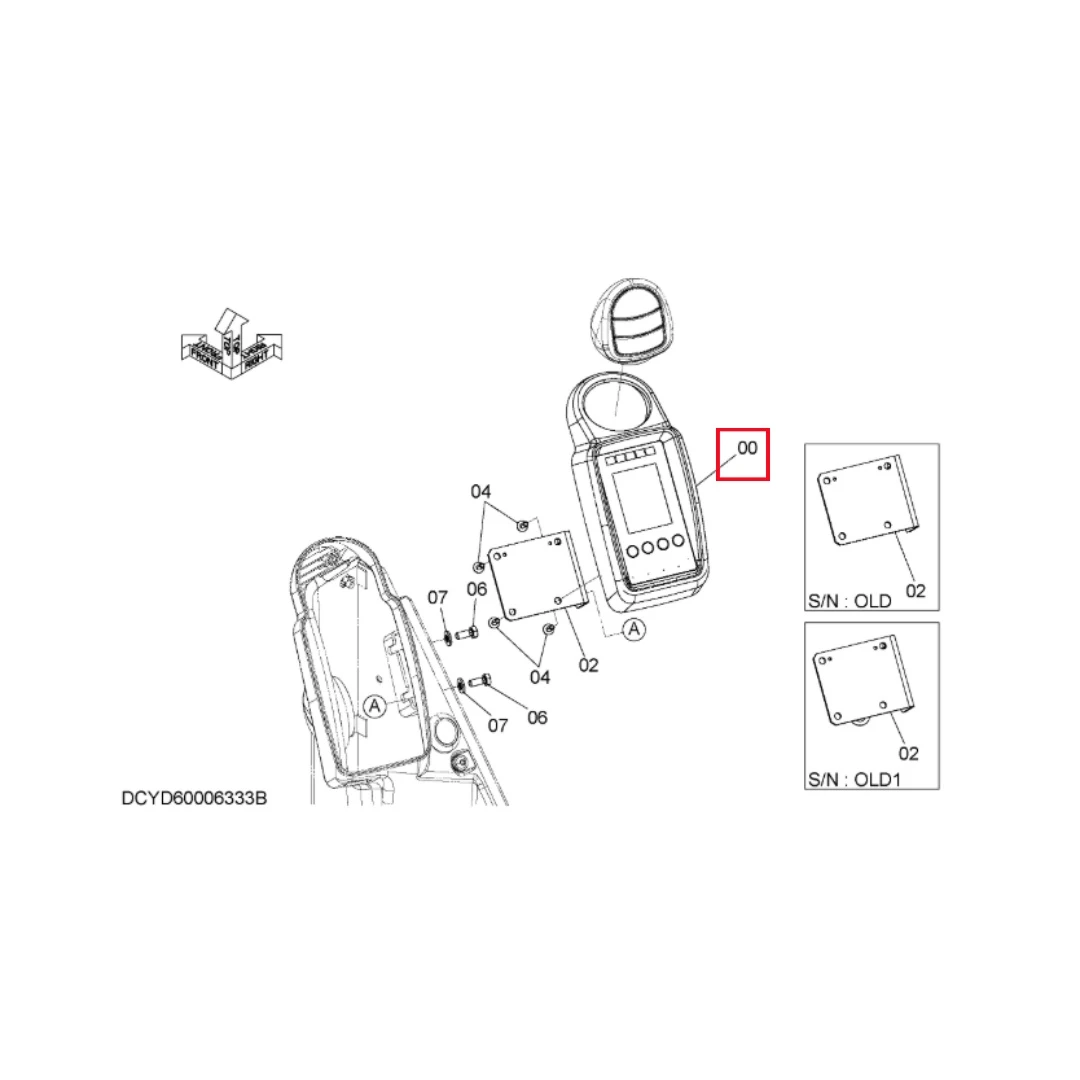

The original monitor part number YD00011604 is an integrated intelligent display control unit provided by Hitachi Construction Machinery for the ZX33U-6 small crawler excavator (with a total working weight of approximately 3.3 tons). This monitor is mainly used for real-time monitoring of equipment working status, fault diagnosis, parameter setting, and operation guidance. It is the core human-machine interaction interface of the entire electronic control system. Its universal model is usually directly labeled as YD00011604 and is also suitable for small models in the ZX26U-6 series. It is a proprietary design of the original factory and deeply integrated with the vehicle's CAN bus. It is strictly prohibited to replace it with the auxiliary factory's universal display to ensure the accuracy of data communication and system stability.

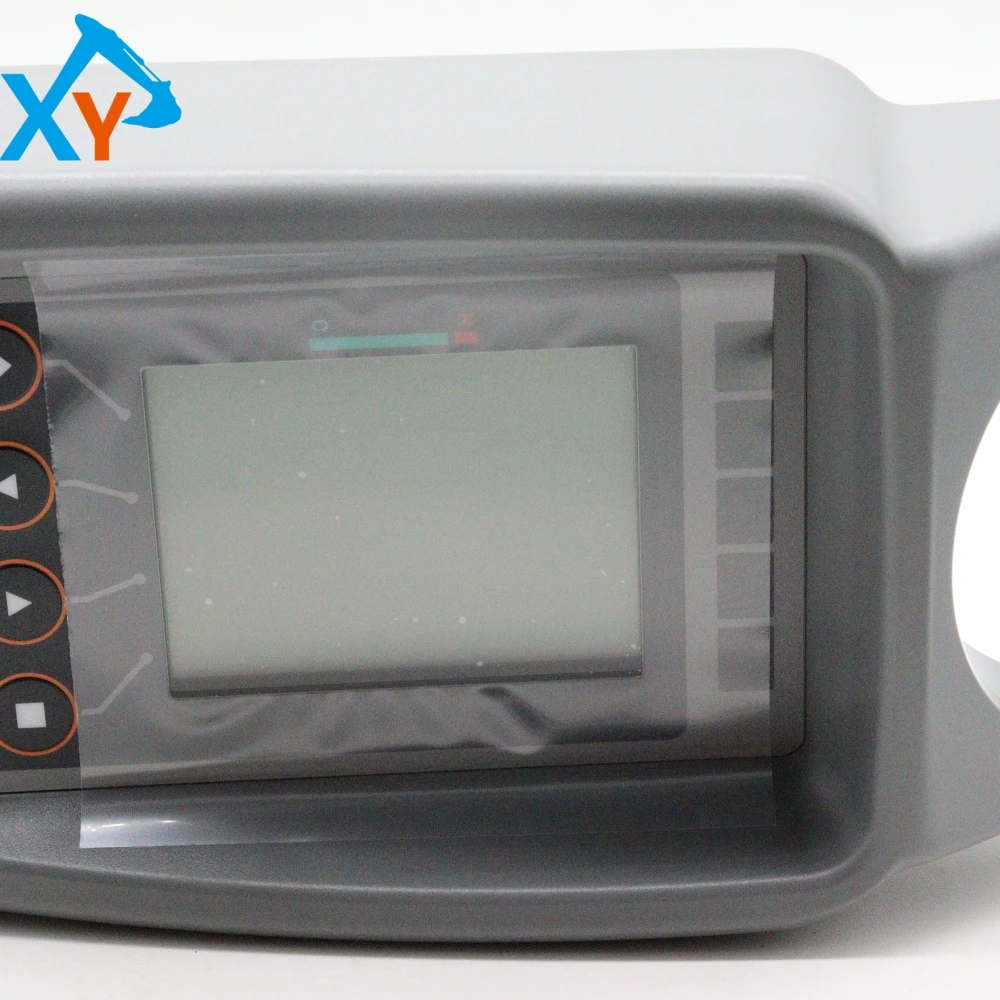

This product is an original LCD monitor that uses a high brightness TFT-LCD display screen (approximately 7 inches in size, with a resolution of 800 × 480) and supports multilingual menus (including Chinese, English, Japanese, etc.). The core functions include: real-time display of engine speed, water temperature, fuel quantity, hydraulic oil temperature, and working hour meter; Fault code storage and query (supporting J1939 protocol); Selection of working mode (such as economy mode, overload mode); Maintenance reminder setting (oil and filter replacement cycle). The hardware interface includes CAN-H/CAN-L communication line, power line (DC24V), and video input (optional rearview camera). The protection level is IP65 (dustproof and waterproof), the working temperature range is -30 ℃ to+70 ℃, and the seismic resistance level complies with ISO 10816-1 (vibration acceleration<2.5g). It is suitable for harsh working conditions such as high vibration, high dust, and humidity of excavators.

Daily cleaning: Wipe the screen with a soft dry cloth every 250 working hours and avoid using corrosive cleaning agents. System inspection: Check the wiring harness connectors for looseness and the waterproof rubber ring for aging every month; Check the software version and hardware status through self-test mode (simultaneously press and hold F1+power button for 3 seconds). Fault diagnosis: If there is no display on the screen, first check the driver's cabin fuse F201 (5A/24V) and power supply voltage (normal 24V ± 10%); If the display shows a splash/flicker, check the CAN bus terminal resistance (standard 120 Ω) and grounding wire; If the touch fails, try calibrating the screen (enter the settings menu and select touch calibration). Software upgrade: Firmware can be upgraded through diagnostic interface or USB (supports versions V1.2.0 to V2.5.0), and device parameters must be backed up before upgrading. Preventive maintenance: It is recommended to check the backlight brightness of the display screen (attenuation ≤ 20% is normal) and the motherboard capacitor for bulges every 5000 working hours; Replace the waterproof rubber ring every 2 years (recommended silicone rubber material).
