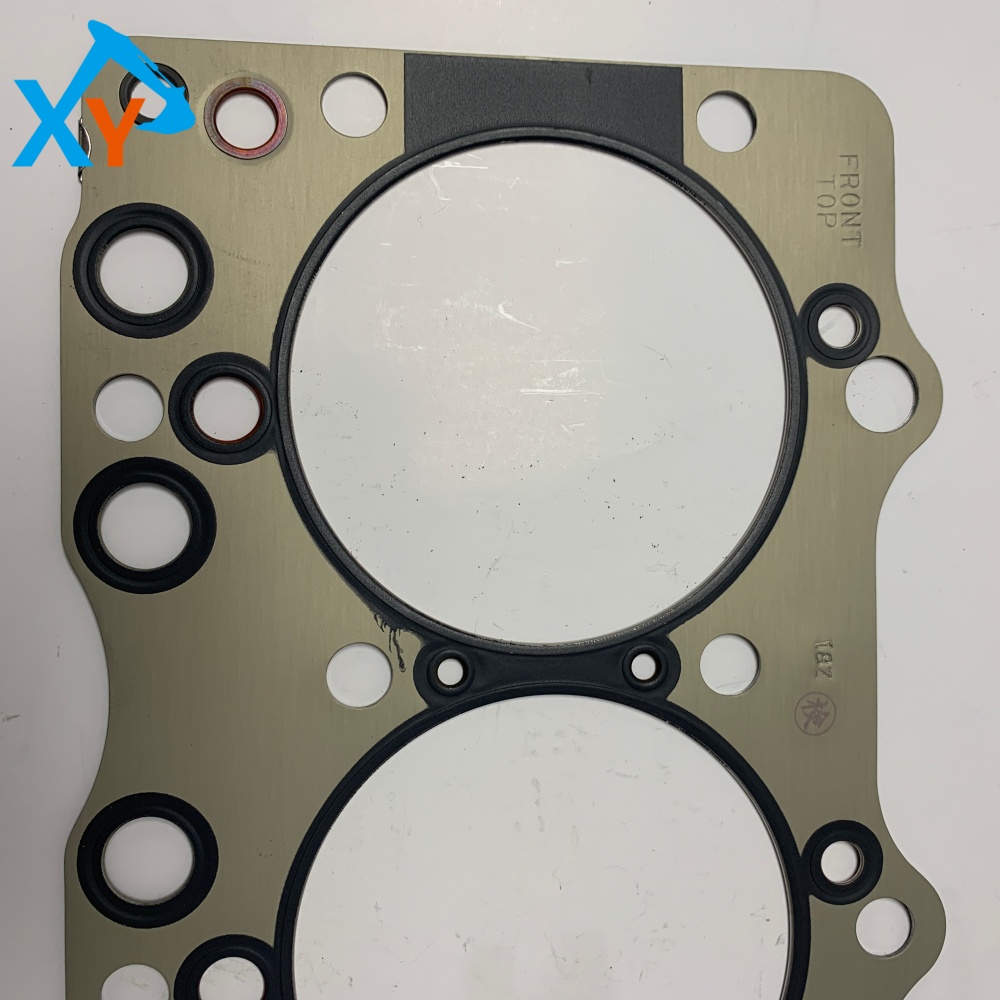

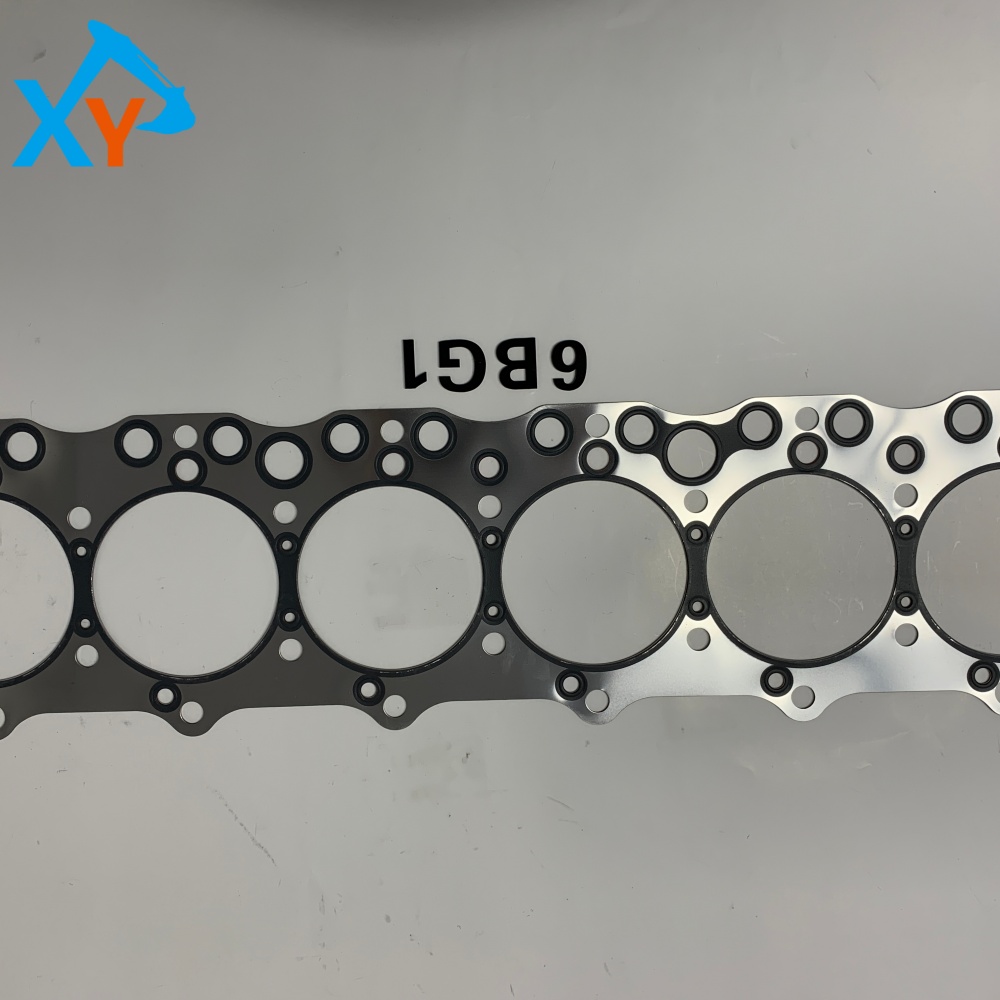

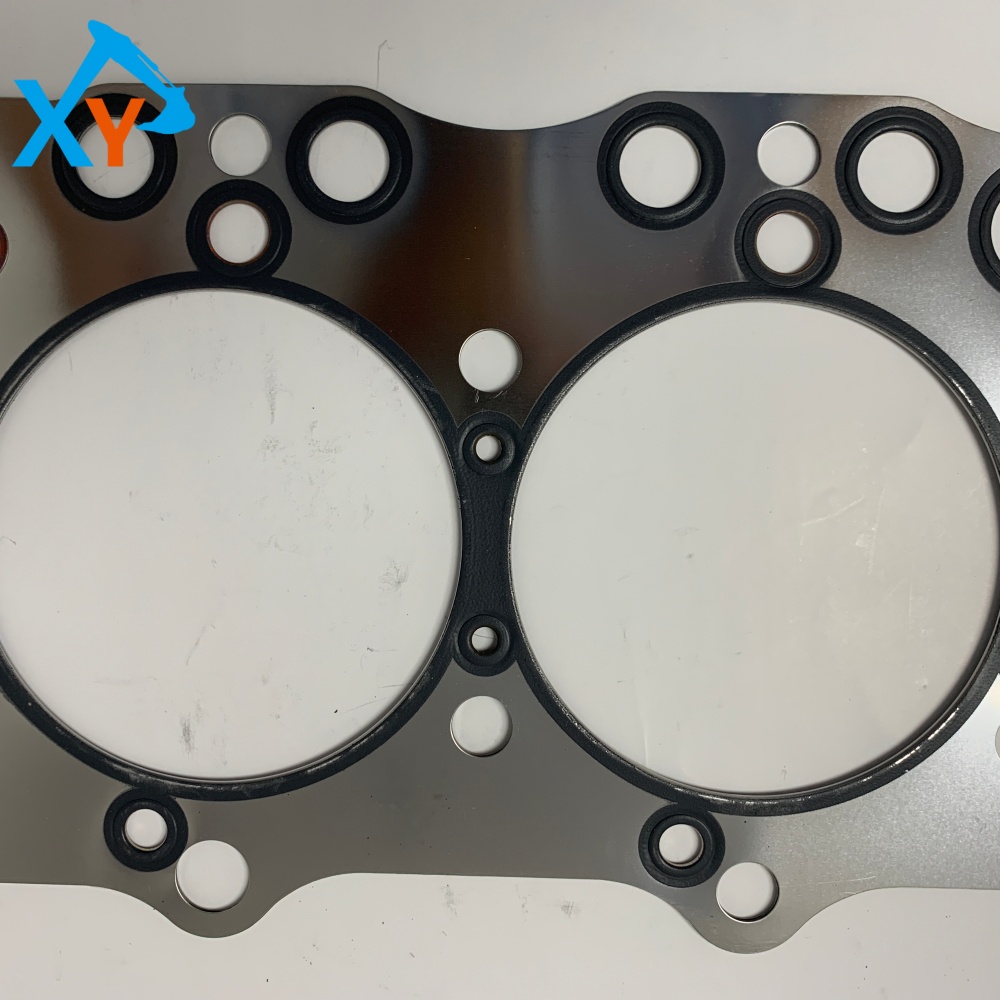

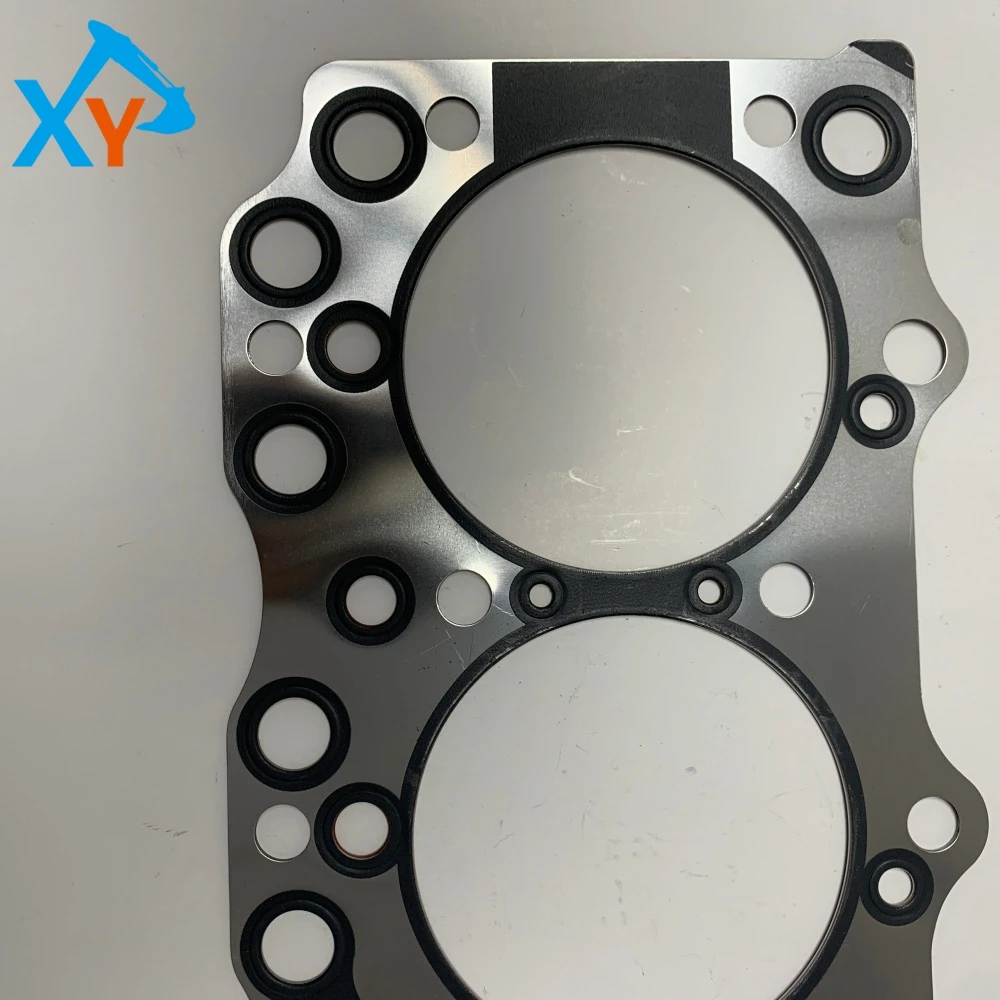

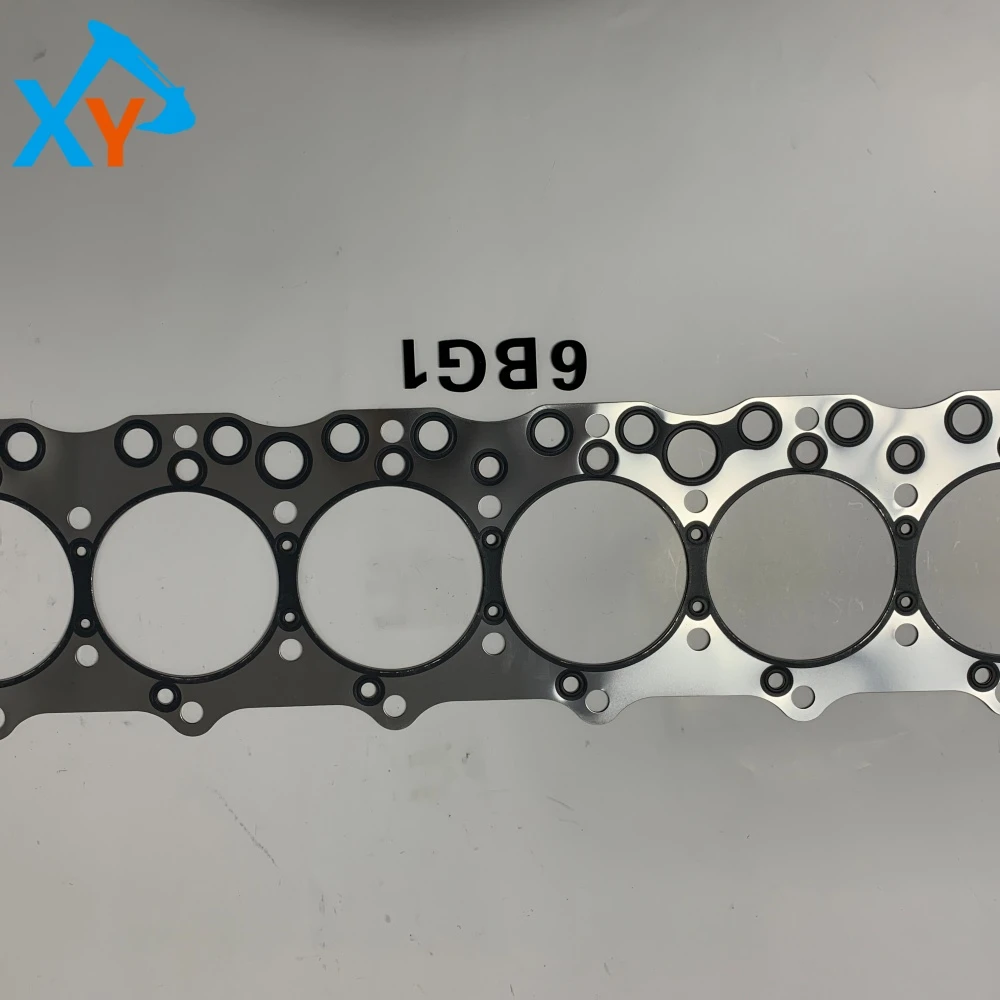

1111411960 Excavator 6BG1 Diesel Engine Parts Cylinder Head Gasket

Part number 1111411960 is the original cylinder head gasket (cylinder mattress) specifically designed for Isuzu 6BG1 series diesel engines. This gasket is mainly suitable for multiple Hitachi excavators equipped with this engine, including ZX200、ZX210、ZX200-3G、ZX210-5G、ZX225、EX200-3C、EX200-5、EX200LC-5、EX125WD-5  Same model, as well as some John Deere 210, 225CLC and other equipment. Its common part number is often marked as 5-11141-196-0 or 1-11141-196-1 (1111411961).


This product is an Isuzu original cylinder head gasket, which is a key elastic sealing component installed between the engine cylinder block and cylinder head, commonly known as the cylinder gasket. Its core function is to seal the high-temperature and high-pressure gas in the combustion chamber, isolate the oil and cooling water channels, prevent gas, oil, and coolant from flowing through each other, and ensure the normal operation and heat dissipation of the engine.


Daily inspection and fault symptoms: Check the oil color (whether it has emulsified and turned white) and coolant level (whether there is abnormal decrease or oil floating) every shift, these are early signs of cylinder gasket failure. When the engine experiences rapid consumption of coolant, oil emulsification, white smoke from the exhaust pipe (burning coolant), decreased power, cylinder air leakage, or abnormal increase in water temperature, it is highly suspected that the cylinder gasket is damaged. Maintenance core: Preventing engine overheating is the primary measure to extend the life of cylinder gaskets. Once the cylinder gasket is diagnosed as damaged, it must be immediately shut down for maintenance, otherwise it may cause serious damage to the engine.
