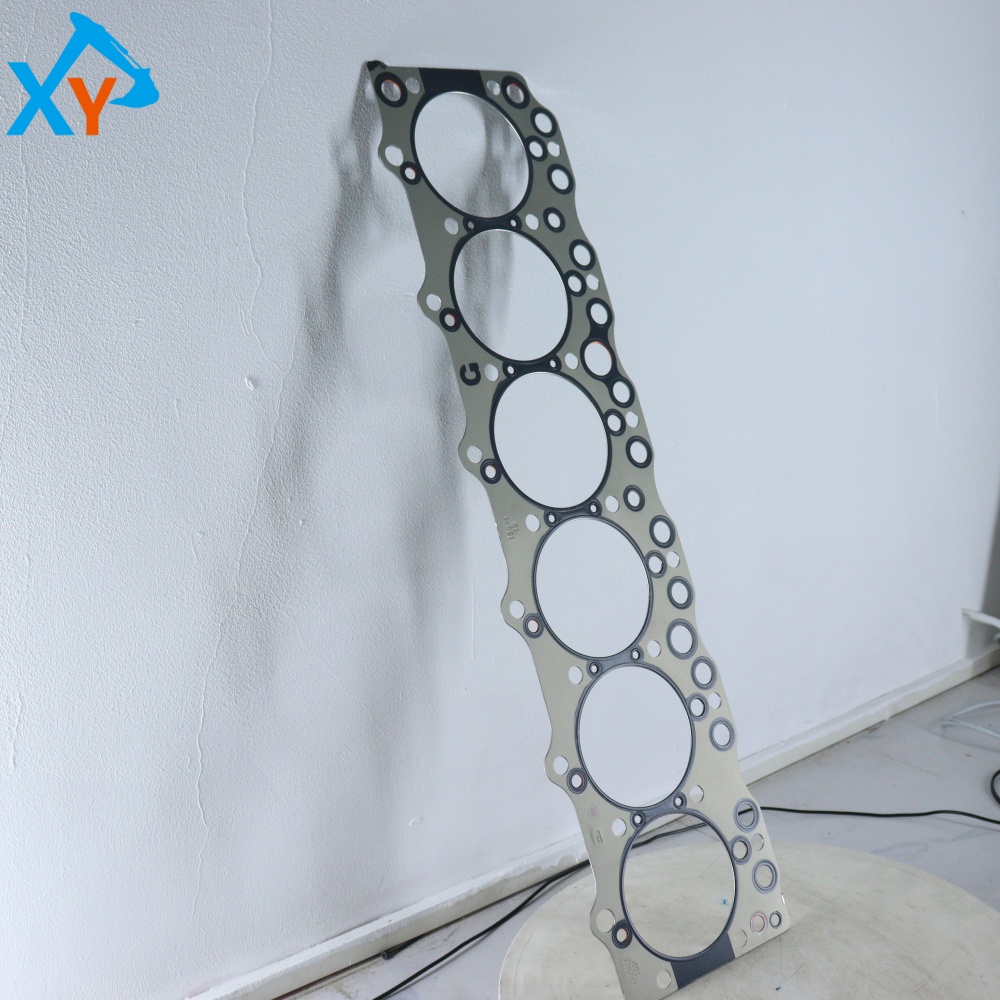

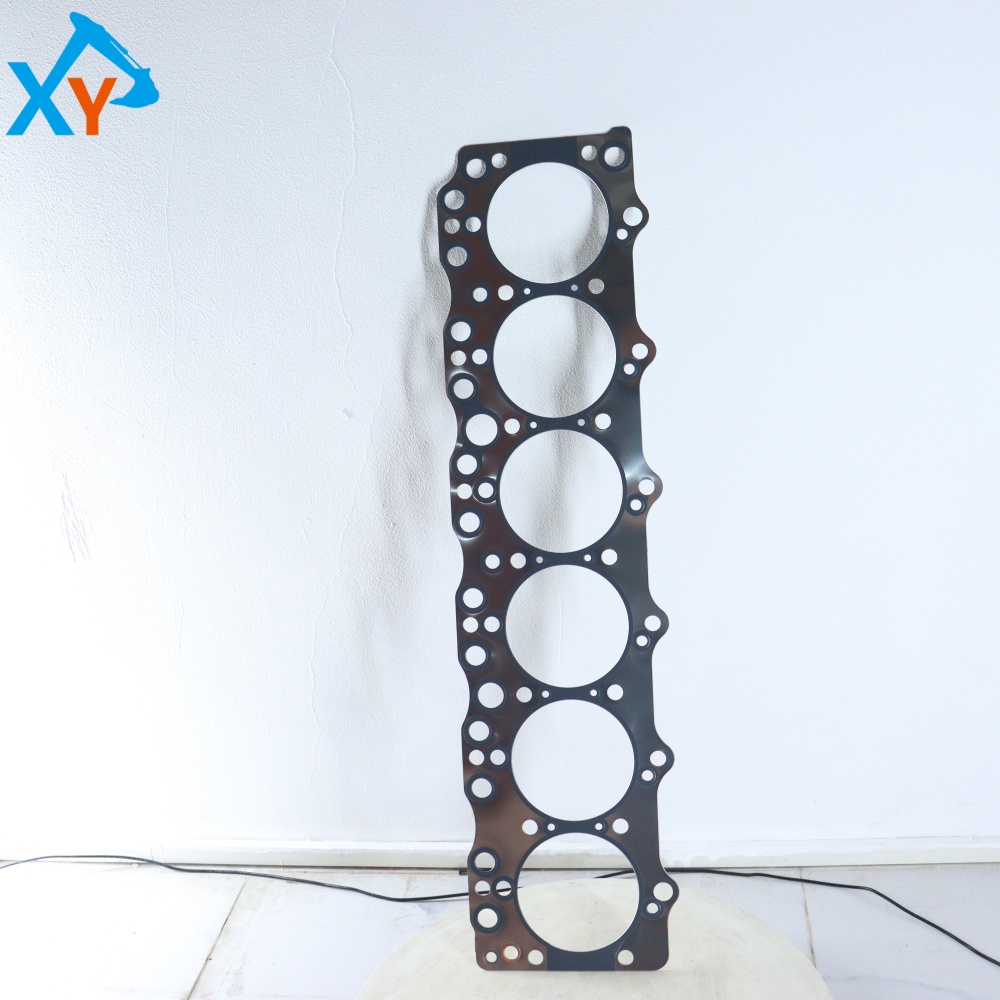

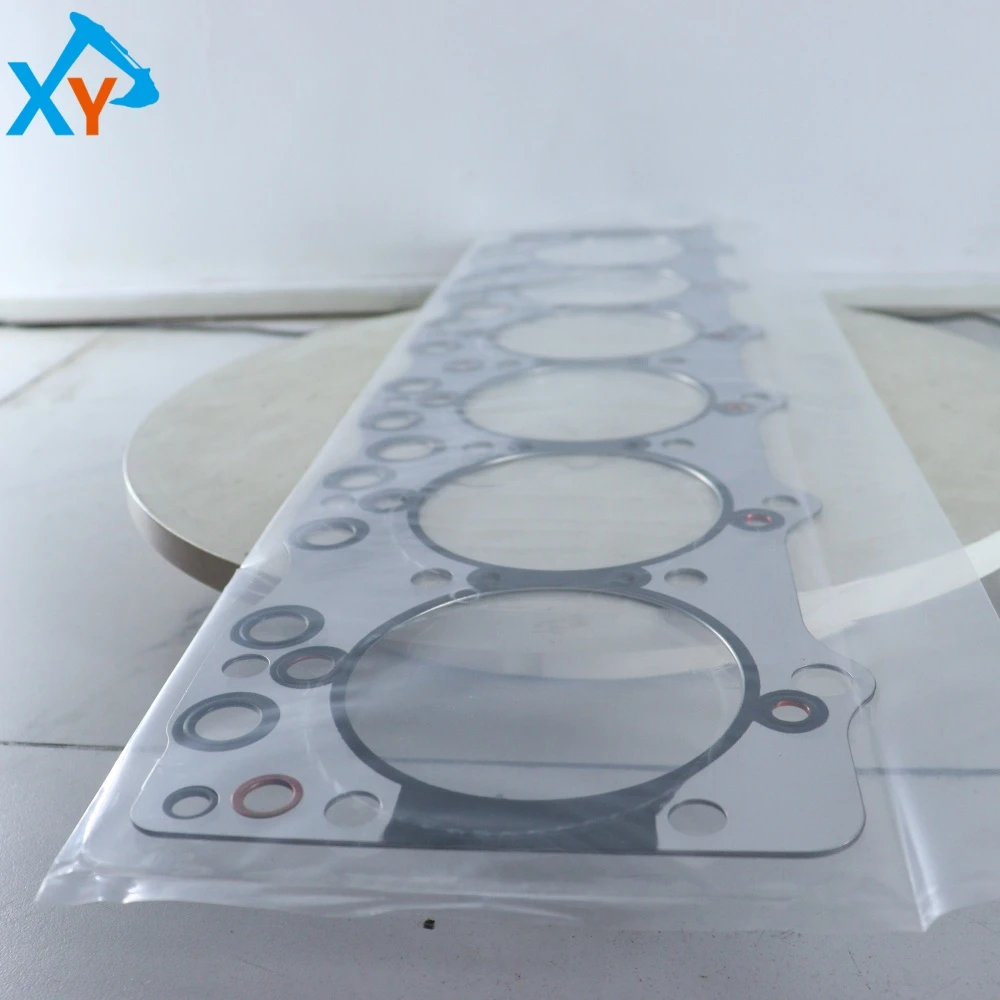

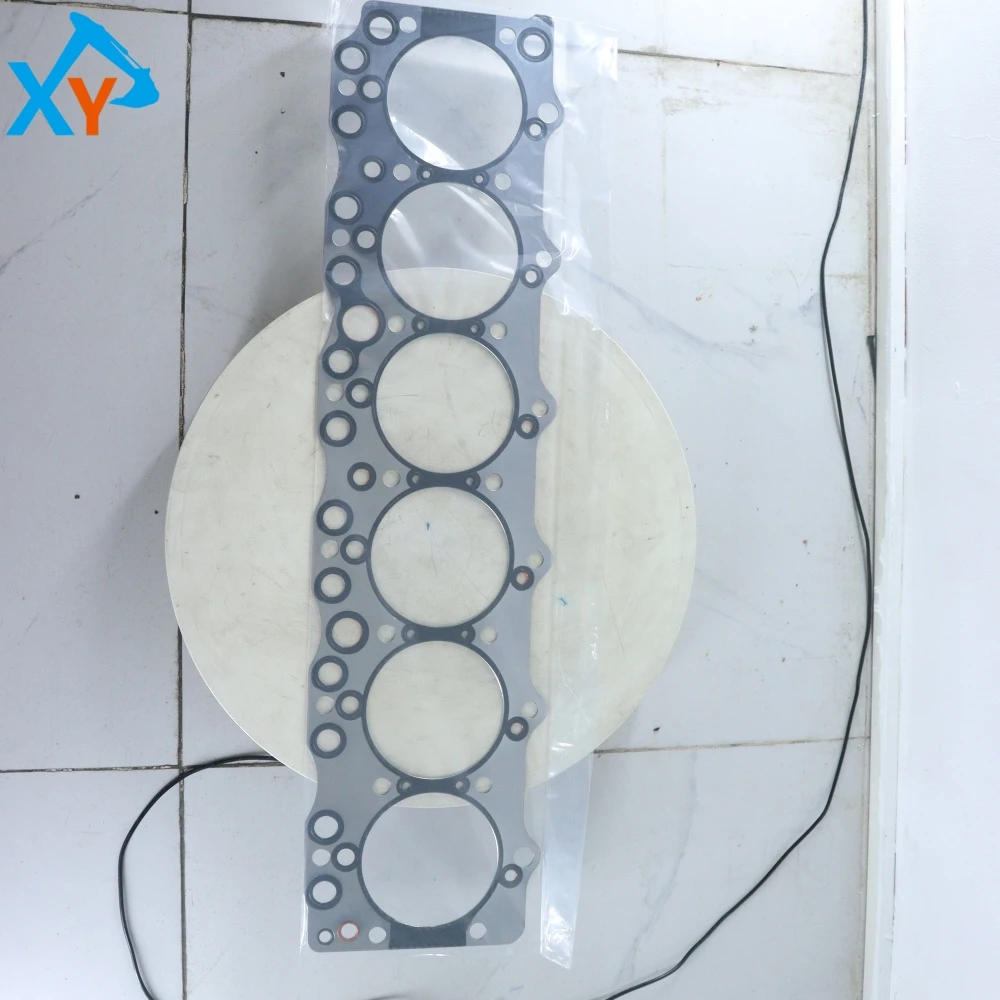

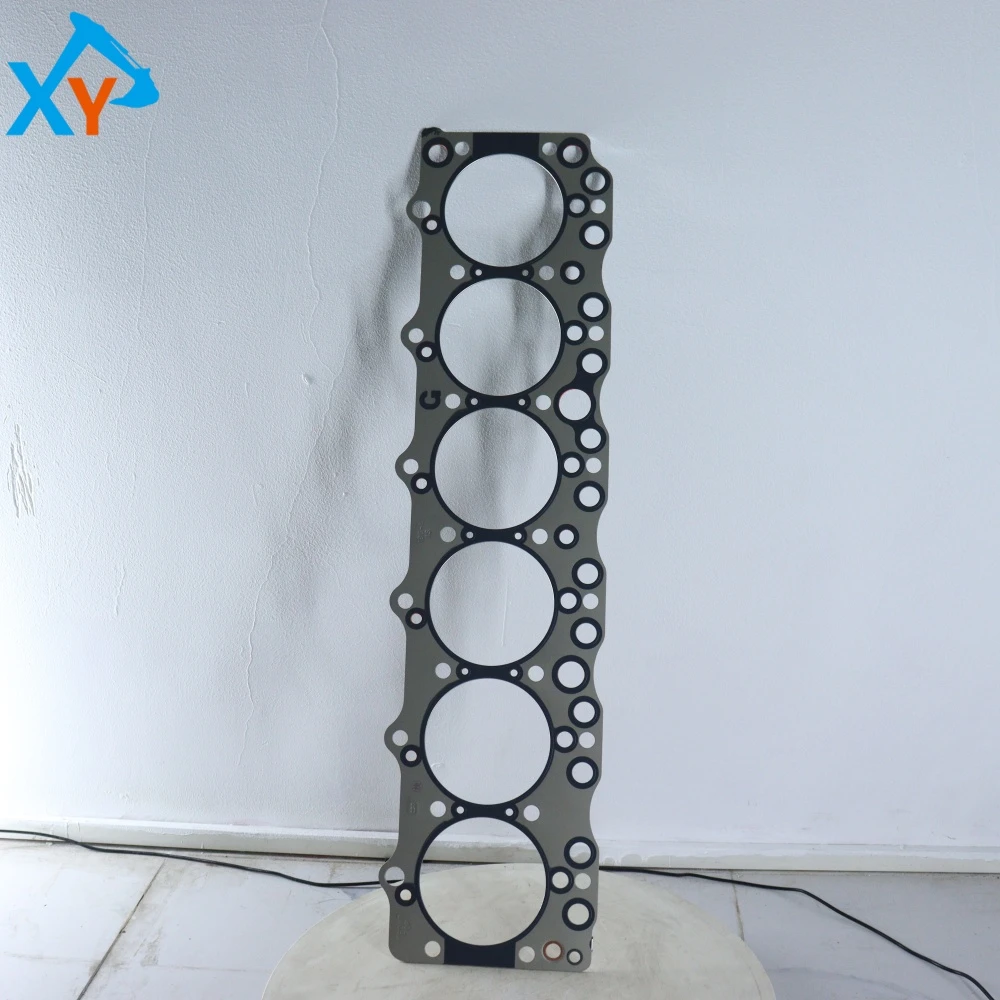

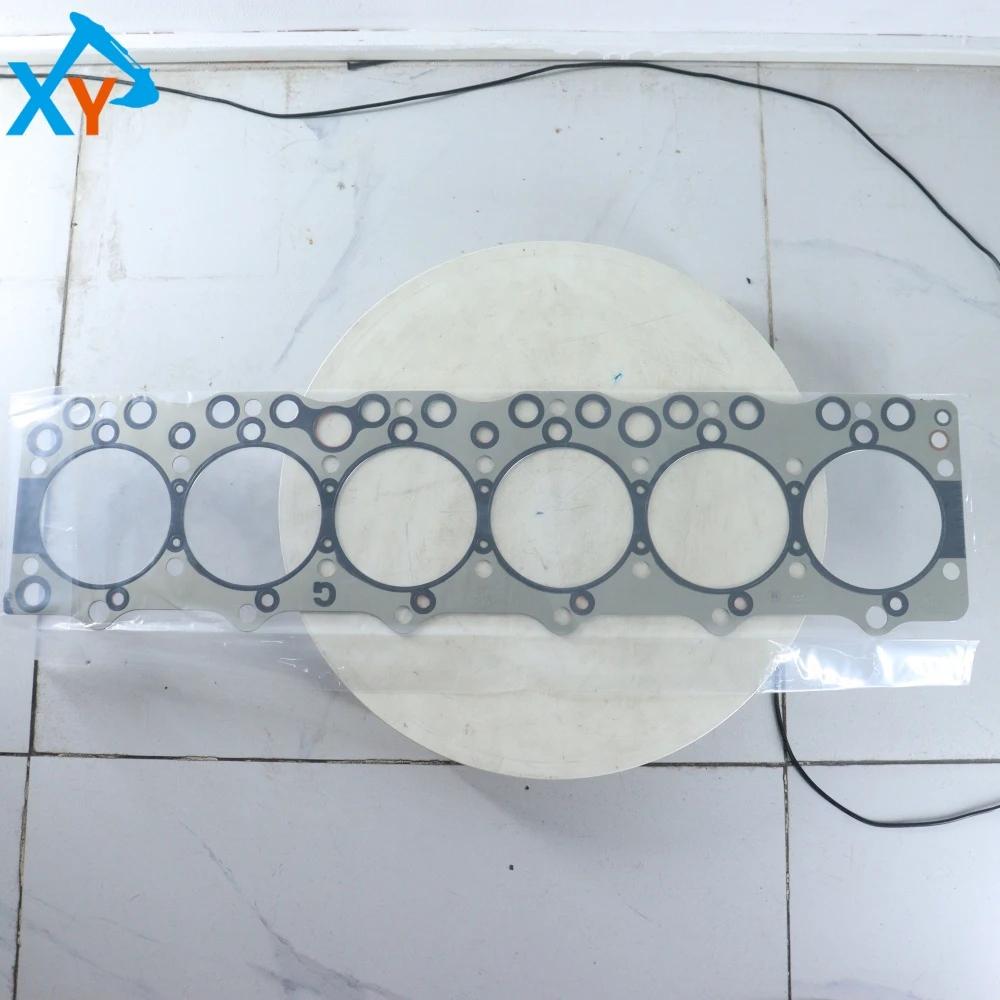

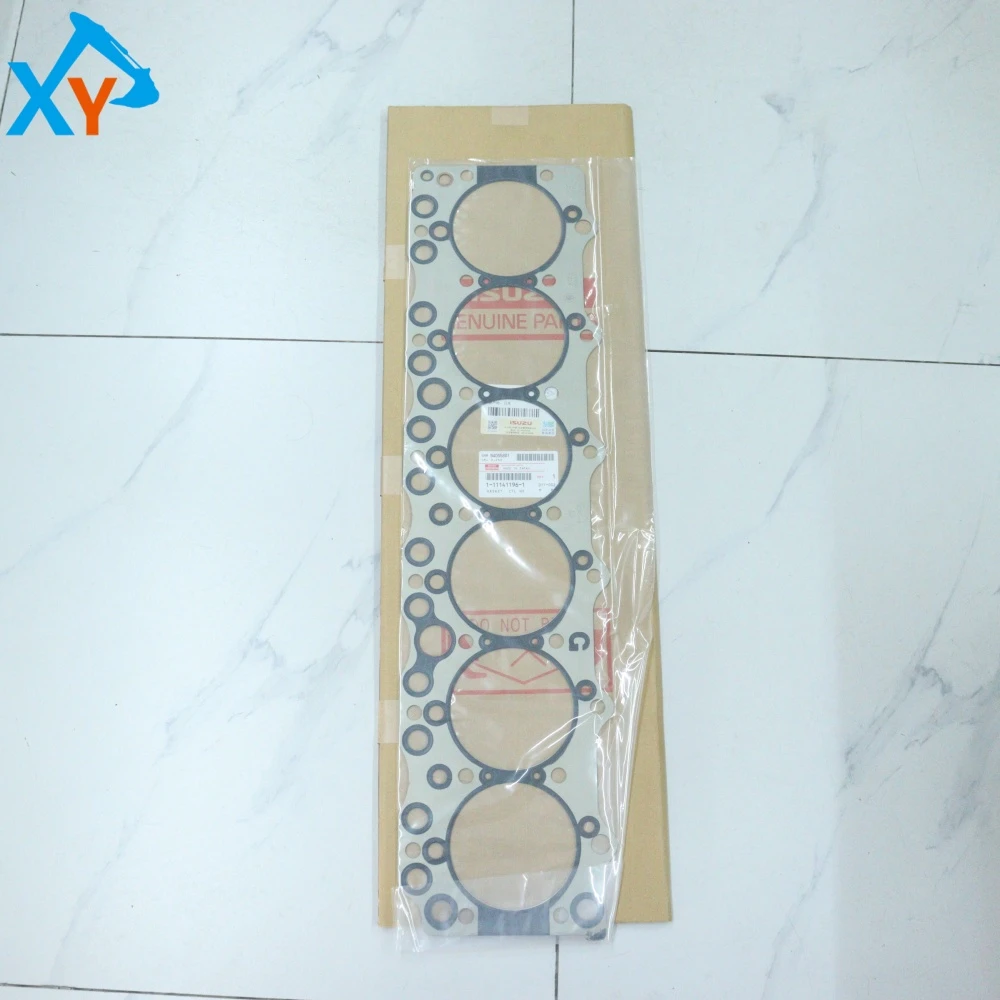

1111411961 Genuine Cylinder Head Gasket for Isuzu 6BG1 Engine Hitachi Excavator Parts

Part number 1111411961 is a special part number for the original cylinder head gasket of the Isuzu 6BG1 series diesel engine, which serves as the core sealing component for the original matching engine of Hitachi excavators. This gasket is designed specifically for Hitachi ZX series hydraulic excavators equipped with Isuzu 6BG1/6BG1T engines. Widely compatible models include Hitachi ZX200-3G, ZX240-3G, ZX250LC-3, and other models. Its original part number is 1111411961, and it is often circulated in the aftermarket in the format of 1-11141-196-0 or 5-11141-196-0. To ensure a perfect match, the part number must be verified during procurement, and it is recommended to provide the complete model, engine model, and serial number of the excavator for final confirmation.

The cylinder head gasket is the most critical static sealing component between the engine block and cylinder head. Its core function is to seal the high-temperature and high-pressure gas in the combustion chamber, while isolating the cylinder bore, oil passage, and coolant passage to prevent the occurrence of "three blowouts" (gas, oil, and water), ensuring the compression ratio, combustion efficiency, and thermal management of the engine. The gasket design has precise cylinder holes, oil passage holes, and water passage holes, and has extremely high temperature resistance (able to withstand gas temperatures above 800 ℃ for a long time), high pressure resistance (sealed combustion pressure can reach 15-20MPa), and chemical corrosion resistance (resistant to engine oil, coolant, and acidic combustion products), ensuring long-term reliable operation under the harsh thermal cycle and mechanical load of the engine.

The maintenance core of this gasket lies in preventive inspection and standardized replacement. It is recommended to conduct a thorough inspection of the gasket when disassembling and inspecting the cylinder head, taking into account the overhaul cycle of the engine every 3000 to 5000 working hours. Replacement specification: During operation, the cylinder head bolts must be removed and installed strictly in accordance with the manufacturer's specified sequence (usually from the center to both ends) and torque values (cross tightened multiple times). Before installation, it is necessary to thoroughly clean the joint surface between the cylinder block and cylinder head to ensure that there are no old gasket residues, carbon deposits, or scratches, and check the flatness of the cylinder head.
