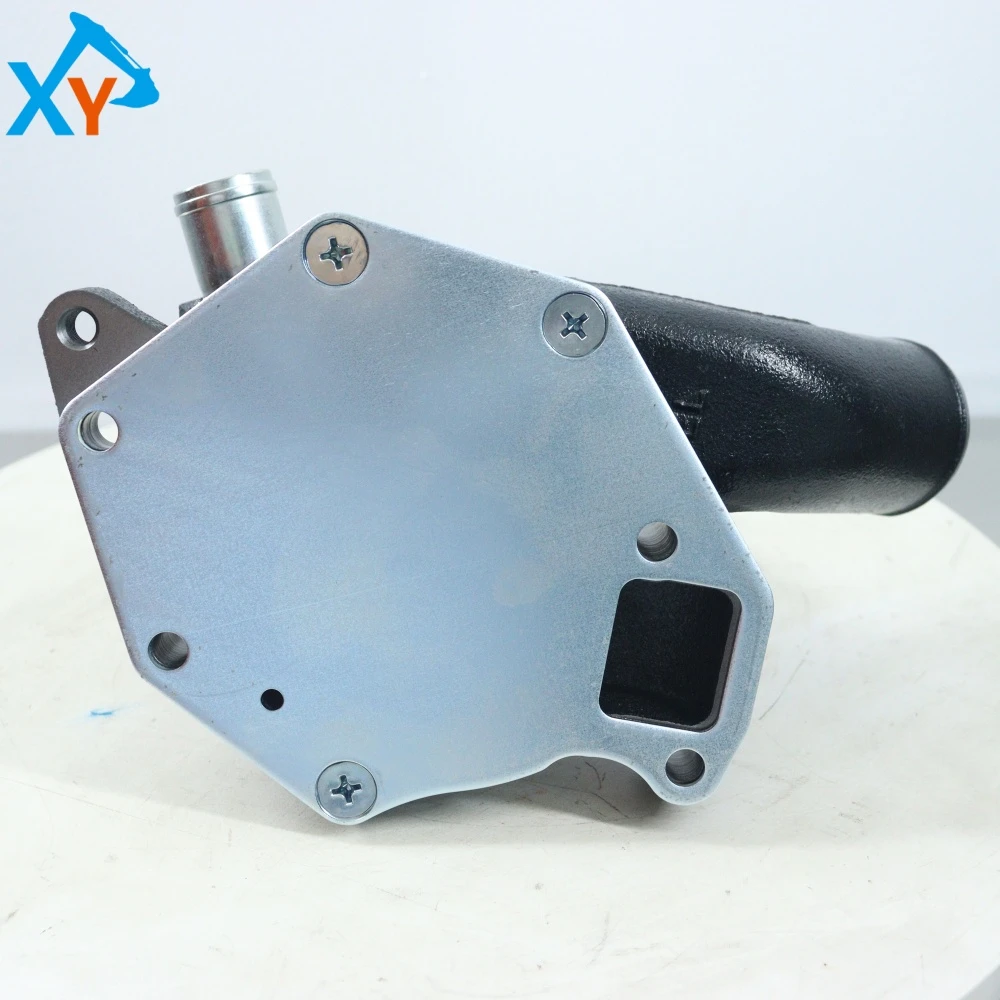

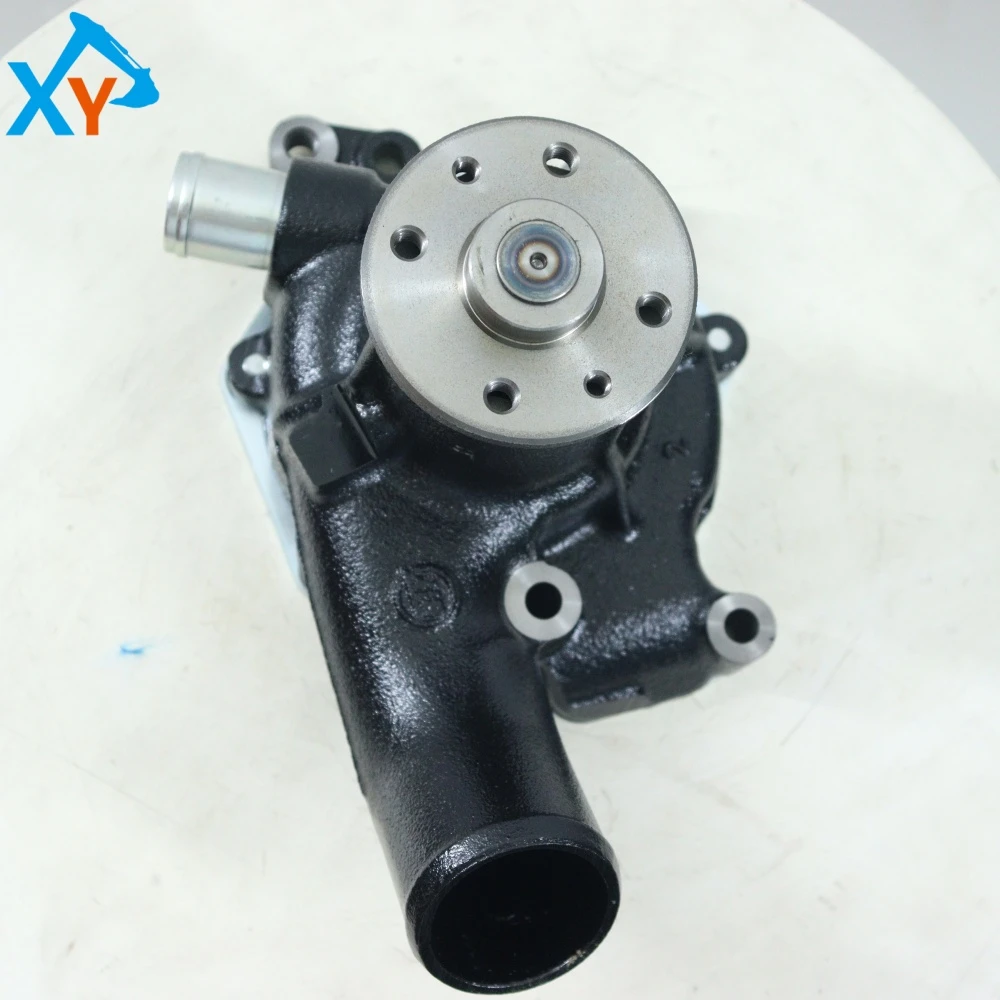

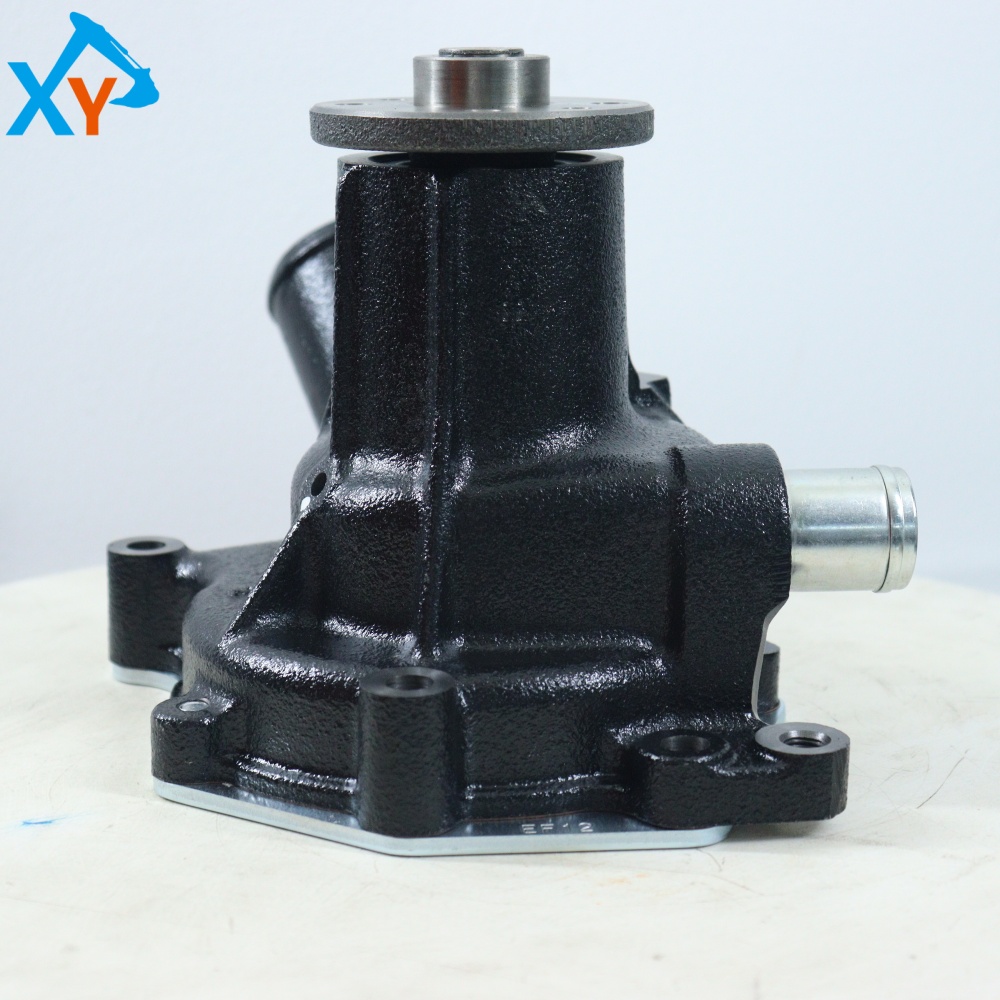

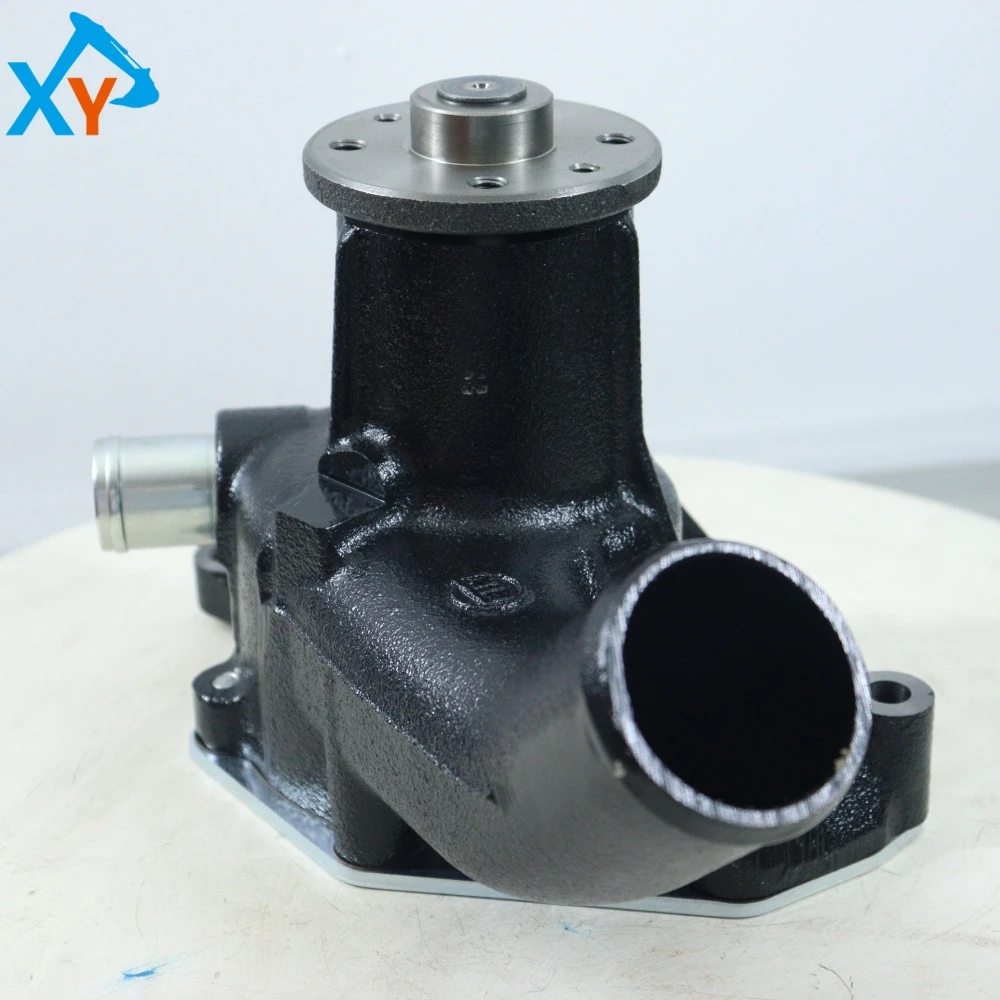

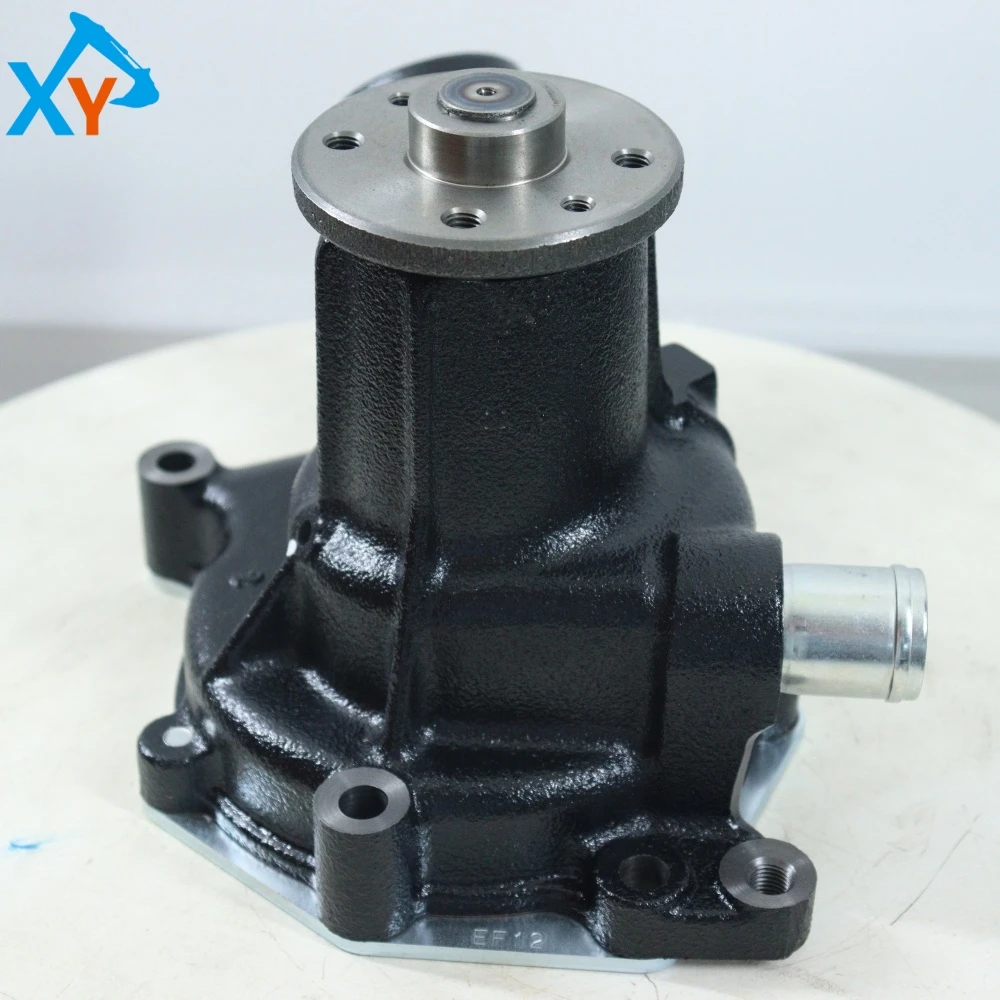

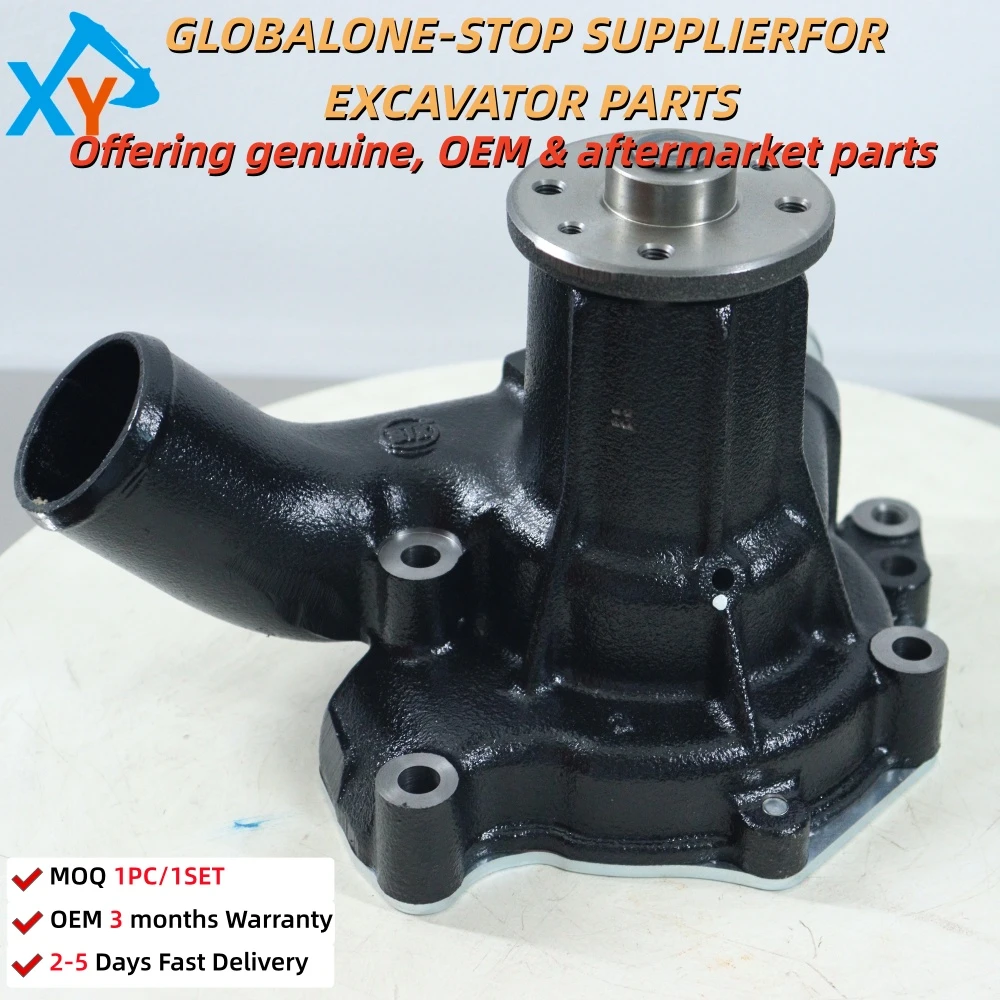

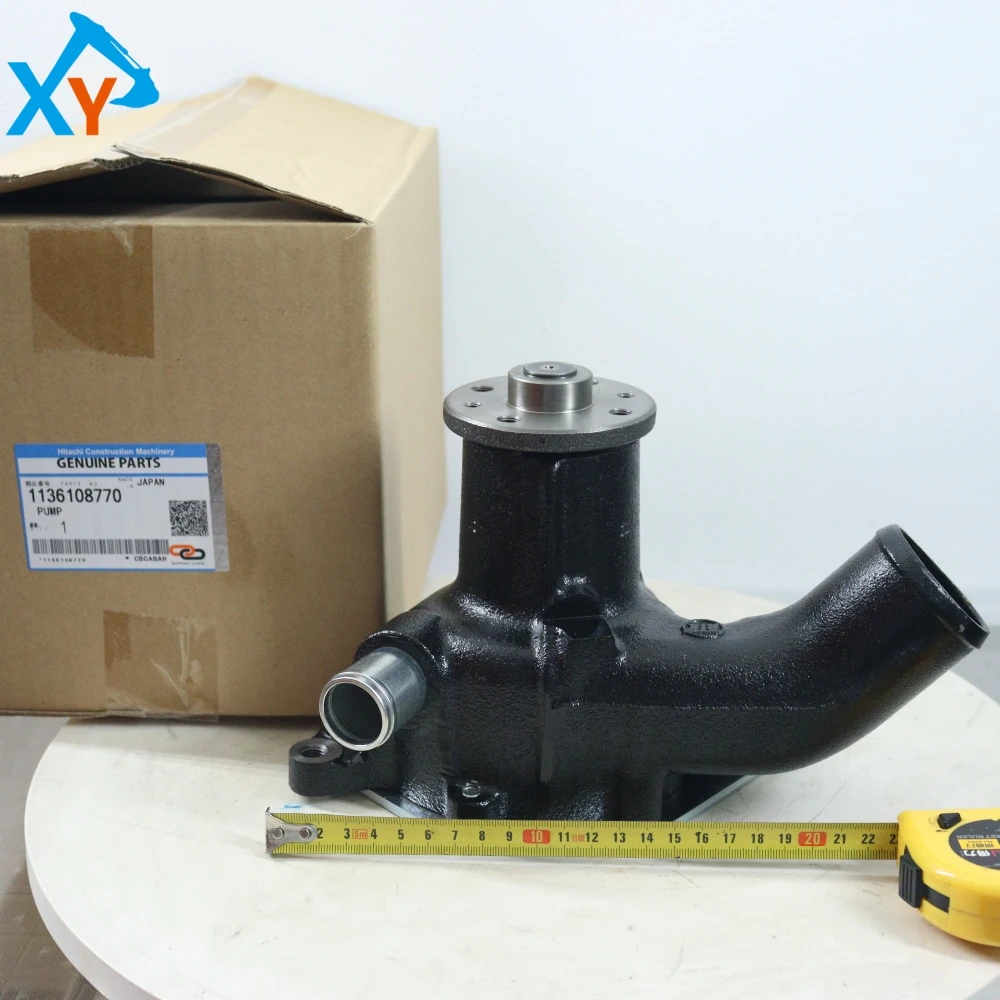

1136108770 High Quality Engine Water Pump Fits Isuzu 6BD1 6BG1 Excavator

This high-quality engine coolant water pump assembly (Part Number: 1136108770) is precision-engineered to meet rigorous original equipment specifications, ensuring direct-fit compatibility and dependable thermal regulation. Specifically developed for heavy-duty industrial powertrain applications, it is fully compatible with Isuzu 6BD1, 6BD1T, 6BG1, and 6BG1T 6-cylinder diesel engine platforms. It serves as a direct OEM-equivalent replacement across a broad range of hydraulic excavators, including popular Hitachi EX-series and early ZAXIS models (such as EX200-2, EX200-3, and EX200-5), as well as compatible JCB, Sumitomo, and Kobelco earthmoving machinery. Featuring standardized mounting flange patterns, precise pulley hub heights, and factory-matched port configurations, this pump installs seamlessly without requiring modifications or adapter plates, restoring optimal coolant circulation and preserving engine thermal balance under demanding high-load excavation conditions.

Manufactured to endure the severe thermal stresses, continuous vibration, and hydraulic pressures typical of heavy-duty earthmoving applications, this water pump is built around a high-density cast iron housing engineered for exceptional structural rigidity and corrosion resistance. It incorporates a precision-balanced, anti-cavitation impeller that delivers high-volume coolant flow across all engine speed ranges while minimizing turbulence and internal parasitic drag. The internal drive mechanism features a heavy-duty integral spindle bearing capable of absorbing high axial and radial belt tension loads. Coupled with a premium silicon-carbide mechanical face seal and high-grade Viton dynamic elastomeric gaskets, the assembly effectively prevents high-pressure coolant leakage and bearing contamination. This robust construction delivers superior resistance to heat distortion, cavitation erosion, and fatigue failure, ensuring continuous, reliable engine cooling performance throughout arduous operating shifts.

To ensure maximum cooling efficiency and extend component service life, regular thermal management inspections should be integrated into the machine’s scheduled maintenance program. Periodically inspect the pump’s weep hole for signs of persistent coolant leakage or dried residue, which indicates impending mechanical seal failure. Verify drive belt tension and alignment during routine oil changes to prevent excessive lateral load on the pump bearings. Always flush the cooling system and refill with manufacturer-approved ethylene-glycol anti-freeze coolant mixed with demineralized water at recommended service intervals; operating with contaminated water or depleted anti-corrosion additives accelerates impeller cavitation and seal degradation. When installing a replacement unit, ensure mating block surfaces are thoroughly cleaned and torque mounting fasteners evenly to factory specifications using a new gasket, avoiding excess liquid sealant that can clog internal coolant passages.
