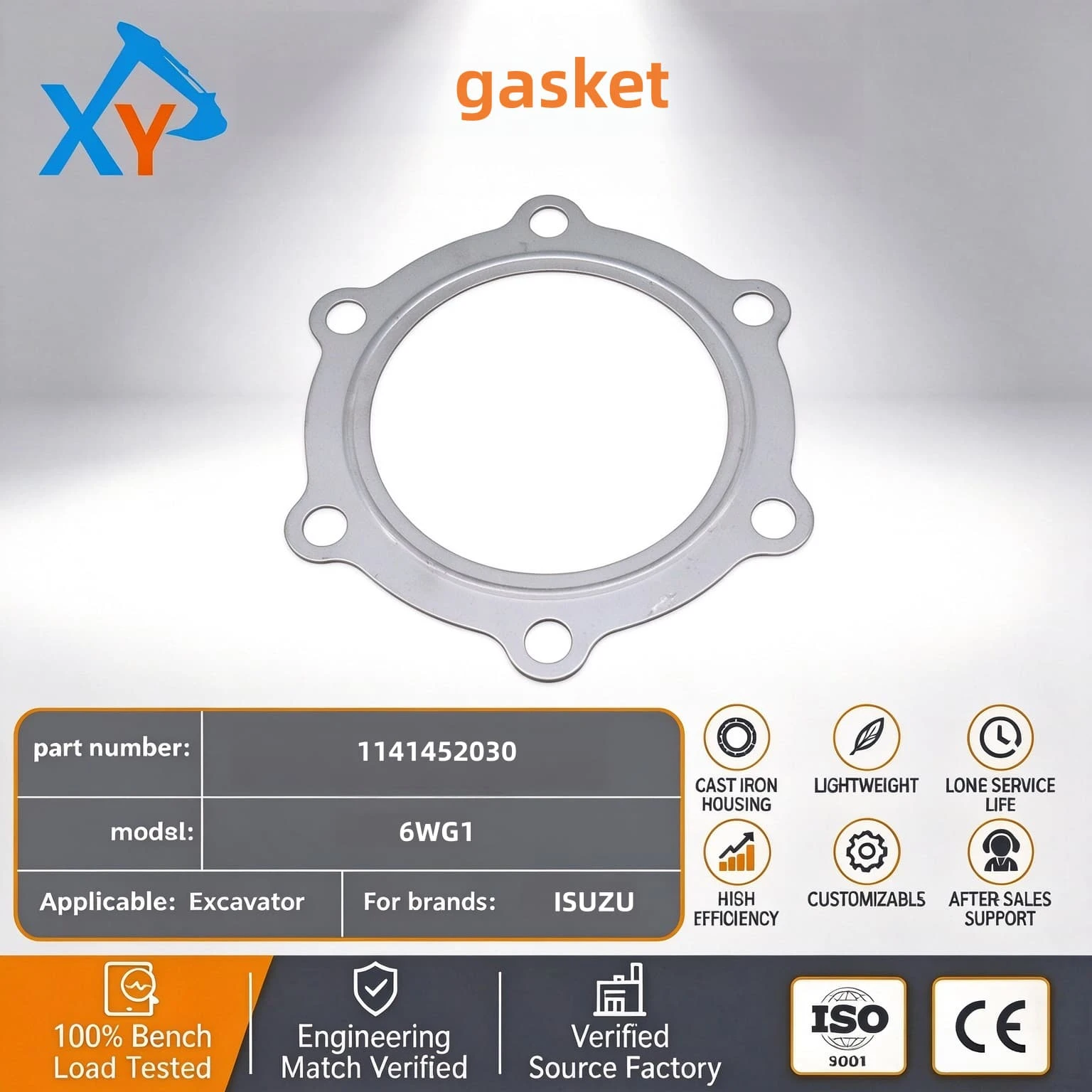

1141452030 Original excavator 6wg1 engine turocharger to exh duct gasket

This gasket is the original exhaust sealing gasket 1141452030 specifically designed for Isuzu 6WG1 series turbocharged diesel engines, used to seal the high-temperature and high-pressure interface between the turbocharger outlet and the exhaust pipe (or exhaust manifold). It is mainly suitable for large excavators equipped with this engine, such as Hitachi's ZX450-3, ZX470-3, ZX650-3, ZX870-3 and other models. The universal part number may vary depending on specific engine variants, production years, and OEM requirements. Common original part numbers may include 1-16157015-0 or 116157-0150.


This product is an original high-temperature resistant metal composite sealing gasket designed to cope with the harsh working conditions of extreme high temperature (up to 700 ℃ or above) and high-pressure exhaust gas impact at the outlet end of the turbocharger. Its typical structure is made of stainless steel (such as 304/316) skeleton and flexible graphite or ceramic fiber composite compression, which combines the strength of metal and the elasticity of composite material. The surface of the gasket usually has precision stamped sealing ripples or ribs, which can produce effective plastic deformation under the pre tightening force of the bolt, fill the micro unevenness of the flange surface, and achieve long-lasting airtight sealing.

Daily inspection and maintenance: After starting the engine in each shift, monitor the turbocharger to exhaust pipe area in a safe position for any "hissing" air leakage sound; Regularly (e.g. every 500 working hours) visually inspect the connection for blackened oil stains and carbon deposits, which are usually signs of minor leaks. Timing of replacement: When there is a decrease in engine power, abnormal increase in fuel consumption, abnormal exhaust noise, or the malfunction light is on, the gasket should be inspected carefully.
