1144003830 Turbocharger for ISUZU Engine 6WG1 Hitachi Excavator

The part number 1144003830 is an original turbocharger that is compatible with the 6WG1 series large displacement diesel engine by ISUZU (Isuzu). This component is the core of the engine intake system, which utilizes exhaust energy to drive the turbine, significantly increasing intake pressure and density, thereby significantly improving engine power, torque, and fuel economy. Its universal models cover various large mining equipment equipped with 6WG1 engines, mainly including Hitachi EX3600-5/6, EX2600-5, ZX470LCH-5G, ZX850-5 and other 45-80 ton large/ultra large hydraulic excavators. As a key component for original power enhancement, its interface size and boost characteristics are perfectly matched with the engine ECU calibration. The use of non-standard spare parts is strictly prohibited to avoid abnormal engine power, sharp increase in fuel consumption, or serious mechanical failures.

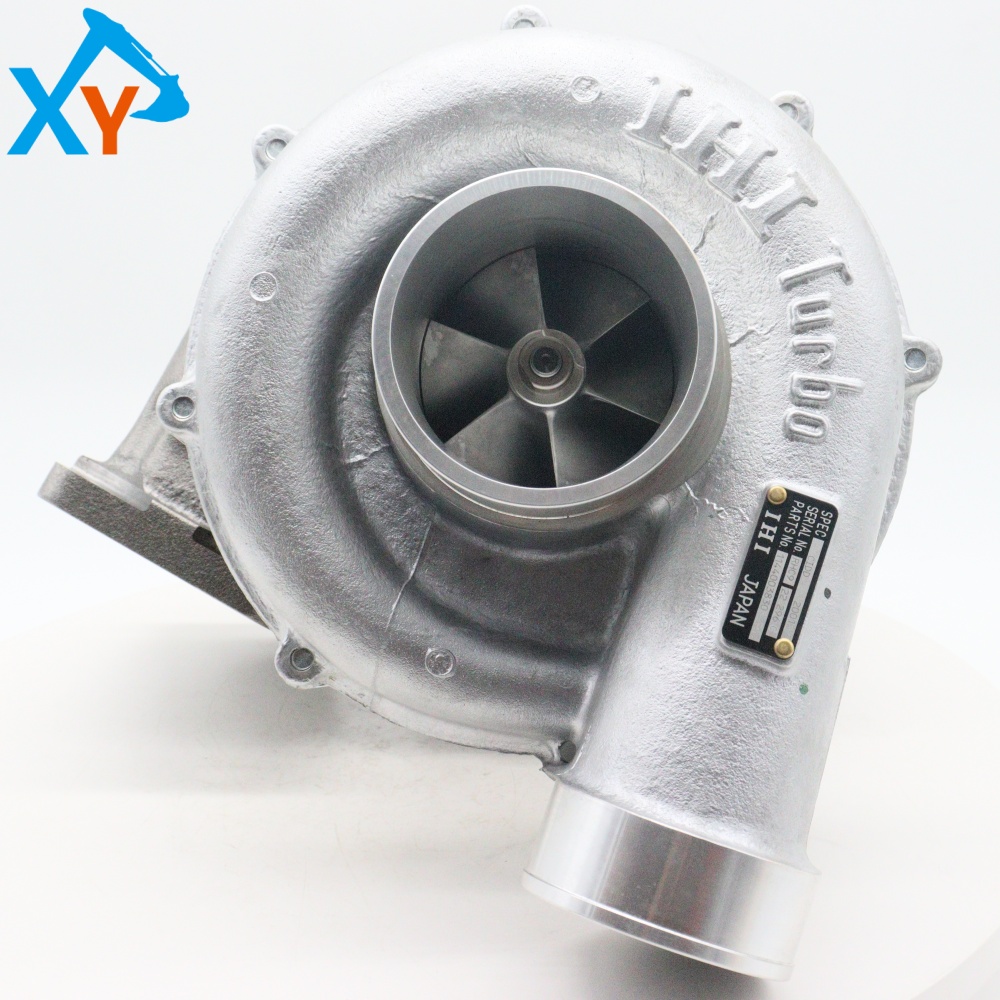

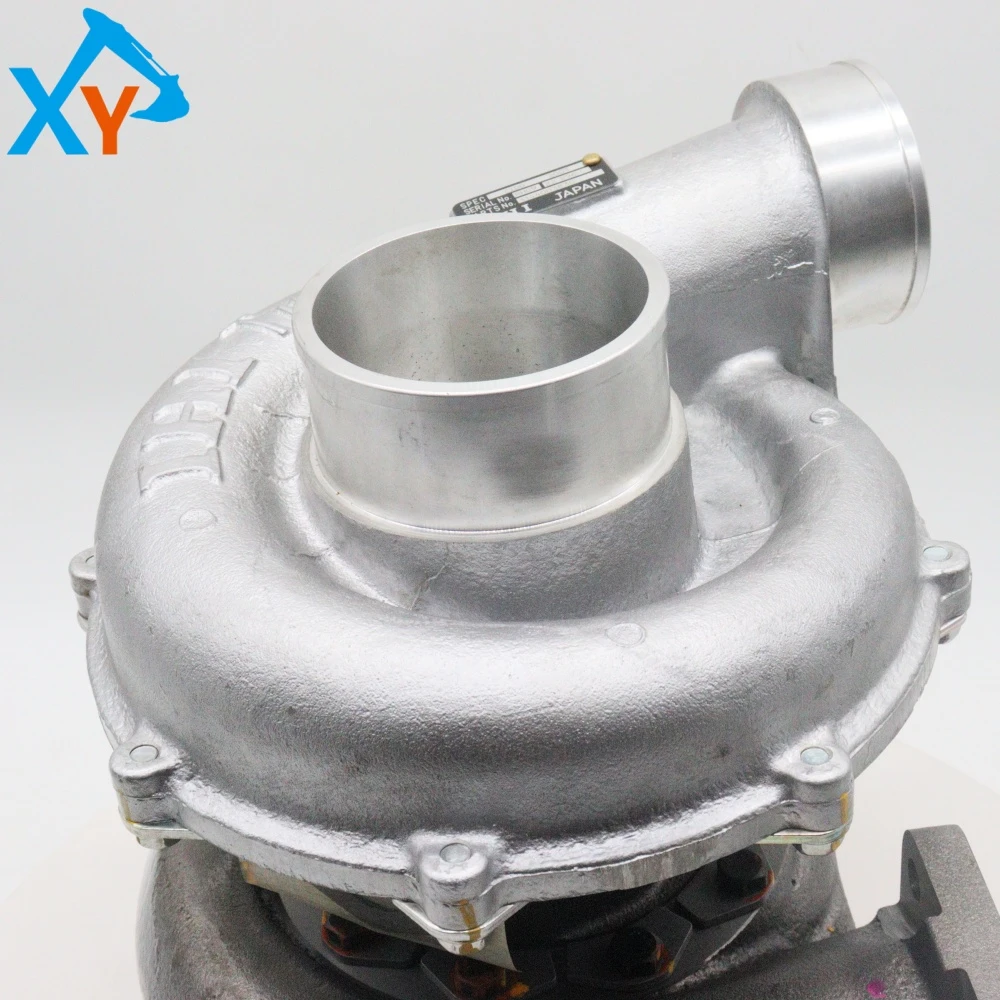

This product is an exhaust gas turbocharger with a structure identical to the picture you provided: it adopts a classic axial flow turbine and centrifugal compressor arranged back-to-back, connected by a high-speed rotor shaft. The turbine casing (exhaust side) is made of high-temperature resistant high nickel cast iron, which is dark gray in color and can withstand continuous high exhaust gas temperatures of ≥ 950 ℃; The compressor housing (intake side) is made of aluminum alloy casting, presenting a silver gray color, and the airflow path has been optimized to improve efficiency. The core rotor assembly adopts a fully floating bearing design, which is pressure lubricated and cooled by engine oil. Its boost pressure range is usually 2.0-3.0 bar, and the maximum speed can reach 100000-120000 revolutions per minute. Turbochargers typically integrate Wastegate actuators to precisely control boost pressure and prevent engine overload. The "RICHMOND" on the label may be the OEM logo or brand information.

Daily inspection: Every 250 working hours, check for leaks in the intake and exhaust pipelines, oil stains at the inlet and outlet of the compressor, and monitor for abnormal whistling or friction sounds during turbine operation. Key maintenance: 1 Engine oil and filter: It is necessary to use fully synthetic engine oil of the specified grade from the original factory, and change the engine oil and filter on time every 500 hours, which guarantees the service life of the turbine bearings; 2. Air filter: Clean every 250 hours and replace every 1000 hours to prevent dust from entering and damaging the compressor impeller. Fault diagnosis: If there is a serious decrease in engine power, blue smoke (burning oil), abnormal noise, or insufficient boost pressure, it is necessary to immediately investigate: check whether the intake pipeline leaks, whether the intercooler is blocked, whether the oil supply is normal, and whether the axial/radial clearance of the turbine rotor exceeds the standard (normal axial clearance ≤ 0.1mm, there should be no shaking sensation when manually pushing and pulling the compressor impeller).
