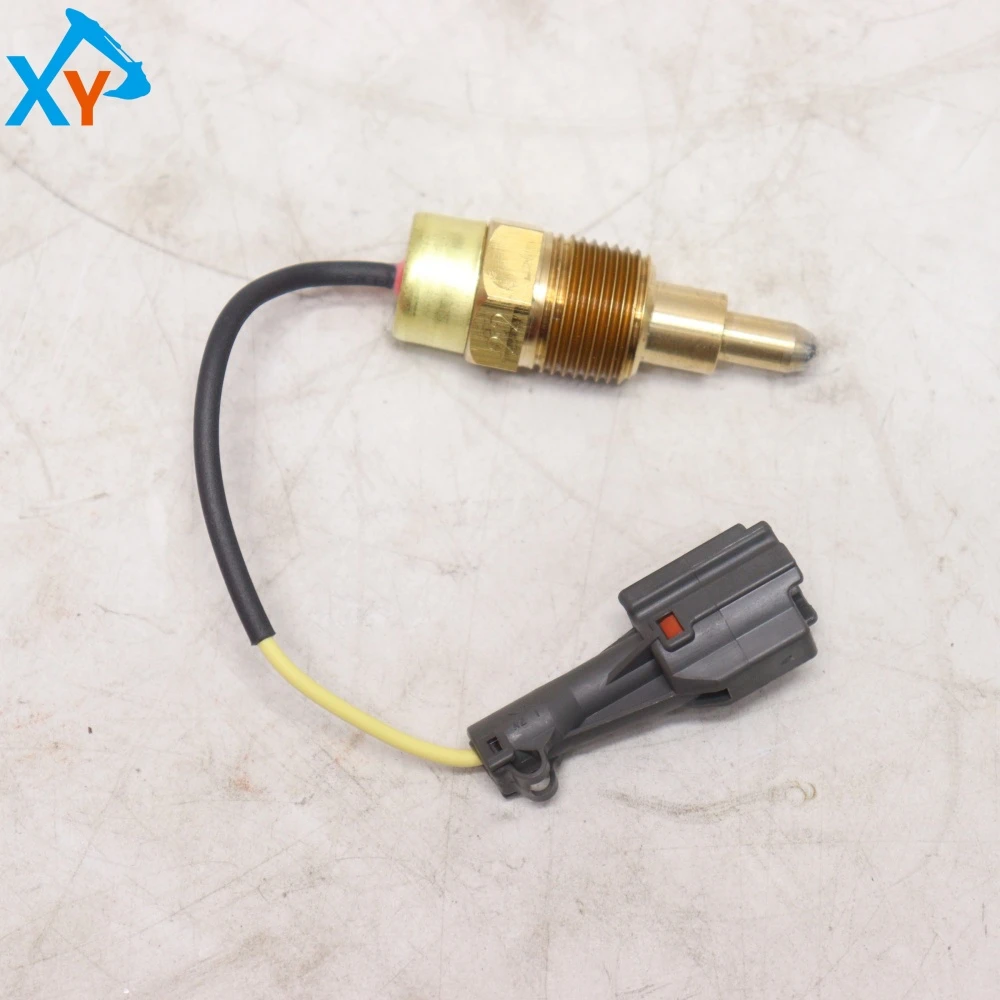

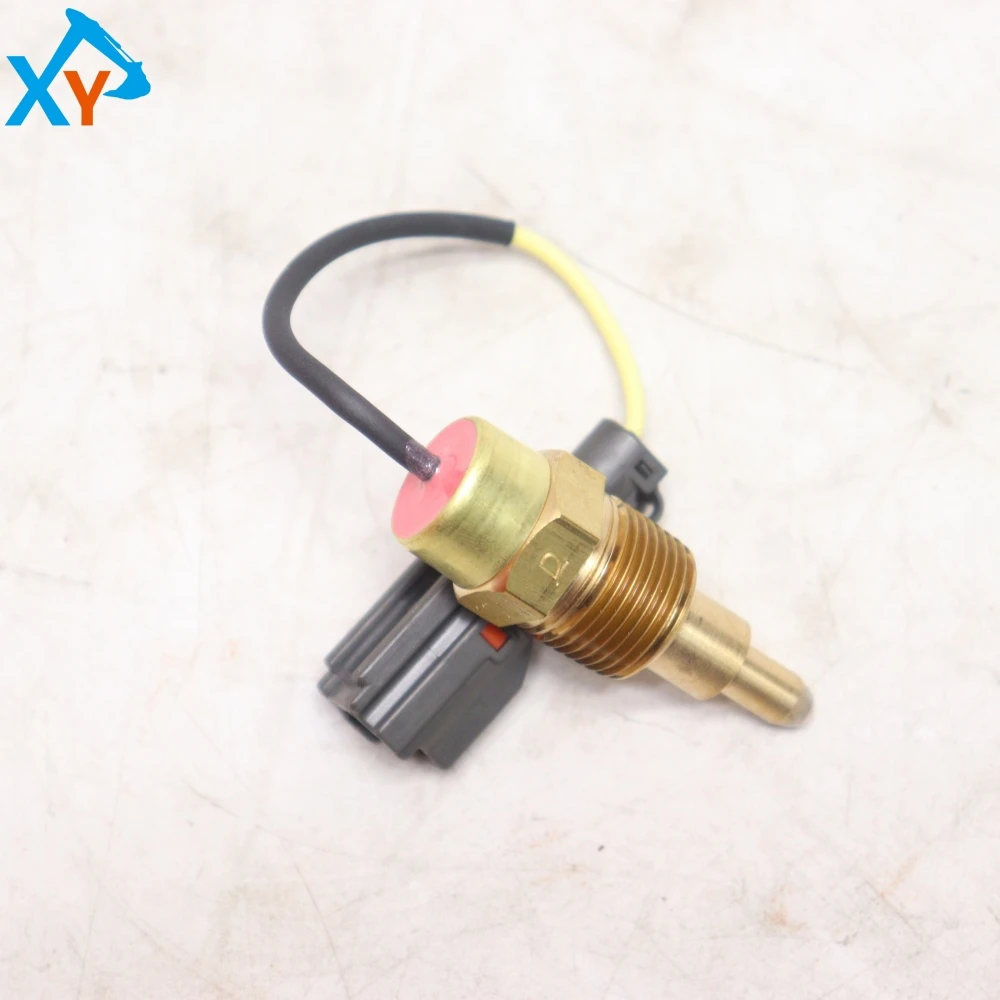

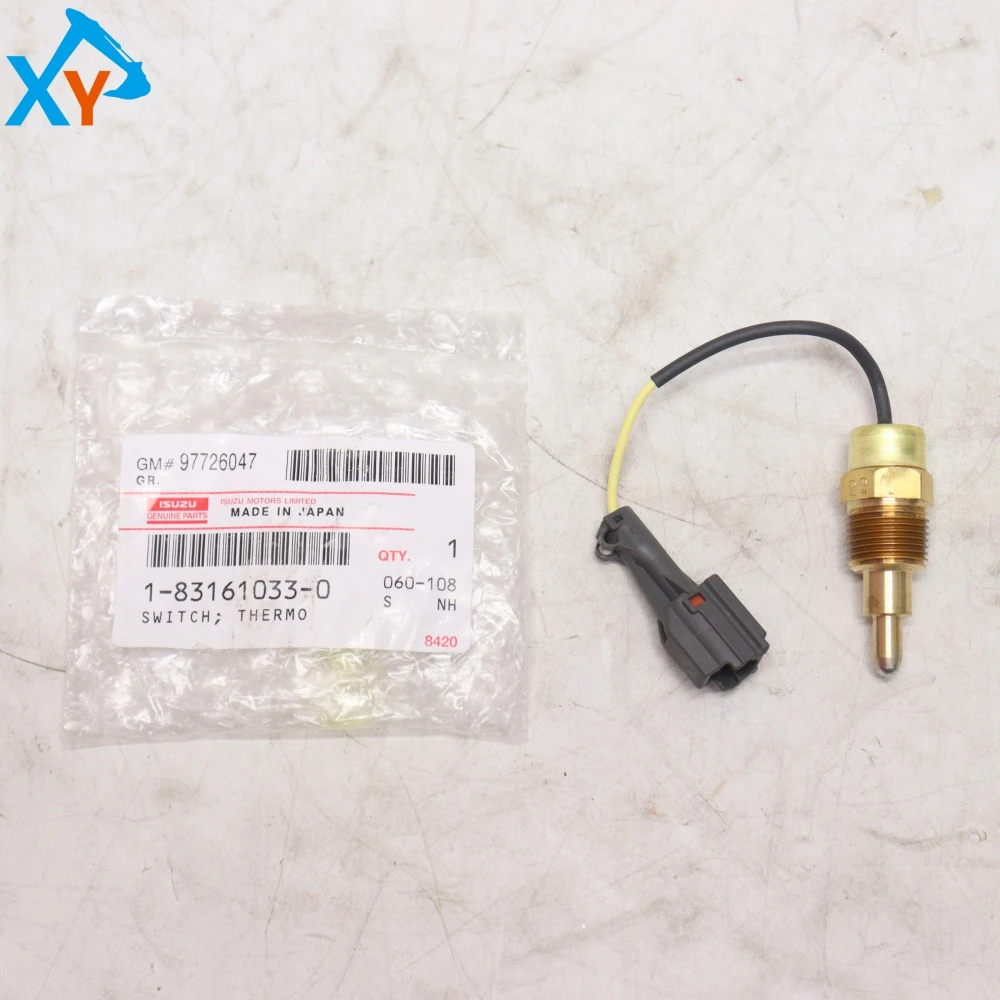

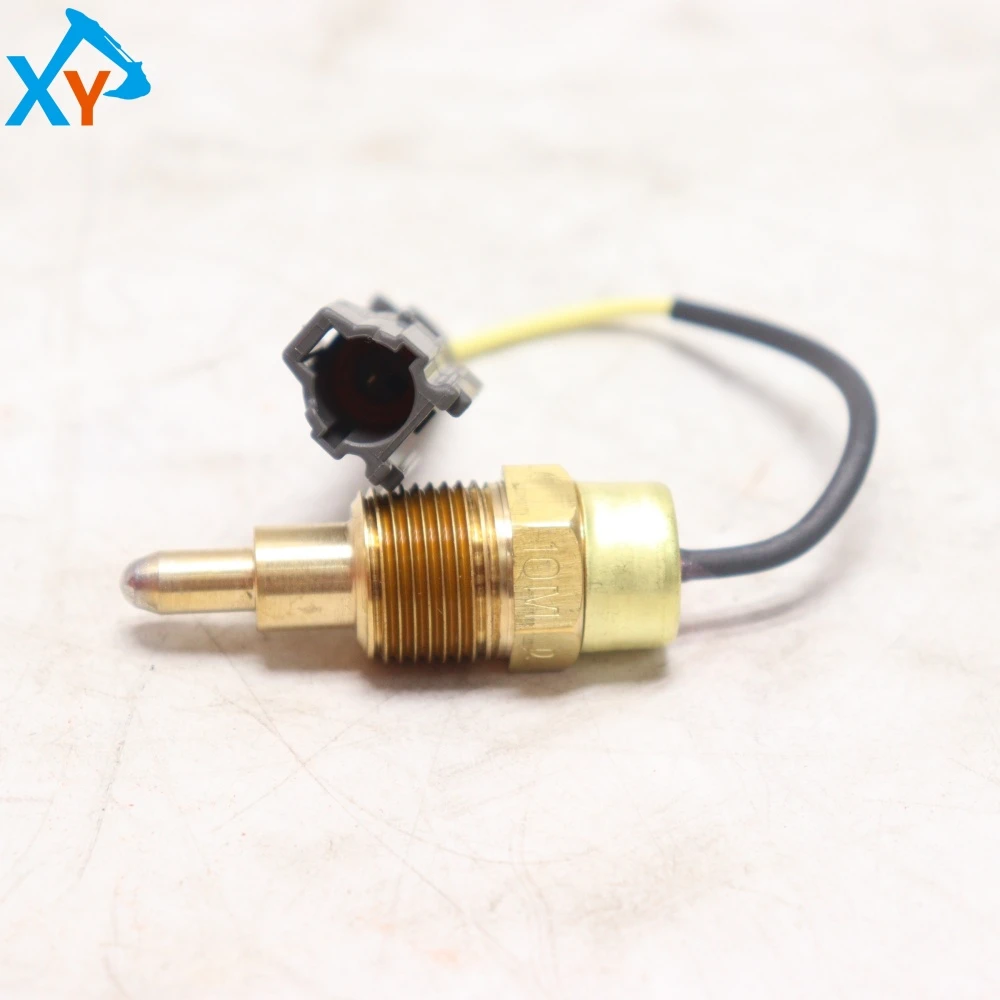

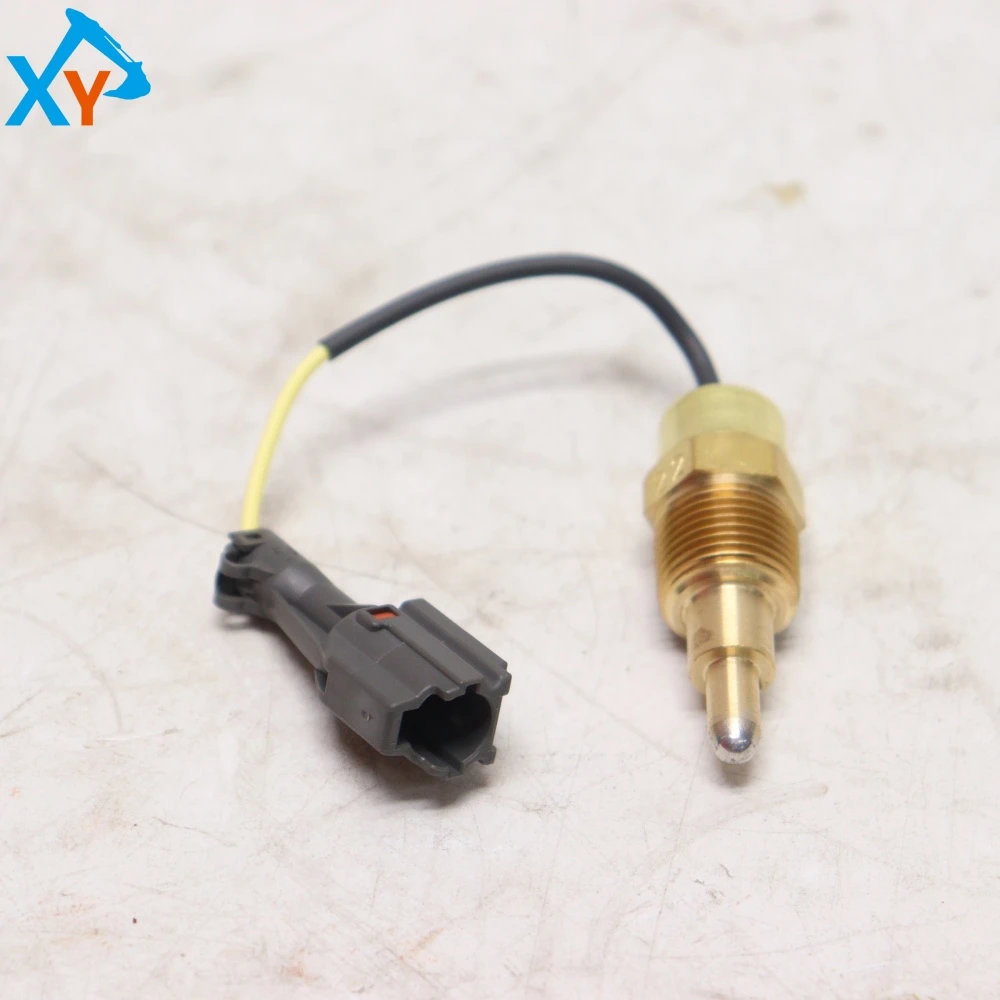

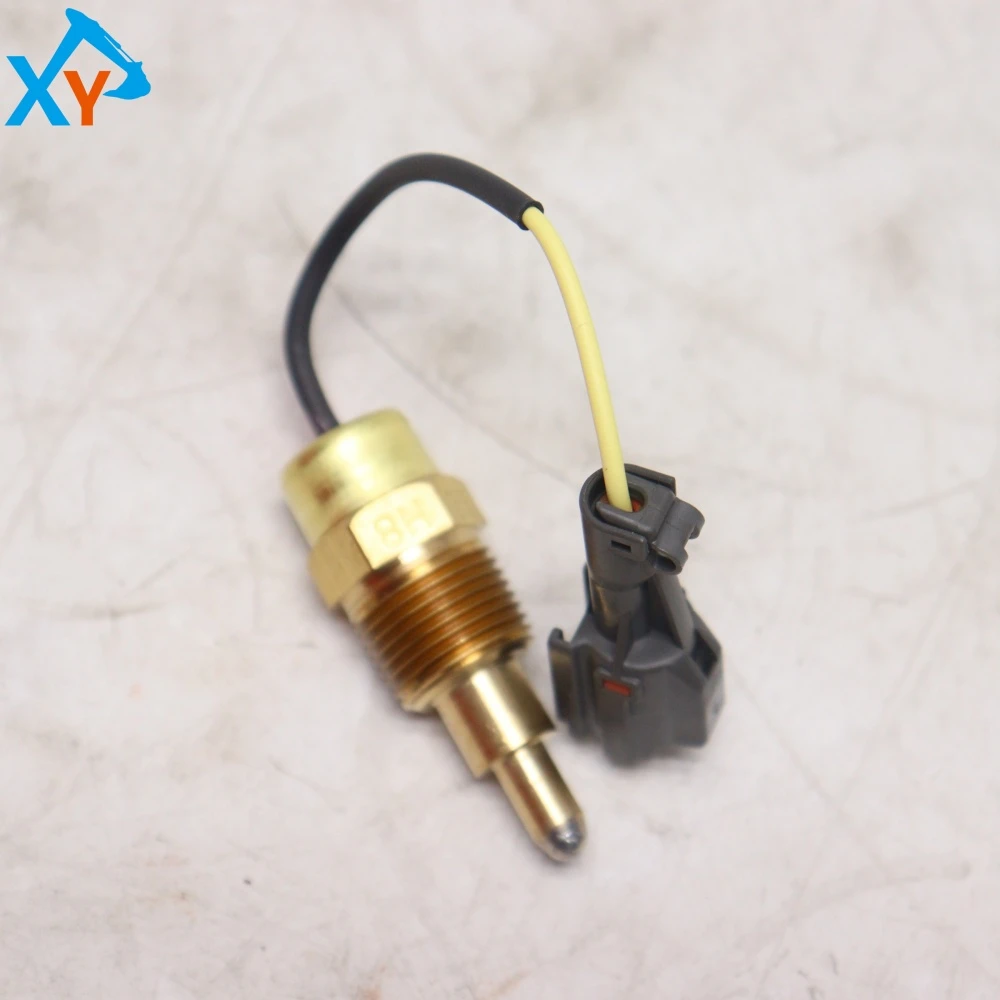

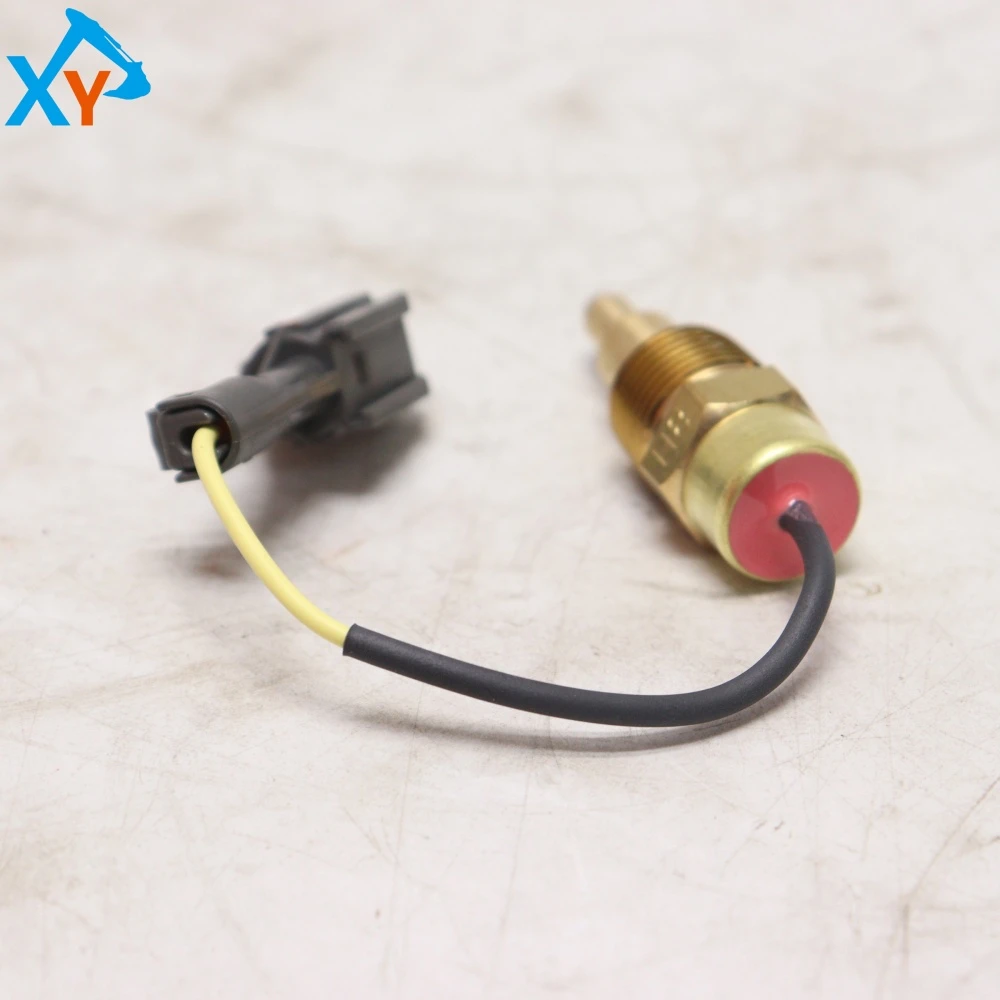

1831610330 Original Isuzu 6HK1 Engine Water Temperature Sensor

The original Isuzu 6HK1 engine water temperature sensor (part number: 1831610330, commonly labeled as 1-83161033-0) is a key temperature monitoring component designed specifically for Isuzu 6HK1 series diesel engines. This sensor is mainly suitable for various construction machinery equipment equipped with this engine, especially widely used in Hitachi ZX series excavators, including ZX200-3, ZX210, ZX240-3, ZX330-3, ZX350, ZX370 and many other models.

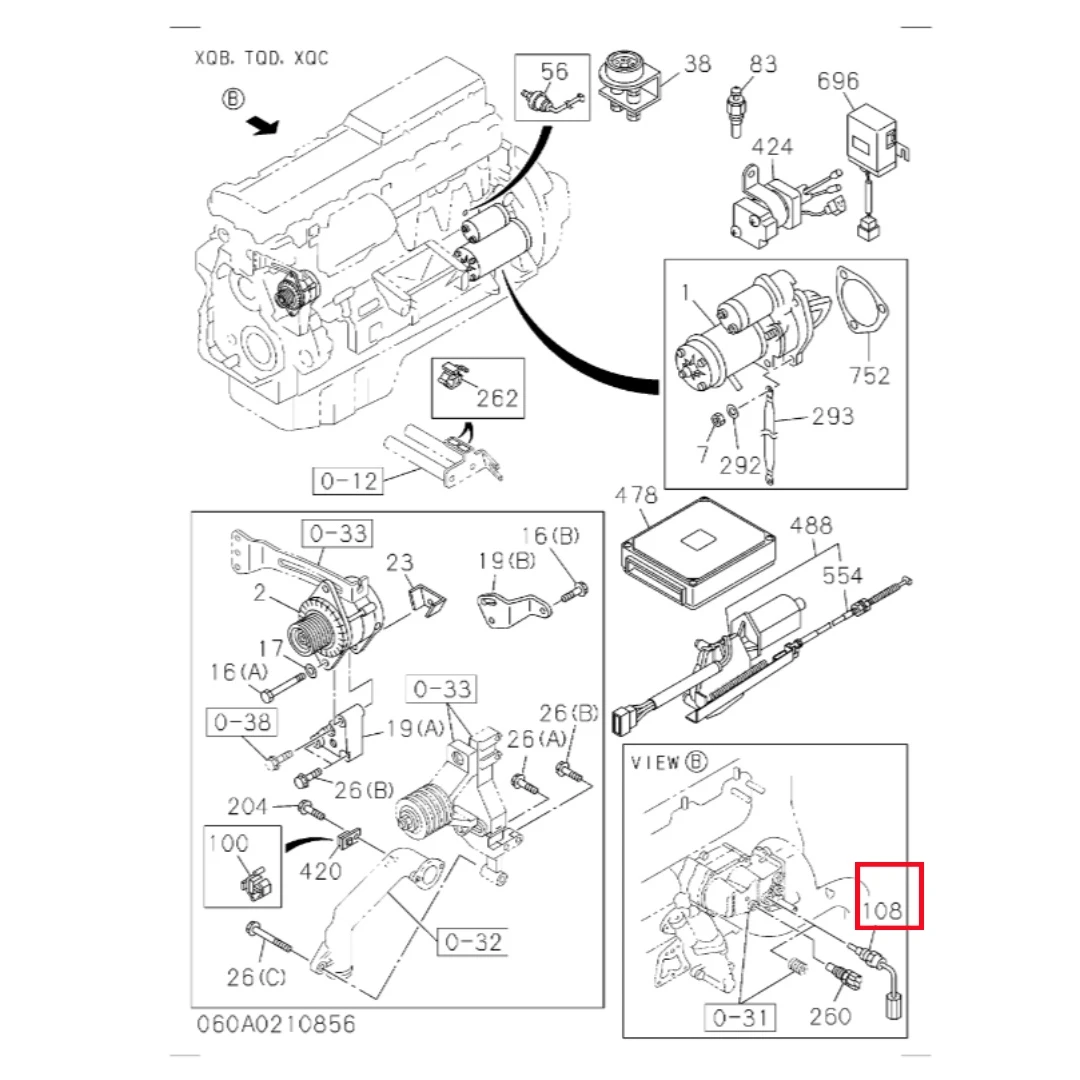

The water temperature sensor is manufactured using the principle of negative temperature coefficient (NTC) thermistor, and its core characteristic is that the resistance value decreases as the coolant temperature increases. It is usually installed near the engine thermostat housing or on the cylinder head waterway, with its metal probe directly immersed in the coolant to sense temperature changes in real time and accurately. The sensor converts the temperature signal into a linear voltage signal (usually 0.1-4.8V) and transmits it to the engine control unit (ECU). Based on this, the ECU accurately adjusts the fuel injection quantity, ignition timing, idle speed, and controls the start and stop of the cooling fan, ensuring that the engine always operates in the optimal operating temperature range (usually 85-105 ° C), guaranteeing power, economy, and emission compliance.

The maintenance core of this sensor lies in regular inspection, accurate diagnosis, and standardized replacement. Regular inspection: It is recommended to check the sensor plug and wiring harness for looseness, corrosion, or damage every 500 working hours or every 3 months during maintenance, and observe for coolant leakage traces around them. Fault diagnosis: If there are symptoms such as abnormal readings on the water temperature gauge (usually indicating high or low temperature), difficulty starting the engine cold, unstable idling, abnormal increase in fuel consumption, or disordered operation of the cooling fan, sensor faults should be suspected.
