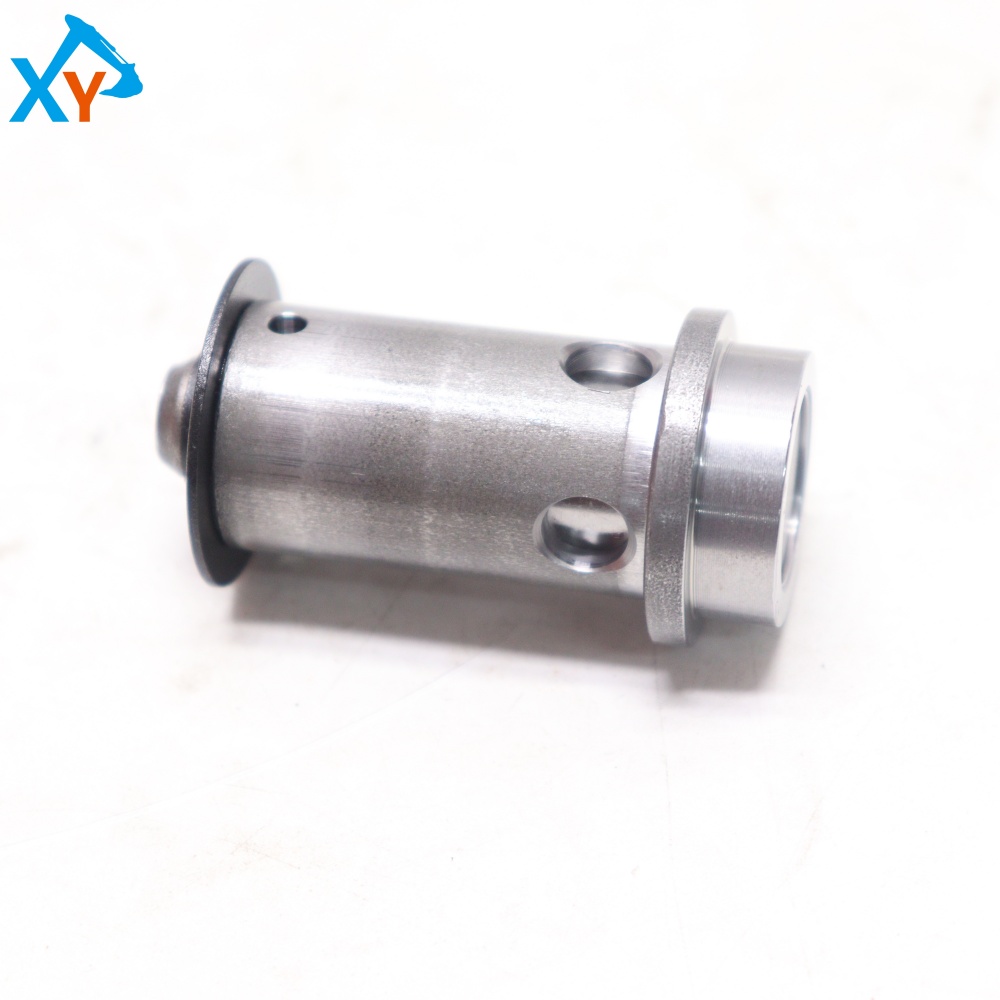

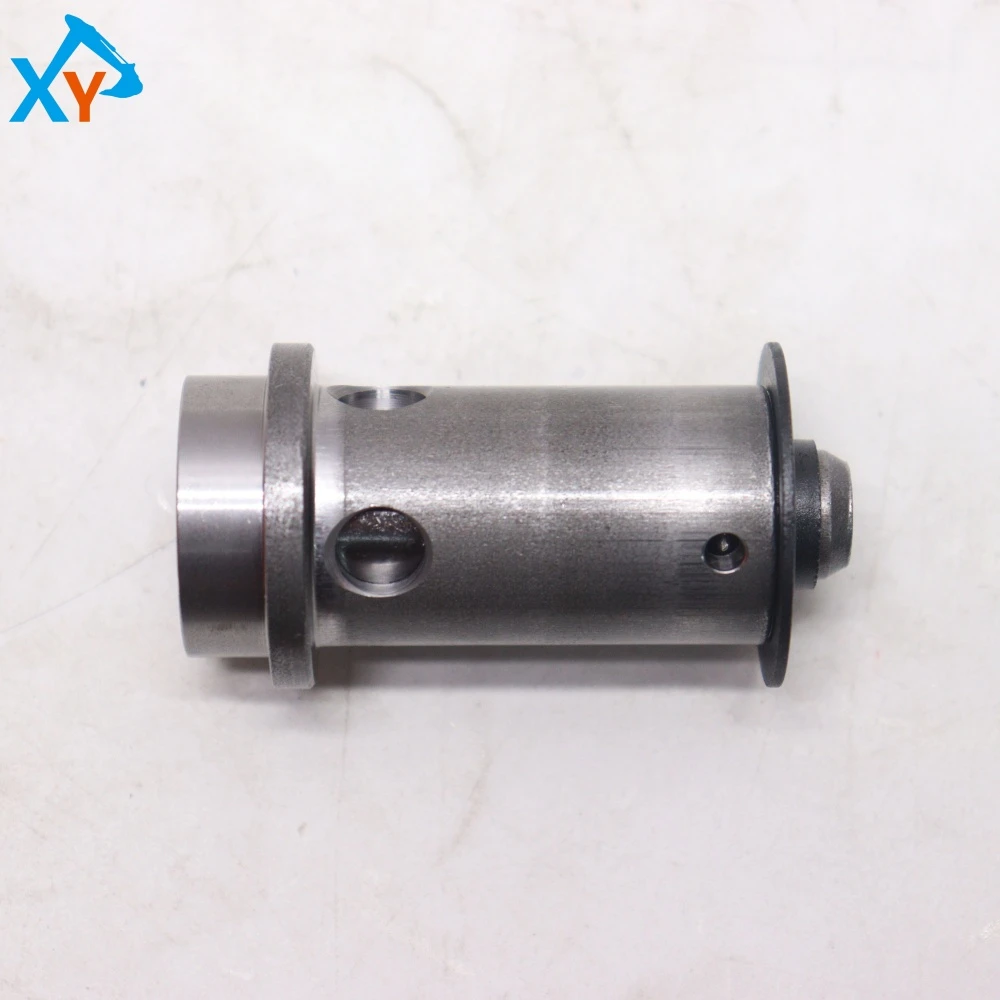

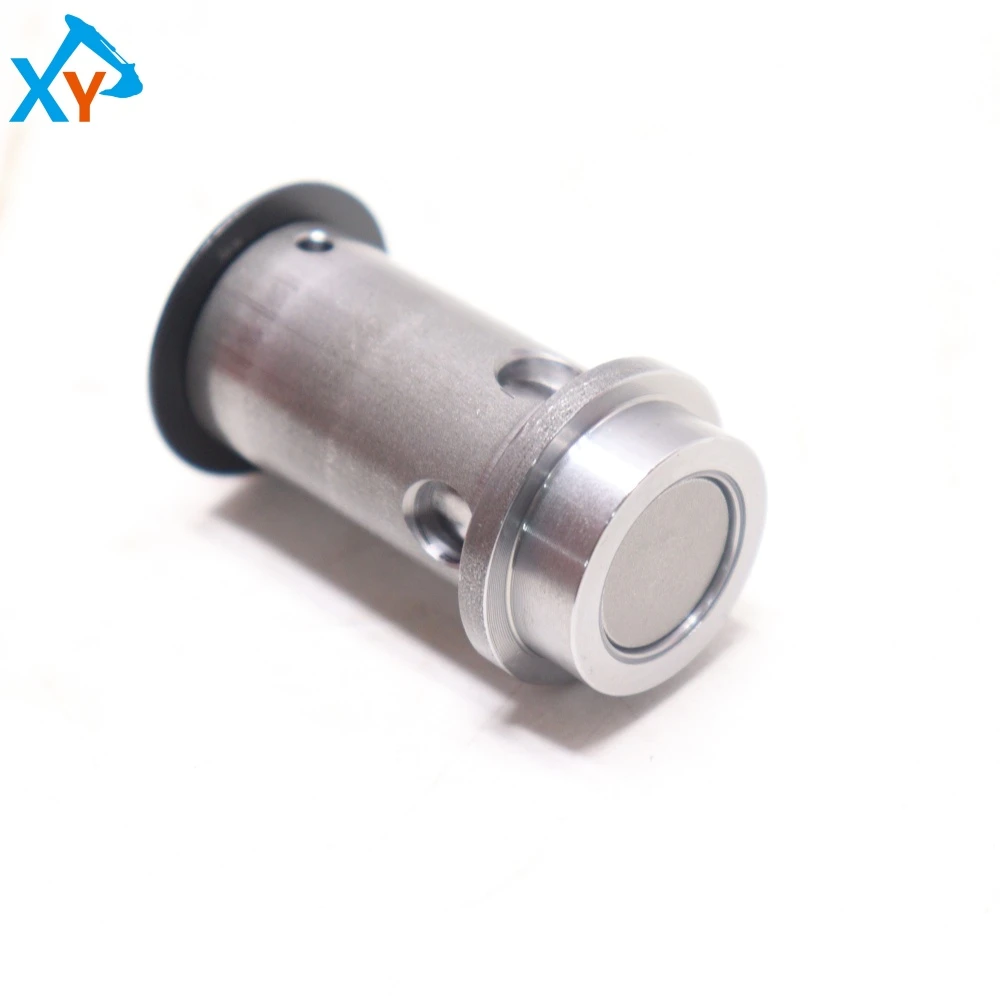

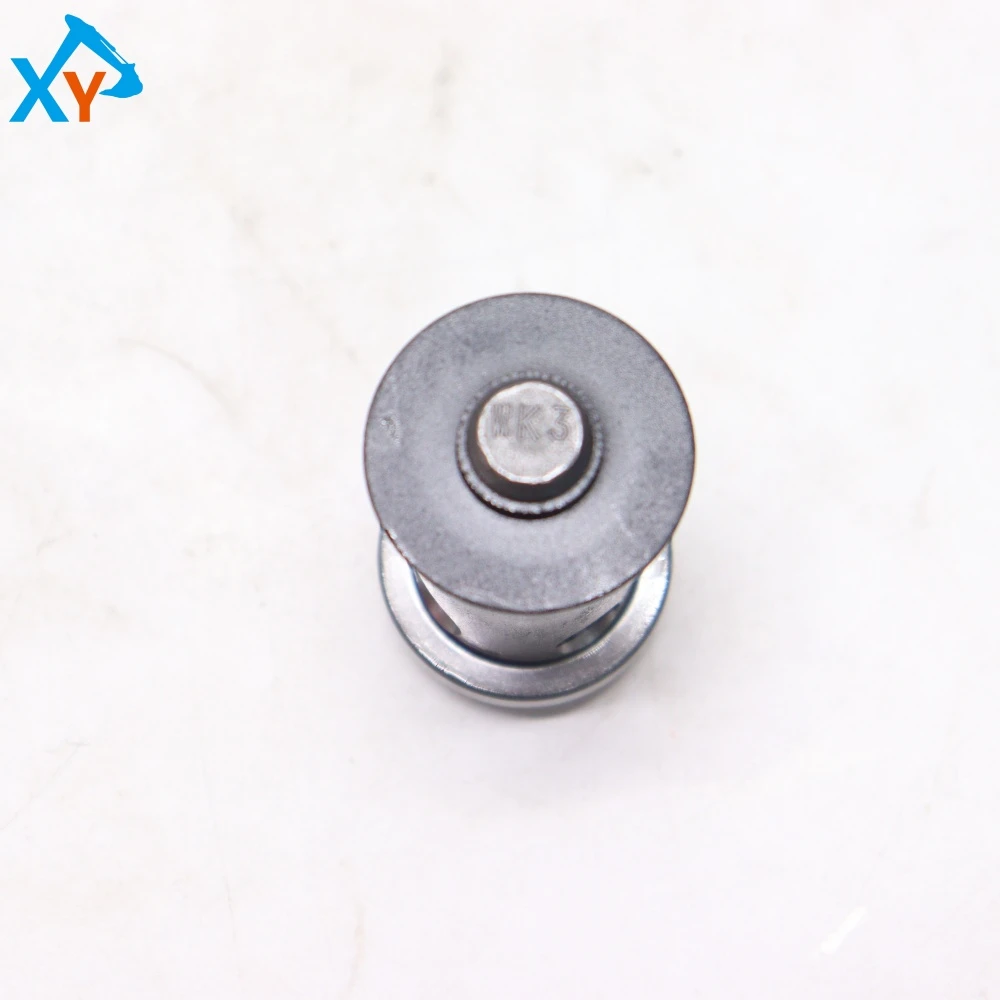

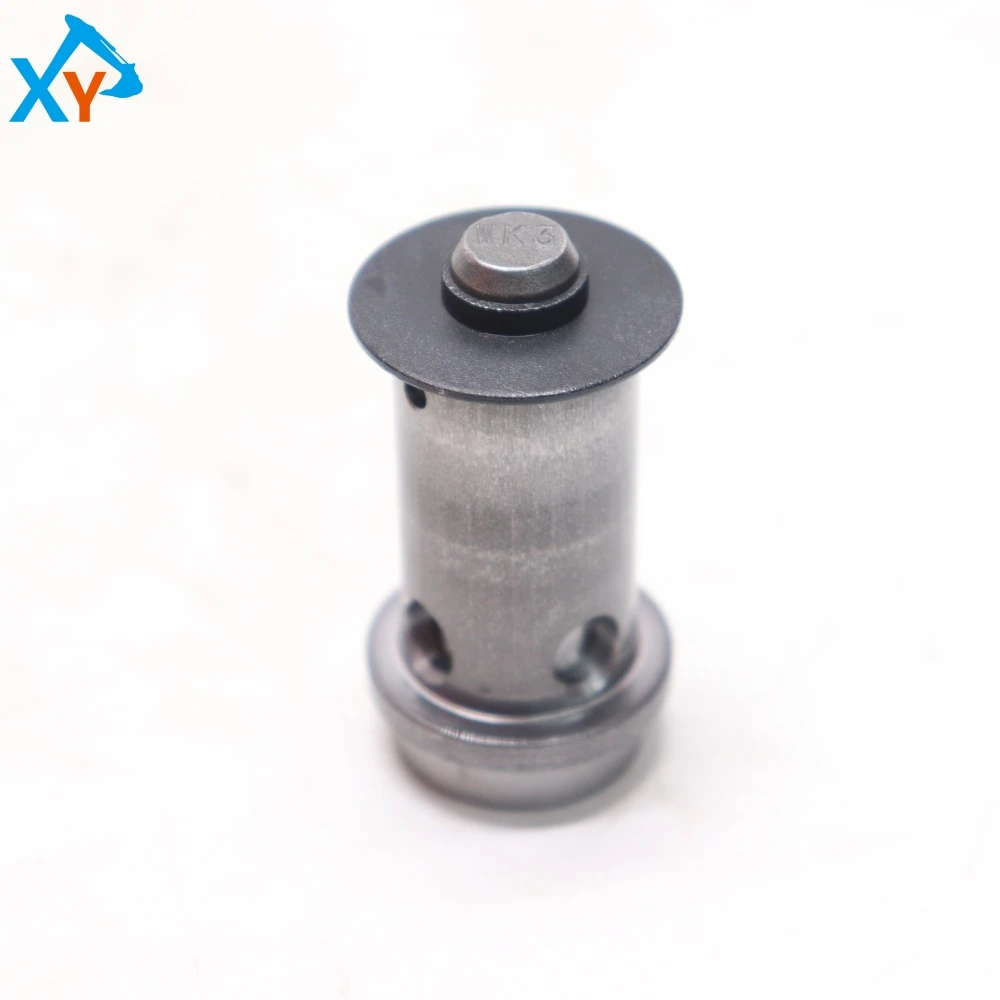

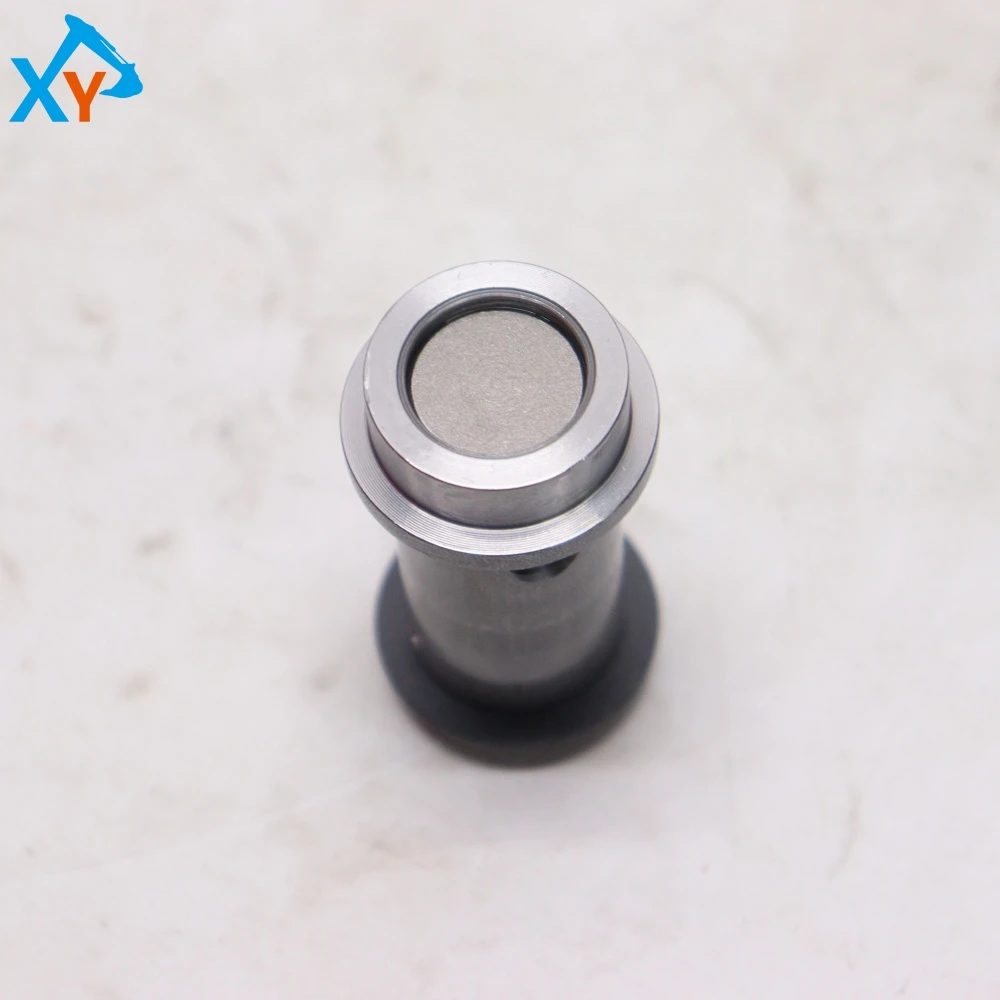

8970135662 Genuine 4HK1 Engine Parts Bypass Valve Assembly

The original Isuzu 4HK1 diesel engine bypass valve assembly (part number: 8970135662) is the core control component in the turbocharging system, used for precise adjustment of boost pressure. This component is specifically designed for the Isuzu 4HK1 series turbocharged diesel engine. This engine, as a high-performance power source, is widely used in several brands of 20-30 ton medium-sized hydraulic excavators. The main compatible models include Hitachi's ZX200-3, ZX230-3 and other ZX series models

The bypass valve assembly is a key electronic mechanical component that ensures smooth, efficient, and safe engine power output. It is integrated into the turbocharger and mainly consists of the exhaust bypass valve body, pneumatic or vacuum actuator, linkage mechanism, and related control solenoid valves. Its core function is to respond to instructions from the engine ECU (Electronic Control Unit), drive valve opening and closing by controlling actuators, and accurately adjust the amount of exhaust gas flowing through the turbine. When the ECU detects that the boost pressure reaches the preset upper limit (such as about 3.0-4.0 bar at full load), it will control the bypass valve to open, allowing some exhaust gas to bypass the turbine, preventing excessive boost pressure and protecting the engine and turbocharger. At the same time, it can quickly establish boost pressure at low speeds, improving throttle response; Prevent overcharging at high speeds, optimize fuel economy, and reduce turbine wear. The original parts are made of high-temperature resistant alloy materials to ensure reliable operation in a continuous high-temperature exhaust environment.

The maintenance core of the bypass valve assembly lies in regularly checking its operational flexibility and the sealing of the control system. In daily maintenance, it is necessary to check whether the vacuum tube or pneumatic pipeline connecting the actuator is aging, broken or detached, to ensure that the control signal transmission is correct. When running for 1000 hours or experiencing symptoms such as weak engine acceleration, black smoke, insufficient or excessive boost pressure, it is necessary to focus on checking
